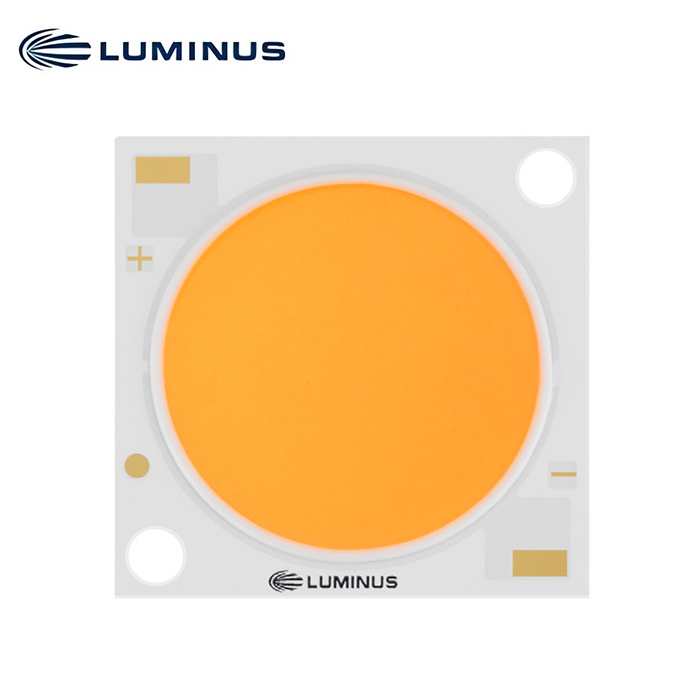

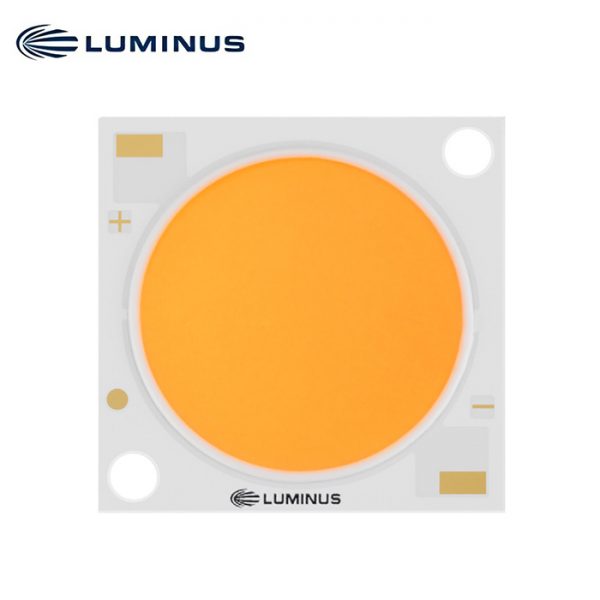

LUX Series G5 CLM-22 COB White LED Arrays
Features
• High lumen output and efficacy typical
• Over 5,900 lm, 172 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers – TC50 (On the BBL)
The following tables describe products with typical flux and minimum flux measured at 1,050mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 5,470 | 5,085 | 6,015 | 90 | CLM-22-24-90-36-TC50-F6-3 | CLM-22-24-90-36-TC50-F6-2 |
| 2700K | 5,840 | 5,430 | 6,425 | 90 | CLM-22-27-90-36-TC50-F6-3 | CLM-22-27-90-36-TC50-F6-2 |
| 5,335 | 4,960 | 5,865 | 95 | CLM-22-27-95-36-TC50-F6-3 | CLM-22-27-95-36-TC50-F6-2 | |
| 3000K | 5,945 | 5,530 | 6,540 | 90 | CLM-22-30-90-36-TC50-F6-3 | CLM-22-30-90-36-TC50-F6-2 |
| 5,525 | 5,135 | 6,075 | 95 | CLM-22-30-95-36-TC50-F6-3 | CLM-22-30-95-36-TC50-F6-2 | |
| 3500K | 6,220 | 5,785 | 6,845 | 90 | CLM-22-35-90-36-TC50-F6-3 | CLM-22-35-90-36-TC50-F6-2 |
| 5,555 | 5,165 | 6,110 | 95 | CLM-22-35-95-36-TC50-F6-3 | CLM-22-35-95-36-TC50-F6-2 | |
| 4000K | 6,210 | 5,775 | 6,830 | 90 | CLM-22-40-90-36-TC50-F6-3 | CLM-22-40-90-36-TC50-F6-2 |
| 5,780 | 5,375 | 6,360 | 95 | CLM-22-40-95-36-TC50-F6-3 | CLM-22-40-95-36-TC50-F6-2 | |
| 5000K | 6,160 | 5,725 | 6,775 | 90 | CLM-22-50-90-36-TC50-F6-3 | |
| 5,830 | 5,420 | 6,415 | 95 | CLM-22-50-95-36-TC50-F6-3 | ||
| 6500K | 6,055 | 5,630 | 6,660 | 90 | CLM-22-65-90-36-TC50-F6-3 | |
Ordering Part Numbers – TC52 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 1,050mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2700K | 5,665 | 5,265 | 6,230 | 90 | CLM-22-27-90-36-TC52-F6-3 | CLM-22-27-90-36-TC52-F6-2 |
| 3000K | 5,770 | 5,365 | 6,345 | 90 | CLM-22-30-90-36-TC52-F6-3 | CLM-22-30-90-36-TC52-F6-2 |
| 3500K | 5,915 | 5,500 | 6,505 | 90 | CLM-22-35-90-36-TC52-F6-3 | CLM-22-35-90-36-TC52-F6-2 |
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 1,050 | 2,400 | mA | |
| Forward Voltage3 | Vf | 31.0 | 33.5 | 37.0 | V |
| Power | 35.2 | 89 | W | ||
| Operating Case Temperature | T c | 105 | °C | ||
| Light Emitting Surface Diameter | LES | 22 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.14 | °C/W | ||
| Junction Temperature | Tj | 140 | °C | ||
| Viewing Angle | 120 | Degree |
