Description

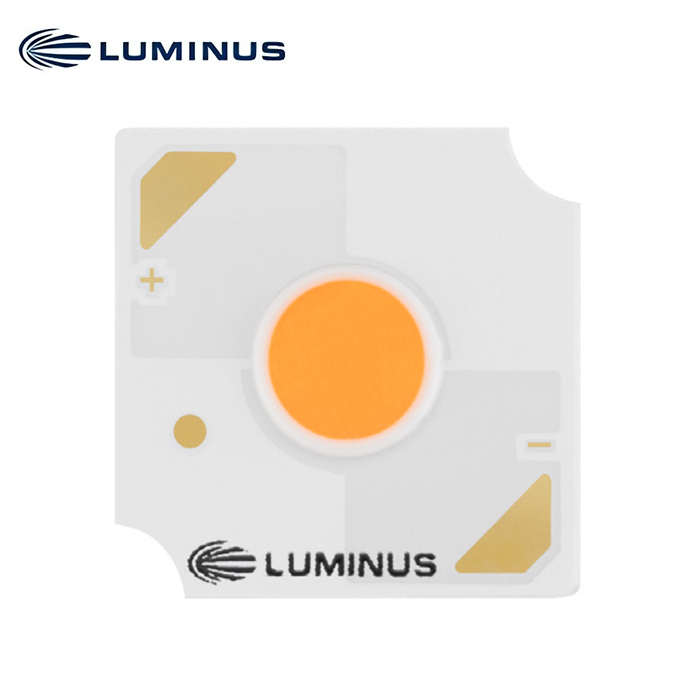

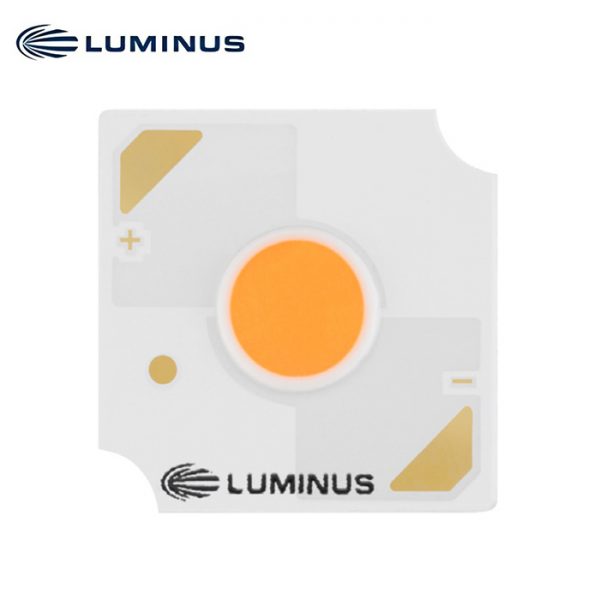

Lux Series G5 CXM-4 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 505 lm, 125 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Hotel Lighting
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers-36V
The following tables describe products with typical flux and minimum flux measured at 120mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ.
(85 °C) |
Min.
(85 °C) |
Calculated
Typ. (25 °C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 465 | 435 | 510 | 90 | CXM-4-24-90-36-TE50-F6-3 | CXM-4-24-90-36-TE50-F6-2 |
| 2700K | 495 | 460 | 545 | 90 | CXM-4-27-90-36-TE50-F6-3 | CXM-4-27-90-36-TE50-F6-2 |
| 455 | 420 | 500 | 95 | CXM-4-27-95-36-TE50-F6-3 | CXM-4-27-95-36-TE50-F6-2 | |
| 3000K | 505 | 470 | 555 | 90 | CXM-4-30-90-36-TE50-F6-3 | CXM-4-30-90-36-TE50-F6-2 |
| 470 | 440 | 520 | 95 | CXM-4-30-95-36-TE50-F6-3 | CXM-4-30-95-36-TE50-F6-2 | |
| 3500K | 530 | 490 | 580 | 90 | CXM-4-35-90-36-TE50-F6-3 | CXM-4-35-90-36-TE50-F6-2 |
| 470 | 440 | 520 | 95 | CXM-4-35-95-36-TE50-F6-3 | CXM-4-35-95-36-TE50-F6-2 | |
| 4000K | 530 | 490 | 580 | 90 | CXM-4-40-90-36-TE50-F6-3 | CXM-4-40-90-36-TE50-F6-2 |
| 490 | 455 | 540 | 95 | CXM-4-40-95-36-TE50-F6-3 | CXM-4-40-95-36-TE50-F6-2 | |
| 5000K | 525 | 485 | 575 | 90 | CXM-4-50-90-36-TE50-F6-3 | CXM-4-50-90-36-TE50-F6-2 |
| 495 | 460 | 545 | 95 | CXM-4-50-95-36-TE50-F6-3 | CXM-4-50-95-36-TE50-F6-2 | |
| 6500K | 515 | 480 | 565 | 90 | CXM-4-65-90-36-TE50-F6-3 | CXM-4-65-90-36-TE50-F6-2 |
Ordering Part Numbers-18V
The following tables describe products with typical flux and minimum flux measured at 240mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ.
(85 °C) |
Min.
(85 °C) |
Calculated
Typ. (25 °C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 465 | 435 | 510 | 90 | CXM-4-24-90-18-TE50-F6-3 | CXM-4-24-90-18-TE50-F6-2 |
| 2700K | 495 | 460 | 545 | 90 | CXM-4-27-90-18-TE50-F6-3 | CXM-4-27-90-18-TE50-F6-2 |
| 455 | 420 | 500 | 95 | CXM-4-27-95-18-TE50-F6-3 | CXM-4-27-95-18-TE50-F6-2 | |
| 3000K | 505 | 470 | 555 | 90 | CXM-4-30-90-18-TE50-F6-3 | CXM-4-30-90-18-TE50-F6-2 |
| 470 | 440 | 520 | 95 | CXM-4-30-95-18-TE50-F6-3 | CXM-4-30-95-18-TE50-F6-2 | |
| 3500K | 530 | 490 | 580 | 90 | CXM-4-35-90-18-TE50-F6-3 | CXM-4-35-90-18-TE50-F6-2 |
| 470 | 440 | 520 | 95 | CXM-4-35-95-18-TE50-F6-3 | CXM-4-35-95-18-TE50-F6-2 | |
| 4000K | 530 | 490 | 580 | 90 | CXM-4-40-90-18-TE50-F6-3 | CXM-4-40-90-18-TE50-F6-2 |
| 490 | 455 | 540 | 95 | CXM-4-40-95-18-TE50-F6-3 | CXM-4-40-95-18-TE50-F6-2 | |
| 5000K | 525 | 485 | 575 | 90 | CXM-4-50-90-18-TE50-F6-3 | CXM-4-50-90-18-TE50-F6-2 |
| 495 | 460 | 545 | 95 | CXM-4-50-95-18-TE50-F6-3 | CXM-4-50-95-18-TE50-F6-2 | |
| 6500K | 515 | 480 | 565 | 90 | CXM-4-65-90-18-TE50-F6-3 | CXM-4-65-90-18-TE50-F6-2 |
Ordering Part Numbers-9V
The following tables describe products with typical flux and minimum flux measured at 480mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ.
(85 °C) |
Min.
(85 °C) |
Calculated
Typ. (25 °C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 465 | 435 | 510 | 90 | CXM-4-24-90-9-TE50-F6-3 | CXM-4-24-90-9-TE50-F6-2 |
| 2700K | 495 | 460 | 545 | 90 | CXM-4-27-90-9-TE50-F6-3 | CXM-4-27-90-9-TE50-F6-2 |
| 455 | 420 | 500 | 95 | CXM-4-27-95-9-TE50-F6-3 | CXM-4-27-95-9-TE50-F6-2 | |
| 3000K | 505 | 470 | 555 | 90 | CXM-4-30-90-9-TE50-F6-3 | CXM-4-30-90-9-TE50-F6-2 |
| 470 | 440 | 520 | 95 | CXM-4-30-95-9-TE50-F6-3 | CXM-4-30-95-9-TE50-F6-2 | |
| 3500K | 530 | 490 | 580 | 90 | CXM-4-35-90-9-TE50-F6-3 | CXM-4-35-90-9-TE50-F6-2 |
| 470 | 440 | 520 | 95 | CXM-4-35-95-9-TE50-F6-3 | CXM-4-35-95-9-TE50-F6-2 | |
| 4000K | 530 | 490 | 580 | 90 | CXM-4-40-90-9-TE50-F6-3 | CXM-4-40-90-9-TE50-F6-2 |
| 490 | 455 | 540 | 95 | CXM-4-40-95-9-TE50-F6-3 | CXM-4-40-95-9-TE50-F6-2 | |
| 5000K | 525 | 485 | 575 | 90 | CXM-4-50-90-9-TE50-F6-3 | CXM-4-50-90-9-TE50-F6-2 |
| 495 | 460 | 545 | 95 | CXM-4-50-95-9-TE50-F6-3 | CXM-4-50-95-9-TE50-F6-2 | |
| 6500K | 515 | 480 | 565 | 90 | CXM-4-65-90-9-TE50-F6-3 | CXM-4-65-90-9-TE50-F6-2 |
