Description

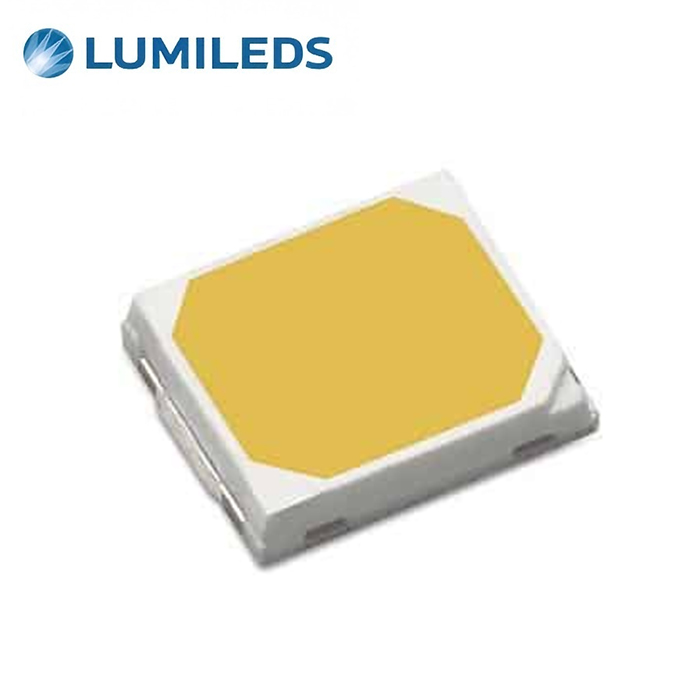

LUXEON 2835 Commercial LEDs
LUXEON 2835 Commercial mid-power LEDs are the price/performance leader for commercial indoor lighting solutions when lumens per Watt and lumens per dollar are the driving metrics for development. They are available in CCTs from 2700K to 6500K and CRIs of 80 and 90. LUXEON 2835 Commercial has a max current rating of 200mA and features a 1/5th color bin structure making it a perfect choice for indoor applications where you want the quality and reliability of LUXEON in a commercial application.
LUXEON 2835 Commercial leads its class in flux, color consistency, robustness, and reliability making it the right choice for commercial indoor luminaires.
Features & Benefits
- Complete CCT/CRI offering for various application
- Industry standard footprint for drop-in replacement
- Reliable package design for commercial applications
- 3 and 5 SDCM MacAdam ellipse enables precise color control
Applications
- Panel / Soft Lights
- Linear
- Troffers
LUXEON 2835 Commercial 3V Parts
Performance of LUXEON 2835 Commercial LEDs at specified test conditions.
| Nominal CCT |
Minimum CRI |
Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) | Test Current (mA) |
Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| 2700K | 80 | 30.0 | 33.2 | 185.1 | 65 | L128-2780SA35A00A1 |
| 3000K | 80 | 32.0 | 34.4 | 192 | 65 | L128-3080SA35A00A1 |
| 3500K | 80 | 32.5 | 35.1 | 196 | 65 | L128-3580SA35A00A1 |
| 4000K | 80 | 33.0 | 35.8 | 200 | 65 | L128-4080SA35A00A1 |
| 5000K | 80 | 33.0 | 35.8 | 200 | 65 | L128-5080SA35A00A1 |
| 5700K | 80 | 33.0 | 35.8 | 200 | 65 | L128-5780SA35A00A1 |
| 6500K | 80 | 32.5 | 35.4 | 197.3 | 65 | L128-6580SA35A00A1 |
| 2700K | 90 | 25.5 | 27.5 | 153.3 | 65 | L128-2790SA35A00A1 |
| 3000K | 90 | 26.8 | 28.8 | 160.5 | 65 | L128-3090SA35A00A1 |
| 3500K | 90 | 28.1 | 30.2 | 168.3 | 65 | L128-3590SA35A00A1 |
| 4000K | 90 | 28.6 | 30.8 | 171.7 | 65 | L128-4090SA35A00A1 |
| 5000K | 90 | 28.6 | 30.8 | 171.7 | 65 | L128-5090SA35A00A1 |
| 5700K | 90 | 28.6 | 30.8 | 171.7 | 65 | L128-5790SA35A00A1 |
| 6500K | 90 | 28.3 | 30.4 | 169.5 | 65 | L128-6590SA35A00A1 |
| 2700K | 80 | 31.3 | 34.3 | 194.7 | 65 | L128-2780SA35A00B1 |
| 3000K | 80 | 32.2 | 35.4 | 201 | 65 | L128-3080SA35A00B1 |
| 3500K | 80 | 33.2 | 36.3 | 206.1 | 65 | L128-3580SA35A00B1 |
| 4000K | 80 | 33.8 | 36.9 | 209.5 | 65 | L128-4080SA35A00B1 |
| 5000K | 80 | 33.8 | 37.1 | 210.6 | 65 | L128-5080SA35A00B1 |
| 5700K | 80 | 33.8 | 37.1 | 210.6 | 65 | L128-5780SA35A00B1 |
| 6500K | 80 | 33.3 | 36.6 | 207.8 | 65 | L128-6580SA35A00B1 |
| 2700K | 90 | 26.8 | 28.8 | 163.5 | 65 | L128-2790SA35A00B1 |
| 3000K | 90 | 27.4 | 29.9 | 169.7 | 65 | L128-3090SA35A00B1 |
| 3500K | 90 | 28.3 | 30.8 | 174.9 | 65 | L128-3590SA35A00B1 |
| 4000K | 90 | 29.4 | 31.8 | 180.5 | 65 | L128-4090SA35A00B1 |
| 5000K | 90 | 29.4 | 31.8 | 180.5 | 65 | L128-5090SA35A00B1 |
| 5700K | 90 | 29.4 | 31.8 | 180.5 | 65 | L128-5790SA35A00B1 |
| 6500K | 90 | 29.4 | 31.8 | 180.5 | 65 | L128-6590SA35A00B1 |
| 2700K | 80 | 29.2 | 31.4 | 173.8 | 65 | L128-2780SA35A00C1 |
| 3000K | 80 | 30.2 | 32.5 | 179.9 | 65 | L128-3080SA35A00C1 |
| 3500K | 80 | 31.1 | 33.5 | 185.4 | 65 | L128-3580SA35A00C1 |
| 4000K | 80 | 31.6 | 33.9 | 187.6 | 65 | L128-4080SA35A00C1 |
| 5000K | 80 | 31.6 | 34.0 | 188.2 | 65 | L128-5080SA35A00C1 |
| 5700K | 80 | 31.6 | 34.0 | 188.2 | 65 | L128-5780SA35A00C1 |
| 6500K | 80 | 31.4 | 33.7 | 186.5 | 65 | L128-6580SA35A00C1 |
| 2700K | 90 | 24.9 | 26.8 | 148.3 | 65 | L128-2790SA35A00C1 |
| 3000K | 90 | 25.8 | 27.8 | 153.8 | 65 | L128-3090SA35A00C1 |
| 3500K | 90 | 26.7 | 28.8 | 159.4 | 65 | L128-3590SA35A00C1 |
| 4000K | 90 | 28.2 | 30.3 | 167.7 | 65 | L128-4090SA35A00C1 |
| 5000K | 90 | 28.2 | 30.4 | 168.2 | 65 | L128-5090SA35A00C1 |
| 5700K | 90 | 28.2 | 30.4 | 168.2 | 65 | L128-5790SA35A00C1 |
| 6500K | 90 | 27.9 | 30.0 | 166.0 | 65 | L128-6590SA35A00C1 |
| 2700K | 80 | 31.6 | 34.0 | 190.9 | 65 | L128-2780SA35A00D1 |
| 3000K | 80 | 32.4 | 34.8 | 195.4 | 65 | L128-3080SA35A00D1 |
| 3500K | 80 | 33.1 | 35.5 | 199.3 | 65 | L128-3580SA35A00D1 |
| 4000K | 80 | 33.8 | 36.3 | 203.8 | 65 | L128-4080SA35A00D1 |
| 5000K | 80 | 34.2 | 36.7 | 206.1 | 65 | L128-5080SA35A00D1 |
| 5700K | 80 | 34.2 | 36.7 | 206.1 | 65 | L128-5780SA35A00D1 |
| 6500K | 80 | 33.8 | 36.3 | 203.8 | 65 | L128-6580SA35A00D1 |
| 2700K | 90 | 27.2 | 29.3 | 164.5 | 65 | L128-2790SA35A00D1 |
| 3000K | 90 | 28.4 | 30.6 | 171.8 | 65 | L128-3090SA35A00D1 |
| 3500K | 90 | 29.4 | 31.6 | 177.4 | 65 | L128-3590SA35A00D1 |
| 4000K | 90 | 29.7 | 32.0 | 179.7 | 65 | L128-4090SA35A00D1 |
| 5000K | 90 | 29.7 | 32.0 | 179.7 | 65 | L128-5090SA35A00D1 |
| 5700K | 90 | 29.6 | 31.8 | 178.6 | 65 | L128-5790SA35A00D1 |
| 6500K | 90 | 29.4 | 31.6 | 177.4 | 65 | L128-6590SA35A00D1 |
| 2500K | 95 | 23.3 | 24.1 | 135.3 | 65 | L128-2595SA35A00D1 |
| 2700K | 95 | 24.1 | 24.8 | 139.2 | 65 | L128-2795SA35A00D1 |
| 3000K | 95 | 25.1 | 25.8 | 144.9 | 65 | L128-3095SA35A00D1 |
| 3500K | 95 | 26.0 | 26.7 | 149.9 | 65 | L128-3595SA35A00D1 |
| 4500K | 95 | 27.5 | 28.3 | 158.9 | 65 | L128-4595SA35A00D1 |
| 5000K | 95 | 27.5 | 28.3 | 158.9 | 65 | L128-5095SA35A00D1 |
| 2700K | 90 | 33.1 | 34.2 | 192.0 | 65 | L128-2790SA35A0KD1 |
| 3000K | 90 | 33.9 | 35.0 | 196.4 | 65 | L128-3090SA35A0KD1 |
| 3500K | 90 | 34.3 | 35.4 | 199.0 | 65 | L128-3590SA35A0KD1 |
| 4000K | 90 | 34.6 | 35.8 | 201.0 | 65 | L128-4090SA35A0KD1 |
| 5000K | 90 | 34.4 | 35.6 | 200.0 | 65 | L128-5090SA35A0KD1 |
| 5700K | 90 | 34.3 | 35.4 | 199.0 | 65 | L128-5790SA35A0KD1 |
| 6500K | 90 | 34.3 | 35.4 | 199.0 | 65 | L128-6590SA35A0KD1 |
| 2700K | 70 | 34.7 | 36.4 | 207.4 | 65 | L128-2770SA35A00E1 |
| 3000K | 70 | 35.7 | 37.4 | 213.1 | 65 | L128-3070SA35A00E1 |
| 3500K | 70 | 36.1 | 37.8 | 215.4 | 65 | L128-3570SA35A00E1 |
| 4000K | 70 | 37.2 | 39.0 | 222.2 | 65 | L128-4070SA35A00E1 |
| 5000K | 70 | 36.8 | 38.5 | 219.4 | 65 | L128-5070SA35A00E1 |
| 5700K | 70 | 36.8 | 38.5 | 219.4 | 65 | L128-5770SA35A00E1 |
| 6500K | 70 | 36.5 | 38.2 | 217.7 | 65 | L128-6570SA35A00E1 |
| 2700K | 80 | 33.8 | 34.2 | 195 | 65 | L128-2780SA35A00E1 |
| 3000K | 80 | 34.3 | 35.2 | 200.6 | 65 | L128-3080SA35A00E1 |
| 3500K | 80 | 35.3 | 35.9 | 204.6 | 65 | L128-3580SA35A00E1 |
| 4000K | 80 | 37.2 | 38.2 | 218 | 65 | L128-4080SA35A00E1 |
| 5000K | 80 | 37.2 | 38.2 | 218 | 65 | L128-5080SA35A00E1 |
| 5700K | 80 | 36.7 | 38.2 | 218 | 65 | L128-5780SA35A00E1 |
| 6500K | 80 | 35.7 | 37.5 | 214 | 65 | L128-6580SA35A00E1 |
| 2700K | 90 | 29.8 | 31.0 | 176.6 | 65 | L128-2790SA35A00E1 |
| 3000K | 90 | 30.6 | 32.2 | 183.5 | 65 | L128-3090SA35A00E1 |
| 3500K | 90 | 30.8 | 32.4 | 184.6 | 65 | L128-3590SA35A00E1 |
| 4000K | 90 | 31.3 | 32.7 | 186.3 | 65 | L128-4090SA35A00E1 |
| 5000K | 90 | 31.3 | 32.7 | 186.3 | 65 | L128-5090SA35A00E1 |
| 5700K | 90 | 31.3 | 32.7 | 186.3 | 65 | L128-5790SA35A00E1 |
| 6500K | 90 | 31.8 | 32.7 | 186.3 | 65 | L128-6590SA35A00E1 |
| 2700K | 70 | 35.8 | 37.4 | 213.1 | 65 | L128-2770SA35A00F1 |
| 3000K | 70 | 36.9 | 38.6 | 219.9 | 65 | L128-3070SA35A00F1 |
| 3500K | 70 | 37.3 | 39.1 | 222.8 | 65 | L128-3570SA35A00F1 |
| 4000K | 70 | 38.8 | 40.6 | 231.3 | 65 | L128-4070SA35A00F1 |
| 5000K | 70 | 38.3 | 40.1 | 228.5 | 65 | L128-5070SA35A00F1 |
| 5700K | 70 | 38.3 | 40.1 | 228.5 | 65 | L128-5770SA35A00F1 |
| 6500K | 70 | 37.8 | 39.6 | 225.6 | 65 | L128-6570SA35A00F1 |
| 2700K | 80 | 34.8 | 35.2 | 200.6 | 65 | L128-2780SA35A00F1 |
| 3000K | 80 | 35.7 | 36.1 | 205.7 | 65 | L128-3080SA35A00F1 |
| 3500K | 80 | 36.7 | 37.3 | 212.5 | 65 | L128-3580SA35A00F1 |
| 4000K | 80 | 37.5 | 38.6 | 220 | 65 | L128-4080SA35A00F1 |
| 5000K | 80 | 37.7 | 38.6 | 220 | 65 | L128-5080SA35A00F1 |
| 5700K | 80 | 37.7 | 38.6 | 220 | 65 | L128-5780SA35A00F1 |
| 6500K | 80 | 37.7 | 39.5 | 225.1 | 65 | L128-6580SA35A00F1 |
| 2700K | 90 | 29.8 | 31.2 | 177.7 | 65 | L128-2790SA35A00F1 |
| 3000K | 90 | 30.8 | 32.4 | 184.5 | 65 | L128-3090SA35A00F1 |
| 3500K | 90 | 31.8 | 32.6 | 185.6 | 65 | L128-3590SA35A00F1 |
| 4000K | 90 | 32.3 | 33.0 | 187.8 | 65 | L128-4090SA35A00F1 |
| 5000K | 90 | 32.3 | 33.0 | 187.8 | 65 | L128-5090SA35A00F1 |
| 5700K | 90 | 32.3 | 33.0 | 187.8 | 65 | L128-5790SA35A00F1 |
| 6500K | 90 | 32.3 | 33.0 | 187.8 | 65 | L128-6590SA35A00F1 |
| 2700K | 80 | 30.2 | 31.7 | 175.4 | 65 | L128-2780SA35A00G1 |
| 3000K | 80 | 30.7 | 32.3 | 178.7 | 65 | L128-3080SA35A00G1 |
| 3500K | 80 | 30.9 | 32.5 | 179.9 | 65 | L128-3580SA35A00G1 |
| 4000K | 80 | 32.5 | 34.2 | 189.3 | 65 | L128-4080SA35A00G1 |
| 5000K | 80 | 32.5 | 34.2 | 189.3 | 65 | L128-5080SA35A00G1 |
| 5700K | 80 | 32.5 | 34.2 | 189.3 | 65 | L128-5780SA35A00G1 |
| 6500K | 80 | 31.8 | 33.5 | 185.4 | 65 | L128-6580SA35A00G1 |
| 2700K | 90 | 25.0 | 26.1 | 144.4 | 65 | L128-2790SA35A00G1 |
| 3000K | 90 | 26.0 | 27.1 | 150.0 | 65 | L128-3090SA35A00G1 |
| 3500K | 90 | 27.0 | 28.1 | 155.5 | 65 | L128-3590SA35A00G1 |
| 4000K | 90 | 28.3 | 29.5 | 163.3 | 65 | L128-4090SA35A00G1 |
| 5000K | 90 | 28.0 | 29.2 | 161.6 | 65 | L128-5090SA35A00G1 |
| 5700K | 90 | 28.0 | 29.2 | 161.6 | 65 | L128-5790SA35A00G1 |
| 6500K | 90 | 27.6 | 28.8 | 159.4 | 65 | L128-6590SA35A00G1 |
| 2700K | 80 | 28.2 | 29.2 | 155 | 65 | L128-2780SA35A00H1 |
| 3000K | 80 | 29.0 | 30.0 | 159.2 | 65 | L128-3080SA35A00H1 |
| 3500K | 80 | 30.2 | 31.2 | 166 | 65 | L128-3580SA35A00H1 |
| 4000K | 80 | 30.6 | 31.6 | 168 | 65 | L128-4080SA35A00H1 |
| 5000K | 80 | 30.6 | 31.6 | 168 | 65 | L128-5080SA35A00H1 |
| 5700K | 80 | 30.2 | 31.2 | 166 | 65 | L128-5780SA35A00H1 |
| 6500K | 80 | 30.0 | 31.0 | 165 | 65 | L128-6580SA35A00H1 |
LUXEON 2835 Commercial 6V Parts
Performance of LUXEON 2835 Commercial LEDs at specified test conditions.
| Nominal CCT |
Minimum CRI |
Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) | Test Current (mA) |
Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| 2700K | 80 | 102.3 | 110.1 | 151.7 | 120 | L128-2780SB35B00A1 |
| 3000K | 80 | 105.1 | 113.2 | 155.9 | 120 | L128-3080SB35B00A1 |
| 3500K | 80 | 107.9 | 116.1 | 159.9 | 120 | L128-3580SB35B00A1 |
| 4000K | 80 | 110.9 | 119.4 | 164.5 | 120 | L128-4080SB35B00A1 |
| 5000K | 80 | 110.9 | 119.4 | 164.5 | 120 | L128-5080SB35B00A1 |
| 5700K | 80 | 110.9 | 119.4 | 164.5 | 120 | L128-5780SB35B00A1 |
| 6500K | 80 | 109.8 | 118.3 | 162.9 | 120 | L128-6580SB35B00A1 |
| 2700K | 90 | 85.6 | 92.3 | 127.1 | 120 | L128-2790SB35B00A1 |
| 3000K | 90 | 89.4 | 96.4 | 132.8 | 120 | L128-3090SB35B00A1 |
| 3500K | 90 | 93.3 | 100.6 | 138.6 | 120 | L128-3590SB35B00A1 |
| 4000K | 90 | 96.8 | 104.3 | 143.7 | 120 | L128-4090SB35B00A1 |
| 5000K | 90 | 96.8 | 104.3 | 143.7 | 120 | L128-5090SB35B00A1 |
| 5700K | 90 | 96.8 | 104.3 | 143.7 | 120 | L128-5790SB35B00A1 |
| 6500K | 90 | 96.4 | 103.9 | 143.1 | 120 | L128-6590SB35B00A1 |
