Description

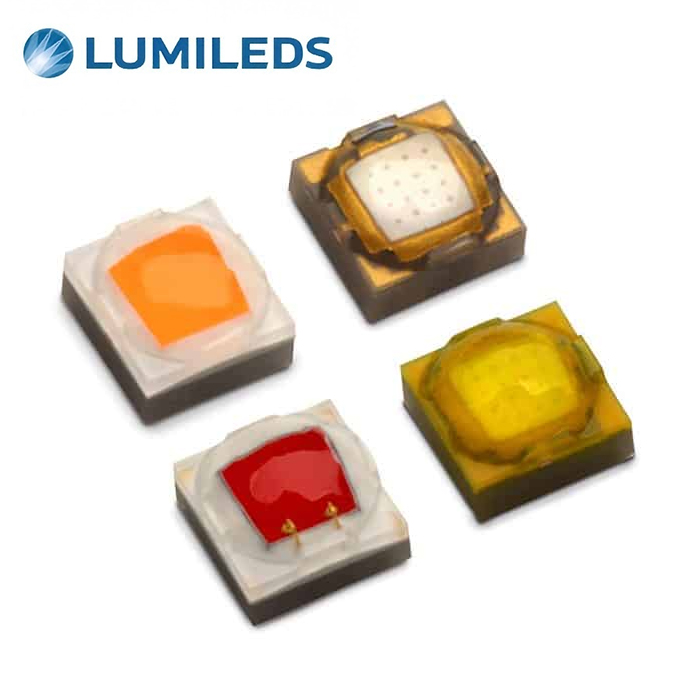

LUXEON CZ Color Line
LUXEON CZ Color Line is an optically advanced portfolio of Color and White LEDs. Designed to maximize punch, the LUXEON CZ Color Line is the optimal LED solution for architecture, entertainment and emergency vehicle lighting applications.
Features & Benefits
- Small and symmetrical 2x2mm² package
- Industry leading Hot/Cold Factors and the lowest thermal resistance
- Maximized punch (cd/lm)
Applications
- Downlights
- Floodlights
- LED Landscape and Pathway Lighting
- Linear
- Moving Head
- Sconce
LUXEON CZ Colors product performance at 350mA,Tj=85°C.
| Color | Dominant or Peak Wavelength (nm) |
Luminous Flux (lm) or Radiometric Power (mW) |
Part Number | ||
|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Typical | ||
 Far Red |
720 | 750 | 150 | 240 | L1CU-FRD1000000000 |
 Deep Red |
655 | 675 | 190 | 260 | L1CU-DRD1000000000 |
| Red |
624 | 634 | 20 | 31 | L1CU-RED1000000000 |
 Red-Orange |
614 | 624 | 25 | 37 | L1CU-RNG1000000000 |
 Amber |
585 | 600 | 10 | 16 | L1CU-AMB1000000000 |
| PC Amber |
– | – | 65 | 78 | L1CU-PCA1000000000 |
 Mint |
– | – | 120 | 132 | L1CU-MNT1000000000 |
 Lime |
– | – | 120 | 122 | L1CU-LME1000000000 |
 Green |
520 | 540 | 80 | 117 | L1CU-GRN1000000000 |
 Cyan |
490 | 510 | 60 | 82 | L1CU-CYN1000000000 |
 Blue |
465 | 485 | 25 | 34 | L1CU-BLU1000000000 |
| PC Blue |
– | – | 35 | 44 | L1CU-PCB1000000000 |
 Royal Blue |
440 | 460 | 360 | 425 | L1CU-RYL1000000000 |
| Violet |
420 | 430 | 400 | 458 | L1CU-VLT1000000000 |
LUXEON CZ White product performance at 350mA,Tj=85°C.
| Color | NOMINAL CCT | Minimum CRI | Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) |
Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| White | 4000K | 70 | 100 | 109 | 113 | L1CU-4070000000000 |
| 5000K | 70 | 100 | 109 | 113 | L1CU-5070000000000 | |
| 5700K | 70 | 100 | 109 | 113 | L1CU-5770000000000 | |
| 6500K | 70 | 100 | 109 | 113 | L1CU-6570000000000 | |
| 2200K | 80 | 75 | 89 | 92 | L1CU-2280000000000 | |
| 2700K | 80 | 80 | 89 | 92 | L1CU-2780000000000 | |
| 3000K | 80 | 90 | 95 | 99 | L1CU-3080000000000 | |
| 3500K | 80 | 90 | 106 | 110 | L1CU-3580000000000 | |
| 4000K | 80 | 90 | 99 | 103 | L1CU-4080000000000 | |
| 2700K | 90 | 65 | 74 | 77 | L1CU-2790000000000 | |
| 3000K | 90 | 65 | 79 | 82 | L1CU-3090000000000 | |
| 3500K | 90 | 75 | 86 | 89 | L1CU-3590000000000 | |
| 4000K | 90 | 75 | 89 | 92 | L1CU-4090000000000 | |
| 5700K | 90 | 70 | 89 | 92 | L1CU-5790000000000 | |
