Description

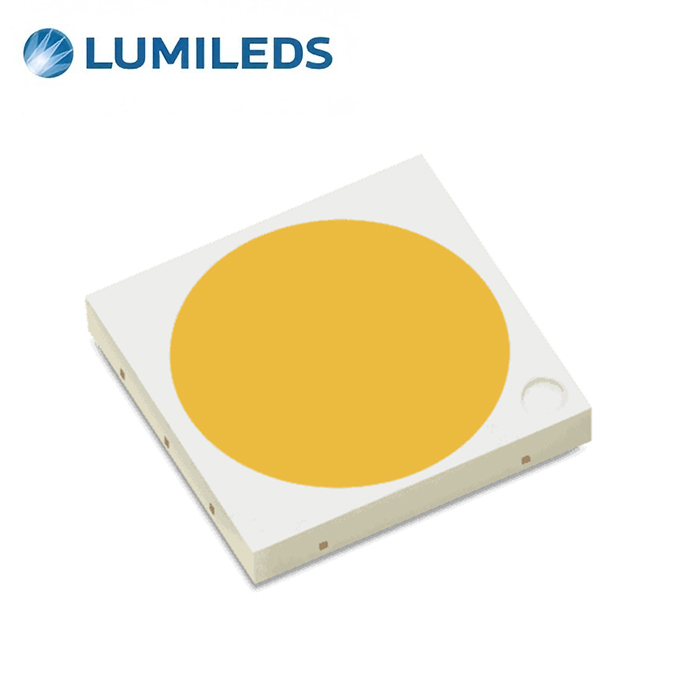

LUXEON SunPlus 5050
LUXEON SunPlus 5050 is a multi-die, high power robust LEDs using an industry-standard 5050 surface mount package with a small Light Emitting Surface (LES). LUXEON LUXEON SunPlus 5050 delivers top-rated μmol/J and PPF (μmol/s) performance and long lifetime with CCTs ranging from 1800K to 6500K and CRIs of 70, 80, and 90. It offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C.
Features & Benefits
- Top-rated μmol/J and PPF (μmol/s) performance
- Extremely reliable package design affirms long lifetime in hash environments
Applications
- Horticulture
5050 Round Parts
Product performance of LUXEON SunPlus 5050 at specified current, Tj=25°C. Correlated color temperature is hot targeted at Tj=85°C
| Voltage | Nominal CCT |
Minimum CRI |
PPF (umol/s) | PPF/W Typical (umol/J) |
Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| 24V | 1800K | 70 | 6.25 | 7.01 | 1.80 | L150-1870502400000 |
| 2200K | 70 | 7.50 | 8.41 | 2.15 | L150-2270502400000 | |
| 2700K | 70 | 7.28 | 8.57 | 2.19 | L150-2770502400000 | |
| 3000K | 70 | 7.66 | 8.72 | 2.23 | L150-3070502400000 | |
| 3500K | 70 | 8.30 | 8.87 | 2.27 | L150-3570502400000 | |
| 4000K | 70 | 7.10 | 9.06 | 2.32 | L150-4070502400000 | |
| 5000K | 70 | 8.01 | 9.01 | 2.31 | L150-5070502400000 | |
| 5700K | 70 | 8.02 | 9.00 | 2.31 | L150-5770502400000 | |
| 6500K | 70 | 8.04 | 9.02 | 2.31 | L150-6570502400000 | |
| 2200K | 80 | 6.94 | 8.01 | 2.05 | L150-2280502400000 | |
| 2700K | 80 | 7.20 | 8.44 | 2.16 | L150-2780502400000 | |
| 3000K | 80 | 7.16 | 8.62 | 2.21 | L150-3080502400000 | |
| 3500K | 80 | 5.40 | 8.63 | 2.21 | L150-3580502400000 | |
| 4000K | 80 | 7.95 | 8.75 | 2.24 | L150-4080502400000 | |
| 5000K | 80 | 7.74 | 8.81 | 2.26 | L150-5080502400000 | |
| 5700K | 80 | 7.75 | 8.74 | 2.24 | L150-5780502400000 | |
| 6500K | 80 | 8.00 | 8.75 | 2.24 | L150-6580502400000 | |
| 2700K | 90 | 6.77 | 7.59 | 1.94 | L150-2790502400000 | |
| 3000K | 90 | 6.97 | 7.75 | 1.98 | L150-3090502400000 | |
| 3500K | 90 | 7.23 | 7.90 | 2.02 | L150-3590502400000 | |
| 4000K | 90 | 7.58 | 8.17 | 2.09 | L150-4090502400000 | |
| 5000K | 90 | 7.67 | 8.13 | 2.08 | L150-5090502400000 | |
| 5700K | 90 | 7.49 | 8.08 | 2.07 | L150-5790502400000 | |
| 6V | 1800K | 70 | 6.25 | 7.01 | 1.80 | L150-1870500600000 |
| 2200K | 70 | 7.50 | 8.41 | 2.15 | L150-2270500600000 | |
| 2700K | 70 | 7.28 | 8.57 | 2.19 | L150-2770500600000 | |
| 3000K | 70 | 7.66 | 8.72 | 2.23 | L150-3070500600000 | |
| 3500K | 70 | 8.30 | 8.87 | 2.27 | L150-3570500600000 | |
| 4000K | 70 | 7.10 | 9.06 | 2.32 | L150-4070500600000 | |
| 5000K | 70 | 8.01 | 9.01 | 2.31 | L150-5070500600000 | |
| 5700K | 70 | 8.02 | 9.00 | 2.31 | L150-5770500600000 | |
| 6500K | 70 | 8.04 | 9.02 | 2.31 | L150-6570500600000 | |
| 2200K | 80 | 6.94 | 8.01 | 2.05 | L150-2280500600000 | |
| 2700K | 80 | 7.20 | 8.44 | 2.16 | L150-2780500600000 | |
| 3000K | 80 | 7.16 | 8.62 | 2.21 | L150-3080500600000 | |
| 3500K | 80 | 5.40 | 8.63 | 2.21 | L150-3580500600000 | |
| 4000K | 80 | 7.95 | 8.75 | 2.24 | L150-4080500600000 | |
| 5000K | 80 | 7.74 | 8.81 | 2.26 | L150-5080500600000 | |
| 5700K | 80 | 7.75 | 8.74 | 2.24 | L150-5780500600000 | |
| 6500K | 80 | 8.00 | 8.75 | 2.24 | L150-6580500600000 | |
| 2700K | 90 | 6.77 | 7.59 | 1.94 | L150-2790500600000 | |
| 3000K | 90 | 6.97 | 7.75 | 1.98 | L150-3090500600000 | |
| 3500K | 90 | 7.23 | 7.90 | 2.02 | L150-3590500600000 | |
| 4000K | 90 | 7.58 | 8.17 | 2.09 | L150-4090500600000 | |
| 5000K | 90 | 7.67 | 8.13 | 2.08 | L150-5090500600000 | |
| 5700K | 90 | 7.49 | 8.08 | 2.07 | L150-5790500600000 | |
5050 Square Parts
Product performance of LUXEON SunPlus 5050 at specified current, Tj=25°C. Correlated color temperature is hot targeted at Tj=85°C
| Voltage | Nominal CCT | Minimum CRI | PPF (umol/s) | PPF/W Typical (umol/J) | Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| 30V | 1800K | 70 | 9.03 | 9.70 | 1.99 | L150-18705030000S0 |
| 2200K | 70 | 9.03 | 10.30 | 2.11 | L150-22705030000S0 | |
| 2700K | 70 | 9.36 | 10.60 | 2.17 | L150-27705030000S0 | |
| 3000K | 70 | 9.71 | 10.70 | 2.19 | L150-30705030000S0 | |
| 3500K | 70 | 9.53 | 10.80 | 2.21 | L150-35705030000S0 | |
| 4000K | 70 | 9.68 | 10.90 | 2.23 | L150-40705030000S0 | |
| 5000K | 70 | 9.69 | 11.00 | 2.25 | L150-50705030000S0 | |
| 5700K | 70 | 9.98 | 11.10 | 2.27 | L150-57705030000S0 | |
| 6500K | 70 | 9.56 | 11.00 | 2.25 | L150-65705030000S0 | |
| 2200K | 80 | 9.23 | 9.85 | 2.02 | L150-22805030000S0 | |
| 2700K | 80 | 9.29 | 9.97 | 2.04 | L150-27805030000S0 | |
| 3000K | 80 | 9.70 | 10.24 | 2.10 | L150-30805030000S0 | |
| 3500K | 80 | 9.25 | 10.12 | 2.07 | L150-35805030000S0 | |
| 4000K | 80 | 9.87 | 10.52 | 2.16 | L150-40805030000S0 | |
| 5000K | 80 | 9.93 | 10.66 | 2.18 | L150-50805030000S0 | |
| 5700K | 80 | 9.76 | 10.67 | 2.19 | L150-57805030000S0 | |
| 6500K | 80 | 10.26 | 10.59 | 2.17 | L150-65805030000S0 | |
| 2700K | 90 | 9.55 | 9.82 | 2.01 | L150-27905030000S0 | |
| 3000K | 90 | 9.48 | 10.09 | 2.07 | L150-30905030000S0 | |
| 3500K | 90 | 9.48 | 10.06 | 2.06 | L150-35905030000S0 | |
| 4000K | 90 | 9.81 | 10.16 | 2.08 | L150-40905030000S0 | |
| 5000K | 90 | 9.88 | 10.23 | 2.10 | L150-50905030000S0 | |
| 5700K | 90 | 9.87 | 10.28 | 2.11 | L150-57905030000S0 | |
| 6V | 1800K | 70 | 9.03 | 9.70 | 1.99 | L150-18705006000S0 |
| 2200K | 70 | 9.03 | 10.30 | 2.11 | L150-22705006000S0 | |
| 2700K | 70 | 9.36 | 10.60 | 2.17 | L150-27705006000S0 | |
| 3000K | 70 | 9.71 | 10.70 | 2.19 | L150-30705006000S0 | |
| 3500K | 70 | 9.53 | 10.80 | 2.21 | L150-35705006000S0 | |
| 4000K | 70 | 9.68 | 10.90 | 2.23 | L150-40705006000S0 | |
| 5000K | 70 | 9.69 | 11.00 | 2.25 | L150-50705006000S0 | |
| 5700K | 70 | 9.98 | 11.10 | 2.27 | L150-57705006000S0 | |
| 6500K | 70 | 9.56 | 11.00 | 2.25 | L150-65705006000S0 | |
| 2200K | 80 | 9.23 | 9.85 | 2.02 | L150-22805006000S0 | |
| 2700K | 80 | 9.29 | 9.97 | 2.04 | L150-27805006000S0 | |
| 3000K | 80 | 9.70 | 10.24 | 2.10 | L150-30805006000S0 | |
| 3500K | 80 | 9.25 | 10.12 | 2.07 | L150-35805006000S0 | |
| 4000K | 80 | 9.87 | 10.52 | 2.16 | L150-40805006000S0 | |
| 5000K | 80 | 9.93 | 10.66 | 2.18 | L150-50805006000S0 | |
| 5700K | 80 | 9.76 | 10.67 | 2.19 | L150-57805006000S0 | |
| 6500K | 80 | 10.26 | 10.59 | 2.17 | L150-65805006000S0 | |
| 2700K | 90 | 9.55 | 9.82 | 2.01 | L150-27905006000S0 | |
| 3000K | 90 | 9.48 | 10.09 | 2.07 | L150-30905006000S0 | |
| 3500K | 90 | 9.48 | 10.06 | 2.06 | L150-35905006000S0 | |
| 4000K | 90 | 9.81 | 10.16 | 2.08 | L150-40905006000S0 | |
| 5000K | 90 | 9.88 | 10.23 | 2.10 | L150-50905006000S0 | |
| 5700K | 90 | 9.87 | 10.28 | 2.11 | L150-57905006000S0 | |
5050 HE Parts
Product performance of LUXEON SunPlus 5050 at specified current, Tj=25°C. Correlated color temperature is hot targeted at Tj=85°C
| Voltage | Nominal CCT |
Minimum CRI |
PPF (umol/s) | PPF/W Typical (umol/J) |
Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| 24V | 1800K | 70 | 7.30 | 8.04 | 2.08 | L150-18705024000H0 |
| 2200K | 70 | 8.06 | 8.67 | 2.24 | L150-22705024000H0 | |
| 2700K | 70 | 8.38 | 8.94 | 2.31 | L150-27705024000H0 | |
| 3000K | 70 | 8.29 | 9.09 | 2.35 | L150-30705024000H0 | |
| 3500K | 70 | 8.21 | 9.28 | 2.40 | L150-35705024000H0 | |
| 4000K | 70 | 8.42 | 9.37 | 2.42 | L150-40705024000H0 | |
| 5000K | 70 | 8.61 | 9.47 | 2.45 | L150-50705024000H0 | |
| 5700K | 70 | 9.00 | 9.51 | 2.46 | L150-57705024000H0 | |
| 6500K | 70 | 8.58 | 9.62 | 2.48 | L150-65705024000H0 | |
| 2200K | 80 | 7.51 | 8.15 | 2.10 | L150-22805024000H0 | |
| 2700K | 80 | 7.84 | 8.52 | 2.20 | L150-27805024000H0 | |
| 3000K | 80 | 7.66 | 8.73 | 2.25 | L150-30805024000H0 | |
| 3500K | 80 | 8.09 | 8.92 | 2.30 | L150-35805024000H0 | |
| 4000K | 80 | 8.18 | 8.97 | 2.32 | L150-40805024000H0 | |
| 5000K | 80 | 8.42 | 9.01 | 2.33 | L150-50805024000H0 | |
| 5700K | 80 | 8.29 | 9.07 | 2.34 | L150-57805024000H0 | |
| 6500K | 80 | 8.58 | 9.11 | 2.35 | L150-65805024000H0 | |
| 2700K | 90 | 7.73 | 8.20 | 2.12 | L150-27905024000H0 | |
| 3000K | 90 | 7.92 | 8.28 | 2.14 | L150-30905024000H0 | |
| 3500K | 90 | 8.11 | 8.42 | 2.18 | L150-35905024000H0 | |
| 4000K | 90 | 8.14 | 8.58 | 2.22 | L150-40905024000H0 | |
| 5000K | 90 | 8.36 | 8.77 | 2.26 | L150-50905024000H0 | |
| 5700K | 90 | 8.31 | 8.79 | 2.27 | L150-57905024000H0 | |
| 1800K | 70 | 7.30 | 8.00 | 2.07 | L150-1870502400TH0 | |
| 2200K | 70 | 8.06 | 8.63 | 2.23 | L150-2270502400TH0 | |
| 2700K | 70 | 8.38 | 8.90 | 2.30 | L150-2770502400TH0 | |
| 3000K | 70 | 8.29 | 9.04 | 2.34 | L150-3070502400TH0 | |
| 3500K | 70 | 8.21 | 9.23 | 2.38 | L150-3570502400TH0 | |
| 4000K | 70 | 8.42 | 9.32 | 2.41 | L150-4070502400TH0 | |
| 5000K | 70 | 8.61 | 9.42 | 2.43 | L150-5070502400TH0 | |
| 5700K | 70 | 9.00 | 9.46 | 2.44 | L150-5770502400TH0 | |
| 6500K | 70 | 8.58 | 9.57 | 2.47 | L150-6570502400TH0 | |
| 2200K | 80 | 7.51 | 8.09 | 2.09 | L150-2280502400TH0 | |
| 2700K | 80 | 7.84 | 8.40 | 2.17 | L150-2780502400TH0 | |
| 3000K | 80 | 7.66 | 8.62 | 2.23 | L150-3080502400TH0 | |
| 3500K | 80 | 8.09 | 8.83 | 2.28 | L150-3580502400TH0 | |
| 4000K | 80 | 8.18 | 8.98 | 2.32 | L150-4080502400TH0 | |
| 5000K | 80 | 8.42 | 9.03 | 2.33 | L150-5080502400TH0 | |
| 5700K | 80 | 8.29 | 9.05 | 2.34 | L150-5780502400TH0 | |
| 6500K | 80 | 8.58 | 9.09 | 2.35 | L150-6580502400TH0 | |
| 2700K | 90 | 7.73 | 8.20 | 2.12 | L150-2790502400TH0 | |
| 3000K | 90 | 7.92 | 8.28 | 2.14 | L150-3090502400TH0 | |
| 3500K | 90 | 8.11 | 8.42 | 2.18 | L150-3590502400TH0 | |
| 4000K | 90 | 8.14 | 8.58 | 2.22 | L150-4090502400TH0 | |
| 5000K | 90 | 9.36 | 8.77 | 2.26 | L150-5090502400TH0 | |
| 5700K | 90 | 8.31 | 8.79 | 2.27 | L150-5790502400TH0 | |
| 6V | 1800K | 70 | 7.30 | 8.04 | 2.08 | L150-18705006000H0 |
| 2200K | 70 | 8.06 | 8.67 | 2.24 | L150-22705006000H0 | |
| 2700K | 70 | 8.38 | 8.94 | 2.31 | L150-27705006000H0 | |
| 3000K | 70 | 8.29 | 9.09 | 2.35 | L150-30705006000H0 | |
| 3500K | 70 | 8.21 | 9.28 | 2.40 | L150-35705006000H0 | |
| 4000K | 70 | 8.42 | 9.37 | 2.42 | L150-40705006000H0 | |
| 5000K | 70 | 8.61 | 9.47 | 2.45 | L150-50705006000H0 | |
| 5700K | 70 | 9.00 | 9.51 | 2.46 | L150-57705006000H0 | |
| 6500K | 70 | 8.58 | 9.62 | 2.48 | L150-65705006000H0 | |
| 2200K | 80 | 7.51 | 8.15 | 2.10 | L150-22805006000H0 | |
| 2700K | 80 | 7.84 | 8.52 | 2.20 | L150-27805006000H0 | |
| 3000K | 80 | 7.66 | 8.73 | 2.25 | L150-30805006000H0 | |
| 3500K | 80 | 8.09 | 8.92 | 2.30 | L150-35805006000H0 | |
| 4000K | 80 | 8.18 | 8.97 | 2.32 | L150-40805006000H0 | |
| 5000K | 80 | 8.42 | 9.01 | 2.33 | L150-50805006000H0 | |
| 5700K | 80 | 8.29 | 9.07 | 2.34 | L150-57805006000H0 | |
| 6500K | 80 | 8.58 | 9.11 | 2.35 | L150-65805006000H0 | |
| 2700K | 90 | 7.73 | 8.20 | 2.12 | L150-27905006000H0 | |
| 3000K | 90 | 7.92 | 8.28 | 2.14 | L150-30905006000H0 | |
| 3500K | 90 | 8.11 | 8.42 | 2.18 | L150-35905006000H0 | |
| 4000K | 90 | 8.14 | 8.58 | 2.22 | L150-40905006000H0 | |
| 5000K | 90 | 8.36 | 8.77 | 2.26 | L150-50905006000H0 | |
| 5700K | 90 | 8.31 | 8.79 | 2.27 | L150-57905006000H0 | |
| 1800K | 70 | 7.30 | 8.00 | 2.07 | L150-1870500600TH0 | |
| 2200K | 70 | 8.06 | 8.63 | 2.23 | L150-2270500600TH0 | |
| 2700K | 70 | 8.38 | 8.90 | 2.30 | L150-2770500600TH0 | |
| 3000K | 70 | 8.29 | 9.04 | 2.34 | L150-3070500600TH0 | |
| 3500K | 70 | 8.21 | 9.23 | 2.38 | L150-3570500600TH0 | |
| 4000K | 70 | 8.42 | 9.32 | 2.41 | L150-4070500600TH0 | |
| 5000K | 70 | 8.61 | 9.42 | 2.43 | L150-5070500600TH0 | |
| 5700K | 70 | 9.00 | 9.46 | 2.44 | L150-5770500600TH0 | |
| 6500K | 70 | 8.58 | 9.57 | 2.47 | L150-6570500600TH0 | |
| 2200K | 80 | 7.51 | 8.09 | 2.09 | L150-2280500600TH0 | |
| 2700K | 80 | 7.84 | 8.40 | 2.17 | L150-2780500600TH0 | |
| 3000K | 80 | 7.66 | 8.62 | 2.23 | L150-3080500600TH0 | |
| 3500K | 80 | 8.09 | 8.83 | 2.28 | L150-3580500600TH0 | |
| 4000K | 80 | 8.18 | 8.98 | 2.32 | L150-4080500600TH0 | |
| 5000K | 80 | 8.42 | 9.03 | 2.33 | L150-5080500600TH0 | |
| 5700K | 80 | 8.29 | 9.05 | 2.34 | L150-5780500600TH0 | |
| 6500K | 80 | 8.58 | 9.09 | 2.35 | L150-6580500600TH0 | |
| 2700K | 90 | 7.73 | 8.20 | 2.12 | L150-2790500600TH0 | |
| 3000K | 90 | 7.92 | 8.28 | 2.14 | L150-3090500600TH0 | |
| 3500K | 90 | 8.11 | 8.42 | 2.18 | L150-3590500600TH0 | |
| 4000K | 90 | 8.14 | 8.58 | 2.22 | L150-4090500600TH0 | |
| 5000K | 90 | 8.36 | 8.77 | 2.26 | L150-5090500600TH0 | |
| 5700K | 90 | 8.31 | 8.79 | 2.27 | L150-5790500600TH0 | |
5050 HE Plus Parts
Product performance of LUXEON SunPlus 5050 HE Plus at specified current, Tj=25°C. Correlated color temperature is hot targeted at Tj=85°C
| Voltage | Nominal CCT |
Minimum CRI |
PPF (umol/s) | PPF/W Typical (umol/J) |
Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| 6V | 1800K | 70 | 8.15 | 8.41 | 2.25 | L150-1870500600HH0 |
| 2200K | 70 | 8.62 | 9.07 | 2.42 | L150-2270500600HH0 | |
| 2700K | 70 | 8.65 | 9.26 | 2.47 | L150-2770500600HH0 | |
| 3000K | 70 | 8.94 | 9.31 | 2.49 | L150-3070500600HH0 | |
| 3500K | 70 | 8.74 | 9.36 | 2.50 | L150-3570500600HH0 | |
| 4000K | 70 | 9.15 | 9.61 | 2.57 | L150-4070500600HH0 | |
| 5000K | 70 | 9.27 | 9.68 | 2.59 | L150-5070500600HH0 | |
| 5700K | 70 | 9.18 | 9.62 | 2.57 | L150-5770500600HH0 | |
| 6500K | 70 | 9.30 | 9.81 | 2.62 | L150-6570500600HH0 | |
| 2200K | 80 | 7.79 | 8.36 | 2.23 | L150-2280500600HH0 | |
| 2700K | 80 | 8.49 | 8.93 | 2.39 | L150-2780500600HH0 | |
| 3000K | 80 | 8.29 | 8.98 | 2.40 | L150-3080500600HH0 | |
| 3500K | 80 | 8.75 | 9.12 | 2.44 | L150-3580500600HH0 | |
| 4000K | 80 | 8.98 | 9.36 | 2.50 | L150-4080500600HH0 | |
| 5000K | 80 | 9.08 | 9.37 | 2.50 | L150-5080500600HH0 | |
| 5700K | 80 | 8.84 | 9.39 | 2.51 | L150-5780500600HH0 | |
| 6500K | 80 | 8.84 | 9.50 | 2.54 | L150-6580500600HH0 | |
