Description

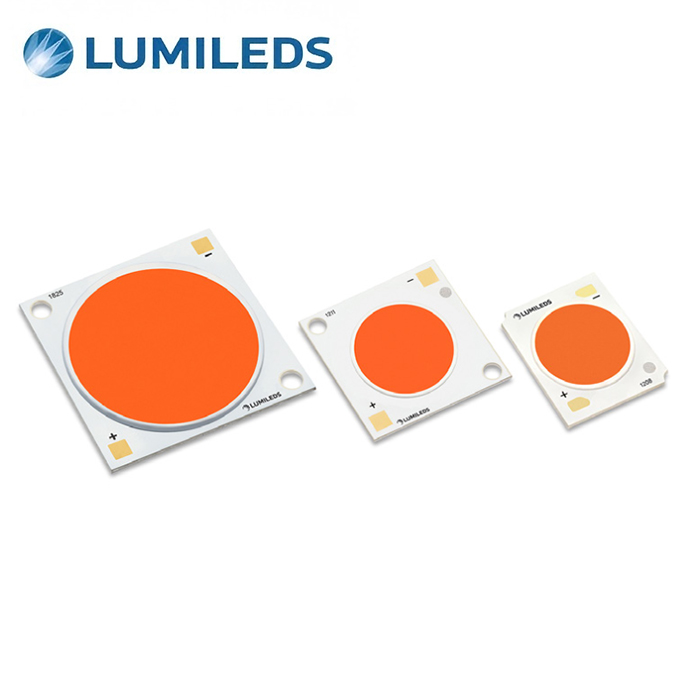

LUXEON SunPlus CoB Line
The LUXEON SunPlus CoB Line offers ease of design and high PPF density, which is advantageous for deep penetration into the plant canopy. The Purple (12.5% Blue) provides the right amount of PPF in the blue wavelength (420-280nm) for the application, in addition to getting PPF in the red (620-670nm) wavelength. By leveraging the existing ecosystem, lighting manufacturers of horticulture fixtures can achieve fast time to market. LUXEON SunPlus CoB Line includes three different LES sizes: 15mm, 19mm, and 32mm.
For more information, check out the Lumileds Horticulture Website and the Horticulture Lighting Calculator.
Features & Benefits
- 115° angle for directional light distribution for greenhouse applications
- Ideal solution for more directional horticulture applications that require a high light output and wattage
Applications
- Horticulture
Product performance of LUXEON SunPlus CoB Line at specified test current, Tj=85°C.
| Product | Color | PPF (μmol/s) in PAR (400 to 700nm) | Test Current (mA) | LES (mm) | Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| LUXEON SunPlus CoB 1208 | Purple (12.5% Blue) | 47.70 | 53.00 | 900 | 15 | L2C5-SPP11208E1500 |
| LUXEON SunPlus CoB 1211 | 63.90 | 71.00 | 1200 | 19 | L2C5-SPP11211E1900 | |
| LUXEON SunPlus CoB 1825 | 179.10 | 199.00 | 2250 | 32 | L2C5-SPP11825G3200 | |
| LUXEON SunPlus CoB 1825 | Rose | 180.00 | 200.00 | 2250 | 32 | L2C5-SPR11825G3200 |
