Description

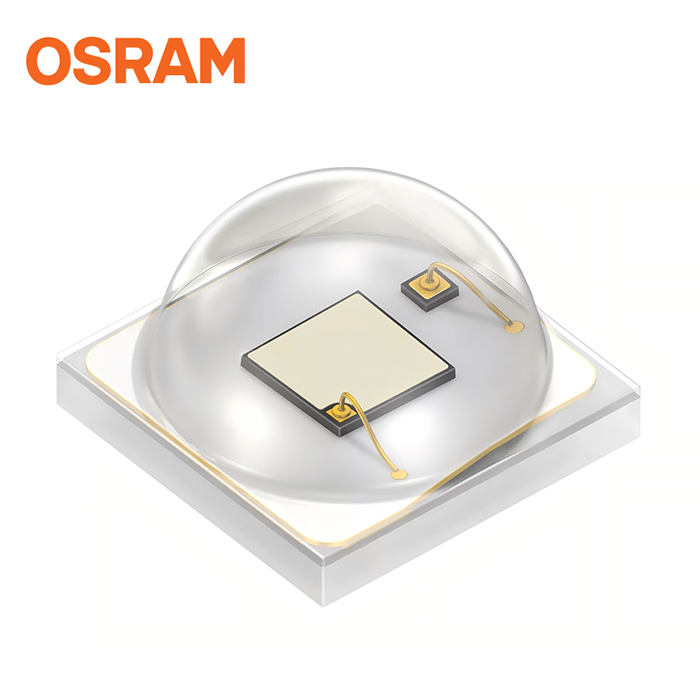

OSLON® Signal LV CRBP.01
The OSLON® Signal combines a compact form factor with high efficiency and electrically insulated thermal pad. The square package matches the optical center with the mechanical center. This provides easy clustering flexibility and high packing density for a maximum flux density. The color bins are defined for best fit to most signaling norms.

Applications
– Access Control & Security
– Appliances & Tools
– Factory Automation
– Home & Building Automation
– Material Processing
– Projection & Display
– Robotics
– Transportation

Features
– Package: SMD ceramic package with silicone lens
– Chip technology: UX:3
– Typ. Radiation: 120° (Lambertian emitter)
– Color: λdom = 505.0 nm (● verde)
– Corrosion Robustness Class: 3B
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Bipolar, back to back (B2B) ESD: Minimum reverse voltage 5V
