Description

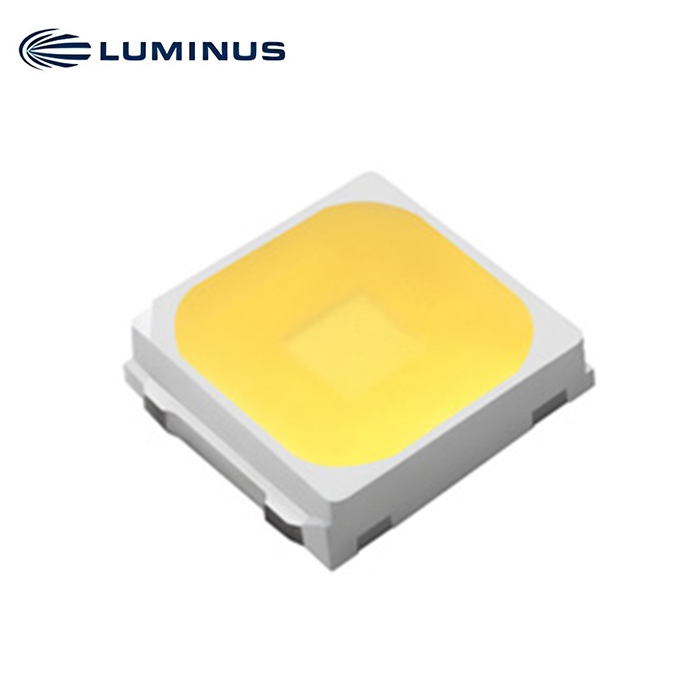

MP-3030-11F2 Mid Power LED

Features
• High efficacy
• CRI Options: Minimum 70, 80, 90
• Low thermal resistance
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process
• Sulfur resistant

Applications
• Replacement lamps
• Panel lighting
• Down lights
• Horticulture



Ordering Part Numbers

Minimum CRI1 Nominal CCT Luminous Flux2 Ordering Part Number
Minimum Flux (lm)3 Typical Flux (lm)3
70 2700K 36.0 38.0 MP-3030-11F2-27-70
80 34.0 35.5 MP-3030-11F2-27-80
90 30.0 31.0 MP-3030-11F2-27-90
70 3000K 36.0 39.0 MP-3030-11F2-30-70
80 36.0 37.0 MP-3030-11F2-30-80
90 30.0 32.0 MP-3030-11F2-30-90
70 3500K 38.0 41.0 MP-3030-11F2-35-70
80 36.0 38.5 MP-3030-11F2-35-80
90 32.0 33.5 MP-3030-11F2-35-90
70 4000K 38.0 41.0 MP-3030-11F2-40-70
80 38.0 40.0 MP-3030-11F2-40-80
90 33.0 35.0 MP-3030-11F2-40-90
70 5000K 38.0 41.0 MP-3030-11F2-50-70
80 38.0 40.0 MP-3030-11F2-50-80
90 33.0 35.0 MP-3030-11F2-50-90
70 5700K 38.0 41.0 MP-3030-11F2-57-70
80 37.5 39.5 MP-3030-11F2-57-80
90 32.5 34.5 MP-3030-11F2-57-90
70 6500K 38.0 41.0 MP-3030-11F2-65-70
80 37.5 39.5 MP-3030-11F2-65-80
90 32.5 34.5 MP-3030-11F2-65-90



PPF and PPF/W Performance1

PPF (μmol/s) PPF/W (μmol/J) Ordering Part Number
0.53 3.01 MP-3030-11F2-27-80
0.56 3.18 MP-3030-11F2-30-80
0.58 3.36 MP-3030-11F2-35-80
0.60 3.40 MP-3030-11F2-40-80
0.58 3.31 MP-3030-11F2-50-80
0.57 3.26 MP-3030-11F2-57-80
0.55 3.18 MP-3030-11F2-65-80



Binning Structure

All MP-3030-11F2 monochromatic LEDs are tested for luminous flux/ dominant wavelength and placed into one of the following flux/wavelength bins. The binning structure is universally applied across each monochromatic color of the MP-3030-11F2 product line.

Flux Bins

Bin Code Binning @ 65 mA, Tc= 25°C1
Minimum Flux (lm) Maximum Flux (lm)
D7 28.0 30.0
D8 30.0 32.0
D9 32.0 34.0
E1 34.0 36.0
E2 36.0 38.0
E3 38.0 40.0
E4 40.0 42.0



Forward Voltage Bins2

Bin Code Binning @ 65 mA, Tc= 25°C1
Minimum Voltage (V) Maximum Voltage (V)
Y1 2.5 2.6
Z1 2.6 2.7
A1 2.7 2.8



Binning Structure

Color Bins1

Color Code Center Radius Angle(°)
x y a b .
22M3 0.5065 0.4171 0.007500 0.004200 53.00
22M5 0.5065 0.4171 0.012500 0.007000 53.00
27M3 0.4582 0.4099 0.008100 0.004200 53.42
27M5 0.4582 0.4099 0.013500 0.007000 53.42
30M3 0.4342 0.4028 0.008340 0.004080 53.13
30M5 0.4342 0.4028 0.013900 0.006800 53.13
35M3 0.4080 0.3916 0.009270 0.004140 54.00
35M5 0.4080 0.3916 0.015450 0.006900 54.00
40M3 0.3825 0.3798 0.009390 0.004020 53.43
40M5 0.3825 0.3798 0.015650 0.006700 53.43
50M3 0.3451 0.3554 0.008220 0.003540 59.37
50M5 0.3451 0.3554 0.013700 0.005900 59.37
57M3 0.3290 0.3417 0.006705 0.003300 58.35
57M5 0.3290 0.3417 0.011175 0.005500 58.35
65M3 0.3130 0.3290 0.006690 0.002850 58.34
65M5 0.3130 0.3290 0.011150 0.004750 58.34



Absolute Maximum Ratings1,2,3

Parameter Symbol Values Unit
Forward Current Maximum If max 400 mA
Pulse Forward Current Maximum Ifp max 600 mA
Power Dissipation Pd 1100 mW
Reverse Voltage V r 5 V
Operating Temperature Range T

opr

 -40 to 85 °C
Storage Temperature Range T

stg

 -40 to 85 °C
Junction Temperature T

j

 125 °C



Characteristics

Parameter (If=65 mA, Tc=25°C) Symbol Value Unit
Forward Voltage Minimum Vf min 2.55 V
Typical Vf typ 2.65
Maximum Vf max 2.75
Reverse Current (Vr=5 V) Maximum I

r max

 10 µA
Viewing Angle 2θ1/2 120 °
Thermal Resistance Rth J-C 10 .C/W
Electrostatic Discharge VESD 8000 V
