Description

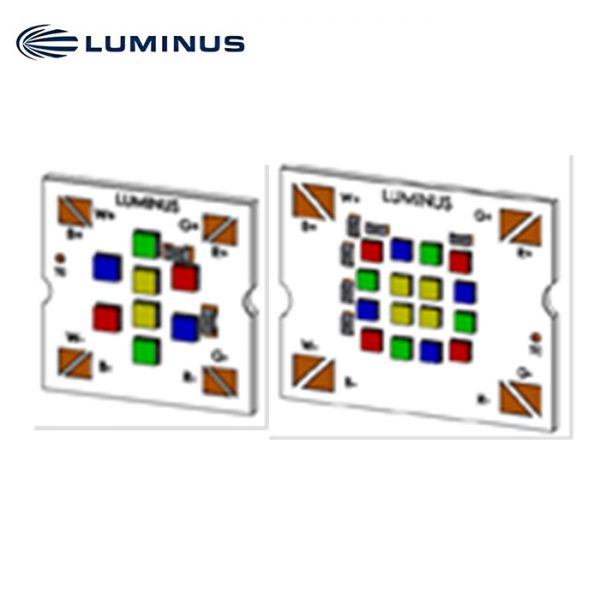

RGBW Tunable LED Spot Modules
Features
- Four channel red, green, blue, and warm white MP-1616 XNOVA Cube LEDs on metal PC board
- High lumen density for directional lighting
- Enables system beam angles from 10 to 40 degrees
- Phosphor converted red and green technology ensures consistency with blue and white LEDs over a wide temperature range and current range
- Specified “hot” performance and 100% factory tested at Tj=85°C
- Environmentally friendly: RoHS and REACh compliant
Applications
- Human centric lighting
- Hospitality / hotel / restaurant lighting
- Residential lighting
- Indoor and outdoor decorative lighting
- Circadian lighting in hospitals, offices, or schools
Products Families
- CTM-9-RGBW-12-TW01: Typical 2W per channel, 9.5mm LES
- CTM-14-RGBW-24-TW01: Typical 4W per channel, 14.5mm LES
o RGBW = Red, Green, Blue, and 2700K 90 CRI White
o “12” = 12V typical voltage
o “24” = 24V typical voltage
o TW01 = standard configuration
Technical Data
Electrical data @ Tj=85°C
| Part number | Nominal
forward current per channel |
Nominal input
power per channel |
Nominal
voltage per channel |
Maximum voltage
per channel |
Maximum forward current
per channel* |
Maximum input
power per channel* |
| CTM-9-RGBW-12-TW01 | 200mA | 2W | 12V | 13V | 250mA | 3.25W |
| CTM-14-RGBW-24-TW01 | 200mA | 4W | 24V | 26V | 250mA | 6.5W |
Photometric Data @ Tj=85°C and Nominal Forward Current (200mA):
| Part number | Dominant
wavelength of blue (min, max) |
Minimum
flux (lumens) |
Nominal
flux (lumens) |
CCT
of warm white |
CRI
(min) |
Minimum
flux (lumens) |
Nominal
flux (lumens) |
|
| CTM-9-RGBW-12-TW01 | 455, 460nm | 52 | 58 | 2700K | 90 | 197 | ||
| CTM-14-RGBW-24-TW01 | 455, 460nm | 104 | 115 | 2700K | 90 | 394 |
| Part number | Dominant
wavelength of red (min, max) |
Minimum
flux (lumens) |
Nominal
flux (lumens) |
Dominant
wavelength of green (min, max) |
Minimum
flux (lumens) |
Nominal
flux (lumens) |
|
| CTM-9-RGBW-12-TW01 | 620, 630nm | 42 | 47 | 525, 535nm | 300 | ||
| CTM-14-RGBW-24-TW01 | 620, 630nm | 84 | 94 | 525, 535nm | 600 |
Chromaticity Bins and Ellipse Definitions @ Tj=85°C:
| Center Point | Angle | 3-step Bin | ||||
| Nominal CCT | CIEx | CIEy | Θ(.) | a | b | |
| 2700K | 0.4645 | 0.4110 | 54.39 | 0.00964 | 0.00421 | |
Absolute Maximum Ratings & Optical/Electrical Characteristics:
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Operating case temperature | Tc | 105 | °C | ||
| Junction temperature | Tj | 125 | °C | ||
| Viewing angle | 2(Θ1/2) | 130 | degrees | ||
| Reverse voltage | Vr | 5 | volts | ||
| Ambient operating temperature | Topr | -40 | +85 | °C | |
| Storage temperature | Tsto | -40 | +85 | °C | |
| Electrostatic Discharge | ESD | 2000V | HBM |
Mechanical Dimensions & Thermal Resistance:
| Part Number | Light Emitting
Surface (LES) Diameter |
Board Size | Typical
Thermal Resistance (Rthj-c) |
PCB Thickness |
| CTM-9-RGBW-12-TW01 | 9.5mm | 12x15mm | 1.8 K/W | 1mm |
| CTM-14-RGBW-24-TW01 | 14.5mm | 20x24mm | 0.67 K/W | 1mm |
