Description

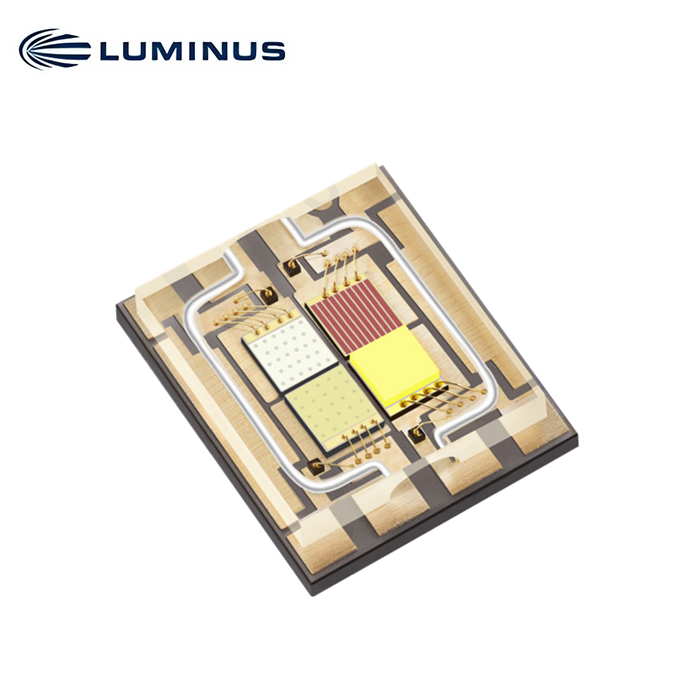

SBM-40-HC
Luminus LEDs benefit from a suite of innovations in the fields of chip technology, packaging and thermal management. These breakthroughs allow illumination engineers and designers to achieve solutions that are high brightness and high efficiency.
Features
• High optical output at 3A:
up to 280 Red lumens
up to 640 Green lumens
up to 4200 Blue mWatts
up to 900 White lumens
• High thermal conductivity package
• Four chips with emitting area of 1 mm2 each
• Environmentally friendly: RoHS compliant
• Variable drive currents: 0.1A to 4A
• Available in RGBW combination
Applications
• Entertainment /Stage Lighting
• Architectural Ligthing
• Spot Lighting
• Pool and Fountain Lighting
• Medical Lighting
• Fiber-coupled Illumination
• Machine Vision
SBM-40-HC Red, Green, Blue and White Binning Structure1,2
All SBM-40-HC LEDs are tested at 1 A for luminous flux, radiometric flux and dominant wavelength and placed into one of the following wavelength and flux bins. The binning structure is universally applied across each color of the SBM-40-HC product line.
| Color | Min… Max
Luminous Flux (lm) @ 1 A |
Min…Max
Radiometric Flux (mW) @ 1 A |
Min… Max
Luminous Flux (lm) @ 3 A |
Min…Max
Radiometric Flux (mW) @ 3 A |
| Red | 110 … 165 | 187 … 280 | ||
| Green | 220 … 360 | 400 … 640 | ||
| Blue | 1100 … 1800 | 2600 … 4200 | ||
| White | 240 … 400 | 540 … 900 |
Red, Green and Blue Dominant Wavelength Bins
| Color | Wavelength Bin (FF) | Minumum Wavelength (nm)
@ 1 A |
Maximum Wavelength (nm)
@ 1 A |
| Red | R1 | 621 | 627 |
| Green | G1 | 519 | 525 |
| G2 | 525 | 531 | |
| Blue | B1 | 449 | 454 |
| B2 | 454 | 459 |
SBM-40-HC Bin Kit Ordering Nomenclature and Ordering Part Number
All SBM-40-SC RGBW products are sold in sets of flux and chromaticity bins called bin kits. Each bin kit specifies a minimum flux bin and a specific selection of chromaticity bins. The ordering part number designation is as follows:
| Bin Kit | RGB Flux | White Chromaticity | White Flux | Ordering Part Number |
| QE100 | Full Distribution | CW1,CW2 | Full Distribution | SBM-40-RGBW-HC41-QE100 |
Optical & Electrical Characteristics
 Parameter |
Symbol | Red | Green | Blue | White | Unit |
| Drive Condition3 | I | 1.0 | 1.0 | 1.0 | 1.0 | A |
| Emitting Area | – | 1.0 | 1.0 | 1.0 | 1.0 | mm2 |
| Emitting Area Dimensions | – | 1.0 x 1.0 | 1.0 x 1.0 | 1.0 x 1.0 | 1.0 x 1.0 | mm x mm |
| Dominant Wavelength | λd min | 621 | 519 | 449 | – | nm |
| λd typ | 624 | 525 | 454 | – | nm | |
| λd max | 627 | 531 | 459 | – | nm | |
| FWHM (typ.) | Δλ1/2 | 15.1 | 31.8 | 18.1 | N/A | nm |
| Chromaticity Coordinates4 (typ.) | x | 0.31 | – | |||
| y | 0.32 | – | ||||
| Forward Voltage | VF min | 2.3 | 3.0 | 2.7 | 2.7 | V |
| VF typ | 2.5 | 3.2 | 3.05 | 3.05 | V | |
| VF max | 2.8 | 3.9 | 3.4 | 3.4 | V |
| Minimum Current 5 | – | 0.1 | 0.1 | 0.1 | 0.1 | A |
| Maximum Current 5 | – | 3.0 | 4.0 | 4.0 | 4.0 | A |
| LED Junction Temperature 5 | Tj operating,max | 115 | 150 | 150 | 150 | ºC |
| Storage Temperature Range | – | -40/+100 | -40/+100 | -40/+100 | -40/+100 | ºC |
