SFT-40-WxS SFT-40-WxE

Description

High Power White LEDs SFT-40-WxS SFT-40-WxE

Features

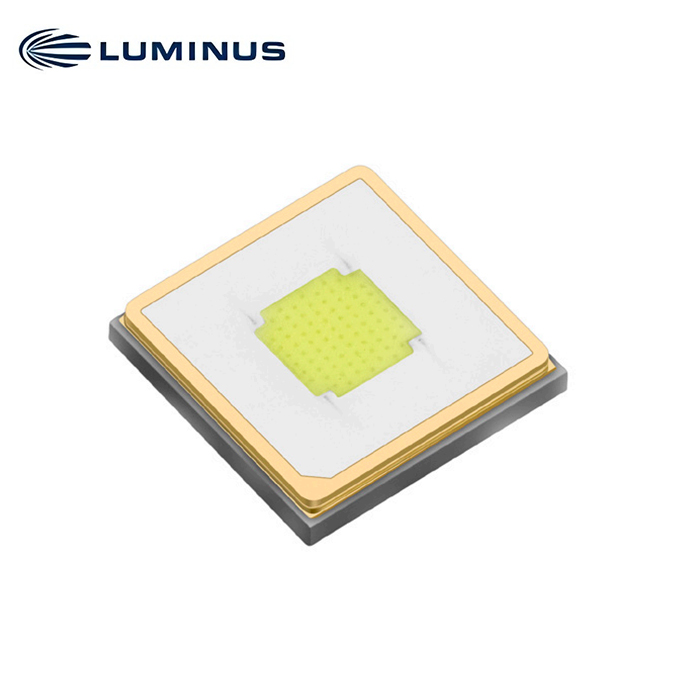

The flat window of an SFT White LED results in a much smaller light emitting surface than a dome-shaped cover, enabling much smaller optics and higher optical coupling efficiency. Along with the high lumen density of a monolithic emitter, SFT white series is a powerful light source for beam pattern critical lighting applications, in delivery of extremely high intensity, long beam distance and tight beam angles.
• Cool white LEDs with a maximum output in excess of 2200 lm @8 A, 85°C (6500K).
• Maximum Drive Current: 8 A
• Color Temperature: 5000K, 5700K, 6500K
• Color Rendering Index: Min. 70 (5000K, 5700K), Typ. 70 (6500K)
• Low thermal resistance: 0.7°C/W
• ANSI-compatible chromaticity bins
• Electrically isolated thermal path
• 8 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001
• RoHS and REACH compliant

Applications

• Portable Lights
• Bicycle Lights
• Automotive Auxiliary Lights
• LED Work Lights
• Outdoor and Roadway Lighting
• High Bay Industrial Lighting
• Entertainment Lighting
• Directional Light Fixtures

Ordering Part Numbers

CCT	CRI	Minimum Flux Bin1	Minimum Flux (lm)	Chromaticity Bin Kit Code2	Ordering Part Numbers
5000K	Min. 70	N3	554	501	SFT-40-W50E-F50-N3501
				502	SFT-40-W50E-F50-N3502
		N4	594	501	SFT-40-W50E-F50-N4501
				502	SFT-40-W50E-F50-N4502
5700K	Min. 70	N3	554	571	SFT-40-W57E-F50-N3571
				572	SFT-40-W57E-F50-N3572
		N4	594	571	SFT-40-W57E-F50-N4571
				572	SFT-40-W57E-F50-N4572
6500K	Typ. 70 Min. 65	N4	594	651	SFT-40-W65S-F50-N4651
				652	SFT-40-W65S-F50-N4652
		N5	634	651	SFT-40-W65S-F50-N5651
				652	SFT-40-W65S-F50-N5652

Luminous Flux Binning

Flux Bin Code	Binning @ 1500 mA, Tj=85°C1		@ 700 mA, Tj=25°C2	Correlated Minimum Flux (lm) @ Tj=85°C2
Flux Bin Code	Minimum Flux (lm)	Maximum Flux (lm)	Minimum Flux (lm)	700 mA	2000 mA	3000 mA	5000 mA	6000 mA	8000 mA
N3	554	594	316	283	709	986	1446	1640	1985
N4	594	634	339	303	760	1057	1550	1758	2128
N5	634	673	362	323	812	1129	1655	1877	2272
P2	673	713	384	343	861	1198	1757	1992	2411
P3	713	763	407	364	913	1269	1861	2110	2555

Forward Voltage Binning

Voltage Bin Code	Binning @ 1500 mA, Tj=85°C
Voltage Bin Code	Minimum Voltage (V)	Maximum Voltage (V)
VH	2.5	2.7
VJ	2.7	2.9
VK	2.9	3.1

Chromaticity Binning Coordinates

CCT	Bin Code	CIEx	CIEy	Bin Code	CIEx	CIEy	Bin Code	CIEx	CIEy	Bin Code	CIEx	CIEy
5000K	DA	0.3371	0.3490	DB	0.3376	0.3616	DC	0.3463	0.3687	DD	0.3451	0.3554
		0.3451	0.3554		0.3463	0.3687		0.3551	0.3760		0.3533	0.3620
		0.3440	0.3427		0.3451	0.3554		0.3533	0.3620		0.3515	0.3487
		0.3366	0.3369		0.3371	0.3490		0.3451	0.3554		0.3440	0.3427
	DH	0.3366	0.3369	DE	0.3381	0.3762	DF	0.3480	0.3840	DG	0.3440	0.3428
		0.3440	0.3428		0.3480	0.3840		0.3571	0.3907		0.3515	0.3487
		0.3429	0.3307		0.3463	0.3687		0.3551	0.3760		0.3495	0.3339
		0.3361	0.3245		0.3376	0.3616		0.3463	0.3687		0.3429	0.3307
5700K	CA	0.3215	0.3350	CB	0.3207	0.3462	CC	0.3290	0.3538	CD	0.3290	0.3417
		0.3290	0.3417		0.3290	0.3538		0.3376	0.3616		0.3371	0.3490
		0.3290	0.3300		0.3290	0.3417		0.3371	0.3490		0.3366	0.3369
		0.3222	0.3243		0.3215	0.3350		0.3290	0.3417		0.3290	0.3300
	CH	0.3222	0.3243	CE	0.3196	0.3602	CF	0.3290	0.3690	CG	0.3290	0.3300
		0.3290	0.3300		0.3290	0.3690		0.3381	0.3762		0.3366	0.3369
		0.3290	0.3180		0.3290	0.3538		0.3376	0.3616		0.3361	0.3245
		0.3231	0.3120		0.3207	0.3462		0.3290	0.3538		0.3290	0.3180
6500K	BA	0.3048	0.3207	BB	0.3028	0.3304	BC	0.3115	0.3391	BD	0.3130	0.3290
		0.3130	0.3290		0.3115	0.3391		0.3205	0.3481		0.3213	0.3373
		0.3144	0.3186		0.3130	0.3290		0.3213	0.3373		0.3221	0.3261
		0.3068	0.3113		0.3048	0.3207		0.3130	0.3290		0.3144	0.3186
	BH	0.3068	0.3113	BE	0.3005	0.3415	BF	0.3099	0.3509	BG	0.3144	0.3186
		0.3144	0.3186		0.3099	0.3509		0.3196	0.3602		0.3221	0.3261
		0.3161	0.3059		0.3115	0.3391		0.3205	0.3481		0.3231	0.3120
		0.3093	0.2993		0.3028	0.3304		0.3115	0.3391		0.3161	0.3059

Product Characteristics

Parameter	Symbol	Minimum	Typical	Maximum	Unit
Viewing Angle (FWHM)	2θ1/2		120		Degree
Color Rendering Index SFT-40-WxS	CRI WxS	65	70
Color Rendering Index SFT-40-WxE	CRI WxE	70
Thermal resistance (Electrical) Junction/Solder Point	Rthjs-EL		0.7		°C/W
Junction Temperature	Tj			150	°C
Forward Voltage (@ If=1500 mA, Tj=85°C)	Vf	2.6	2.8	3.1	V
DC Forward Current	If	0.1		8	A
Surge Current (t <10 ms, Duty Cycle < 10%)	Is-max			10	A
Reverse Voltage (Ir=10 mA)	V r			5	V
Power Dissipation	Pd			29	W
Operating Temperature	T opr	-40		100	°C
Storage Temperature	T stg	-40		100	°C
ESD withstand Voltage HBM Per ANSI/ESDA/JEDEC JS-001	VHBM	8			kV
ESD withstand Voltage CDM Per ANSI/ESDA/JEDEC JS-002	VCDM	1			kV
