SFT-70X-WES Gen 2

Description

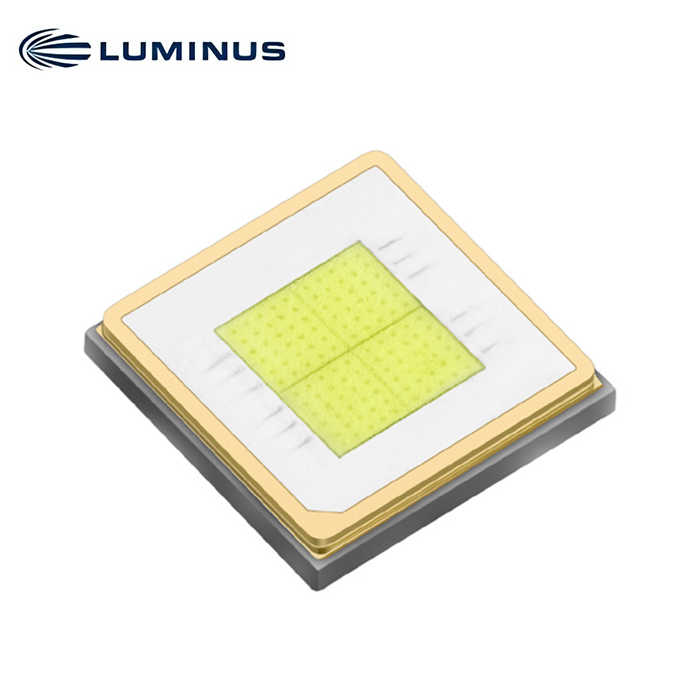

SFT-70X-WES Gen 2 High Power White LEDs

Features
SFT white series is a powerful light source for beam pattern critical lighting applications. The flat window of an SFT white LED results in a much smaller light emitting surface than a dome-shaped cover, enabling smaller optics and higher optical efficiency in directional lighting systems.
• Vertical chip with high lumen density and small emitting angle, ideal for efficient optical beam shaping to achieve high intensity, narrow beam angle and long beam distance.
• Phosphor-on-chip with superior color uniformity over radiation angles, delivering homogeneous color in beam spots.
• 6 V or 12 V configurable through PCB layout, excellent color and brightness uniformity across emitting surface of a single multi-junction monolithic chip.
• Maximum Drive Current: 7 A (6 V), 3.5 A (12 V)
• Color Temperature: 5000K, 5700K, 6500K
• Color Rendering Index: Typ. 73 (5000K, 5700K), Typ. 70 (6500K)
• Low thermal resistance: 0.6°C/W
• Electrically isolated thermal path
• 8 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001

Applications
• Portable Light
• Automotive Auxiliary Lights
• Battery or Solar Powered Lights
• LED Work Lights
• Outdoor and Roadway Lighting
• High Bay Industrial Lighting

Ordering Part Numbers1

CRI	CCT	Luminous Flux		Chromaticity Bin Kit3	Ordering Part Number
		Minimum Flux Bin1	Minimum Flux2
Min. 70	5000K	G9	1135 lm	501	SFT-70X-WE50-H2-G9501
				502	SFT-70X-WE50-H2-G9502
		H1	1205 lm	501	SFT-70X-WE50-H2-H1501
				502	SFT-70X-WE50-H2-H1502
	5700K	G9	1135 lm	571	SFT-70X-WE57-H2-G9571
				572	SFT-70X-WE57-H2-G9572
		H1	1205 lm	571	SFT-70X-WE57-H2-H1571
				572	SFT-70X-WE57-H2-H1572
Typ. 70 Min. 65	6500K	H1	1205 lm	651	SFT-70X-WS65-H2-H1651
				652	SFT-70X-WS65-H2-H1652
				703	SFT-70X-WS65-H2-H1703
		H2	1290 lm	651	SFT-70X-WS65-H2-H2651
				652	SFT-70X-WS65-H2-H2652

Luminous Flux Binning1,2

Flux Bin Code	Binning @ 750 mA (12 V), 1500 mA (6 V)			Correlated Minimum Flux (lm) @ Tj=85°C2
	Tj= 85°C1		Tj= 25°C	350 mA (12 V) 700 mA (6 V)	1000 mA (12 V) 2000 mA (6 V)	1500mA (12 V) 3000 mA (6 V)	2500 mA (12 V) 5000 mA (6 V)	3500 mA (12 V) 7000 mA (6 V)
	Minimum Flux (lm)	Maximum Flux (lm)	Minimum Flux (lm)	350 mA (12 V) 700 mA (6 V)	1000 mA (12 V) 2000 mA (6 V)	1500mA (12 V) 3000 mA (6 V)	2500 mA (12 V) 5000 mA (6 V)	3500 mA (12 V) 7000 mA (6 V)
G9	1135	1205	1271	568	1453	2009	2928	3632
H1	1205	1290	1350	603	1542	2133	3109	3856
H2	1290	1375	1445	645	1651	2283	3328	4128
H3	1375	1460	1540	688	1760	2434	3548	4400
H4	1460	1565	1635	730	1869	2584	3767	4672

Forward Voltage Binning

Voltage Bin Code	Minimum Voltage (V)	Maximum Voltage (V)
V1	12 V – Binning @ 750 mA, Tj = 85°C
	10.50	12.50
	6 V – Binning @ 1500 mA, Tj = 85°C
	5.25	6.25

Binning Structure

Chromaticity Binning Coordinates

CCT	Bin Code	CIEx	CIEy	Bin Code	CIEx	CIEy	Bin Code	CIEx	CIEy	Bin Code	CIEx	CIEy
5000K	DA	0.3371	0.3490	DB	0.3376	0.3616	DC	0.3463	0.3687	DD	0.3451	0.3554
		0.3451	0.3554		0.3463	0.3687		0.3551	0.3760		0.3533	0.3620
		0.3440	0.3427		0.3451	0.3554		0.3533	0.3620		0.3515	0.3487
		0.3366	0.3369		0.3371	0.3490		0.3451	0.3554		0.3440	0.3427
	DH	0.3366	0.3369	DE	0.3381	0.3762	DF	0.3480	0.3840	DG	0.3440	0.3428
		0.3440	0.3428		0.3480	0.3840		0.3571	0.3907		0.3515	0.3487
		0.3429	0.3307		0.3463	0.3687		0.3551	0.3760		0.3495	0.3339
		0.3361	0.3245		0.3376	0.3616		0.3463	0.3687		0.3429	0.3307
5700K	CA	0.3215	0.3350	CB	0.3207	0.3462	CC	0.3290	0.3538	CD	0.3290	0.3417
		0.3290	0.3417		0.3290	0.3538		0.3376	0.3616		0.3371	0.3490
		0.3290	0.3300		0.3290	0.3417		0.3371	0.3490		0.3366	0.3369
		0.3222	0.3243		0.3215	0.3350		0.3290	0.3417		0.3290	0.3300
	CH	0.3222	0.3243	CE	0.3196	0.3602	CF	0.3290	0.3690	CG	0.3290	0.3300
		0.3290	0.3300		0.3290	0.3690		0.3381	0.3762		0.3366	0.3369
		0.3290	0.3180		0.3290	0.3538		0.3376	0.3616		0.3361	0.3245
		0.3231	0.3120		0.3207	0.3462		0.3290	0.3538		0.3290	0.3180
6500K	BA	0.3048	0.3207	BB	0.3028	0.3304	BC	0.3115	0.3391	BD	0.3130	0.3290
		0.3130	0.3290		0.3115	0.3391		0.3205	0.3481		0.3213	0.3373
		0.3144	0.3186		0.3130	0.3290		0.3213	0.3373		0.3221	0.3261
		0.3068	0.3113		0.3048	0.3207		0.3130	0.3290		0.3144	0.3186
	BH	0.3068	0.3113	BE	0.3005	0.3415	BF	0.3099	0.3509	BG	0.3144	0.3186
		0.3144	0.3186		0.3099	0.3509		0.3196	0.3602		0.3221	0.3261
		0.3161	0.3059		0.3115	0.3391		0.3205	0.3481		0.3231	0.3120
		0.3093	0.2993		0.3028	0.3304		0.3115	0.3391		0.3161	0.3059
7500K	AA	0.2950	0.297	AB	0.2920	0.3060	AC	0.2984	0.3133	AD	0.2984	0.3133
		0.2920	0.306		0.2895	0.3135		0.2962	0.3220		0.3048	0.3207
		0.2984	0.3133		0.2962	0.3220		0.3028	0.3304		0.3068	0.3113
		0.3009	0.3042		0.2984	0.3133		0.3048	0.3207		0.3009	0.3042
	AH	0.2980	0.2880	AE	0.2895	0.3135	AF	0.2962	0.3220	AG	0.3037	0.2937
		0.2950	0.2970		0.2870	0.3210		0.2937	0.3312		0.3009	0.3042
		0.3009	0.3042		0.2937	0.3312		0.3005	0.3415		0.3068	0.3113
		0.3037	0.2937		0.2962	0.3220		0.3028	0.3304		0.3093	0.2993

Absolute Maximum Ratings

Parameter		Symbol	Values		Unit
			12 V	6 V
DC Forward Current	Minimum	If min	0.1	0.2	A
	Maximum	If max	3.5	7.0
Surge Current (t<10 ms, Duty Cycle < 10%)		I s max	4.0	8.0	A
Reverse Voltage (@ If= 10 mA)		V r	20	10	V
Power Dissipation		PD	50		W
Junction Temperature		Tj max	150
Operating Temperature Range		T opr	-40 to 100		°C
Storage Temperature Range		T stg	-40 to 100		°C
ESD withstand Voltage HBM Per ANSI/ESDA/JEDEC JS-001		VHBM	8		kV
ESD withstand Voltage CDM Per ANSI/ESDA/JEDEC JS-002		VCDM	1		kV

Characteristics

Parameter		Symbol	Value		Unit
Parameter		Symbol	12V @ 750 mA	6V @ 1500 mA	Unit
Forward Voltage (Tj = 85°C)	Minimum	Vf min	10.50	5.25	V
	Typical	Vf typ	11.60	5.80
	Maximum	Vf max	12.50	6.25
Temperature Coefficient of Voltage		∂Vf/∂T	-5.4	-2.7	mV/°C
Viewing Angle (FWHM)		2θ1/2	120°
			WS	WE
Color Rendering Index1 (Tj=85°C)	Minimum	CRI min	65	70
Color Rendering Index1 (Tj=85°C)	Typical	CRItyp	70	–
Thermal Resistance (Electrical) Junction/Solder Point		Rthjs-EL	0.6		°C/W
