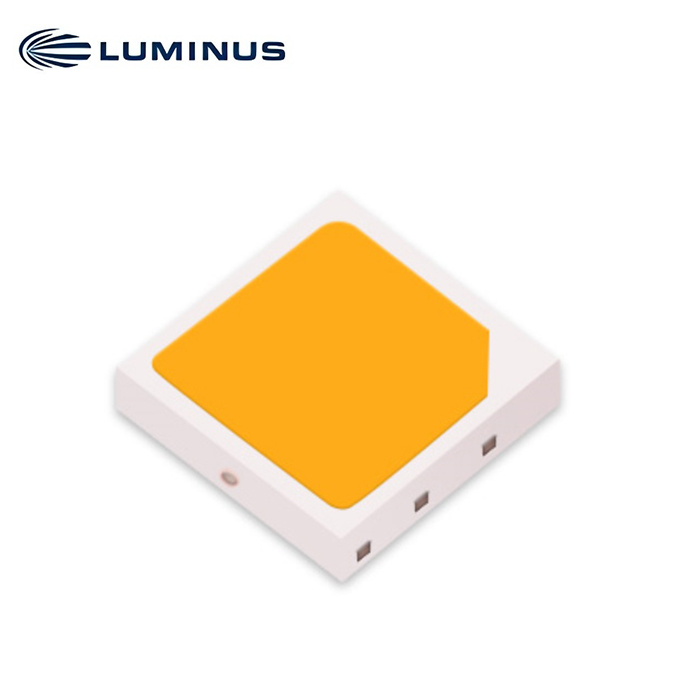

Specialty Illumination SMD LEDs
Luminus Specialty Illumination SMD LEDs are lighting class solutions designed for high performance general lighting applications. Luminus products boast industry-leading 95 CRI minimum AccuWhite™ technology in addition to 70, 80, and 90 CRI options, as well as the widest CCT range from 1800K to 6500K. These LEDs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality of light.
APPLICATIONS
- Linear bulbs and fixtures
- A- lamps
- Panel lighting
- Down lights
- Architectural lighting
- Troffers / office / commercial
- Streetlight, floodlight industrial applications
FEATURES
- High efficacy
- CRI Options: Minimum 70, 80, 90 and 95
- Low thermal resistance
- Compatible with automatic pick-and-place equipmen
- Compatible with reflow soldering processes
- CCTs range from ultra-warm 1800K and 2200K to cool 6500K
- UL, RoHs and REACH compliant
PRODUCT HIGHLIGHTS
- Standard package sizes include 2016, 3014, 3030, 2835 and 5050 with 120° viewing angles
- Cube-1616 offers wider 135° viewing angle with tiny footprint in 3V and 6V options
- AccuWhiteTM 95 CRI minimum technology is available in most packages from 2700K to 5700K
- Below black body SensusTM available in 3014 package for linear retail lighting with pure white and rich colors
PRODUCT SELECTOR GUIDE
| Product Image | Package Platform | Voltage (V) | Current (mA) | Input Power (W) | TYP FLUX (lm), 3000k, 80CRI |
TYP lm/W, 3000k, 80CRI |
|---|---|---|---|---|---|---|
 |
MP-2016-1100 | 3.0 | 60 | 0.2 | 24 | 133 |
 |
MP-2835-12D2 | 2.69 | 65 | 0.175 | 35 | 200 |
 |
MP-2835-120K | 2.69 | 65 | 0.175 | 36 90CRI | 206 90CRI |
 |
MP-3014-1100 | 2.85 | 60 | 0.2 | 29 | 170 |
 |
MP-3030-120H | 2.68 | 65 | 0.174 | 37.5 | 215 |
 |
MP-3030-120K | 2.68 | 65 | 0.174 | 34 90CRI | 195 90CRI |
|
MP-3030-110H | 2.8 | 65 | 0.182 | 33 | 181 |
|
MP-3030-11F2 | 2.65 | 65 | 0.17 | 37 | 215 |
 |
MP-3030-12ZH | 2.67 | 65 | 0.173 | 33.5 | 193 |
 |
MP-3030-210H | 6.0 | 150 | 0.9 | 140 | 156 |
 |
MP-5050-6100Not recommended for new design | 18 | 200 | 3.6 | 490 | 136 |
 |
MP-5050-240E | 5.5 | 180 | 1.0 | 207 | 207 |
|
MP-5050-240H | 6.2 | 640 | 4.0 | 630 | 158 |
 |
NEW
MP-5050-240P |
5.4 | 180 | 0.972 | 205 | 211 |
|
MP-5050-250R | 5.75 | 640 | 3.68 | 640 | 174 |
 |
MP-5050-810E | 22 | 45 | 1.0 | 207 | 207 |
|
MP-5050-810H | 24 | 200 | 4.8 | 785 | 160 |
|
NEW
MP-5050-810P |
21.6 | 45 | 0.972 | 205 | 211 |
 |
MP-7070-T200 | 36 | 240 | 8.64 | 1395 | 161 |
 |
MP-7070-4600 | 12 | 700 | 8.4 | 1380 | 164 |
 |
MP-1616-1103 | 3.0 | 150 | 0.45 | 62 | 138 |
|
MP-1616-2103 | 6.0 | 150 | 1.0 | 118 | 131 |
Color Specialty Illumination SMD LEDs
| Product Image | Product | Color (wavelength) | Package | Voltage (V) | Current (mA) | Typ Flux (lm or mW) |
|---|---|---|---|---|---|---|
 |
MP-1616-2103-RBNot recommended for new design | Royal Blue (455-460nm dominant) | 1.6 x 1.6 mm | 6 V | 150 mA | 20 lm |
| MP-1616-2103-PGNot recommended for new design | Phosphor Green (525-540nm dominant) | 1.6 x 1.6 mm | 6 V | 150 mA | 138 lm | |
| MP-1616-2103-PRNot recommended for new design | Phosphor Red (620-630nm dominant) | 1.6 x 1.6 mm | 6 V | 150 mA | 139 lm | |
 |
MP-2835-1100-DR | Deep Red (660nm peak) | 2.8 x 3.5 mm | 2.0 V | 60 mA | 63 mW |
| MP-2835-1100-FR | Far Red (730nm peak) | 2.8 x 3.5 mm | 1.9 V | 60 mA | 45 mW | |
| MP-2835-1100-PG | Phosphor Green (510-525nm dominant) | 2.8 x 3.5 mm | 2.8 V | 60 mA | 100 mW | |
| MP-2835-1200-B | Blue (460nm dominant) | 2.8 x 3.5 mm | 2.8 V | 60 mA | 115 mW |
