SST-20F-W-AL

Description

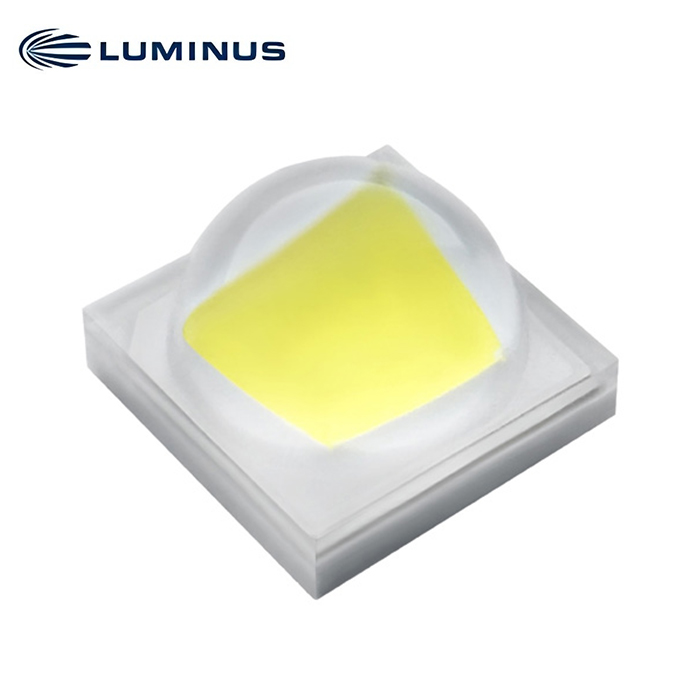

SST-20F-W-AL The F-Line High Power White LEDs

Features
• The flip chip in an optimized ceramic package has a typical light output of 700 lm @ 1.5 A, 85 °C (6500K).
• Excellent cost per lumen performance.
• Luminous Efficacy: Up to 185 lm/W @700 mA, 85°C (6500K)
• Maximum Drive Current: 1.5 A
• Color Temperature: 2700K – 6500K
• Color Rendering Index: 65, 70, 80, 90, 95
• Low thermal resistance: 5.9°C/W
• Standard ANSI-compatible central 4 chromaticity bins, with 3-step options.
• Electrically isolated thermal path.
• 8 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001.

Applications
• Outdoor and Roadway Lighting
• Indoor and Linear Lighting
• Stadium Lights
• Flood Lights
• Work Lights
• Portable Lights

Ordering Information

CRI	CCT	Luminous Flux		Chromaticity Bin Kit ANSI Centers3		Chromaticity Bin Kit 3-Step Ellipse3
CRI	CCT	Minimum Flux Bin1	Minimum Flux2	Bin Kit	Ordering Part Number	Bin Kit	Ordering Part Number
Typ. 70, Min. 65	5700K	D6	340 lm	572	SST-20F-WS57-AL-D6572
Typ. 70, Min. 65	6500K	D6	340 lm	652	SST-20F-WS65-AL-D6652		N/A
Min. 70	3000K	D5	325 lm	302	SST-20F-WE30-AL-D5302
	4000K	D6	340 lm	402	SST-20F-WE40-AL-D6402
	5000K	D6	340 lm	502	SST-20F-WE50-AL-D6502
	5700K	D6	340 lm	572	SST-20F-WE57-AL-D6572
	6500K	D6	340 lm	652	SST-20F-WE65-AL-D6652
Min. 80	3000K	D3	295 lm	302	SST-20F-WF30-AL-D3302	30E3	SST-20F-WF30-AL-D330E3
	4000K	D3	295 lm	402	SST-20F-WF40-AL-D3402		N/A
	5000K	D4	310 lm	502	SST-20F-WF50-AL-D4502
	5700K	D4	310 lm	572	SST-20F-WF57-AL-D4572
Min. 90	2700K	C6	214 lm	272	SST-20F-WG27-AL-C6272	27E3	SST-20F-WG27-AL-C627E3
	3000K	C7	226 lm	302	SST-20F-WG30-AL-C7302	30E3	SST-20F-WG30-AL-C730E3
	3500K	D1	265 lm	352	SST-20F-WG35-AL-D1352	35E3	SST-20F-WG35-AL-D135E3
	4000K	D1	265 lm	402	SST-20F-WG40-AL-D1402	40E3	SST-20F-WG40-AL-D140E3
	5700K	C9	250 lm	572	SST-20F-WG57-AL-C9572		N/A
Min. 95	2700K	C4	192 lm	272	SST-20F-WH27-AL-C4272	27E3	SST-20F-WH27-AL-C427E3
	3000K	C5	202 lm	302	SST-20F-WH30-AL-C5302	30E3	SST-20F-WH30-AL-C530E3
	3500K	C6	214 lm	352	SST-20F-WH35-AL-C6352	35E3	SST-20F-WH35-AL-C635E3
	4000K	C7	226 lm	402	SST-20F-WH40-AL-C7402	40E3	SST-20F-WH40-AL-C740E3

Binning Structure

Luminous Flux Bins1,2

Flux Bin Code	Binning @ 700 mA Tj= 85°C1 Tj= 25°C Mini m(um)) Flux				Correlated Minimum Flux (lm) @ Tj=85°C2
Flux Bin Code	Binning @ 700 mA Tj= 85°C1 Tj= 25°C Mini m(um)) Flux				350 mA	1000 mA	1500 mA
C4		192	202	213	104	261	367
C5		202	214	224	109	275	386
C6		214	226	238	116	291	409
C7		226	238	251	122	307	432
C8		238	250	264	129	324	455
C9		250	265	278	135	340	478
D1		265	280	294	143	360	506
D2		280	295	311	151	381	535
D3		295	310	328	159	401	563
D4		310	325	344	167	422	592
D5		325	340	361	176	442	621
D6		340	355	378	184	462	649
D7		355	375	394	192	483	678
D8		375	395	417	203	510	716
D9		395	415	439	213	537	754

Binning Structure

Forward Voltage Bins1

Voltage Bin Code3	Binning @ 700 mA, Tj= 85°C
Voltage Bin Code3	Minimum Voltage (V)	Maximum Voltage (V)
VH	2.5	2.7
VJ	2.7	2.9
VK	2.9	3.1
VL	3.1	3.3

Binning Structure

Chromaticity Binning Coordinates

CCT	Bin	CIEx	CIEy	Bin	CIEx	CIEy	Bin	CIEx	CIEy	Bin	CIEx	CIEy
2700K	JA3	0.4475	0.3994	JB4	0.4523	0.4085	JC1	0.4582	0.4099	JD2	0.4532	0.4008
		0.4523	0.4085		0.4573	0.4178		0.4634	0.4193		0.4582	0.4099
		0.4582	0.4099		0.4634	0.4193		0.4695	0.4207		0.4641	0.4112
		0.4532	0.4008		0.4582	0.4099		0.4641	0.4112		0.4589	0.4021
3000K	HA3	0.4242	0.3919	HB4	0.4281	0.4006	HC1	0.4342	0.4028	HD2	0.4300	0.3939
		0.4281	0.4006		0.4322	0.4096		0.4385	0.4119		0.4342	0.4028
		0.4342	0.4028		0.4385	0.4119		0.4449	0.4141		0.4403	0.4049
		0.4300	0.3939		0.4342	0.4028		0.4403	0.4049		0.4359	0.3960
3500K	GA3	0.3981	0.3800	GB4	0.4010	0.3882	GC1	0.4080	0.3916	GD4	0.4082	0.3782
		0.4010	0.3882		0.4040	0.3966		0.4113	0.4001		0.4116	0.3865
		0.4080	0.3916		0.4113	0.4001		0.4186	0.4037		0.4183	0.3898
		0.4048	0.3832		0.4080	0.3916		0.4150	0.3950		0.4147	0.3814
4000K	FA3	0.3744	0.3685	FB4	0.3763	0.3760	FC1	0.3825	0.3798	FD2	0.3804	0.3721
		0.3763	0.3760		0.3782	0.3837		0.3847	0.3877		0.3825	0.3798
		0.3825	0.3798		0.3847	0.3877		0.3912	0.3917		0.3887	0.3836
		0.3804	0.3721		0.3825	0.3798		0.3887	0.3836		0.3863	0.3758
5000K	DA	0.3371	0.3490	DB	0.3376	0.3616	DC	0.3463	0.3687	DD	0.3451	0.3554
		0.3451	0.3554		0.3463	0.3687		0.3551	0.3760		0.3533	0.3620
		0.3440	0.3427		0.3451	0.3554		0.3533	0.3620		0.3515	0.3487
		0.3366	0.3369		0.3371	0.3490		0.3451	0.3554		0.3440	0.3427
5700K	CA	0.3215	0.3350	CB	0.3207	0.3462	CC	0.3290	0.3538	CD	0.3290	0.3417
		0.3290	0.3417		0.3290	0.3538		0.3376	0.3616		0.3371	0.3490
		0.3290	0.3300		0.3290	0.3417		0.3371	0.3490		0.3366	0.3369
		0.3222	0.3243		0.3215	0.3350		0.3290	0.3417		0.3290	0.3300
6500K	BA	0.3048	0.3207	BB	0.3028	0.3304	BC	0.3115	0.3391	BD	0.3130	0.3290
		0.3130	0.3290		0.3115	0.3391		0.3205	0.3481		0.3213	0.3373
		0.3144	0.3186		0.3130	0.3290		0.3213	0.3373		0.3221	0.3261
		0.3068	0.3113		0.3048	0.3207		0.3130	0.3290		0.3144	0.3186

Absolute Maximum Ratings

Parameter		Symbol	Values	Unit
DC Forward Current	Minimum	If min	0.2	A
	Maximum	If max	1.5
Surge Current (t<10 ms, Duty Cycle < 10%)		I s max	2.0
Reverse Voltage ( Ir= 10 mA)		V r	5.0	V
Power Dissipation		PD	4.8	W
Junction Temperature		Tj max	150	°C
Operating Temperature		T opr	-40 to 105
Storage Temperature		T stg	-40 to 105
ESD withstand Voltage ANSI/ESDA/JEDEC JS-001 (HBM)		VHBM	8	kV
ESD withstand Voltage ANSI/ESDA/JEDEC JS-002 (CDM)		VCDM	1

Characteristics

Parameter (If =700 mA, Tj = 85°C)			Symbol							Unit

Color Rendering Index1	Minimum		CRI	65	70	80		90	95
	Typical		CRI	70	–	–		–	–
Viewing Angle (FWHM)			2θ1/2	2700K to 4000K			5000K to 6500K
				112			120			°
Forward Voltage		Minimum	Vf min	2.50						V
		Typical	Vf typ	2.85
		Maximum	Vf max	3.30
Temperature Coefficient of Voltage			ΔVf/ΔT	-1.4						mV/°C
Electrical Thermal Resistance (Junction to Solder Point)2			Rthjs-EL	5.9						°C/W
