SST-20V-WG

Description

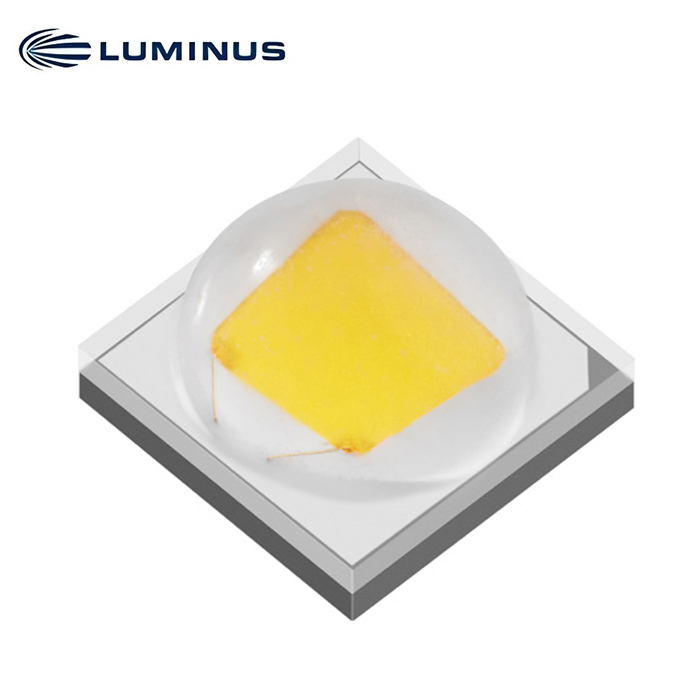

SST-20V-WG (CRI > 90) The V-Line High Power White LEDs

Features
• High CRI, high-efficacy white LEDs for high-performance directional lighting applications.
• The vertical chip features high lumen density and small emitting angle, ideal for maximizing the light intensity and reducing the optics size in optical beam shaping.
• The phosphor-on-chip technology delivers high color uniformity over radiation angle, enabling superior light quality for beam spots.
• Maximum Drive Current: 2.0 A
• Color Temperature: 5000K, 5700K
• Color Rendering Index: > 90
• Low thermal resistance: 1.6 °C/W
• ANSI-compatible chromaticity bins
• Electrically isolated thermal path
• 8 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001

Applications

• Wall Washer
• Track Light
• Spotlight
• Task Light

• Miniature Recessed Lights
• Landscape Lighting
• Portable Lighting
• Stage & Studio Lighting

Ordering Part Numbers

CRI	CCT	Luminous Flux		Chromaticity Bin Kit3	Ordering Part Numbers
		Minimum Flux Bin1	Minimum Flux²
> 90	5000K	D1	265 lm	502	SST-20V-WG50-A2-D1502
	5700K	D1	265 lm	572	SST-20V-WG57-A2-D1572

Luminous Flux Binning

Flux Bin Code	Binning @ 700 mA			Correlated Minimum Flux (lm) @ Tj=85°C2
	Tj= 85°C		Tj= 25°C	Correlated Minimum Flux (lm) @ Tj=85°C2
	Minimum Flux (lm)	Maximum Flux (lm)	Minimum Flux (lm)	350 mA	1000 mA	1500 mA	2000 mA
D1	265	280	292	143	360	506	633
D2	280	295	308	151	381	535	669
D3	295	310	325	159	401	563	705

Forward Voltage Binning

Voltage Bin Code3	Binning @ 700 mA, Tj= 85°C
Voltage Bin Code3	Minimum Voltage (V)	Maximum Voltage (V)
VH	2.5	2.7
VJ	2.7	2.9
VK	2.9	3.1

Chromaticity Binning Coordinates

CCT	Bin Code	CIEx	CIEy	Bin Code	CIEx	CIEy	Bin Code	CIEx	CIEy	Bin Code	CIEx	CIEy
5000K	DA	0.3371	0.3490	DB	0.3376	0.3616	DC	0.3463	0.3687	DD	0.3451	0.3554
		0.3451	0.3554		0.3463	0.3687		0.3551	0.3760		0.3533	0.3620
		0.3440	0.3427		0.3451	0.3554		0.3533	0.3620		0.3515	0.3487
		0.3366	0.3369		0.3371	0.3490		0.3451	0.3554		0.3440	0.3427
5700K	CA	0.3215	0.3350	CB	0.3207	0.3462	CC	0.3290	0.3538	CD	0.3290	0.3417
		0.3290	0.3417		0.3290	0.3538		0.3376	0.3616		0.3371	0.3490
		0.3290	0.3300		0.3290	0.3417		0.3371	0.3490		0.3366	0.3369
		0.3222	0.3243		0.3215	0.3350		0.3290	0.3417		0.3290	0.3300

Absolute Maximum Ratings

		Symbol	Values	Unit
DC Forward Current	Minimum	If min	0.1	A
DC Forward Current	Maximum	If max	2.0	A
Surge Current (t<10 ms, Duty Cycle < 10%)		I s	3	A
Reverse Voltage (@ If= 10 mA)		V r	5	V
Power Dissipation		PD	7	W
Junction Temperature		Tj max	150	°C
Operating Temperature		T opr	-40 to 100	°C
Storage Temperature		T stg	-40 to 100	°C
ESD withstand Voltage HBM Per ANSI/ESDA/JEDEC JS-001		VHBM	8	kV
ESD withstand Voltage CDM Per ANSI/ESDA/JEDEC JS-002		VCDM	1	kV

Characteristics

Parameter		Symbol	Value	Unit
Color Rendering Index1 (Tj=85°C)		CRI	> 90
Viewing Angle (FWHM)		2θ1/2	120	°
Forward Voltage (If=700 mA, Tj=85°C)	Minimum	Vf min	2.5	V
	Typical	Vf typ	2.8
	Maximum	Vf max	3.1
Temperature Coefficient of Voltage		∂Vf/∂T	-1.5	mV/°C
Thermal Resistance (Electrical) Junction/Solder Point		Rthjs-EL	1.6	°C/W
