Description

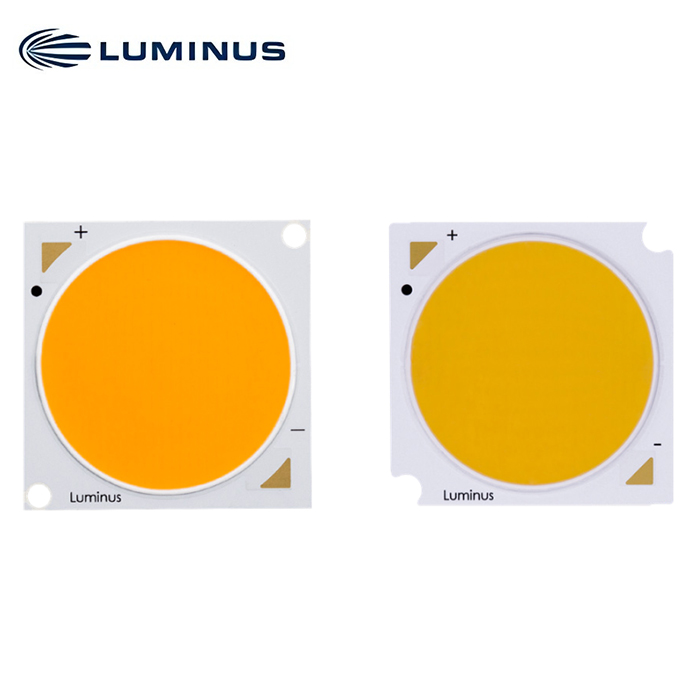

STANDARD GEN 1
Low cost general lighting directional source delivering strong efficacy and a wide selection of emission sizes, light intensity and color rendering.
APPLICATIONS
- Retail/Hospitality
- Track/Spot/Bulb
- High/Low Bay
- Parking/Pole Lighting
FEATURES
- >120 LPW 80 CRI
- Low cost COB designed for manual assembly
- AccuWhite Color rendering to 97 CRI typ.
- Sensus™ Pure White
BENEFITS
- Enhanced efficacy reduces power consumptions
- Sources to achieve highest color rendering and optimum appearance
- Pure white color rendering with enhanced color saturation
PRODUCT SELECTOR
Need a help to select product?Lumen Calculator for COB Arrays
Sort by:
LES = 6.3 LES = 7.5 LES = 9 LES = 11 LES = 13.5 LES = 17.5 LES = 22 LES = 26.5 LES = 32.8
| Product Image | Product Family | LES (mm) | Substrate Size (mm) | Power Range (W) | Flux Range @ 3000K 80CRI |
|---|---|---|---|---|---|
 |
CLM-6 | 6.3 | 12 * 13 (AA) | 3.2 – 6.5 | 340 – 610 |
 |
CXM-6 | 6.3 | 12 * 13 (AA) | 5.6 – 11 | 610 – 1100 |
 |
CHM-6 | 6.3 | 12 * 13 (AA) | 5.6 – 11 | 610 – 1100 |
 |
CXM-7 | 7.5 | 13 * 13 (AA) | 5.8 – 12 | 650 – 1200 |
 |
CLM-9 | 9 | 13.5 * 13.5 (AC) | 5.6 – 14 | 660 – 1300 |
 |
CXM-9 | 9 | 15 * 15 (AA) 13.5 * 13.5 (AC) |
8.6 – 21 | 980 – 1900 |
 |
CHM-9 | 9 | 15 * 15 (AA) 13.5 * 13.5 (AC) |
12.6 – 25 | 1300 – 2400 |
 |
CXM-11 | 11 | 19 * 19 (AB & AC) 13.5 * 13.5 (AC) |
16.8 – 34 | 1900 – 3500 |
 |
CXM-14 | 13.5 | 18.5 * 18.5 (AA) 19 * 19 (AC) |
17.3 – 40 | 2000 – 3500 |
 |
CHM-14 | 13.5 | 18.5 * 18.5 (AA) 19 * 19 (AC) |
25.2 – 50 | 2800 – 5200 |
 |
CXM-18 | 17.5 | 21.5 * 21.5 (AA) | 29 – 65 | 3300 – 6100 |
 |
CXM-22 | 22 | 28 * 28 (AC) | 45 – 90 | 5400 – 9600 |
 |
CHM-22 | 22 | 28 * 28 (AC) | 67 – 130 | 7400 – 13100 |
 |
CXM-27 | 26.5 | 31.5 * 31.5 (AA & AB) | 65 – 144 | 7500 – 13400 |
 |
CHM-27 | 26.5 | 31.5 * 31.5 (AA & AB) | 95 – 150 | 10200 – 14400 |
 |
CXM-32 | 32.8 | 38 * 38 (AC) | 140 – 200 | 17100 – 24200 |
