Description

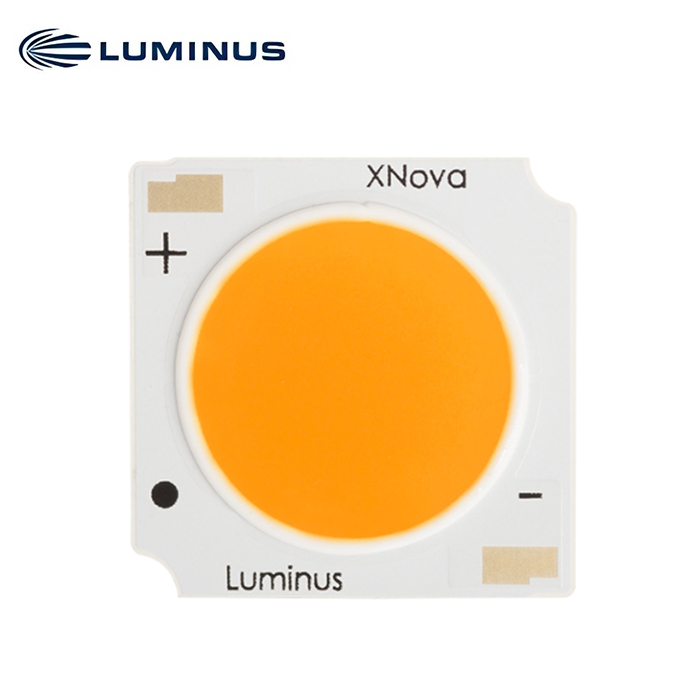

STANDARD GEN 2
Most cost effective general lighting, directional source delivering strong efficacy at affordable prices.
APPLICATIONS
- Retail/Hospitality/Commercial
- Track/Spot/Bulb
- Architectural/Museums/Exhibits
- Parking/Tunnel Lighting
- High/Low Bay
FEATURES
- >130 LPW 80 CRI
- Optimum LES and Lumen outputs
- AccuWhiteTM Color rendering to 97CRI typ.
- SensusTM PureWhite
- Two substrate form factors
BENEFITS
- Enhanced efficacy reduces power consumptions
- Sources to achieve highest color rendering and optimum appearance
- PureWhite color rendering with enhanced color saturation
- Pre-certified to fast-tracked fixture certifications
- Bond pads positioned for optimum processing, solder or connector
PRODUCT SELECTOR
| Product Image | Product Family | LES (mm) | Substrate Size (mm) | Power Range (W) | Flux Range @ 3000K 80CRI |
|---|---|---|---|---|---|
 |
CHM-6 | 6.3 | 12 * 13 (AA) | 5.4 – 11 | 650 – 1200 |
 |
CXM-9 | 9 | 15 * 15 (AA) 13.5 * 13.5 (AC) |
8.3 – 21 | 1000 – 2200 |
 |
CHM-9 | 9 | 15 * 15 (AA) 13.5 * 13.5 (AC) |
12.8 – 26 | 1500 – 2700 |
 |
CXM-14 | 13.5 | 18.5 * 18.5 (AA) 19 * 19 (AC) |
16.6 – 41 | 2200 – 4100 |
 |
CHM-14 | 13.5 | 18.5 * 18.5 (AA) 19 * 19 (AC) |
25.5 – 53 | 3100 – 5900 |
 |
CXM-18 | 17.5 | 21.5 * 21.5 (AA) | 29 – 70 | 3700 – 7300 |
 |
CXM-22 | 22 | 28 * 28 (AC) | 43 – 105 | 5900 – 12400 |
 |
CXM-27 | 26.5 | 31.5 * 31.5 (AA & AB) | 65 – 154 | 8300 – 16000 |
