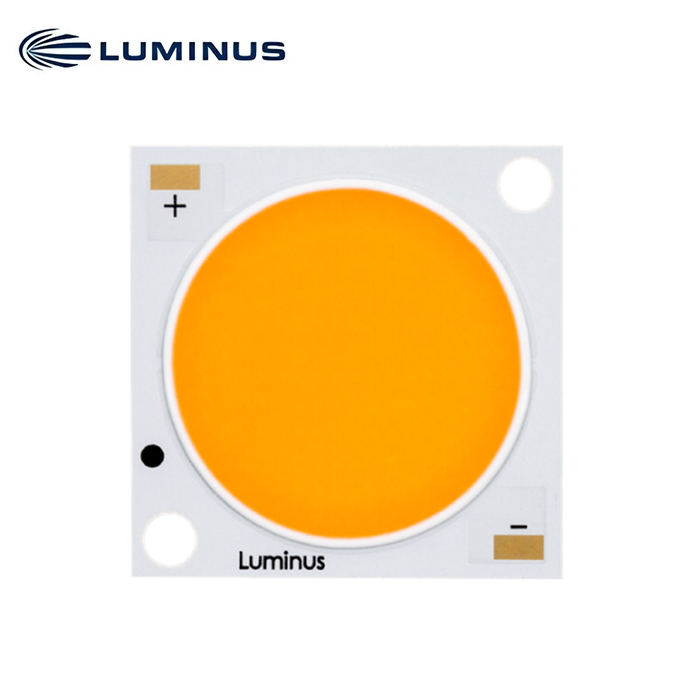

COB ARRAYS

Categories: ,

Description

STANDARD GEN 4

Highest performance, general lighting, directional source delivering high lumen efficacy from the largest selection of Light Emitting Surface (LES), operating power range, and color quality.

APPLICATIONS

  • Retail/Hospitality/Commercial
  • Track/Spot/Bulb
  • Architectural/Museums/Exhibits
  • Roadway/Parking/Tunnel Lighting
  • High/Low Bay
  • Canopy/Awning/Wall Pack

FEATURES

  • >140 LPW, 3000K 90CRI, 180 LPW 5000K 70CRI
  • Complete LES and Lumen outputs
  • AccuWhiteTM Color rendering to 97CRI typ.
  • SensusTM and Xtreme SensusTM Pure White
  • UL and IEC qualified
  • Widest range of CCT/CRI combinations

BENEFITS

  • Enhanced efficacy reduces power consumptions
  • Source optimized for beam characteristics and optics selection
  • Sources to achieve highest color rendering and optimum appearance
  • Pure white color rendering with enhanced color saturation
  • Pre-certified to fast-tracked fixture certifications
Product Family LES (mm) Substrate Size (mm) Power Range (W) Flux Range @ 3000K 90CRI
CXM-3 (Pico-COB) 3.5 13.5 * 13.5 2.75 – 7.7 290 – 600
CXM-4 (Pico-COB) 4.5 13.5 * 13.5 4.0 – 15.7 440 – 1150
CXM-6 6.3 13.5 * 13.5 5 – 17.1 700 – 1800
CIM-9 9.8 13.5 * 13.5 6.1 – 19.8 800 – 2000
CLM-9 9.8 13.5 * 13.5 8.3 – 34.4 1100 – 3300
CXM-9 9.8 13.5 * 13.5 (AC)/15 * 15 (AA) 12.1 – 41.9 1600 – 4300
CXM-11 11.6 19 * 19 15.1 ~ 49.3 2000 – 5100
CIM-14 14.5 19 * 19 15.3 – 50.1 2100 – 5300
CLM-14 14.5 19 * 19 16.6 – 68.7 2300 – 6900
CXM-14 14.5 18.5 * 18.5 (AA)/19 * 19 (AC) 24.1 – 75.6 3300 – 8100
CGM-14 14.5 19 * 19 30.4 – 86.3 4000 – 9200
CXM-18 17.5 21.5 * 21.5 26.8 – 93.8 3700 – 10000
CIM-22 22 28 * 28 33.2 – 112.5 4600 – 12100
CLM-22 22 28 * 28 32.5 – 131.5 5000 – 14200
CXM-22 22 28 * 28 52.3 – 198.7 7300 – 20700
CGM-22 22 28 * 28 81.1 – 225.7 10800 – 24700
CXM-32 32 38 * 38 122.9 – 284.8 16400 – 30900
