Description

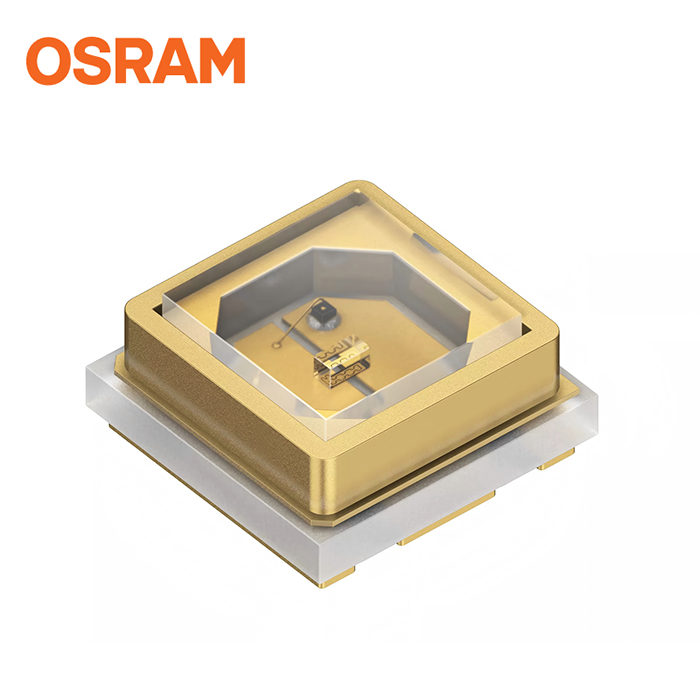

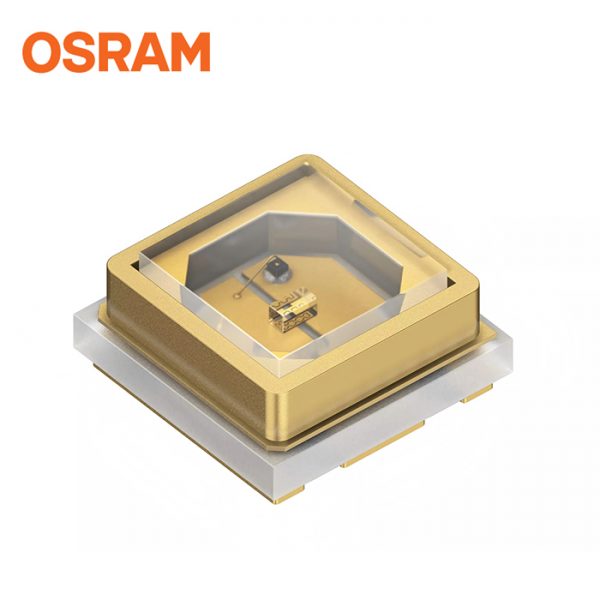

OSLON™ UV 3535 SU CULBN2.VC
The ams OSRAM OSLONTM UV 3535 series combines exceptional wall-plug efficiency, high optical output, and extended lifetime with superior germicidal performance in a compact form factor, enabling versatile, eco-friendly UV-C disinfection and treatment solutions. Its robust, space-efficient design supports flexible system integration for efficient and eco-friendly UV-C solutions.
Applications
– Agriculture & Horticulture
– UV-C Disinfection & Treatment
Features
– Package: Ceramic package with integrated glass cover
– Chip technology: UV Flip chip
– Color: λpeak = 275 nm (● ultraviolet (UV-C))
– ESD: 5 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
– Typ. Radiation: 120° (0°), 120° (90°)
– Radiant Flux: typ. 6.8 mW
– Radiant Efficiency: typ. 4.2 %
– Electrical power: 0.17 W
| Emission Color | Ultraviolet (100-380 nm) | Operating Temperature | Top Minimum -30°C/Top Maximum 85°C |
| Power | 0.16 W (Mid) | Brightness | ΦE typical value 6.8 mW |
| Dimensions | l Typical 3.5 mm/w Typical 3.5 mm/h Typical 1.53 mm |
| Product Category | Description | Order Code |
|---|---|---|
| SU CULBN2.VC-AJAQ-67-4E4G | ΦE = 5.0 … 8.5 mW (IF = 30 mA) | Q65113A6816 |
