Description

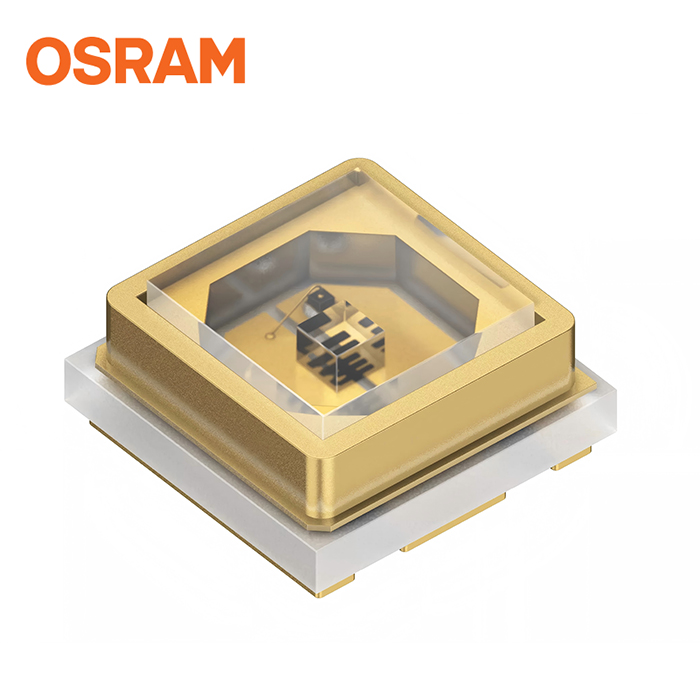

OSLON™ UV 3535 SU CULCN1.VC
The ams OSRAM OSLONTM UV 3535 series combines exceptional wall-plug efficiency, high optical output, and extended lifetime with superior germicidal performance in a compact form factor, enabling versatile, eco-friendly UV-C disinfection and treatment solutions. Its robust, space-efficient design supports flexible system integration for efficient and eco-friendly UV-C solutions.
Applications
– Agriculture & Horticulture
– UV-C Disinfection & Treatment
Features
– Package: Ceramic package with integrated glass cover
– Chip technology: UV Flip chip
– Color: λpeak = 275 nm (● ultraviolet (UV-C))
– ESD: 5 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM)
– Typ. Radiation: 120° (0°), 120° (90°)
– Radiant Flux: typ. 25.5 mW
– Radiant Efficiency: typ. 4.7 %
– Electrical power: 0.55 W
| Emission Color | Ultraviolet (100-380 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 85°C |
| Power | 0.54 W (Mid) | Brightness | ΦE typical value 25.5 mW |
| Dimensions | l Typical 3.5 mm/w Typical 3.5 mm/h Typical 1.53 mm |
| Product Category | Description | Order Code |
|---|---|---|
| SU CULCN1.VC-GEGK-67-4E4G | ΦE = 18 … 32 mW (IF = 100 mA) | Q65113A6335 |
