Two-Channel CCT Tunable Generation 2

Description

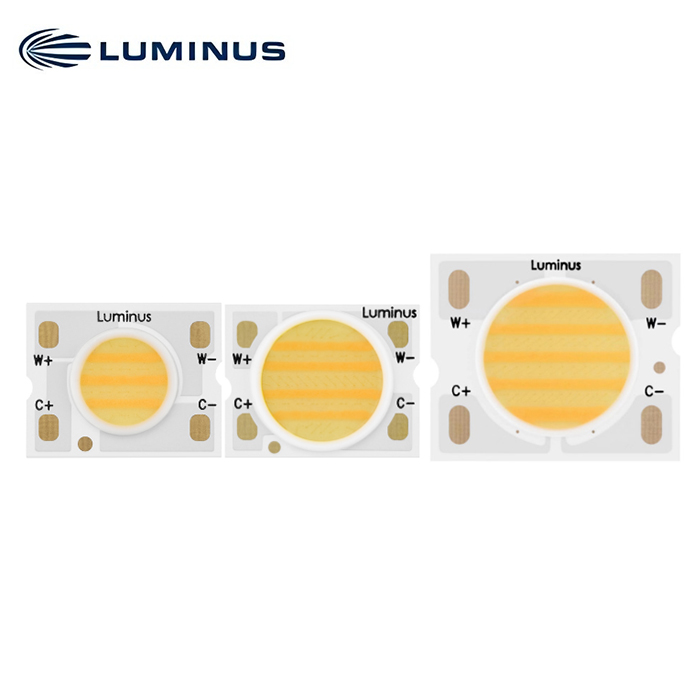

Two-Channel CCT Tunable Generation 2–CCT Tunable White LED COB

Features
• Two channel cool and warm 90+ CRI LEDs
• High lumen density for directional lighting
• Enables system beam angles from 10 to 40 degrees
• 6500K to 2700K CCT range for commercial and residential lighting
• Robust design standard COB manufacturing materials and processes
• Consistent white light <3 SDCM
• Specified “hot” performance and 100% factory tested at Tj=85°C
• RoHs and REACH compliant

Applications
• Human centric lighting
• Museum and high-end retai lighting
• Hospitality / hotel / restaurant lighting
• Circadian lighting
• Residential lighting

Ordering Part Numbers

The following tables describe products with typical flux and minimum flux measured at current noted and specified at Tj = 85°C.

CRI	Warm White CCT	Warm White Typical Flux (lm)	Warm White Min. Flux (lm	Cool White CCT	Cool White Typical Flux (lm)	Cool White Min. Flux (lm)	Ordering Part Number
90	2700K	550	510	6500K	640	595	CTM-6-6527-90-36-TWD6-F3-3
		930	865		1120	1040	CTM-9-6527-90-36-TWD6-F3-3
		2700	2510		3020	2810	CTM-14-6527-90-36-TWD6-F3-3
		4680	4350		5220	4855	CTM-18-6527-90-36-TWD6-F3-3
		5320	4945		6110	5685	CTM-22-6527-90-36-TWD6-F3-3
90	1800K	420	390	4000K	645	600	CTM-6-4018-90-36-TWD6-F3-3
		710	660		1080	1005	CTM-9-4018-90-36-TWD6-F3-3
		1940	1805		2820	2620	CTM-14-4018-90-36-TWD6-F3-3
		3480	3235		5350	4975	CTM-18-4018-90-36-TWD6-F3-3
		4020	3740		6100	5675	CTM-22-4018-90-36-TWD6-F3-3
90	2200K	480	445	5000K	540	500	CTM-6-5022-90-36-TWD6-F3-3
		825	765		965	895	CTM-9-5022-90-36-TWD6-F3-3
		2330	2165		2500	2325	CTM-14-5022-90-36-TWD6-F3-3
		4000	3720		4510	4195	CTM-18-5022-90-36-TWD6-F3-3
		4900	4555		5390	5015	CTM-22-5022-90-36-TWD6-F3-3

Operating Characteristics1

Parameter – CTM-6	Symbol	Minimum	Typical	Maximum	Unit
Combined Channel Forward Current1,2	If		150	225	mA
Forward Voltage Per Channel3	Vf	33.0	35.5	38.0	V
Combined Channel Power			5	9	W
Light Emitting Surface Diameter	LES		6.8		mm
Thermal Resistance (junction-to-case)	Rth J-C		1.14		°C/W

Parameter – CTM-9	Symbol	Minimum	Typical	Maximum	Unit
Combined Channel Forward Current1,2	If		250	450	mA
Forward Voltage Per Channel3	Vf	31.0	35.0	37.5	V
Combined Channel Power			9	17	W
Light Emitting Surface Diameter	LES		9.2		mm
Thermal Resistance (junction-to-case)	Rth J-C		0.52		°C/W

Operating Characteristics (con.)1

Parameter – CTM-14	Symbol	Minimum	Typical	Maximum	Unit
Combined Channel Forward Current1,2	If		700	900	mA
Forward Voltage Per Channel3	Vf	33.0	35.5	38.7	V
Combined Channel Power			25	35	W
Light Emitting Surface Diameter	LES		13.9		mm
Thermal Resistance (junction-to-case)	Rth J-C		0.41		°C/W

Parameter – CTM-18	Symbol	Minimum	Typical	Maximum	Unit
Combined Channel Forward Current1,2	If		1200	1500
Forward Voltage Per Channel3	Vf	33.0	35.5	38.7
Combined Channel Power			43	58
Light Emitting Surface Diameter	LES		19.6		mm
Thermal Resistance (junction-to-case)	Rth J-C		0.27		°C/W

Parameter – CTM-22	Symbol	Minimum	Typical	Maximum	Unit
Combined Channel Forward Current1,2	If		1400	1700	mA
Forward Voltage Per Channel3	Vf	33.0	36.0	38.7	V
Combined Channel Power			50	66	W
Light Emitting Surface Diameter	LES		23.5		mm
Thermal Resistance (junction-to-case)	Rth J-C		0.27		°C/W
