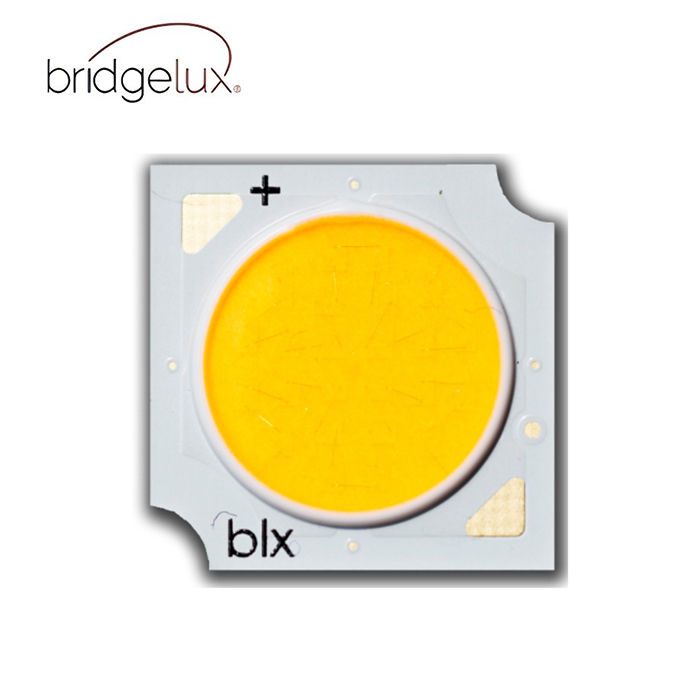

Bridgelux-V Series™ Gen 8 V10 Array

Categories: ,

Description

Bridgelux® Gen 8 V10 Array Series

The V Series™ LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package. These chip on board (CoB) arrays can be efficiently driven up to three times the nominal drive current, enabling design flexibility not previously possible. These high flux density light sources are designed to support a wide range of high quality, low cost directional luminaires and replacement lamps for both interior and exterior commercial and residential applications.

The V10 LED Array is available in a variety of electrical, CCT, and CRI combinations providing substantial design flexibility and energy efficiency advantages. Lighting system designs incorporating these LED arrays deliver increased system level efficacy and a longer service life. Typical applications include replacement lamps and task, accent, spot, track, wide area, security, wall packs and down lights.

Features
• Efficacy of 178 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• 5-Year warranty

Benefits
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applications
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Easy to use with daylight and motion sensors to increase energy savings
• Design with confidence



Product Family Product Part Number Doc Number Gen LES (mm) CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRE V V10A BXRE-xxx1000-A-8x DS412 8 10 2200-6500 70, 80, 90 1, 2, 3, 4 1730 300 33.5 178 13.5×13.5



Product Family Product Part Number Doc Number Gen LES (mm) CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRE V V10B BXRE-xxx1000-B-8x DS412 8 10 2200-6500 70, 80, 90 1, 2, 3, 4 1215 200 34.2 178 13.5×13.5



Product Family Product Part Number Doc Number Gen LES (mm) CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRE V V10C BXRE-xxx1000-C-8x DS412 8 10 2200-6500 70, 80, 90 1, 2, 3, 4 1640 300 30.7 178 13.5×13.5



product-939-710



Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number Nominal

CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25°C

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25°C

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRE-22E1000-A-8X 2200 80 300 1110 996 33.5 10.1 110
BXRE-22E1000-B-8X 2200 80 200 781 701 34.2 6.8 114
BXRE-22E1000-C-8X 2200 80 300 1053 945 30.7 9.2 114
BXRE-22G1000-A-8X 2200 90 300 901 808 33.5 10.1 90
BXRE-22G1000-B-8X 2200 90 200 634 569 34.2 6.8 93
BXRE-22G1000-C-8X 2200 90 300 853 765 30.7 9.2 93
BXRE-24G1000-A-8x 2400 90 300 1211 1066 33.5 10.1 120
BXRE-24G1000-B-8x 2400 90 200 852 750 34.2 6.8 125
BXRE-24G1000-C-8x 2400 90 300 1149 1011 30.7 9.2 125
BXRE-24H1000-A-8x 2400 97 300 1054 928 33.5 10.1 105
BXRE-24H1000-B-8x 2400 97 200 741 652 34.2 6.8 108
BXRE-24H1000-C-8x 2400 97 300 1000 880 30.7 9.2 109
BXRE-27E1000-A-8x 2700 80 300 1628 1460 33.5 10.1 162
BXRE-27E1000-B-8x 2700 80 200 1145 1027 34.2 6.8 167
BXRE-27E1000-C-8x 2700 80 300 1544 1385 30.7 9.2 168
BXRE-27G1000-A-8x 2700 90 300 1343 1205 33.5 10.1 134
BXRE-27G1000-B-8x 2700 90 200 945 848 34.2 6.8 138
BXRE-27G1000-C-8x 2700 90 300 1274 1143 30.7 9.2 138
BXRE-27G10H0-A-8x 2700 90 300 1401 1257 33.5 10.1 139
BXRE-27G10H0-B-8x 2700 90 200 986 884 34.2 6.8 144
BXRE-27G10H0-C-8x 2700 90 300 1329 1192 30.7 9.2 144
BXRE-27H1000-A-8x 2700 97 300 1191 1068 33.5 10.1 118
BXRE-27H1000-B-8x 2700 97 200 838 752 34.2 6.8 122
BXRE-27H1000-C-8x 2700 97 300 1129 1013 30.7 9.2 123
BXRE-30C1001-A-8x 3000 70 300 1811 1624 33.5 10.1 180
BXRE-30C1001-B-8x 3000 70 200 1274 1143 34.2 6.8 186
BXRE-30C1001-C-8x 3000 70 300 1718 1541 30.7 9.2 187
BXRE-30E1000-A-8x 3000 80 300 1730 1552 33.5 10.1 172
BXRE-30E1000-B-8x 3000 80 200 1217 1092 34.2 6.8 178
BXRE-30E1000-C-8x 3000 80 300 1641 1472 30.7 9.2 178
BXRE-30G1000-A-8x 3000 90 300 1404 1259 33.5 10.1 140
BXRE-30G1000-B-8x 3000 90 200 988 886 34.2 6.8 144
BXRE-30G1000-C-8x 3000 90 300 1329 1192 30.7 9.2 144
BXRE-30G10H0-A-8x 3000 90 300 1471 1319 33.5 10.1 146
BXRE-30G10H0-B-8x 3000 90 200 1034 927 34.2 6.8 151



Part Number Nominal

CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25°C

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25°C

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRE-30G10H0-C-8x 3000 90 300 1395 1251 30.7 9.2 151
BXRE-30H1000-A-8x 3000 97 300 1272 1141 33.5 10.1 127
BXRE-30H1000-B-8x 3000 97 200 895 803 34.2 6.8 131
BXRE-30H1000-C-8x 3000 97 300 1207 1083 30.7 9.2 131
BXRE-35E1000-A-8x 3500 80 300 1771 1589 33.5 10.1 176
BXRE-35E1000-B-8x 3500 80 200 1246 1118 34.2 6.8 182
BXRE-35E1000-C-8x 3500 80 300 1680 1507 30.7 9.2 182
BXRE-35G1000-A-8x 3500 90 300 1455 1305 33.5 10.1 145
BXRE-35G1000-B-8x 3500 90 200 1024 919 34.2 6.8 150
BXRE-35G1000-C-8x 3500 90 300 1380 1238 30.7 9.2 150
BXRE-35G10H0-A-8x 3500 90 300 1525 1372 33.5 10.1 152
BXRE-35G10H0-B-8x 3500 90 200 1073 966 34.2 6.8 157
BXRE-35G10H0-C-8x 3500 90 300 1446 1302 30.7 9.2 157
BXRE-35H1000-A-8x 3500 97 300 1307 1150 33.5 10.1 130
BXRE-35H1000-B-8x 3500 97 200 920 810 34.2 6.8 135
BXRE-35H1000-C-8x 3500 97 300 1240 1091 30.7 9.2 135
BXRE-40C1001-A-8x 4000 70 300 1862 1670 33.5 10.1 185
BXRE-40C1001-B-8x 4000 70 200 1310 1175 34.2 6.8 192
BXRE-40C1001-C-8x 4000 70 300 1766 1584 30.7 9.2 192
BXRE-40E1000-A-8x 4000 80 300 1781 1598 33.5 10.1 177
BXRE-40E1000-B-8x 4000 80 200 1253 1124 34.2 6.8 183
BXRE-40E1000-C-8x 4000 80 300 1689 1515 30.7 9.2 183
BXRE-40G1000-A-8x 4000 90 300 1486 1333 33.5 10.1 148
BXRE-40G1000-B-8x 4000 90 200 1045 937 34.2 6.8 153
BXRE-40G1000-C-8x 4000 90 300 1409 1264 30.7 9.2 153
BXRE-40G10H0-A-8x 4000 90 300 1540 1386 33.5 10.1 153
BXRE-40G10H0-B-8x 4000 90 200 1083 975 34.2 6.8 158
BXRE-40G10H0-C-8x 4000 90 300 1460 1314 30.7 9.2 159
BXRE-40H1000-A-8x 4000 97 300 1343 1182 33.5 10 134
BXRE-40H1000-B-8x 4000 97 200 945 848 34.2 6.8 138
BXRE-40H1000-C-8x 4000 97 300 1274 1143 30.7 9.2 138
BXRE-50C1001-A-8x 5000 70 300 1872 1679 33.5 10.1 186
BXRE-50C1001-B-8x 5000 70 200 1317 1181 34.2 6.8 193
BXRE-50C1001-C-8x 5000 70 300 1776 1593 30.7 9.2 193
BXRE-50E1001-A-8x 5000 80 300 1801 1615 33.5 10.1 179
BXRE-50E1001-B-8x 5000 80 200 1267 1136 34.2 6.8 185
BXRE-50E1001-C-8x 5000 80 300 1709 1533 30.7 9.2 186



Part Number Nominal

CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25°C

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25°C

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRE-50G1001-A-8x 5000 90 300 1557 1397 33.5 10.1 155
BXRE-50G1001-B-8x 5000 90 200 1095 982 34.2 6.8 160
BXRE-50G1001-C-8x 5000 90 300 1477 1325 30.7 9.2 160
BXRE-57C1001-A-8x 5700 70 300 1822 1634 33.5 10.1 181
BXRE-57C1001-B-8x 5700 70 200 1281 1149 34.2 6.8 187
BXRE-57C1001-C-8x 5700 70 300 1728 1550 30.7 9.2 188
BXRE-57E1001-A-8x 5700 80 300 1730 1552 33.5 10.1 172
BXRE-57E1001-B-8x 5700 80 200 1217 1092 34.2 6.8 178
BXRE-57E1001-C-8x 5700 80 300 1641 1472 30.7 9.2 178
BXRE-65C1001-A-8x 6500 70 300 1822 1634 33.5 10.1 181
BXRE-65C1001-B-8x 6500 70 200 1281 1149 34.2 6.8 187
BXRE-65C1001-C-8x 6500 70 300 1728 1550 30.7 9.2 188



Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85°C

(lm)

 T c = 85°C

(lm)
BXRE-22E1000-A-8X 2200 80 300 999 897 32.9 9.9 101
BXRE-22E1000-B-8X 2200 80 200 703 631 33.6 6.7 105
BXRE-22E1000-C-8X 2200 80 300 948 851 30.1 9.0 105
BXRE-22G1000-A-8X 2200 90 300 811 728 32.9 9.9 82
BXRE-22G1000-B-8X 2200 90 200 571 512 33.6 6.7 85
BXRE-22G1000-C-8X 2200 90 300 767 689 30.1 9.0 85
BXRE-24G1000-A-8x 2400 90 300 1090 959 32.9 9.9 110
BXRE-24G1000-B-8x 2400 90 200 767 675 33.6 6.7 114
BXRE-24G1000-C-8x 2400 90 300 1034 910 30.1 9.0 114
BXRE-24H1000-A-8x 2400 97 300 949 835 32.9 9.9 96
BXRE-24H1000-B-8x 2400 97 200 667 587 33.6 6.7 99
BXRE-24H1000-C-8x 2400 97 300 900 792 30.1 9.0 100
BXRE-27E1000-A-8x 2700 80 300 1465 1316 32.9 9.9 148
BXRE-27E1000-B-8x 2700 80 200 1031 925 33.6 6.7 154
BXRE-27E1000-C-8x 2700 80 300 1390 1248 30.1 9.0 154
BXRE-27G1000-A-8x 2700 90 300 1209 1085 32.9 9.9 122
BXRE-27G1000-B-8x 2700 90 200 850 764 33.6 6.7 127
BXRE-27G1000-C-8x 2700 90 300 1147 1030 30.1 9.0 127
BXRE-27G10H0-A-8x 2700 90 300 1261 1132 32.9 9.9 128
BXRE-27G10H0-B-8x 2700 90 200 887 797 33.6 6.7 132
BXRE-27G10H0-C-8x 2700 90 300 1196 1074 30.1 9.0 132
BXRE-27H1000-A-8x 2700 97 300 1072 963 32.9 9.9 109
BXRE-27H1000-B-8x 2700 97 200 754 677 33.6 6.7 112
BXRE-27H1000-C-8x 2700 97 300 1016 912 30.1 9.0 112
BXRE-30C1001-A-8x 3000 70 300 1630 1464 32.9 9.9 165
BXRE-30C1001-B-8x 3000 70 200 1147 1030 33.6 6.7 171
BXRE-30C1001-C-8x 3000 70 300 1546 1388 30.1 9.0 171
BXRE-30E1000-A-8x 3000 80 300 1557 1398 32.9 9.9 158
BXRE-30E1000-B-8x 3000 80 200 1095 984 33.6 6.7 163
BXRE-30E1000-C-8x 3000 80 300 1477 1326 30.1 9.0 163
BXRE-30G1000-A-8x 3000 90 300 1264 1135 32.9 9.9 128
BXRE-30G1000-B-8x 3000 90 200 889 799 33.6 6.7 133
BXRE-30G1000-C-8x 3000 90 300 1196 1074 30.1 9.0 132
BXRE-30G10H0-A-8x 3000 90 300 1323 1189 32.9 9.9 134
BXRE-30G10H0-B-8x 3000 90 200 931 836 33.6 6.7 139



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85°C

(lm)

 T c = 85°C

(lm)
BXRE-30G10H0-C-8x 3000 90 300 1255 1127 30.1 9.0 139
BXRE-30H1000-A-8x 3000 97 300 1145 1028 32.9 9.9 116
BXRE-30H1000-B-8x 3000 97 200 805 723 33.6 6.7 120
BXRE-30H1000-C-8x 3000 97 300 1086 975 30.1 9.0 120
BXRE-35E1000-A-8x 3500 80 300 1594 1431 32.9 9.9 161
BXRE-35E1000-B-8x 3500 80 200 1121 1007 33.6 6.7 167
BXRE-35E1000-C-8x 3500 80 300 1512 1358 30.1 9.0 167
BXRE-35G1000-A-8x 3500 90 300 1310 1176 32.9 9.9 133
BXRE-35G1000-B-8x 3500 90 200 921 828 33.6 6.7 137
BXRE-35G1000-C-8x 3500 90 300 1242 1115 30.1 9.0 137
BXRE-35G10H0-A-8x 3500 90 300 1372 1235 32.9 9.9 139
BXRE-35G10H0-B-8x 3500 90 200 966 869 33.6 6.7 144
BXRE-35G10H0-C-8x 3500 90 300 1302 1171 30.1 9.0 144
BXRE-35H1000-A-8x 3500 97 300 1177 1036 32.9 9.9 119
BXRE-35H1000-B-8x 3500 97 200 828 728 33.6 6.7 123
BXRE-35H1000-C-8x 3500 97 300 1116 982 30.1 9.0 124
BXRE-40C1001-A-8x 4000 70 300 1676 1505 32.9 9.9 170
BXRE-40C1001-B-8x 4000 70 200 1179 1059 33.6 6.7 176
BXRE-40C1001-C-8x 4000 70 300 1590 1427 30.1 9.0 176
BXRE-40E1000-A-8x 4000 80 300 1603 1439 32.9 9.9 162
BXRE-40E1000-B-8x 4000 80 200 1128 1013 33.6 6.7 168
BXRE-40E1000-C-8x 4000 80 300 1520 1365 30.1 9.0 168
BXRE-40G1000-A-8x 4000 90 300 1337 1201 32.9 9.9 135
BXRE-40G1000-B-8x 4000 90 200 941 845 33.6 6.7 140
BXRE-40G1000-C-8x 4000 90 300 1268 1139 30.1 9.0 140
BXRE-40G10H0-A-8x 4000 90 300 1386 1247 32.9 9.9 140
BXRE-40G10H0-B-8x 4000 90 200 975 877 33.6 6.7 145
BXRE-40G10H0-C-8x 4000 90 300 1314 1183 30.1 9.0 146
BXRE-40H1000-A-8x 4000 97 300 1209 1064 32.9 10 122
BXRE-40H1000-B-8x 4000 97 200 851 764 33.6 6.7 127
BXRE-40H1000-C-8x 4000 97 300 1147 1030 30.1 9.0 127
BXRE-50C1001-A-8x 5000 70 300 1685 1513 32.9 9.9 171
BXRE-50C1001-B-8x 5000 70 200 1186 1064 33.6 6.7 177
BXRE-50C1001-C-8x 5000 70 300 1599 1435 30.1 9.0 177



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85°C

(lm)

 T c = 85°C

(lm)
BXRE-50E1001-A-8x 5000 80 300 1621 1456 32.9 9.9 164
BXRE-50E1001-B-8x 5000 80 200 1140 1024 33.6 6.7 170
BXRE-50E1001-C-8x 5000 80 300 1538 1381 30.1 9.0 170
BXRE-50G1001-A-8x 5000 90 300 1401 1258 32.9 9.9 142
BXRE-50G1001-B-8x 5000 90 200 986 885 33.6 6.7 147
BXRE-50G1001-C-8x 5000 90 300 1329 1194 30.1 9.0 147
BXRE-57C1001-A-8x 5700 70 300 1639 1473 32.9 9.9 166
BXRE-57C1001-B-8x 5700 70 200 1153 1035 33.6 6.7 172
BXRE-57C1001-C-8x 5700 70 300 1555 1397 30.1 9.0 172
BXRE-57E1001-A-8x 5700 80 300 1557 1398 32.9 9.9 158
BXRE-57E1001-B-8x 5700 80 200 1095 984 33.6 6.7 163
BXRE-57E1001-C-8x 5700 80 300 1477 1326 30.1 9.0 163
BXRE-65C1001-A-8x 6500 70 300 1639 1473 32.9 9.9 166
BXRE-65C1001-B-8x 6500 70 200 1153 1035 33.6 6.7 172
BXRE-65C1001-C-8x 6500 70 300 1555 1397 30.1 9.0 172
BXRE-65E1001-A-8x 6500 80 300 1575 1414 32.9 9.9 160
BXRE-65E1001-B-8x 6500 80 200 1108 995 33.6 6.7 165
BXRE-65E1001-C-8x 6500 80 300 1494 1315 30.1 9.0 165



Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRE-27E1000-A-8x 2700 80 960 36.5 4191 35.0 120 E 869099
BXRE-27E1000-B-8x 2700 80 500 36.8 2323 18.4 126 E 836098
BXRE-27E1000-C-8x 2700 80 1000 34.3 4115 34.3 120 E 869111
BXRE-27G1000-A-8x 2700 90 730 35.2 2747 25.7 107 F 869214
BXRE-27G1000-B-8x 2700 90 500 36.8 1917 18.4 104 F 869221
BXRE-27G1000-C-8x 2700 90 770 33.1 2727 25.5 107 F 869227
BXRE-27G10H0-B-8x 2700 90 500 36.8 1999 18.4 109 F 869237
BXRE-27G10H0-C-8x 2700 90 870 33.7 3157 29.3 108 F 869241
BXRE-27H1000-A-8x 2700 95 540 34.1 1858 18.4 101 F 869341
BXRE-27H1000-B-8x 2700 95 400 35.7 1410 14.3 99 F 869345
BXRE-27H1000-C-8x 2700 95 570 32.1 1847 18.3 101 F 869350
BXRE-30C1001-A-8x 3000 70 960 36.5 4662 35.0 133 E 869432
BXRE-30C1001-B-8x 3000 70 500 36.8 2585 18.4 141 E 869438
BXRE-30C1001-C-8x 3000 70 1000 34.3 4578 34.3 133 E 869444
BXRE-30E1000-A-8x 3000 80 960 36.5 4453 35.0 127 E 869529
BXRE-30E1000-B-8x 3000 80 500 36.8 2468 18.4 134 E 869536
BXRE-30E1000-C-8x 3000 80 1000 34.3 4373 34.3 127 E 869542



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRE-30G1000-A-8x 3000 90 840 35.8 3238 30.1 108 F 869641
BXRE-30G1000-B-8x 3000 90 500 36.8 2004 18.4 109 F 869648
BXRE-30G1000-C-8x 3000 90 880 33.7 3195 29.7 108 F 869654
BXRE-30G10H0-B-8x 3000 90 500 36.8 2098 18.4 114 F 869667
BXRE-30G10H0-C-8x 3000 90 1000 34.3 3717 34.3 108 F 869671
BXRE-30H1000-A-8x 3000 95 680 34.9 2444 23.7 103 F 869793
BXRE-30H1000-B-8x 3000 95 470 36.4 1725 17.1 101 F 869797
BXRE-30H1000-C-8x 3000 95 720 32.9 2435 23.7 103 F 869802
BXRE-35E1000-A-8x 3500 80 960 36.5 4558 35.0 130 E 869900
BXRE-35E1000-B-8x 3500 80 500 36.8 2526 18.4 137 E 869907
BXRE-35E1000-C-8x 3500 80 1000 34.3 4475 34.3 130 E 869913
BXRE-35G1000-A-8x 3500 90 920 36.3 3615 33.4 108 F 869993
BXRE-35G1000-B-8x 3500 90 500 36.8 2076 18.4 113 F 869999
BXRE-35G1000-C-8x 3500 90 960 34.1 3555 32.8 109 F 870005
BXRE-35H1000-A-83 3500 95 740 35.2 2706 26 104 F 2366245
BXRE-35H1000-B-83 3500 95 500 36.8 1865 18 101 F 2366246
BXRE-35H1000-C-83 3500 95 780 33.2 2685 26 104 F 2366247
BXRE-40C1001-A-8x 4000 70 960 36.5 4793 35.0 137 E 870113
BXRE-40C1001-B-8x 4000 70 500 36.8 2657 18.4 145 E 870119
BXRE-40C1001-C-8x 4000 70 1000 34.3 4707 34.3 137 E 870125
BXRE-40E1000-A-8x 4000 80 960 36.5 4584 35.0 131 E 870207
BXRE-40E1000-B-8x 4000 80 500 36.8 2541 18.4 138 E 870214
BXRE-40E1000-C-8x 4000 80 1000 34.3 4501 34.3 131 E 870220
BXRE-40G1000-A-8x 4000 90 960 36.5 3824 35.0 109 F 870309
BXRE-40G1000-B-8x 4000 90 500 36.8 2120 18.4 115 F 870316
BXRE-40G1000-C-8x 4000 90 1000 34.3 3755 34.3 109 F 870322
BXRE-50C1001-A-8x 5000 70 960 36.5 4820 35.0 138 E 870442
BXRE-50C1001-B-8x 5000 70 500 36.8 2672 18.4 145 E 870446
BXRE-50C1001-C-8x 5000 70 1000 34.3 4733 34.3 138 E 870450
BXRE-50E1001-A-8x 5000 80 960 36.5 4636 35.0 132 E 870512
BXRE-50E1001-B-8x 5000 80 500 36.8 2570 18.4 140 E 870517
BXRE-50E1001-C-8x 5000 80 1000 34.3 4553 34.3 133 E 870521
BXRE-50G1001-A-8x 5000 90 960 36.5 4008 35.0 114 F 870582
BXRE-50G1001-B-8x 5000 90 500 36.8 2222 18.4 121 E 870586
BXRE-50G1001-C-8x 5000 90 1000 34.3 3935 34.3 115 F 870590



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRE-57C1001-A-8x 5700 70 960 36.5 4689 35.0 134 E 870699
BXRE-57C1001-B-8x 5700 70 500 36.8 2599 18.4 141 E 870704
BXRE-57C1001-C-8x 5700 70 1000 34.3 4604 34.3 134 E 870708
BXRE-57E1001-A-8x 5700 80 960 36.5 4453 35.0 127 E 870755
BXRE-57E1001-B-8x 5700 80 500 36.8 2468 18.4 134 E 870759
BXRE-57E1001-C-8x 5700 80 1000 34.3 4373 34.3 127 E 870763
BXRE-65C1001-A-8x 6500 70 960 36.5 4689 35.0 134 E 870827
BXRE-65C1001-B-8x 6500 70 500 36.8 2599 18.4 141 E 870832
BXRE-65C1001-C-8x 6500 70 1000 34.3 4604 34.3 134 E 870836
BXRE-65E1001-A-8x 6500 80 960 36.5 4505 35.0 129 E 870884
BXRE-65E1001-B-8x 6500 80 500 36.8 2497 18.4 136 E 870888
BXRE-65E1001-C-8x 6500 80 1000 34.3 4424 34.3 129 E 870892

Related products
