Bridgelux-V Series™ Gen 8 V8 Array

Categories: ,

Description

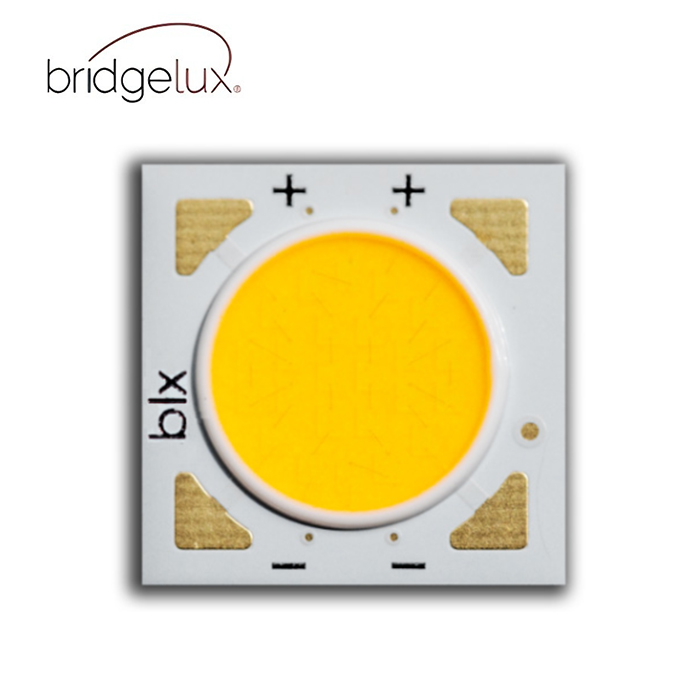

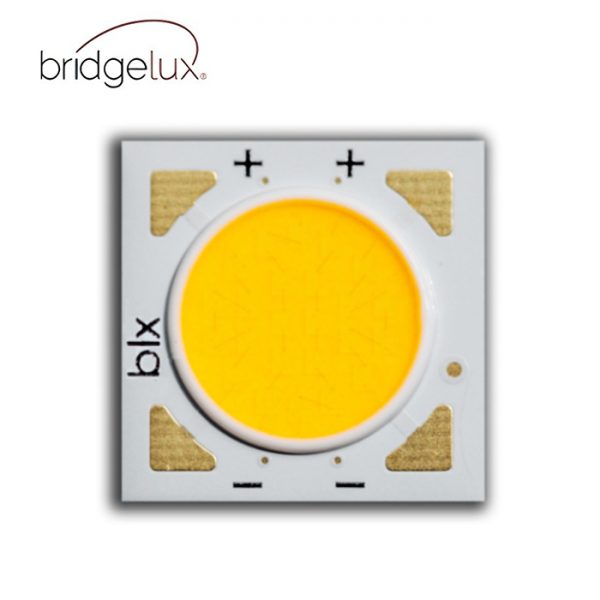

Bridgelux® Gen 8 V8 Array

The V Series™ LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package. These chip on board (CoB) arrays can be efficiently driven up to three times the nominal drive current, enabling design flexibility not previously possible. These high flux density light sources are designed to support a wide range of high quality, low cost directional luminaires and replacement lamps for both interior and exterior commercial and residential applications.

The V8 LED Array is available in a variety of electrical, CCT, and CRI combinations providing substantial design flexibility and energy efficiency advantages.

Lighting system designs incorporating these LED arrays deliver increased system level efficacy and a longer service life. Typical applications include replacement lamps and task, accent, spot, track, wide area, security, wall packs and down lights.

Features
• Efficacy of 178 lm/W typical for 3000K, 80 CRI
• Compact high flux density light source
• Uniform, high quality illumination
• Minimum 70, 80, and 90 CRI options
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 2, 3 and 4 SDCM standard
• More energy efficient than incandescent, halogen and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming
• Vf bin code backside marking

Benefits
• Enhanced optical control
• Clean white light without pixilation
• High quality, true color reproduction
• Significantly reduced thermal resistance and increased operating temperatures
• Uniform, consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors to enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issues



Product Family Product Part Number Doc Number Gen LES (mm) CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRE V V8D BXRE-xxx0800-D-8X DS411 8 8 2200-6500 70, 80, 90 1, 2, 3, 4 895 300 16.8 178 12.5×12.5



Product Family Product Part Number Doc Number Gen LES (mm) CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRE V V8E BXRE-xxx0800-E-8X DS411 8 8 2200-6500 70, 80, 90 1, 2, 3, 4 895 150 33.5 178 12.5×12.5



product-869-665



Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRE-22E0800-D-8X 2200 80 300 713 625 16.8 5.0 143
BXRE-22E0800-E-8X 2200 80 150 713 625 33.5 5.0 143
BXRE-22G0800-D-8X 2200 90 300 577 506 16.8 5.0 115
BXRE-22G0800-E-8X 2200 90 150 577 506 33.5 5.0 115
BXRE-27E0800-D-8x 2700 80 300 842 741 16.8 5.0 167
BXRE-27E0800-E-8x 2700 80 150 842 741 33.5 5.0 168
BXRE-27G0800-D-8x 2700 90 300 695 612 16.8 5.0 138
BXRE-27G0800-E-8x 2700 90 150 695 612 33.5 5.0 138
BXRE-27G08H0-D-8x 2700 90 300 725 638 16.8 5.0 144
BXRE-27G08H0-E-8x 2700 90 150 725 638 33.5 5.0 144
BXRE-27H0800-D-8x 2700 97 300 616 542 16.8 5.0 122
BXRE-27H0800-E-8x 2700 97 150 616 542 33.5 5.0 123
BXRE-30C0801-D-8x 3000 70 300 937 825 16.8 5.0 186
BXRE-30C0801-E-8x 3000 70 150 937 825 33.5 5.0 186
BXRE-30E0800-D-8x 3000 80 300 895 788 16.8 5.0 178
BXRE-30E0800-E-8x 3000 80 150 895 788 33.5 5.0 178
BXRE-30G0800-D-8x 3000 90 300 727 639 16.8 5.0 144
BXRE-30G0800-E-8x 3000 90 150 727 639 33.5 5.0 145
BXRE-30G08H0-D-8x 3000 90 300 761 669 16.8 5.0 151
BXRE-30G08H0-E-8x 3000 90 150 761 669 33.5 5.0 151
BXRE-30H0800-D-8x 3000 97 300 658 579 16.8 5.0 131
BXRE-30H0800-E-8x 3000 97 150 658 579 33.5 5.0 131
BXRE-35E0800-D-8x 3500 80 300 916 806 16.8 5.0 182
BXRE-35E0800-E-8x 3500 80 150 916 806 33.5 5.0 182
BXRE-35G0800-D-8x 3500 90 300 753 663 16.8 5.0 149
BXRE-35G0800-E-8x 3500 90 150 753 663 33.5 5.0 150
BXRE-40C0801-D-8x 4000 70 300 963 848 16.8 5.0 191
BXRE-40C0801-E-8x 4000 70 150 963 848 33.5 5.0 192
BXRE-40E0800-D-8x 4000 80 300 921 811 16.8 5.0 183
BXRE-40E0800-E-8x 4000 80 150 921 811 33.5 5.0 183



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRE-40G0800-D-8x 4000 90 300 769 676 16.8 5.0 153
BXRE-40G0800-E-8x 4000 90 150 769 676 33.5 5.0 153
BXRE-50C0801-D-8x 5000 70 300 969 852 16.8 5.0 192
BXRE-50C0801-E-8x 5000 70 150 969 852 33.5 5.0 193
BXRE-50E0801-D-8x 5000 80 300 932 820 16.8 5.0 185
BXRE-50E0801-E-8x 5000 80 150 932 820 33.5 5.0 185
BXRE-50G0801-D-8x 5000 90 300 806 709 16.8 5.0 160
BXRE-50G0801-E-8x 5000 90 150 806 709 33.5 5.0 160
BXRE-57C0801-D-8x 5700 70 300 942 829 16.8 5.0 187
BXRE-57C0801-E-8x 5700 70 150 942 829 33.5 5.0 188
BXRE-57E0801-D-8x 5700 80 300 895 788 16.8 5.0 178
BXRE-57E0801-E-8x 5700 80 150 895 788 33.5 5.0 178
BXRE-65C0801-D-8x 6500 70 300 942 829 16.8 5.0 187
BXRE-65C0801-E-8x 6500 70 150 942 829 33.5 5.0 188
BXRE-65E0801-D-8x 6500 80 300 906 797 16.8 5.0 180
BXRE-65E0801-E-8x 6500 80 150 906 797 33.5 5.0 180



Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C)

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

Tc = 85ºC

(lm)

 Minimum DC

Flux6

Tc = 85ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRE-22E0800-D-8X 2200 80 300 639 563 16.5 4.9 131
BXRE-22E0800-E-8X 2200 80 150 639 563 32.9 4.9 131
BXRE-22G0800-D-8X 2200 90 300 517 455 16.5 4.9 106
BXRE-22G0800-E-8X 2200 90 150 517 455 32.9 4.9 106
BXRE-27E0800-D-8x 2700 80 300 758 667 16.5 4.9 154
BXRE-27E0800-E-8x 2700 80 150 758 667 32.9 4.9 154
BXRE-27G0800-D-8x 2700 90 300 625 550 16.5 4.9 127
BXRE-27G0800-E-8x 2700 90 150 625 550 32.9 4.9 127
BXRE-27G08H0-D-8x 2700 90 300 652 574 16.5 4.9 132
BXRE-27G08H0-E-8x 2700 90 150 652 574 32.9 4.9 132
BXRE-27H0800-D-8x 2700 97 300 554 488 16.5 4.9 112
BXRE-27H0800-E-8x 2700 97 150 554 488 32.9 4.9 112
BXRE-30C0801-D-8x 3000 70 300 843 742 16.5 4.9 171
BXRE-30C0801-E-8x 3000 70 150 843 742 32.9 4.9 171
BXRE-30E0800-D-8x 3000 80 300 806 709 16.5 4.9 163
BXRE-30E0800-E-8x 3000 80 150 806 709 32.9 4.9 163
BXRE-30G0800-D-8x 3000 90 300 654 575 16.5 4.9 132
BXRE-30G0800-E-8x 3000 90 150 654 575 32.9 4.9 132
BXRE-30G08H0-D-8x 3000 90 300 685 603 16.5 4.9 139
BXRE-30G08H0-E-8x 3000 90 150 685 603 32.9 4.9 139
BXRE-30H0800-D-8x 3000 97 300 592 521 16.5 4.9 120
BXRE-30H0800-E-8x 3000 97 150 592 521 32.9 4.9 120
BXRE-35E0800-D-8x 3500 80 300 824 726 16.5 4.9 167
BXRE-35E0800-E-8x 3500 80 150 824 726 32.9 4.9 167
BXRE-35G0800-D-8x 3500 90 300 678 596 16.5 4.9 137
BXRE-35G0800-E-8x 3500 90 150 678 596 32.9 4.9 137
BXRE-40C0801-D-8x 4000 70 300 867 763 16.5 4.9 176
BXRE-40C0801-E-8x 4000 70 150 867 763 32.9 4.9 176
BXRE-40E0800-D-8x 4000 80 300 829 730 16.5 4.9 168
BXRE-40E0800-E-8x 4000 80 150 829 730 32.9 4.9 168



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

Tc = 85ºC

(lm)

 Minimum DC

Flux6

Tc = 85ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRE-40G0800-D-8x 4000 90 300 692 609 16.5 4.9 140
BXRE-40G0800-E-8x 4000 90 150 692 609 32.9 4.9 140
BXRE-50C0801-D-8x 5000 70 300 872 767 16.5 4.9 177
BXRE-50C0801-E-8x 5000 70 150 872 767 32.9 4.9 177
BXRE-50E0801-D-8x 5000 80 300 839 738 16.5 4.9 170
BXRE-50E0801-E-8x 5000 80 150 839 738 32.9 4.9 170
BXRE-50G0801-D-8x 5000 90 300 725 638 16.5 4.9 147
BXRE-50G0801-E-8x 5000 90 150 725 638 32.9 4.9 147
BXRE-57C0801-D-8x 5700 70 300 848 746 16.5 4.9 172
BXRE-57C0801-E-8x 5700 70 150 848 746 32.9 4.9 172
BXRE-57E0801-D-8x 5700 80 300 806 709 16.5 4.9 163
BXRE-57E0801-E-8x 5700 80 150 806 709 32.9 4.9 163
BXRE-65C0801-D-8x 6500 70 300 848 746 16.5 4.9 172
BXRE-65C0801-E-8x 6500 70 150 848 746 32.9 4.9 172
BXRE-65E0801-D-8x 6500 80 300 815 717 16.5 4.9 165
BXRE-65E0801-E-8x 6500 80 150 815 717 32.9 4.9 165



Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRE-27E0800-D-8x 2700 80 1000 18.5 2107 18.5 114 F 869084
BXRE-27E0800-E-8x 2700 80 500 37.0 2220 18.5 120 E 869088
BXRE-27G0800-D-8x 2700 90 780 17.9 1412 14.0 101 F 869189
BXRE-27G0800-E-8x 2700 90 440 36.3 1648 16.0 103 F 869193
BXRE-27G08H0-D-8x 2700 90 870 18.2 1617 15.8 102 F 869205
BXRE-27G08H0-E-8x 2700 90 480 36.8 1846 17.6 105 F 869209
BXRE-27H0800-D-8x 2700 95 620 17.5 1021 10.8 94 F 869334
BXRE-27H0800-E-8x 2700 95 350 35.3 1199 12.4 97 F 869336
BXRE-30C0801-D-8x 3000 70 1000 18.5 2344 18.5 126 E 869424
BXRE-30C0801-E-8x 3000 70 500 37.0 2470 18.5 134 E 869429
BXRE-30E0800-D-8x 3000 80 1000 18.5 2239 18.5 121 E 869512
BXRE-30E0800-E-8x 3000 80 500 37.0 2359 18.5 128 E 869516
BXRE-30G0800-D-8x 3000 90 870 18.2 1620 15.8 102 F 869616
BXRE-30G0800-E-8x 3000 90 480 36.8 1850 17.6 105 F 869620
BXRE-30G08H0-D-8x 3000 90 960 18.4 1839 17.7 104 F 869632
BXRE-30G08H0-E-8x 3000 90 500 37.0 2005 18.5 108 F 869636
BXRE-30H0800-D-8x 3000 95 740 17.8 1277 13.2 97 F 869786
BXRE-30H0800-E-8x 3000 95 410 36.0 1471 14.8 100 F 869788



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRE-35E0800-D-8x 3500 80 1000 18.5 2292 18.5 124 E 869891
BXRE-35E0800-E-8x 3500 80 500 37.0 2414 18.5 131 E 869895
BXRE-35G0800-D-8x 3500 90 940 18.4 1790 17.3 104 F 869982
BXRE-35G0800-E-8x 3500 90 500 37.0 1984 18.5 107 F 869986
BXRE-40C0801-D-8x 4000 70 1000 18.5 2410 18.5 130 E 870103
BXRE-40C0801-E-8x 4000 70 500 37.0 2539 18.5 137 E 870108
BXRE-40E0800-D-8x 4000 80 1000 18.5 2305 18.5 124 E 870191
BXRE-40E0800-E-8x 4000 80 500 37.0 2428 18.5 131 E 870195
BXRE-40G0800-D-8x 4000 90 1000 18.5 1923 18.5 104 F 870295
BXRE-40G0800-E-8x 4000 90 500 37.0 2026 18.5 110 F 870299
BXRE-50C0801-D-8x 5000 70 1000 18.5 2423 18.5 131 E 870431
BXRE-50C0801-E-8x 5000 70 500 37.0 2553 18.5 138 E 870435
BXRE-50E0801-D-8x 5000 80 1000 18.5 2331 18.5 126 E 870505
BXRE-50E0801-E-8x 5000 80 500 37.0 2456 18.5 133 E 870509
BXRE-50G0801-D-8x 5000 90 1000 18.5 2015 18.5 109 F 870575
BXRE-50G0801-E-8x 5000 90 500 37.0 2123 18.5 115 F 870579
BXRE-57C0801-D-8x 5700 70 1000 18.5 2358 18.5 127 E 870695
BXRE-57C0801-E-8x 5700 70 500 37.0 2483 18.5 134 E 870697
BXRE-57E0801-D-8x 5700 80 1000 18.5 2239 18.5 121 E 870751
BXRE-57E0801-E-8x 5700 80 500 37.0 2359 18.5 128 E 870753
BXRE-65C0801-D-8x 6500 70 1000 18.5 2358 18.5 127 E 870823
BXRE-65C0801-E-8x 6500 70 500 37.0 2483 18.5 134 E 870825
BXRE-65E0801-D-8x 6500 80 1000 18.5 2265 18.5 122 E 870880
BXRE-65E0801-E-8x 6500 80 500 37.0 2386 18.5 129 E 870882
