Description

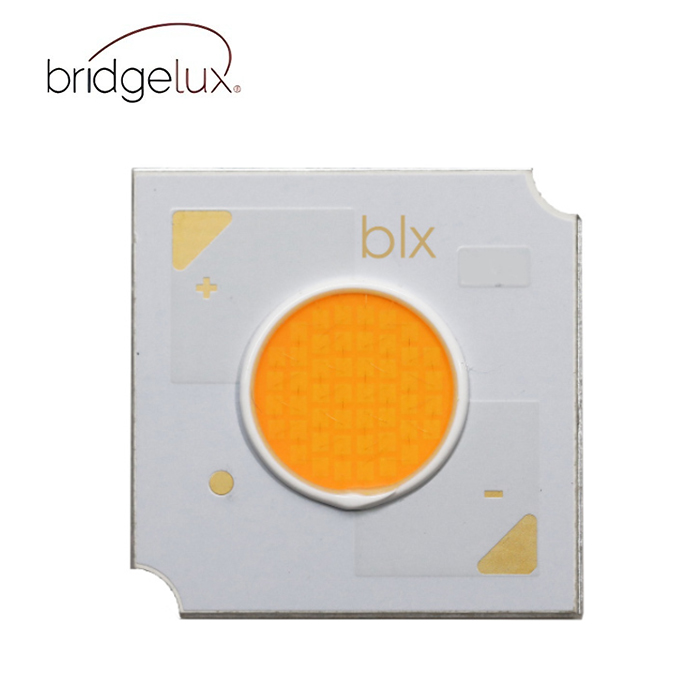

Bridgelux® Gen 8 V9 HD F90 TS LED Array

V Series™ HD LED array product, an ultra-high lumen density COB product line, is designed for high intensity spotlights used in commercial and retail settings. V Series HD arrays offer industry leading color over angle uniformity, and replace ceramic metal halide lamps by providing equal or greater center beam candle power at lower power and at greater lifetimes. Their tight beam control and exceptional quality of light is well suited for demanding directional spot applications.

The V9 HD F90 COB is a high efficacy product that uses narrow band red phosphor to significantly improve the spectrum efficacy. The improved spectrum efficacy results in the 90 CRI product of the F90 Series delivering better or equivalent efficacy as that of our traditional 80 CRI V Series product.

Lighting system designs incorporating these LED arrays deliver increased system level efficacy and longer service life. Typical applications include, but are not limited to, commercial and residential down lights, accent, spot and track lights.

Features
• Efficacy of 137 lm/W typical for 3000K 90 CRI
• Compact high flux density light source
• Uniform high quality illumination
• Minimum 90 CRI options
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 3 SDCM options
• More energy efficient than incandescent, halogen and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming
• Vf bin code backside marking

Benefits
• Enhanced optical control
• Clean white light without pixelation
• High quality true color reproduction
• Significantly reduced thermal resistance and increased operating temperatures
• Uniform consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors to enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issue





Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)



Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C)



Table 3: Part numbers registered in European Product Registry for Energy Labeling
