V Series™ HD GEN8 V3 HD LED Array

Description

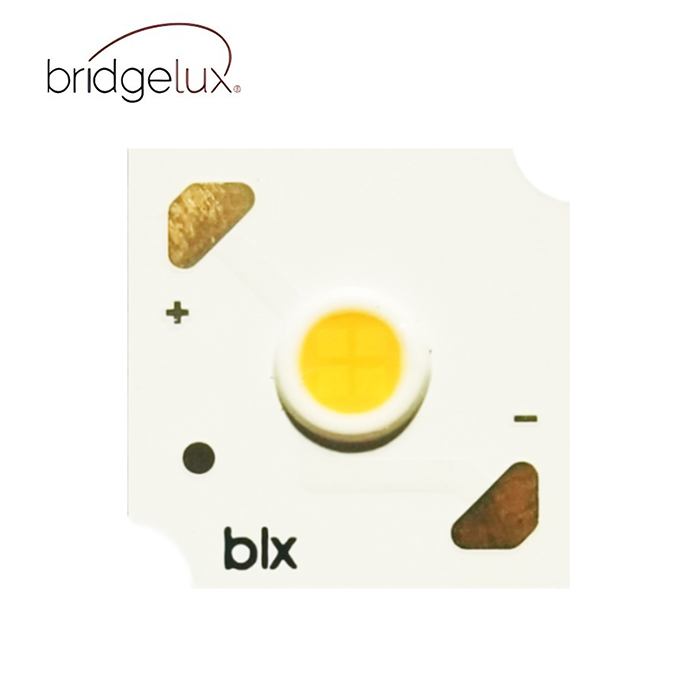

Bridgelux® GEN8 V3 HD LED Array

V Series™ HD LED array product, an ultra-high lumen density COB product line, is designed for high intensity spotlights used in commercial and retail settings. V Series HD arrays offer industry leading color over angle uniformity, and replace ceramic metal halide lamps by providing equal or greater center beam candle power at lower power and at greater lifetimes. Their tight beam control and exceptional quality of light is well suited for demanding directional spot applications.

The V3 HD LED array is available in a variety of CCT and CRI combinations providing substantial design flexibility and energy efficiencies. Lighting system designs incorporating these LED arrays deliver increased system level efficacy and longer service life. Typical applications include, but are not limited to, commercial and residential down lights, accent, spot and track lights.

Bridgelux Décor Series™ is our state of the art color line designed specifically for premium applications, producing unmatched LED light quality with brilliant color-rendering options and offer pleasing and inspiring lighting palettes. Bridgelux Décor Series color points are available on Vero® SE Series, Vero® Series, V Series™ and V Series™ HD. Décor Series™ Ultra products provide a high CRI of 97 and a minimum R9 value of 91, which emphasizes the reds and color tones to which the human eye is most receptive – perfect for the most luxurious retail shops and world renowned museums. Décor Series Ultra is designed as a replacement for halogen.

Features
• Efficacy of 101 lm/W typical
• Compact high flux density light source
• Uniform high quality illumination
• Minimum 80, 90 and 95 CRI options
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 3 SDCM options
• More energy efficient than incandescent, halogen and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming

Benefits
• Enhanced optical control
• Clean white light without pixelation
• High quality true color reproduction
• Significantly reduced thermal resistance and increased operating temperatures
• Uniform consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors to enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issue

Product Family	Product	Part Number	Doc Number	Gen	LES Size (mm)	CCT (K)	CRI Options	Flux(lm) 3000K	Current (mA)	Voltage (V)	Efficacy (lm/W)	Substrate Size (mm)
BXRH VHD	V3C HD (FC)	BXRH-xxx0400-C-8x	DS435	8	2.9	2700-6500	80, 90, 95	422	350	11.9	101	13.5×13.5

Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRH-27E0400-C-83	2700K	80	350	397	357	11.9	4.2	95
BXRH-27G0400-C-83	2700K	90	350	340	306	11.9	4.2	82
BXRH-27H0400-C-83	2700K	95	350	290	261	11.9	4.2	70
BXRH-30E0400-C-83	3000K	80	350	422	379	11.9	4.2	101
BXRH-30G0400-C-83	3000K	90	350	361	325	11.9	4.2	87
BXRH-30H0400-C-83	3000K	95	350	310	279	11.9	4.2	74
BXRH-35E0400-C-83	3500K	80	350	432	389	11.9	4.2	104
BXRH-35G0400-C-83	3500K	90	350	355	319	11.9	4.2	85
BXRH-40E0400-C-83	4000K	80	350	434	391	11.9	4.2	104
BXRH-40G0400-C-83	4000K	90	350	362	326	11.9	4.2	87
BXRH-40H0400-C-83	4000K	95	350	328	295	11.9	4.2	79
BXRH-50E0400-C-84	5000K	80	350	439	395	11.9	4.2	105
BXRH-50G0400-C-84	5000K	90	350	380	342	11.9	4.2	91
BXRH-57E0400-C-84	5700K	80	350	422	379	11.9	4.2	101
BXRH-65E0400-C-84	6500K	80	350	427	384	11.9	4.2	102

Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRH-27E0400-C-83	2700K	80	350	357		321		11.5	4.0	89
BXRH-27G0400-C-83	2700K	90	350	306		275		11.5	4.0	76
BXRH-27H0400-C-83	2700K	95	350	261		235		11.5	4.0	65
BXRH-30E0400-C-83	3000K	80	350	379		342		11.5	4.0	94
BXRH-30G0400-C-83	3000K	90	350	325		292		11.5	4.0	81
BXRH-30H0400-C-83	3000K	95	350	279		251		11.5	4.0	69
BXRH-35E0400-C-83	3500K	80	350	389		350		11.5	4.0	97
BXRH-35G0400-C-83	3500K	90	350	319		287		11.5	4.0	79
BXRH-40E0400-C-83	4000K	80	350	391		352		11.5	4.0	97
BXRH-40G0400-C-83	4000K	90	350	326		294		11.5	4.0	81
BXRH-40H0400-C-83	4000K	95	350	295		265		11.5	4.0	73
BXRH-50E0400-C-84	5000K	80	350	395		356		11.5	4.0	98
BXRH-50G0400-C-84	5000K	90	350	342		307		11.5	4.0	85
BXRH-57E0400-C-84	5700K	80	350	379		342		11.5	4.0	94
BXRH-65E0400-C-84	6500K	80	350	384		346		11.5	4.0	96

Table 3: Product Performance at Commonly Used Drive Currents

Part Number	CRI	Drive Current1 (mA)	Typical Vf Tc = 25.C (V)	Typical Power Tc = 25.C (W)	Typical Flux2 Tc = 25.C (lm)	Typical DC Flux3 Tc = 85.C (lm)	Typical Efficacy Tc = 25.C (lm/W)
BXRH-27E0400-C-83	80	50	11.1	0.6	86	78	155
		200	11.5	2.3	243	219	106
		350	11.9	4.2	397	357	95
		500	12.2	6.1	532	479	87
		700	12.5	8.8	684	616	78
BXRH-27G0400-C-83	90	50	11.1	0.6	74	67	133
		200	11.5	2.3	208	188	90
		350	11.9	4.2	340	306	82
		500	12.2	6.1	456	410	75
		700	12.5	8.8	586	528	67
BXRH-27H0400-C-83	95	50	11.1	0.6	63	57	113
		200	11.5	2.3	178	160	77
		350	11.9	4.2	290	261	70
		500	12.2	6.1	389	350	64
		700	12.5	8.8	500	450	57
BXRH-30E0400-C-83	80	50	11.1	0.6	92	83	165
		200	11.5	2.3	259	233	112
		350	11.9	4.2	422	380	101
		500	12.2	6.1	566	509	93
		700	12.5	8.8	728	655	83
BXRH-30G0400-C-83	90	50	11.1	0.6	78	71	141
		200	11.5	2.3	221	199	96
		350	11.9	4.2	361	325	87
		500	12.2	6.1	484	435	79
		700	12.5	8.8	622	560	71
BXRH-30H0400-C-83	95	50	11.1	0.6	67	61	121
		200	11.5	2.3	190	171	83
		350	11.9	4.2	310	279	74
		500	12.2	6.1	416	374	68
		700	12.5	8.8	535	481	61
BXRH-35E0400-C-83	80	50	11.1	0.6	94	84	169
		200	11.5	2.3	265	238	115
		350	11.9	4.2	432	389	104
		500	12.2	6.1	579	521	95
		700	12.5	8.8	745	670	85
BXRH-35G0400-C-83	90	50	11.1	0.6	77	69	139
		200	11.5	2.3	218	196	94
		350	11.9	4.2	355	320	85
		500	12.2	6.1	476	428	78
		700	12.5	8.8	612	551	70

Part Number	CRI	Drive Current1 (mA)	Typical Vf Tc = 25.C (V)	Typical Power Tc = 25.C (W)	Typical Flux2 Tc = 25.C (lm)	Typical DC Flux3 Tc = 85.C (lm)	Typical Efficacy Tc = 25.C (lm/W)
BXRH-40E0400-C-83	80	50	11.1	0.6	94	85	170
		200	11.5	2.3	266	239	116
		350	11.9	4.2	434	391	104
		500	12.2	6.1	582	524	95
		700	12.5	8.8	748	673	85
BXRH-40G0400-C-83	90	50	11.1	0.6	79	71	141
		200	11.5	2.3	222	200	96
		350	11.9	4.2	362	326	87
		500	12.2	6.1	485	437	80
		700	12.5	8.8	624	562	71
BXRH-40H0400-C-83	95	50	11.1	0.6	71	64	128
		200	11.5	2.3	201	181	87
		350	11.9	4.2	327	295	79
		500	12.2	6.1	439	395	72
		700	12.5	8.8	564	508	64
BXRH-50E0400-C-84	80	50	11.1	0.6	95	86	172
		200	11.5	2.3	269	242	117
		350	11.9	4.2	439	395	105
		500	12.2	6.1	588	530	97
		700	12.5	8.8	757	681	86
BXRH-50G0400-C-84	90	50	11.1	0.6	83	74	148
		200	11.5	2.3	233	210	101
		350	11.9	4.2	380	342	91
		500	12.2	6.1	509	458	84
		700	12.5	8.8	655	590	75
BXRH-57E0400-C-84	80	50	11.1	0.6	92	83	165
		200	11.5	2.3	259	233	112
		350	11.9	4.2	422	380	101
		500	12.2	6.1	566	509	93
		700	12.5	8.8	728	655	83
BXRH-65E0400-C-84	90	50	11.1	0.6	93	84	167
		200	11.5	2.3	262	236	114
		350	11.9	4.2	427	384	103
		500	12.2	6.1	572	515	94
		700	12.5	8.8	736	663	84

Part Number

Drive Current

(mA)

Forward Voltage

Pulsed, Tc = 25.C (V) 1, 2, 3,

Typical

Coefficient

of Forward

Voltage4

∆Vf/∆Tc

(mV/ºC)

Typical

Thermal

Resistance

Junction

to Case5,6

Rj-c (ºC/W)

Minimum

Typical

Maximum

BXRH-xxx0400-C-8x

350

11.0

11.9

12.8

-7.85
