Description

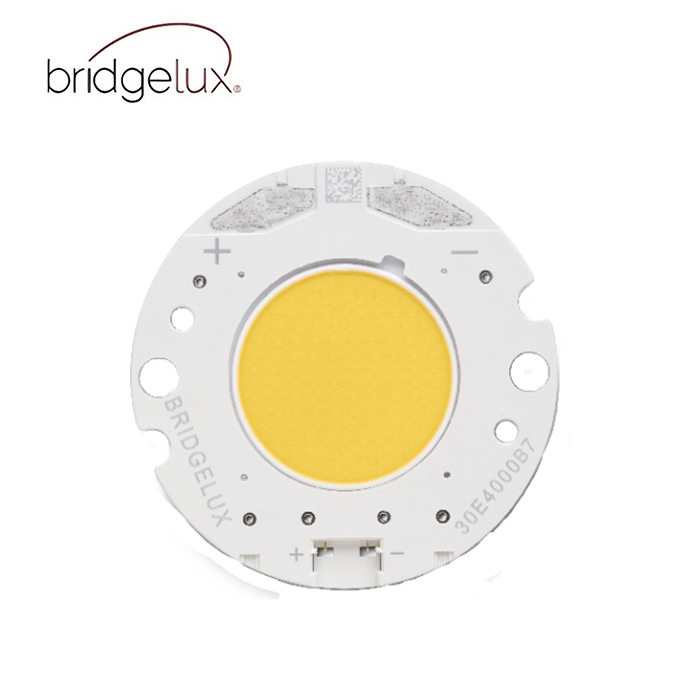

Bridgelux® Gen 7 Vero® 18 Array
Vero® Series is a revolutionary advancement in chip on board (COB) light source technology and innovation. Vero LED light sources simplify luminaire design and manufacturing processes Vero Chip on Board (COB) LED arrays are available in four LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents. Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color control standard for clean and consistent uniform lighting. Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting features for plug-and-play installation.
Bridgelux Décor Series™ is our state-of-the-art color line designed specifically for premium applications, producing unmatched LED light quality with brilliant color-rendering options and pleasing lighting palettes. Bridgelux Décor Series color points are available on Vero® SE Series, Vero® Series, V Series™ and V Series™ HD.
Décor Series™ Class A is based on human response testing, providing color points with a combined GAI and CRI metric. Décor Series™ Ultra products provide a high CRI of 97 and typical R9 value of 98, which emphasizes the reds and color tones to which the human eye is most receptive – perfect for the most luxurious retail shops and world renowned museums. Décor Series Ultra is designed as a replacement for halogen lamps. Décor Series™ Food products offer color points developed to address the unique requirements of the food, grocery, and restaurant industries. Highlighting the distinctive colors and nuanced patterns found in meats and breads, the Décor Series Food products are a must have for any butcher counter or bakery.
Décor Series ™ Entertainment products provide color points developed specifically for the healthcare and entertainment industries. The 5600K cool white color point combined with a CRI of 90 or 97 provides the bright white required by these industries. Décor Series™ Street and Landmark is designed to be a direct replacement for high pressure sodium lamps. Décor Series™ Showcase is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white light with enhanced spectrum coverage and higher efficacy.
Features
• Efficacy of 170 lm/W typical for 3000K 80 CRI
• Lumen output performance ranges from 1,455 to 13,600 lumens
• Broad range of CCT options from 1750K to 6500K
• CRI options include minimum 65, 70, 80, 90, 95 and Class A
• Reliable operation at up to 2X nominal drive current
• Radial die pattern and improved lumen density
• Thermally isolated solder pads
• Onboard connector port
• Top side part number markings
• Vf bin code backside marking
Benefits
• Broad application coverage for interior and exterior lighting
• Flexibility for application driven lighting design requirements
• High quality true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Enhanced ease of use and assembly
• Solderless connectivity enables plug & play installation and field upgradability
• Improved inventory management and quality control
| Product Family | Product | Part Number | Doc Number | Gen | CCT (K) | CRI Options | SDCM | Typ. Flux(lm) | Current (mA) | Voltage (V) | Efficacy (lm/W) | Substrate Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRC Vero | Vero 18B | BXRC-xxx400x-B-7x | DS92 | 7 | 2700-6500 | 70, 80, 90, 93, 97 | 2, 3 , 4 | 5324 | 900 | 35 | 170 | 18 |
| BXRC Vero | Vero 18C | BXRC-xxx400x-C-7x | DS92 | 7 | 2700-6500 | 70, 80, 90, 93, 97 | 2, 3 , 4 | 6922 | 1170 | 35 | 170 | 18 |
| BXRC Vero | Vero 18D | BXRC-xxx400x-D-7x | DS92 | 7 | 2700-6500 | 70, 80, 90, 93, 97 | 2, 3 , 4 | 5177 | 1050 | 29 | 170 | 18 |
Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)
| Part Number | Nominal
CCT1 (K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical Pulsed
Flux4,5,6 Tc = 25ºC (lm) |
Minimum
Pulsed Flux6,7 Tc = 25ºC (lm) |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
| BXRC-17E4000-B-7x | 1750 | 80 | 900 | 2881 | 2593 | 34.8 | 31.3 | 92 |
| BXRC-17E4000-C-7x | 1750 | 80 | 1170 | 3624 | 3261 | 34.8 | 40.7 | 89 |
| BXRC-17E4000-D-7x | 1750 | 80 | 1050 | 2710 | 2439 | 29.0 | 30.5 | 89 |
| BXRC-20B4001-C-7x | 2000 | 65 | 1170 | 6392 | 5753 | 34.8 | 40.7 | 157 |
| BXRC-20B4001-D-7x | 2000 | 65 | 1050 | 4781 | 4303 | 29.0 | 30.5 | 157 |
| BXRC-25E4000-B-7x | 2500 | 80 | 900 | 4792 | 4313 | 34.8 | 31.3 | 153 |
| BXRC-25E4000-C-7x | 2500 | 80 | 1170 | 6230 | 5607 | 34.8 | 40.7 | 153 |
| BXRC-25E4000-D-7x | 2500 | 80 | 1050 | 4659 | 4193 | 29.0 | 30.5 | 153 |
| BXRC-27E4000-B-7x | 2700 | 80 | 900 | 5011 | 4510 | 34.8 | 31.3 | 160 |
| BXRC-27E4000-C-7x | 2700 | 80 | 1170 | 6515 | 5863 | 34.8 | 40.7 | 160 |
| BXRC-27E4000-D-7x | 2700 | 80 | 1050 | 4872 | 4385 | 29.0 | 30.5 | 160 |
| BXRC-27G40H0-B-7x | 2700 | 90 | 900 | 4291 | 3862 | 34.8 | 31.3 | 137 |
| BXRC-27G40H0-C-7x | 2700 | 90 | 1170 | 5578 | 5020 | 34.8 | 40.7 | 137 |
| BXRC-27G40H0-D-7x | 2700 | 90 | 1050 | 4172 | 3754 | 29.0 | 30.5 | 137 |
| BXRC-27G4000-B-7x | 2700 | 90 | 900 | 4134 | 3721 | 34.8 | 31.3 | 132 |
| BXRC-27G4000-C-7x | 2700 | 90 | 1170 | 5375 | 4837 | 34.8 | 40.7 | 132 |
| BXRC-27G4000-D-7x | 2700 | 90 | 1050 | 4019 | 3617 | 29.0 | 30.5 | 132 |
| BXRC-27H4000-B-7x | 2700 | 97 | 900 | 3664 | 3298 | 34.8 | 31.3 | 117 |
| BXRC-27H4000-C-7x | 2700 | 97 | 1170 | 4764 | 4287 | 34.8 | 40.7 | 117 |
| BXRC-27H4000-D-7x | 2700 | 97 | 1050 | 3563 | 3206 | 29.0 | 30.5 | 117 |
| BXRC-30C4001-B-7x | 3000 | 70 | 900 | 5575 | 5017 | 34.8 | 31.3 | 178 |
| BXRC-30C4001-C-7x | 3000 | 70 | 1170 | 7247 | 6523 | 34.8 | 40.7 | 178 |
| BXRC-30C4001-D-7x | 3000 | 70 | 1050 | 5420 | 4878 | 29.0 | 30.5 | 178 |
| BXRC-30E4000-B-7x | 3000 | 80 | 900 | 5324 | 4792 | 34.8 | 31.3 | 170 |
| BXRC-30E4000-C-7x | 3000 | 80 | 1170 | 6922 | 6230 | 34.8 | 40.7 | 170 |
| BXRC-30E4000-D-7x | 3000 | 80 | 1050 | 5177 | 4659 | 29.0 | 30.5 | 170 |
| BXRC-30G40H0-B-7x | 3000 | 90 | 900 | 4322 | 3890 | 34.8 | 31.3 | 138 |
| BXRC-30G40H0-C-7x | 3000 | 90 | 1170 | 5619 | 5057 | 34.8 | 40.7 | 138 |
| BXRC-30G40H0-D-7x | 3000 | 90 | 1050 | 4202 | 3782 | 29.0 | 30.5 | 138 |
| BXRC-30G4000-B-7x | 3000 | 90 | 900 | 4510 | 4059 | 34.8 | 31.3 | 144 |
| BXRC-30G4000-C-7x | 3000 | 90 | 1170 | 5863 | 5277 | 34.8 | 40.7 | 144 |
| BXRC-30G4000-D-7x | 3000 | 90 | 1050 | 4385 | 3946 | 29.0 | 30.5 | 144 |
| BXRC-30G400C-B-7x | 3000 | 90 | 900 | 4166 | 3749 | 34.8 | 31.3 | 133 |
| BXRC-30G400C-D-7x | 3000 | 90 | 1050 | 4050 | 3645 | 29.0 | 30.5 | 133 |
| Part Number | Nominal
CCT1 (K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical Pulsed
Flux4,5,6 Tc = 25ºC (lm) |
Minimum
Pulsed Flux6,7 Tc = 25ºC (lm) |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
| BXRC-30H4000-B-7x | 3000 | 97 | 900 | 3915 | 3524 | 34.8 | 31.3 | 125 |
| BXRC-30H4000-C-7x | 3000 | 97 | 1170 | 5090 | 4581 | 34.8 | 40.7 | 125 |
| BXRC-30H4000-D-7x | 3000 | 97 | 1050 | 3806 | 3426 | 29.0 | 30.5 | 125 |
| BXRC-30A4001-B-7×8,9 | 3000 | 93 | 900 | 3884 | 3495 | 34.8 | 31.3 | 124 |
| BXRC-30A4001-C-7×8,9 | 3000 | 93 | 1170 | 5049 | 4544 | 34.8 | 40.7 | 124 |
| BXRC-30A4001-D-7×8,9 | 3000 | 93 | 1050 | 3776 | 3398 | 29.0 | 30.5 | 124 |
| BXRC-35E4000-B-7x | 3500 | 80 | 900 | 5450 | 4905 | 34.8 | 31.3 | 174 |
| BXRC-35E4000-C-7x | 3500 | 80 | 1170 | 7085 | 6376 | 34.8 | 40.7 | 174 |
| BXRC-35E4000-D-7x | 3500 | 80 | 1050 | 5298 | 4768 | 29.0 | 30.5 | 174 |
| BXRC-35G4000-B-7x | 3500 | 90 | 900 | 4479 | 4031 | 34.8 | 31.3 | 143 |
| BXRC-35G4000-C-7x | 3500 | 90 | 1170 | 5822 | 5240 | 34.8 | 40.7 | 143 |
| BXRC-35G4000-D-7x | 3500 | 90 | 1050 | 4354 | 3919 | 29.0 | 30.5 | 143 |
| BXRC-35A4001-B-7×8,9 | 3500 | 93 | 900 | 4134 | 3721 | 34.8 | 31.3 | 132 |
| BXRC-35A4001-C-7×8,9 | 3500 | 93 | 1170 | 5375 | 4837 | 34.8 | 40.7 | 132 |
| BXRC-35A4001-D-7×8,9 | 3500 | 93 | 1050 | 4019 | 3617 | 29.0 | 30.5 | 132 |
| BXRC-40C4001-B-7x | 4000 | 70 | 900 | 5732 | 5158 | 34.8 | 31.3 | 183 |
| BXRC-40C4001-C-7x | 4000 | 70 | 1170 | 7451 | 6706 | 34.8 | 40.7 | 183 |
| BXRC-40C4001-D-7x | 4000 | 70 | 1050 | 5572 | 5015 | 29.0 | 30.5 | 183 |
| BXRC-40E4000-B-7x | 4000 | 80 | 900 | 5481 | 4933 | 34.8 | 31.3 | 175 |
| BXRC-40E4000-C-7x | 4000 | 80 | 1170 | 7125 | 6413 | 34.8 | 40.7 | 175 |
| BXRC-40E4000-D-7x | 4000 | 80 | 1050 | 5329 | 4796 | 29.0 | 30.5 | 175 |
| BXRC-40G4000-B-7x | 4000 | 90 | 900 | 4573 | 4115 | 34.8 | 31.3 | 146 |
| BXRC-40G4000-C-7x | 4000 | 90 | 1170 | 5945 | 5350 | 34.8 | 40.7 | 146 |
| BXRC-40G4000-D-7x | 4000 | 90 | 1050 | 4446 | 4001 | 29.0 | 30.5 | 146 |
| BXRC-40H4000-B-73 | 4000 | 97 | 900 | 4134 | 3721 | 34.8 | 31.3 | 132 |
| BXRC-40H4000-C-73 | 4000 | 97 | 1170 | 5375 | 4837 | 34.8 | 40.7 | 132 |
| BXRC-40H4000-D-73 | 4000 | 97 | 1050 | 4019 | 3617 | 29.0 | 30.5 | 132 |
| BXRC-40A4001-B-7×8,9 | 4000 | 93 | 900 | 4479 | 4031 | 34.8 | 31.3 | 143 |
| BXRC-40A4001-C-7×8,9 | 4000 | 93 | 1170 | 5822 | 5240 | 34.8 | 40.7 | 143 |
| BXRC-40A4001-D-7×8,9 | 4000 | 93 | 1050 | 4354 | 3919 | 29.0 | 30.5 | 143 |
| BXRC-50C4001-B-7x | 5000 | 70 | 900 | 5763 | 5187 | 34.8 | 31.3 | 184 |
| BXRC-50C4001-C-7x | 5000 | 70 | 1170 | 7492 | 6743 | 34.8 | 40.7 | 184 |
| BXRC-50C4001-D-7x | 5000 | 70 | 1050 | 5603 | 5043 | 29.0 | 30.5 | 184 |
| BXRC-50E4001-B-7x | 5000 | 80 | 900 | 5544 | 4989 | 34.8 | 31.3 | 177 |
| BXRC-50E4001-C-7x | 5000 | 80 | 1170 | 7207 | 6486 | 34.8 | 40.7 | 177 |
| BXRC-50E4001-D-7x | 5000 | 80 | 1050 | 5390 | 4851 | 29.0 | 30.5 | 177 |
| Part Number | Nominal
CCT1 (K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical Pulsed
Flux4,5,6 Tc = 25ºC (lm) |
Minimum
Pulsed Flux6,7 Tc = 25ºC (lm) |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
| BXRC-50G4001-B-7x | 5000 | 90 | 900 | 4792 | 4313 | 34.8 | 31.3 | 153 |
| BXRC-50G4001-C-7x | 5000 | 90 | 1170 | 5919 | 5327 | 34.8 | 40.7 | 153 |
| BXRC-50G4001-D-7x | 5000 | 90 | 1050 | 4659 | 4193 | 29.0 | 30.5 | 153 |
| BXRC-56G4000-B-7x | 5600 | 90 | 900 | 4823 | 4341 | 34.8 | 31.3 | 154 |
| BXRC-56G4000-C-7x | 5600 | 90 | 1170 | 6270 | 5643 | 34.8 | 40.7 | 154 |
| BXRC-56G400x-D-7x | 5600 | 90 | 1050 | 4689 | 4220 | 29.0 | 30.5 | 154 |
| BXRC-56H4000-D-7x | 5600 | 97 | 1050 | 4233 | 3809 | 29.0 | 30.5 | 139 |
| BXRC-57C4001-B-7x | 5700 | 70 | 900 | 5606 | 5046 | 34.8 | 31.3 | 179 |
| BXRC-57C4001-C-7x | 5700 | 70 | 1170 | 7288 | 6559 | 34.8 | 40.7 | 179 |
| BXRC-57C4001-D-7x | 5700 | 70 | 1050 | 5451 | 4905 | 29.0 | 30.5 | 179 |
| BXRC-57E4001-B-7x | 5700 | 80 | 900 | 5324 | 4792 | 34.8 | 31.3 | 170 |
| BXRC-57E4001-C-7x | 5700 | 80 | 1170 | 6922 | 6230 | 34.8 | 40.7 | 170 |
| BXRC-57E4001-D-7x | 5700 | 80 | 1050 | 5177 | 4659 | 29.0 | 30.5 | 170 |
| BXRC-65C4001-B-7x | 6500 | 70 | 900 | 5606 | 5046 | 34.8 | 31.3 | 179 |
| BXRC-65C4001-C-7x | 6500 | 70 | 1170 | 7288 | 6559 | 34.8 | 40.7 | 179 |
| BXRC-65C4001-D-7x | 6500 | 70 | 1050 | 5451 | 4905 | 29.0 | 30.5 | 179 |
| BXRC-65E4001-B-7x | 6500 | 80 | 900 | 5387 | 4848 | 34.8 | 31.3 | 172 |
| BXRC-65E4001-C-7x | 6500 | 80 | 1170 | 7003 | 6303 | 34.8 | 40.7 | 172 |
| BXRC-65E4001-D-7x | 6500 | 80 | 1050 | 5237 | 4714 | 29.0 | 30.5 | 172 |
Table 2: Selection Guide, Stabilized DC Performance (Tc = 70°C) 7,8
| Part Number | Nominal
CCT1 (K) |
GAI2 | CRI3 | Nominal
Drive Current4 (mA) |
Typical DC
Flux5,6 Tc = 70ºC (lm) |
Minimum DC
Flux6,9 Tc = 70ºC (lm) |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
| BXRC-30A4001-B-7x | 3000 | 80 | 93 | 900 | 3612 | 3251 | 34.3 | 30.9 | 116 |
| BXRC-30A4001-C-7x | 3000 | 80 | 93 | 1170 | 4695 | 4226 | 34.3 | 40.2 | 116 |
| BXRC-30A4001-D-7x | 3000 | 80 | 93 | 1050 | 3511 | 3160 | 28.5 | 29.9 | 116 |
| BXRC-35A4001-B-7x | 3500 | 80 | 93 | 900 | 3845 | 3460 | 34.3 | 30.9 | 123 |
| BXRC-35A4001-C-7x | 3500 | 80 | 93 | 1170 | 4998 | 4498 | 34.3 | 40.2 | 123 |
| BXRC-35A4001-D-7x | 3500 | 80 | 93 | 1050 | 3738 | 3364 | 28.5 | 29.9 | 123 |
| BXRC-40A4001-B-7x | 4000 | 80 | 93 | 900 | 4165 | 3749 | 34.3 | 30.9 | 133 |
| BXRC-40A4001-C-7x | 4000 | 80 | 93 | 1170 | 5415 | 4873 | 34.3 | 40.2 | 133 |
| BXRC-40A4001-D-7x | 4000 | 80 | 93 | 1050 | 4050 | 3645 | 28.5 | 29.9 | 133 |
Table 3: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5
| Part Number | Nominal CCT1
(K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical DC
Flux4,5 |
Minimum DC
Flux6 |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
||
| T c | = 85ºC
(lm) |
T c | = 85ºC
(lm) |
|||||||
| BXRC-17E4000-B-7x | 1750 | 80 | 900 | 2593 | 2334 | 33.9 | 30.5 | 85 | ||
| BXRC-17E4000-C-7x | 1750 | 80 | 1170 | 3261 | 2935 | 33.9 | 39.7 | 82 | ||
| BXRC-17E4000-D-7x | 1750 | 80 | 1050 | 2439 | 2195 | 28.1 | 29.5 | 83 | ||
| BXRC-20B4001-C-7x | 2000 | 65 | 1170 | 5753 | 5178 | 33.9 | 39.7 | 145 | ||
| BXRC-20B4001-D-7x | 2000 | 65 | 1050 | 4303 | 3872 | 28.1 | 29.5 | 146 | ||
| BXRC-25E4000-B-7x | 2500 | 80 | 900 | 4313 | 3881 | 33.9 | 30.5 | 141 | ||
| BXRC-25E4000-C-7x | 2500 | 80 | 1170 | 5607 | 5046 | 33.9 | 39.7 | 141 | ||
| BXRC-25E4000-D-7x | 2500 | 80 | 1050 | 4193 | 3774 | 28.1 | 29.5 | 142 | ||
| BXRC-27E4000-B-7x | 2700 | 80 | 900 | 4510 | 4059 | 33.9 | 30.5 | 148 | ||
| BXRC-27E4000-C-7x | 2700 | 80 | 1170 | 5863 | 5277 | 33.9 | 39.7 | 148 | ||
| BXRC-27E4000-D-7x | 2700 | 80 | 1050 | 4385 | 3946 | 28.1 | 29.5 | 149 | ||
| BXRC-27G40H0-B-7x | 2700 | 90 | 900 | 3862 | 3476 | 33.9 | 30.5 | 127 | ||
| BXRC-27G40H0-C-7x | 2700 | 90 | 1170 | 5020 | 4518 | 33.9 | 39.7 | 127 | ||
| BXRC-27G40H0-D-7x | 2700 | 90 | 1050 | 3754 | 3379 | 28.1 | 29.5 | 127 | ||
| BXRC-27G4000-B-7x | 2700 | 90 | 900 | 3721 | 3349 | 33.9 | 30.5 | 122 | ||
| BXRC-27G4000-C-7x | 2700 | 90 | 1170 | 4837 | 4353 | 33.9 | 39.7 | 122 | ||
| BXRC-27G4000-D-7x | 2700 | 90 | 1050 | 3617 | 3256 | 28.1 | 29.5 | 123 | ||
| BXRC-27H4000-B-7x | 2700 | 97 | 900 | 3298 | 2968 | 33.9 | 30.5 | 108 | ||
| BXRC-27H4000-C-7x | 2700 | 97 | 1170 | 4287 | 3859 | 33.9 | 39.7 | 108 | ||
| BXRC-27H4000-D-7x | 2700 | 97 | 1050 | 3206 | 2886 | 28.1 | 29.5 | 109 | ||
| BXRC-30C4001-B-7x | 3000 | 70 | 900 | 5017 | 4516 | 33.9 | 30.5 | 164 | ||
| BXRC-30C4001-C-7x | 3000 | 70 | 1170 | 6523 | 5870 | 33.9 | 39.7 | 164 | ||
| BXRC-30C4001-D-7x | 3000 | 70 | 1050 | 4878 | 4390 | 28.1 | 29.5 | 165 | ||
| BXRC-30E4000-B-7x | 3000 | 80 | 900 | 4792 | 4313 | 33.9 | 30.5 | 157 | ||
| BXRC-30E4000-C-7x | 3000 | 80 | 1170 | 6230 | 5607 | 33.9 | 39.7 | 157 | ||
| BXRC-30E4000-D-7x | 3000 | 80 | 1050 | 4659 | 4193 | 28.1 | 29.5 | 158 | ||
| BXRC-30G40H0-B-7x | 3000 | 90 | 900 | 3890 | 3501 | 33.9 | 30.5 | 127 | ||
| BXRC-30G40H0-C-7x | 3000 | 90 | 1170 | 5057 | 4551 | 33.9 | 39.7 | 127 | ||
| BXRC-30G40H0-D-7x | 3000 | 90 | 1050 | 3782 | 3404 | 28.1 | 29.5 | 128 | ||
| BXRC-30G4000-B-7x | 3000 | 90 | 900 | 4059 | 3653 | 33.9 | 30.5 | 133 | ||
| BXRC-30G4000-C-7x | 3000 | 90 | 1170 | 5277 | 4749 | 33.9 | 39.7 | 133 | ||
| BXRC-30G4000-D-7x | 3000 | 90 | 1050 | 3946 | 3552 | 28.1 | 29.5 | 134 | ||
| BXRC-30G400C-B-7x | 3000 | 90 | 900 | 3749 | 3374 | 33.9 | 30.5 | 123 | ||
| BXRC-30G400C-D-7x | 3000 | 90 | 1050 | 3645 | 3280 | 28.1 | 29.5 | 124 | ||
| BXRC-30H4000-B-7x | 3000 | 97 | 900 | 3524 | 3171 | 33.9 | 30.5 | 115 | ||
| Part Number | Nominal CCT1
(K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical DC
Flux4,5 |
Minimum DC
Flux6 |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
||
| T c | = 85ºC
(lm) |
T c | = 85ºC
(lm) |
|||||||
| BXRC-30H4000-C-7x | 3000 | 97 | 1170 | 4581 | 4122 | 33.9 | 39.7 | 115 | ||
| BXRC-30H4000-D-7x | 3000 | 97 | 1050 | 3426 | 3083 | 28.1 | 29.5 | 116 | ||
| BXRC-30A4001-B-7×8,9 | 3000 | 93 | 900 | 3495 | 3146 | 33.9 | 30.5 | 115 | ||
| BXRC-30A4001-C-7×8,9 | 3000 | 93 | 1170 | 4544 | 4090 | 33.9 | 39.7 | 115 | ||
| BXRC-30A4001-D-7×8,9 | 3000 | 93 | 1050 | 3398 | 3058 | 28.1 | 29.5 | 115 | ||
| BXRC-35E4000-B-7x | 3500 | 80 | 900 | 4905 | 4414 | 33.9 | 30.5 | 161 | ||
| BXRC-35E4000-C-7x | 3500 | 80 | 1170 | 6376 | 5739 | 33.9 | 39.7 | 161 | ||
| BXRC-35E4000-D-7x | 3500 | 80 | 1050 | 4768 | 4292 | 28.1 | 29.5 | 162 | ||
| BXRC-35G4000-B-7x | 3500 | 90 | 900 | 4031 | 3628 | 33.9 | 30.5 | 132 | ||
| BXRC-35G4000-C-7x | 3500 | 90 | 1170 | 5240 | 4716 | 33.9 | 39.7 | 132 | ||
| BXRC-35G4000-D-7x | 3500 | 90 | 1050 | 3919 | 3527 | 28.1 | 29.5 | 133 | ||
| BXRC-35A4001-B-7×8,9 | 3500 | 93 | 900 | 3721 | 3349 | 33.9 | 30.5 | 122 | ||
| BXRC-35A4001-C-7×8,9 | 3500 | 93 | 1170 | 4837 | 4353 | 33.9 | 39.7 | 122 | ||
| BXRC-35A4001-D-7×8,9 | 3500 | 93 | 1050 | 3617 | 3256 | 28.1 | 29.5 | 123 | ||
| BXRC-40C4001-B-7x | 4000 | 70 | 900 | 5158 | 4643 | 33.9 | 30.5 | 169 | ||
| BXRC-40C4001-C-7x | 4000 | 70 | 1170 | 6706 | 6035 | 33.9 | 39.7 | 169 | ||
| BXRC-40C4001-D-7x | 4000 | 70 | 1050 | 5015 | 4514 | 28.1 | 29.5 | 170 | ||
| BXRC-40E4000-B-7x | 4000 | 80 | 900 | 4933 | 4440 | 33.9 | 30.5 | 162 | ||
| BXRC-40E4000-C-7x | 4000 | 80 | 1170 | 6413 | 5771 | 33.9 | 39.7 | 162 | ||
| BXRC-40E4000-D-7x | 4000 | 80 | 1050 | 4796 | 4316 | 28.1 | 29.5 | 163 | ||
| BXRC-40G4000-B-7x | 4000 | 90 | 900 | 4115 | 3704 | 33.9 | 30.5 | 135 | ||
| BXRC-40G4000-C-7x | 4000 | 90 | 1170 | 5350 | 4815 | 33.9 | 39.7 | 135 | ||
| BXRC-40G4000-D-7x | 4000 | 90 | 1050 | 4001 | 3601 | 28.1 | 29.5 | 136 | ||
| BXRC-40H4000-B-7x | 4000 | 97 | 900 | 3721 | 3349 | 33.9 | 30.5 | 122 | ||
| BXRC-40H4000-C-7x | 4000 | 97 | 1170 | 4837 | 4353 | 33.9 | 39.7 | 122 | ||
| BXRC-40H4000-D-7x | 4000 | 97 | 1050 | 3617 | 3256 | 28.1 | 29.5 | 123 | ||
| BXRC-40A4001-B-7×7,8 | 4000 | 93 | 900 | 4031 | 3628 | 33.9 | 30.5 | 132 | ||
| BXRC-40A4001-C-7×7,8 | 4000 | 93 | 1170 | 5240 | 4716 | 33.9 | 39.7 | 132 | ||
| BXRC-40A4001-D-7×7,8 | 4000 | 93 | 1050 | 3919 | 3527 | 28.1 | 29.5 | 133 | ||
| BXRC-50C4001-B-7x | 5000 | 70 | 900 | 5187 | 4668 | 33.9 | 30.5 | 170 | ||
| BXRC-50C4001-C-7x | 5000 | 70 | 1170 | 6743 | 6068 | 33.9 | 39.7 | 170 | ||
| BXRC-50C4001-D-7x | 5000 | 70 | 1050 | 5043 | 4538 | 28.1 | 29.5 | 171 | ||
| BXRC-50E4001-B-7x | 5000 | 80 | 900 | 4989 | 4490 | 33.9 | 30.5 | 164 | ||
| BXRC-50E4001-C-7x | 5000 | 80 | 1170 | 6486 | 5837 | 33.9 | 39.7 | 164 | ||
| BXRC-50E4001-D-7x | 5000 | 80 | 1050 | 4851 | 4366 | 28.1 | 29.5 | 164 | ||
| Part Number | Nominal CCT1
(K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical DC
Flux4,5 |
Minimum DC
Flux6 |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
||
| T c | = 85ºC
(lm) |
T c | = 85ºC
(lm) |
|||||||
| BXRC-50G4001-B-7x | 5000 | 90 | 900 | 4313 | 3881 | 33.9 | 30.5 | 141 | ||
| BXRC-50G4001-C-7x | 5000 | 90 | 1170 | 5327 | 4794 | 33.9 | 39.7 | 141 | ||
| BXRC-50G4001-D-7x | 5000 | 90 | 1050 | 4193 | 3774 | 28.1 | 29.5 | 142 | ||
| BXRC-56G4000-B-7x | 5600 | 90 | 900 | 4341 | 3907 | 33.9 | 30.5 | 142 | ||
| BXRC-56G4000-C-7x | 5600 | 90 | 1170 | 5643 | 5079 | 33.9 | 39.7 | 142 | ||
| BXRC-56G400x-D-7x | 5600 | 90 | 1050 | 4220 | 3798 | 28.1 | 29.5 | 143 | ||
| BXRC-56H4000-D-7x | 5600 | 97 | 1050 | 3809 | 3428 | 28.1 | 29.5 | 129 | ||
| BXRC-57C4001-B-7x | 5700 | 70 | 900 | 5046 | 4541 | 33.9 | 30.5 | 165 | ||
| BXRC-57C4001-C-7x | 5700 | 70 | 1170 | 6559 | 5903 | 33.9 | 39.7 | 165 | ||
| BXRC-57C4001-D-7x | 5700 | 70 | 1050 | 4905 | 4415 | 28.1 | 29.5 | 166 | ||
| BXRC-57E4001-B-7x | 5700 | 80 | 900 | 4792 | 4313 | 33.9 | 30.5 | 157 | ||
| BXRC-57E4001-C-7x | 5700 | 80 | 1170 | 6230 | 5607 | 33.9 | 39.7 | 157 | ||
| BXRC-57E4001-D-7x | 5700 | 80 | 1050 | 4659 | 4193 | 28.1 | 29.5 | 158 | ||
| BXRC-65C4001-B-7x | 6500 | 70 | 900 | 5046 | 4541 | 33.9 | 30.5 | 165 | ||
| BXRC-65C4001-C-7x | 6500 | 70 | 1170 | 6559 | 5903 | 33.9 | 39.7 | 165 | ||
| BXRC-65C4001-D-7x | 6500 | 70 | 1050 | 4905 | 4415 | 28.1 | 29.5 | 166 | ||
| BXRC-65E4001-B-7x | 6500 | 80 | 900 | 4848 | 4364 | 33.9 | 30.5 | 159 | ||
| BXRC-65E4001-C-7x | 6500 | 80 | 1170 | 6303 | 5673 | 33.9 | 39.7 | 159 | ||
| BXRC-65E4001-D-7x | 6500 | 80 | 1050 | 4714 | 4242 | 28.1 | 29.5 | 160 | ||
