Description

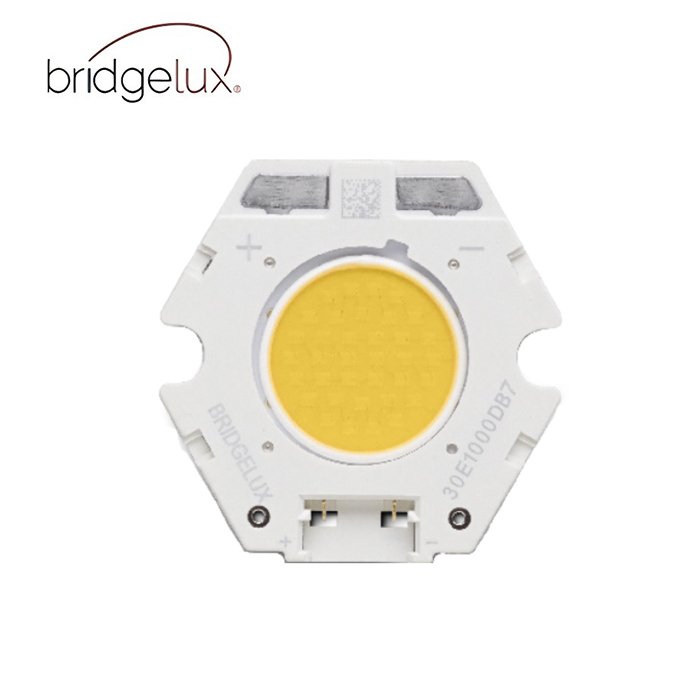

Bridgelux® GEN9 Vero® 10 Array
The Vero® Series is a revolutionary advancement in chip on board (COB) light source technology and innovation, simplifying the luminaire design and manufacturing processes. Vero Chip on Board (COB) LED arrays are available in four LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents. Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color control standard for clean and consistent uniform lighting. Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting features for plug-and-play installation.
The Gen 9 Vero Series COB is a high efficacy product that uses narrow band red phosphor to significantly improve the spectrum efficacy. The improved spectrum efficacy results in the 80 CRI product of the Gen 9 Series delivering better or equivalent efficacy as that of our previous generation Vero Series product.
Features
• Efficacy of 196 lm/W typical, 3000K 80 CRI
• Wide selection of CCT options (2700K-5000K) with minimum 80 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• 3 and 4 SDCM binning options (5000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• Thermally isolated solder pads
• 10-Year warranty
Benefits
• Solder free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applications
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Enhanced ease of use and installation
• Design with confidence
| Product Family | Product | Part Number | Doc Number | Gen | CCT (K) | CRI Options | SDCM | Typ. Flux(lm) | Current (mA) | Voltage (V) | Efficacy (lm/W) | Substrate Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRC Vero | Vero 10B | BXRC-xxx10Fx-B-9x | DS1311 | 9 | 2700 – 5000 | 80 | 2,3,4 | 1320 | 200 | 33.6 | 196 | 10 |
| Product Family | Product | Part Number | Doc Number | Gen | CCT (K) | CRI Options | SDCM | Typ. Flux(lm) | Current (mA) | Voltage (V) | Efficacy (lm/W) | Substrate Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRC Vero | Vero 10C | BXRC-xxx10Fx-C-9x | DS1311 | 9 | 2700 – 5000 | 80 | 2,3,4 | 1790 | 300 | 33.6 | 193 | 10 |
Table 1: Selection Guide, Pulsed Measurement Data (Tc = 25°C)
| Part Number | Nominal
CCT1 (K) |
CRI2 | Nominal
Drive Current3 (mA) |
Typical
Pulsed Flux4,5,6 Tc = 25ºC (lm) |
Minimum
Pulsed Flux6,7 Tc = 25ºC (lm) |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
| BXRC-27E10F0-B-9x | 2700 | 80 | 200 | 1294 | 1164 | 33.6 | 6.7 | 193 |
| BXRC-27E10F0-C-9x | 2700 | 80 | 300 | 1755 | 1579 | 31.0 | 9.3 | 189 |
| BXRC-30E10F0-B-9x | 3000 | 80 | 200 | 1320 | 1188 | 33.6 | 6.7 | 196 |
| BXRC-30E10F0-C-9x | 3000 | 80 | 300 | 1790 | 1611 | 31.0 | 9.3 | 193 |
| BXRC-35E10F0-B-9x | 3500 | 80 | 200 | 1327 | 1194 | 33.6 | 6.7 | 197 |
| BXRC-35E10F0-C-9x | 3500 | 80 | 300 | 1799 | 1620 | 31.0 | 9.3 | 193 |
| BXRC-40E10F0-B-9x | 4000 | 80 | 200 | 1333 | 1200 | 33.6 | 6.7 | 198 |
| BXRC-40E10F0-C-9x | 4000 | 80 | 300 | 1808 | 1627 | 31.0 | 9.3 | 194 |
| BXRC-50E10F0-B-9x | 5000 | 80 | 200 | 1307 | 1176 | 33.6 | 6.7 | 194 |
| BXRC-50E10F0-C-9x | 5000 | 80 | 300 | 1772 | 1595 | 31.0 | 9.3 | 191 |
Table 2: Selection Guide, Stabilized DC Test Performance (Tc = 85°C)4,5,6
| Part Number | Nominal
CCT1 (K) |
CRI2 | Nominal
Drive Current3 (mA) |
Typical DC
Flux4,5 |
Minimum
DC Flux6 |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
||
| T c | = 85ºC
(lm) |
T c | = 85ºC
(lm) |
|||||||
| BXRC-27E10F0-B-9x | 2700 | 80 | 200 | 1190 | 1071 | 33.0 | 6.6 | 180 | ||
| BXRC-27E10F0-C-9x | 2700 | 80 | 300 | 1614 | 1453 | 30.4 | 9.1 | 177 | ||
| BXRC-30E10F0-B-9x | 3000 | 80 | 200 | 1214 | 1093 | 33.0 | 6.6 | 184 | ||
| BXRC-30E10F0-C-9x | 3000 | 80 | 300 | 1647 | 1482 | 30.4 | 9.1 | 181 | ||
| BXRC-35E10F0-B-9x | 3500 | 80 | 200 | 1221 | 1099 | 33.0 | 6.6 | 185 | ||
| BXRC-35E10F0-C-9x | 3500 | 80 | 300 | 1656 | 1490 | 30.4 | 9.1 | 182 | ||
| BXRC-40E10F0-B-9x | 4000 | 80 | 200 | 1226 | 1104 | 33.0 | 6.6 | 186 | ||
| BXRC-40E10F0-C-9x | 4000 | 80 | 300 | 1663 | 1497 | 30.4 | 9.1 | 182 | ||
| BXRC-50E10F0-B-9x | 5000 | 80 | 200 | 1202 | 1082 | 33.0 | 6.6 | 182 | ||
| BXRC-50E10F0-C-9x | 5000 | 80 | 300 | 1631 | 1468 | 30.4 | 9.1 | 179 | ||
Table 3: Part numbers registered in European Product Registry for Energy Labeling
| PART NUMBER1 | CCT
(K) |
CRI | Current2
(mA) |
Vf
(V) |
Useful
flux3 (Φuse) at 85C (lm) |
Pow-
er (W) |
Efficacy
(lm/W) |
Energy
efficiency class4
|
Regis-
tration No |
| BXRC-27E10F0-B-93 | 2700 | 80 | 540 | 37.5 | 2816 | 20 | 139 | E | 1718509 |
| BXRC-30E10F0-B-93 | 3000 | 80 | 540 | 37.5 | 2872 | 20 | 142 | E | 1718512 |
| BXRC-35E10F0-B-93 | 3500 | 80 | 540 | 37.5 | 2888 | 20 | 143 | E | 1718515 |
| BXRC-40E10F0-B-93 | 4000 | 80 | 540 | 37.5 | 2901 | 20 | 143 | E | 1718518 |
| BXRC-50E10F0-B-93 | 5000 | 80 | 540 | 37.5 | 2844 | 20 | 140 | E | 1718521 |
Table 4: Product Performance at Commonly Used Drive Currents
| Part Number | CRI | Drive
Current1 (mA) |
Typical Vf
Tc = 25.C (V) |
Typical
Power Tc = 25.C (W) |
Typical
Flux2 Tc = 25.C (lm) |
Typical
DC Flux3 Tc = 85.C (lm) |
Typical
Efficacy Tc = 25.C (lm/W) |
| BXRC-27E10F0-B-9x | 80 | 75 | 31.8 | 2.4 | 497 | 462 | 208 |
| 150 | 32.9 | 4.9 | 982 | 908 | 199 | ||
| 180 | 33.3 | 6.0 | 1170 | 1079 | 195 | ||
| 200 | 33.6 | 6.7 | 1294 | 1190 | 193 | ||
| 405 | 36.0 | 14.6 | 2493 | 2242 | 171 | ||
| 540 | 37.5 | 20.3 | 3242 | 2877 | 160 | ||
| BXRC-27E10F0-C-9x | 80 | 100 | 29.0 | 2.9 | 602 | 562 | 207 |
| 200 | 30.1 | 6.0 | 1191 | 1105 | 198 | ||
| 240 | 30.5 | 7.3 | 1419 | 1312 | 194 | ||
| 300 | 31.0 | 9.3 | 1754 | 1614 | 189 | ||
| 540 | 32.9 | 17.8 | 3025 | 2728 | 170 | ||
| 720 | 34.3 | 24.7 | 3933 | 3500 | 159 | ||
| BXRC-30E10F0-B-9x | 80 | 75 | 31.8 | 2.4 | 507 | 471 | 213 |
| 150 | 32.9 | 4.9 | 1002 | 927 | 203 | ||
| 180 | 33.3 | 6 | 1194 | 1101 | 199 | ||
| 200 | 33.6 | 6.7 | 1320 | 1214 | 196 | ||
| 405 | 36 | 14.6 | 2544 | 2288 | 175 | ||
| 540 | 37.5 | 20.3 | 3309 | 2936 | 163 | ||
| BXRC-30E10F0-C-9x | 80 | 100 | 29.0 | 2.9 | 615 | 573 | 212 |
| 200 | 30.1 | 6.0 | 1216 | 1128 | 202 | ||
| 240 | 30.5 | 7.3 | 1448 | 1339 | 198 | ||
| 300 | 31.0 | 9.3 | 1790 | 1647 | 192 | ||
| 540 | 32.9 | 17.8 | 3086 | 2783 | 174 | ||
| 720 | 34.3 | 24.7 | 4014 | 3572 | 163 | ||
| BXRC-35E10F0-B-9x | 80 | 75 | 31.8 | 2.4 | 509 | 473 | 214 |
| 150 | 32.9 | 4.9 | 1007 | 932 | 204 | ||
| 180 | 33.3 | 6 | 1200 | 1106 | 200 | ||
| 200 | 33.6 | 6.7 | 1327 | 1220 | 197 | ||
| 405 | 36 | 14.6 | 2557 | 2300 | 176 | ||
| 540 | 37.5 | 20.3 | 3325 | 2951 | 164 | ||
| BXRC-35E10F0-C-9x | 80 | 100 | 29.0 | 2.9 | 618 | 576 | 213 |
| 200 | 30.1 | 6.0 | 1222 | 1133 | 203 | ||
| 240 | 30.5 | 7.3 | 1456 | 1346 | 199 | ||
| 300 | 31.0 | 9.3 | 1799 | 1655 | 193 | ||
| 540 | 32.9 | 17.8 | 3102 | 2797 | 175 | ||
| 720 | 34.3 | 24.7 | 4034 | 3589 | 163 |
| Part Number | CRI | Drive
Current1 (mA) |
Typical Vf
Tc = 25.C (V) |
Typical
Power Tc = 25.C (W) |
Typical
Flux2 Tc = 25.C (lm) |
Typical
DC Flux3 Tc = 85.C (lm) |
Typical
Efficacy Tc = 25.C (lm/W) |
| BXRC-40E10F0-B-9x | 80 | 75 | 31.8 | 2.4 | 512 | 476 | 215 |
| 150 | 32.9 | 4.9 | 1012 | 936 | 205 | ||
| 180 | 33.3 | 6.0 | 1206 | 1112 | 201 | ||
| 200 | 33.6 | 6.7 | 1333 | 1227 | 198 | ||
| 405 | 36.0 | 14.6 | 2570 | 2311 | 176 | ||
| 540 | 37.5 | 20.3 | 3342 | 2965 | 165 | ||
| BXRC-40E10F0-C-9x | 80 | 100 | 29.0 | 2.9 | 621 | 579 | 214 |
| 200 | 30.1 | 6.0 | 1228 | 1139 | 204 | ||
| 240 | 30.5 | 7.3 | 1463 | 1353 | 200 | ||
| 300 | 31.0 | 9.3 | 1808 | 1663 | 194 | ||
| 540 | 32.9 | 17.8 | 3117 | 2811 | 176 | ||
| 720 | 34.3 | 24.7 | 4054 | 3607 | 164 | ||
| BXRC-50E10F0-B-9x | 80 | 75 | 31.8 | 2.4 | 502 | 466 | 211 |
| 150 | 32.9 | 4.9 | 992 | 918 | 201 | ||
| 180 | 33.3 | 6.0 | 1182 | 1090 | 197 | ||
| 200 | 33.6 | 6.7 | 1307 | 1202 | 194 | ||
| 405 | 36.0 | 14.6 | 2519 | 2265 | 173 | ||
| 540 | 37.5 | 20.3 | 3275 | 2907 | 162 | ||
| BXRC-50E10F0-C-9x | 80 | 100 | 29.0 | 2.9 | 608 | 567 | 210 |
| 200 | 30.1 | 6.0 | 1204 | 1116 | 200 | ||
| 240 | 30.5 | 7.3 | 1434 | 1326 | 196 | ||
| 300 | 31.0 | 9.3 | 1772 | 1630 | 191 | ||
| 540 | 32.9 | 17.8 | 3056 | 2756 | 172 | ||
| 720 | 34.3 | 24.7 | 3973 | 3536 | 161 |
Table 5: Electrical Characteristics
| Part Number | Drive Current
(mA) |
Forward Voltage
Pulsed, Tc = 25.C (V) 1, 2, 3, 8 |
Typical
Coefficient of Forward Voltage4 ∆Vf/∆Tc (mV/ºC) |
Typical
Thermal Resistance Junction to Case5,6 Rj-c (ºC/W) |
Driver Selection
Voltages7 (V) |
|||
| Minimum | Typical | Maximum | ||||||
| Vf Min.
Hot Tc = 105ºC (V) |
Vf Max.
Cold T = -40ºC (V) |
|||||||
| BXRC-xxx10Fx-B-9x | 200 | 31.6 | 33.6 | 35.6 | -13.20 | 0.62 | 30.8 | 36.9 |
| 540 | 35.3 | 37.5 | 39.8 | -14.61 | 0.95 | 34.4 | 41.2 | |
| BXRC-xxx10Fx-C-9x | 300 | 29.1 | 31.0 | 32.9 | -13.32 | 0.42 | 28.4 | 34.0 |
| 720 | 32.2 | 34.3 | 36.4 | -14.74 | 0.62 | 31.4 | 37.6 | |
Table 6: Eye Safety Risk Group (RG) Classifications
| Part Number | Drive Current
(mA) |
CCT4 | ||
| 2700K/3000K | 3500K/4000K2 | 5000K3 | ||
| BXRC-xxx10F0-B-9x | 410 | RG1 | RG1 | RG1 |
| 540 | RG1 | RG1 | RG2 | |
| BXRC-xxx10F0-C-9x | 410 | RG1 | RG1 | RG1 |
| 580 | RG1 | RG1 | RG2 | |
| 720 | RG1 | RG2 | RG2 | |
