Description

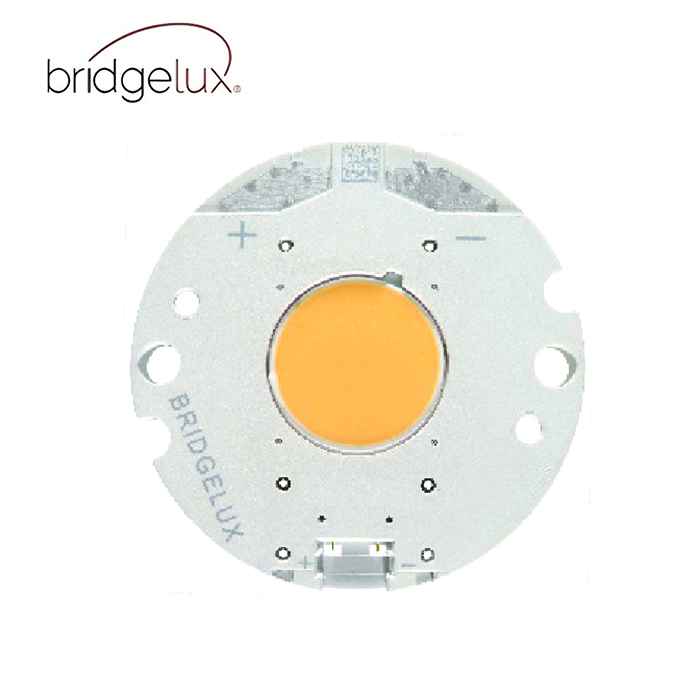

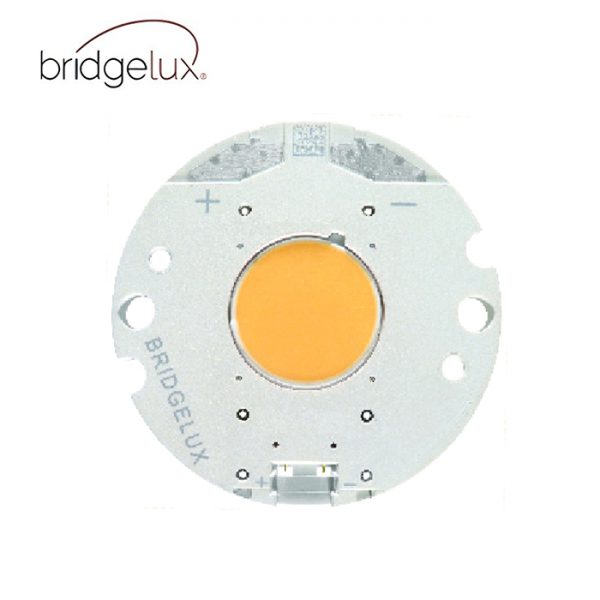

Bridgelux® GEN9 Vero® 13 Array

The Vero® Series is a revolutionary advancement in chip on board (COB) light source technology and innovation, simplifying the luminaire design and manufacturing processes. Vero Chip on Board (COB) LED arrays are available in four LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents. Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color control standard for clean and consistent uniform lighting.

Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting features for plug-and-play installation.

The Gen 9 Vero Series COB is a high efficacy product that uses narrow band red phosphor to significantly improve the spectrum efficacy. The improved spectrum efficacy results in the 80 CRI product of the Gen 9 Series delivering better or equivalent efficacy as that of our previous generation Vero Series product.

Features
• Efficacy of 199 lm/W typical, 3000K 80 CRI
• Wide selection of CCT options (2700K-5000K) with minimum 80 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• 3 and 4 SDCM binning options (5000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• Thermally isolated solder pads
• 10-Year warranty

Benefits
• Solder free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applications
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Enhanced ease of use and installation
• Design with confidence









Table 1: Selection Guide, Pulsed Measurement Data (Tc = 25°C)



Table 2: Selection Guide, Stabilized DC Test Performance (Tc = 85°C)4,5,6



Table 4: Product Performance at Commonly Used Drive Currents





Table 5: Electrical Characteristics
