Vesta® SE Series Tunable White Gen 2 6mm Integrated Array With S2 Holder

Description

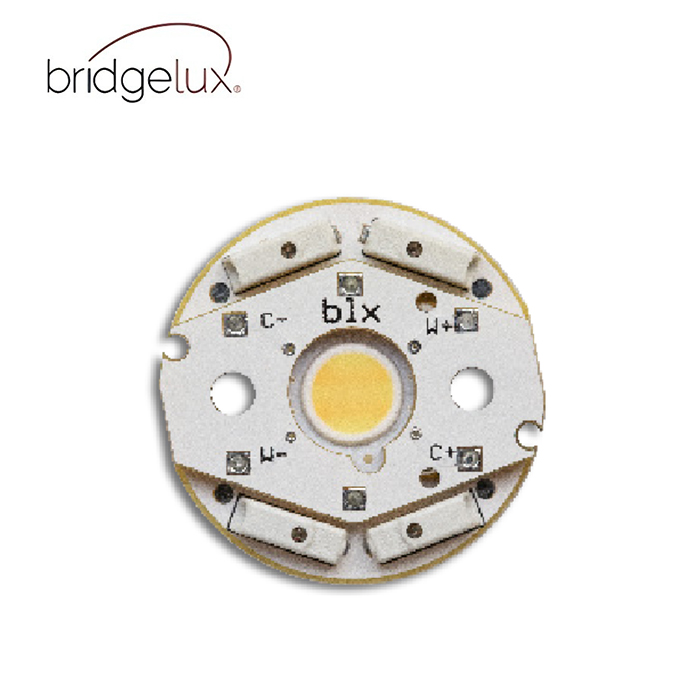

Bridgelux® Vesta® SE Series Tunable White Gen 2 6mm Integrated Array with S2 Holder

Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform. The arrays incorporate several features to simplify design integration and assembly.

Product Family	Product	Part Number	Doc Number	Gen	LES Size (mm)	CCT Range (K)	CRI	Typ. FLUX (lm) highest CCT	Current (mA)	Voltage (V)	Power (W)	Efficacy (lm/W)	Substrate Size (mm)
BXRV Vesta TW	Vesta SE Tunable White 6mm	BXRV-TR-2750G-06A0-B23-S2	DS360	2	⌀6.8	2700-5000	90	561	150	37	5.6	101	⌀30.3
BXRV Vesta TW	Vesta SE Tunable White 6mm	BXRV-TR-2765G-06A0-B23-S2	DS360	2	⌀6.8	2700-6500	90	566	150	37	5.6	102	⌀30.3
BXRV Vesta TW	Vesta SE Tunable White 6mm	BXRV-TR-1840G-06A0-B25-S2	DS360	2	⌀6.8	1800-4000	90	528	150	37	5.6	95	⌀30.3

Table 1: Selection Guide, Measurement Data

Part Number	Nominal CCT 1 Tc=85°C (K)	Typical CRI 2 Tc=85°C	Nominal Drive Current per channel (mA)	Typical Vf 3 Tc=25°C (V)	Typical Power Tc=25°C (W)	Typical Pulsed Flux 3, 5, 6 Tc=25°C (lm)	Typical Efficacy 5 Tc=25°C (lm/W)	Minimum Pulsed Flux 8 Tc=25°C (lm)	Typical DC Flux 6, 7 Tc=85°C (lm)
BXRV-TR-2750G-06A0-B- 23-S2	2700	93	150	37.0	5.6	482	87	434	415
BXRV-TR-2750G-06A0-B- 23-S2	5000	92	150	37.0	5.6	561	101	505	477
BXRV-TR-2765G-06A0-B- 23-S2	2700	93	150	37.0	5.6	482	87	434	415
BXRV-TR-2765G-06A0-B- 23-S2	6500	92	150	37.0	5.6	566	102	509	481
BXRV-TR-1840G-06A0-B- 2X-S2	1800	92	150	37	5.6	315	57	284	274
BXRV-TR-1840G-06A0-B- 2X-S2	4000	92	150	37	5.6	528	95	475	454

Table 2: Table of products registered in the European Product Registry for Energy Labeling (EPREL)

Part Number	CCT (K)	CRI	Cur- rent 3 (mA)	Volt– age 3 (V)	Useful Flux 2 useful Tc=85°C (lm)	Power (W)	Efficacy (lm/W)	Energy Efficiency Class 4	Registra– tion No
	CCT (K)	CRI	Cur- rent 3 (mA)	Volt– age 3 (V)	Useful Flux 2 useful Tc=85°C (lm)	Power (W)	Efficacy (lm/W)		Registra– tion No

– – – – – 23-S2	5000	90	200	36.3	542	7.3	75	G	876529
BXRV-TR-2765G-06A0-B- 23-S2	6500	90	200	36.3	547	7.3	75	G	879125
BXRV-TR-1840G-06A0-B- 23-S2	4000	90	200	36.3	522	7.3	72	G	894668

Table 3: Electrical Characteristics

Part Number	CCT	Nominal Drive Current (mA)	Forward Voltage Pulsed, T = 25 C (V) 1, 2, 3, 7			Typical Temperature Coefficient of Forward Voltage4 ∆Vf/∆Tc (mV/°C)	Typical Thermal Resistance Junction to Case5 Rj-c (°C/W)	Driver Selection Voltages6 (V)
			Minimum	Typical	Maximum
								Vf Min. Hot Tc = 105°C (V)	Vf Max. Cold T = -40°C (V)
BXRV-TR-xxxxG- 06A0-B-2X	1800/2700	150	34.8	37.0	39.2	-10.6	2.1	33.9	39.9
	4000K/5000/6500K	150	34.8	37.0	39.2	-11.1		33.9	39.9

Table 4: Maximum Ratings

Parameter	Maximum Rating
LED Junction Temperature (Tj)	125°C
Storage Temperature	-40°C to +105°C
Operating Case Temperature1 (Tc)	105°C
Soldering Temperature2	350°C or lower for a maximum of 6 seconds
Maximum Combined Drive Current4	200mA
	Channel 1 1800K/2700K	Channel 2 4000K/5000K/6500K
Maximum Drive Current Per Channel3,4	200mA	200mA
Maximum Peak Pulsed Drive Current Per Channel5	240mA	240mA
Maximum Total Power	7.4W
