Vesta® Series Tunable White Gen 2 9mm Array, 90 CRI And ThriveTM

Description

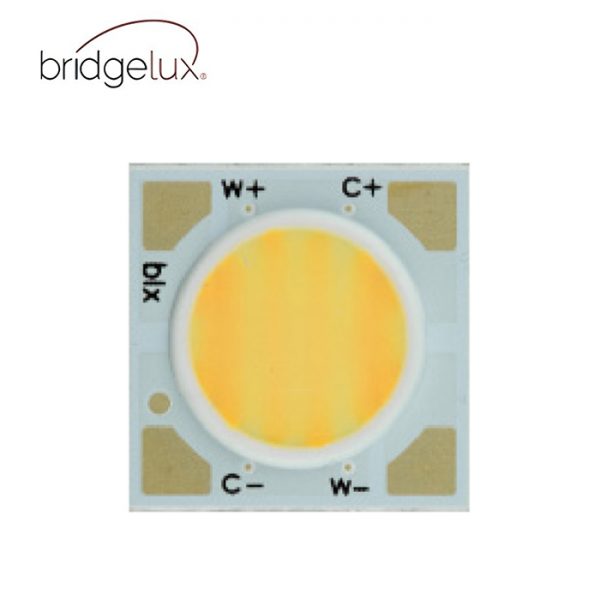

Bridgelux® Vesta® Series Tunable White Gen 2 9mm Array, 90 CRI and ThriveTM

Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform. The arrays incorporate several features to simplify design integration and assembly.

Product Family	Product	Part Number	Doc Number	LES Size (mm)	Typ. Flux (lm)	If (mA)	Vf (V)	Power (W)	Efficacy (lm/W)	Substrate Size (mm)	CCT Range (K)	CRI
BXRV Vesta TW	Vesta Tunable White 9B	BXRV-TR-2250G-10A0-B-2x	DS350		1120	250	18.2	9.1	128	15.8×15.8	2200-5000	93
BXRV Vesta TW	Vesta Tunable White 9B	BXRV-TR-2750G-10A0-B-2x	DS350	9.4	1120	250	35	9	128	15.8×15.8	2700-5000	93
BXRV Vesta TW	Vesta Tunable White 9B	BXRV-TR-2765G-10A0-B-2x	DS350	9.4	1130	250	35	9	129	15.8×15.8	2700-6500	93
BXRV Vesta TW	Vesta Tunable White 9B	BXRV-TR-1830G-10A0-B-2x	DS350	9.4	1000	250	35	9	114	15.8×15.8	1800-3000	93
BXRV Vesta TW	Vesta Tunable White 9B	BXRV-TR-1840G-10A0-B-2x	DS350	9.4	1100	250	35	9	122	15.8×15.8	1800-4000	93

Table 1: Selection Guide, Measurement Data

Part Number	Nominal CCT 1 Tc=85°C (K)	Typical CRI 2 Tc=85°C	Nominal Drive Current per channel (mA)	Typical Vf 3 Tc=25°C (V)	Typical Power Tc=25°C (W)	Typical Pulsed Flux 3, 4, 5 Tc=25°C (lm)	Typical Efficacy T =25°C 5 (lm/W)	Minimum Pulsed Flux T =25°C 8 (lm)	Typical DC Flux T =85°C 6, 7 (lm)
BXRV-TR-2750G-10A0-A-23	2700	93	500	17.6	8.8	950	108	855	846
BXRV-TR-2750G-10A0-A-23	5000	92	500	18.2	9.1	1100	121	990	968
BXRV-TR-2765G-10A0-A-23	2700	93	500	17.6	8.8	950	108	855	846
BXRV-TR-2765G-10A0-A-23	6500	92	500	18.2	9.1	1110	122	999	977
BXRV-TR-2765S-10A0-A-23	2700	98, Thrive	500	17.6	8.8	842	96	758	749
BXRV-TR-2765S-10A0-A-23	6500	98, Thrive	500	18.2	9.1	995	109	895	875
BXRV-TR-2750G-10A0-B-23	2700	93	250	35.1	8.8	950	108	855	846
BXRV-TR-2750G-10A0-B-23	5000	92	250	35.1	8.8	1120	128	1008	986
BXRV-TR-2765G-10A0-B-23	2700	93	250	35.1	8.8	950	108	855	846
BXRV-TR-2765G-10A0-B-23	6500	92	250	35.1	8.8	1130	129	1017	994
BXRV-TR-2750S-10A0-B-23	2700	98, Thrive	250	35.1	8.8	842	96	758	749
BXRV-TR-2750S-10A0-B-23	5000	98, Thrive	250	35.1	8.8	1003	114	903	903
BXRV-TR-2765S-10A0-B-23	2700	98, Thrive	250	35.1	8.8	842	96	758	749
BXRV-TR-2765S-10A0-B-23	6500	98, Thrive	250	35.1	8.8	1012	115	911	910
BXRV-TR-1830G-10A0-B-2X	1800	92	250	35.1	8.8	650	74	585	579
BXRV-TR-1830G-10A0-B-2X	3000	92	250	35.1	8.8	1000	114	900	880
BXRV-TR-1840G-10A0-A-2X	1800	93	500	17.6	8.8	660	75	594	587
BXRV-TR-1840G-10A0-A-2X	4000	92	500	18.2	9.1	1060	116	954	933
BXRV-TR-1840S-10A0-A-2X	1800	92	500	17.6	8.8	660	75	594	587
BXRV-TR-1840S-10A0-A-2X	4000	98, Thrive	500	18.2	9.1	954	105	859	840
BXRV-TR-1840G-10A0-B-2X	1800	92	250	36.0	9.0	700	78	630	623
BXRV-TR-1840G-10A0-B-2X	4000	92	250	36.0	9.0	1100	122	990	979
BXRV-TR-2250G-10A0-A-2X	2200	92	500	17.6	8.8	820	93	738	722
BXRV-TR-2250G-10A0-A-2X	5000	92	500	18.2	9.1	1100	121	990	968
BXRV-TR-2250G-10A0-B-2X	2200	92	250	35.1	8.8	820	93	738	722
BXRV-TR-2250G-10A0-B-2X	5000	92	250	35.1	8.8	1120	128	1008	986

Part Number	Nominal CCT 1 Tc=85°C (K)	Typical CRI 2 Tc=85°C	Nominal Drive Current per channel (mA)	Typical Vf 3 Tc=25°C (V)	Typical Power Tc=25°C (W)	Typical Pulsed Flux 3, 4, 5 Tc=25°C (lm)	Typical Efficacy T =25°C 5 (lm/W)	Minimum Pulsed Flux T =25°C 8 (lm)	Typical DC Flux T =85°C 6, 7 (lm)
BXRV-TR-2050S-10A0-A-2X	2000	98, Thrive	500	17.6	8.8	645	73	581	574
BXRV-TR-2050S-10A0-A-2X	5000	98, Thrive	500	18.2	9.1	915	101	824	814
BXRV-TR-2450S-10A0-A-2X	2400	98, Thrive	500	17.6	8.8	790	90	711	703
BXRV-TR-2450S-10A0-A-2X	5000	98, Thrive	500	18.2	9.1	980	108	882	872
BXRV-TR-2050H-10A0-A-2X	2000	97	500	17.6	8.8	676	77	608	602
BXRV-TR-2050H-10A0-A-2X	5000	97	500	18.2	9.1	1045	115	941	930

Table 2: Table of products registered in the European Product Registry for Energy Labeling (EPREL)

Part Number BXRV-TR-2750G-10A0-A-23	CCT (K)	CRI	Cur- rent 3 (mA)	Volt– age 3 (V)	Useful Flux 2 useful Tc=85°C (lm)	Power (W)	Efficacy (lm/W)	Energy Efficiency Class 4	Regis- tration No
	CCT (K)	CRI	Cur- rent 3 (mA)	Volt– age 3 (V)	Useful Flux 2 useful Tc=85°C (lm)	Power (W)	Efficacy (lm/W)		Regis- tration No
	5000	90	700	17.8	1287	12	103		876356
	5000	90	700	17.8	1287	12	103	F	876356
BXRV-TR-2765G-10A0-A-23	6500	90	700	17.8	1299	12	104	F	879091
BXRV-TR-2765S-10A0-A-23	6500	97	620	17.5	1021	11	94	F	1214081
BXRV-TR-2750G-10A0-B-23	5000	90	480	34.3	1735	16	105	F	876359
BXRV-TR-2765G-10A0-B-23	6500	90	480	34.3	1750	16	106	F	879094
BXRV-TR-2750S-10A0-B-23	5000	97	400	33.5	1302	13	97	F	876385
BXRV-TR-2765S-10A0-B-23	6500	97	420	33.7	1386	14	98	F	876388
BXRV-TR-1830G-10A0-B-2X	3000	90	290	32.3	888	9	95	F	876324
BXRV-TR-1840G-10A0-A-2X	4000	90	700	17.8	1241	12	99	F	876335
BXRV-TR-1840S-10A0-A-2X	4000	97	510	17.1	788	9	90	G	876346
BXRV-TR-1840G-10A0-B-2X	4000	90	480	34.3	1723	16	105	F	876338
BXRV-TR-2250G-10A0-A-2X	5000	90	700	17.8	1287	12	103	F	1442022

Table 3: Typical Color Rendering Index and TM-30 Values at Tc =85°C

Nominal CCT1	Rf	R g	Ra	R1	R2	R3	R4	R5	R6	R7	R8	R9	R10	R11	R12	R13	R14	R15
2000K	94	98	95	96	97	97	92	94	91	97	96	89	95	85	87	95	97	98
2400K	96	99	97	96	98	97	94	96	95	98	96	90	96	91	92	96	97	98
2700K	96	99	98	96	98	97	94	96	95	98	98	97	95	91	92	96	97	97
4000K	97	101	97	96	98	98	97	97	97	99	97	92	97	95	96	97	98	96
5000K	96	99	98	98	98	98	95	98	96	97	97	95	96	97	91	97	98	96
6500K	96	99	98	98	98	99	97	98	98	99	98	95	96	98	93	98	99	96

Table4: Typical ASD Values at Tc =85°C

Nominal CCT	ASD
2000K	18%
2400K	12%
2700K	11%
4000K	6%
5000K	9%
6500K	8%
