Vesta®SE Series Tunable White Gen 2 13mm Integrated Array With S2 Holder

Description

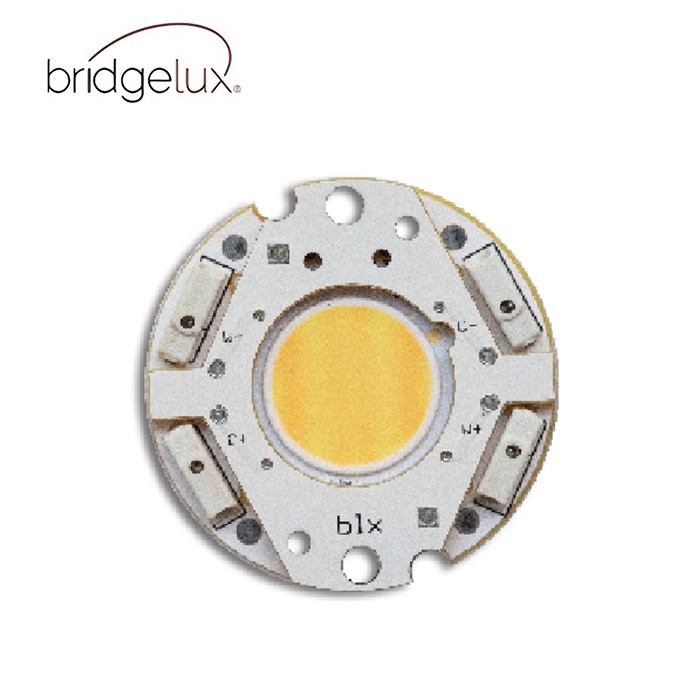

Bridgelux® Vesta®SE Series Tunable White Gen 2 13mm Integrated Array with S2 Holder

Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform. The arrays incorporate several features to simplify design integration and assembly.

Product Family	Product	Part Number	Doc Number	Gen	LES Size (mm)	CCT Range (K)	CRI	Typ. FLUX (lm) highest CCT	Current (mA)	Voltage (V)	Power (W)	Efficacy (lm/W)	Substrate Size (mm)
BXRV Vesta TW	Vesta SE Tunable White 13mm	BXRV-TR-2750G-20A0-A23-S2	DS362	2	⌀14.3	2700-5000	90	2119	500	36	18.2	117	⌀35.8
BXRV Vesta TW	Vesta SE Tunable White 13mm	BXRV-TR-2765G-20A0-A23-S2	DS362	2	⌀14.3	2700-6500	90	2119	500	36	18.2	117	⌀35.8
BXRV Vesta TW	Vesta SE Tunable White 13mm	BXRV-TR-1830G-20A0-A25-S2	DS362	2	⌀14.3	1800-3000	90	1880	500	36	18.2	104	⌀35.8
BXRV Vesta TW	Vesta SE Tunable White 13mm	BXRV-TR-1840G-20A0-A25-S2	DS362	2	⌀14.3	1800-4000	90	1993	500	36	18.2	110	⌀35.8

Table 1: Selection Guide, Measurement Data

Part Number	Nominal CCT 1 Tc=85°C (K)	Typical CRI 2 Tc=85°C	Nominal Drive Current, per channel (mA)	Typical Vf 3 Tc=25°C (V)	Typical Power Tc=25°C (W)	Typical Pulsed Flux 3, 4, 5 Tc=25°C (lm)	Typical Efficacy T =25°C 5 (lm/W)	Minimum Pulsed Flux 8 Tc=25°C (lm)	Typical DC Flux T =85°C 6, 7 (lm)
BXRV-TR-2750G-20A0-A- 23-S2	2700	93	500	35.2	17.6	1871	106	1684	1647
BXRV-TR-2750G-20A0-A- 23-S2	5000	92	500	36.3	18.2	2119	117	1907	1843
BXRV-TR-2765G-20A0-A- 23-S2	2700	93	500	35.2	17.6	1871	106	1684	1647
BXRV-TR-2765G-20A0-A- 23-S2	6500	92	500	36.3	18.2	2119	117	1907	1843
BXRV-TR-2750S-20A0-A- 23-S2	2700	98, Thrive	500	35.2	17.6	1604	91	1443	1427
BXRV-TR-2750S-20A0-A- 23-S2	5000	98, Thrive	500	36.3	18.2	1860	102	1674	1674
BXRV-TR-2765S-20A0-A- 23-S2	2700	98, Thrive	500	35.2	17.6	1628	93	1465	1449
BXRV-TR-2765S-20A0-A- 23-S2	6500	98, Thrive	500	36.3	18.2	1901	105	1711	1711
BXRV-TR-1830G-20A0-A- 2X-S2	1800	92	500	35.2	17.6	1262	72	1136	1111
BXRV-TR-1830G-20A0-A- 2X-S2	3000	92	500	36.3	18.2	1880	104	1692	1636
BXRV-TR-1840G-20A0-A- 2X-S2	1800	92	500	35.2	17.6	1262	72	1136	1111
BXRV-TR-1840G-20A0-A- 2X-S2	4000	92	500	36.3	18.2	1993	110	1794	1734

Table 2: Table of products registered in the European Product Registry for Energy Labeling (EPREL)

Part Number BXRV-TR-2750G-20A0-A-	CCT (K)	CRI	Cur- rent 3 (mA)	Volt– age 3 (V)	Useful Flux 2 useful Tc=85°C (lm)	Power (W)	Efficacy (lm/W)	Energy Efficiency Class 4	Regis- tration No
	CCT (K)	CRI	Cur- rent 3 (mA)	Volt– age 3 (V)	Useful Flux 2 useful Tc=85°C (lm)	Power (W)	Efficacy (lm/W)		Regis- tration No

23-S2	5000	90	700	35.6	2142	24.9	86	F	876533
BXRV-TR-2765G-20A0-A- 23-S2	6500	90	700	35.6	2142	24.9	86	F	879129
BXRV-TR-2750S-20A0-A- 23-S2	5000	97	640	35.1	1680	22.5	75	G	876538
BXRV-TR-2765S-20A0-A- 23-S2	6500	97	700	35.6	1889	24.9	76	G	876541
BXRV-TR-1830G-20A0-A- 2X-S2	3000	90	460	33.7	1148	15.5	74	G	876521
BXRV-TR-1840G-20A0-A- 2X-S2	4000	90	700	35.6	2036	24.9	82	F	876525

Table 3: Typical Color Rendering Index and TM-30 Values at Tc =85°C

Nominal CCT1	Rf	R g	Ra	R1	R2	R3	R4	R5	R6	R7	R8	R9	R10	R11	R12	R13	R14	R15
2700K	96	99	98	96	98	97	94	96	95	98	98	97	95	91	92	96	97	97
5000K	96	99	98	98	98	98	95	98	96	97	97	95	96	97	91	97	98	96
6500K	96	99	98	98	98	99	97	98	98	99	98	95	96	98	93	98	99	96

Table 4: Typical ASD Values at Tc =85°C

Nominal CCT	ASD
2700K	11%
5000K	9%
6500K	8%

Table 5: Electrical Characteristics

Part Number	Nominal CCT Tc=85°C (K)	Nominal Drive Current (mA)	Forward Voltage Pulsed, Tc = 25°C 1, 2, 3, 7			Typical Temperature Coefficient of Forward Voltage 4 ∆Vf/∆Tc (mV/°C)	Typical Thermal Resistance Junction to Case 5 (°C/W)	Driver Selection Voltages 6
			Minimum (V)	Typical (V)	Maximum (V)
								Vf Min. Hot Tc = 105°C (V)	Vf Max. Cold T = -40°C (V)
BXRV-TR-xxxxX-20A0-A- 2X-S2	1800, 2700	500	33.1	35.2	37.3	-12.1	0.53	32.1	38.3
	3000, 4000, 5000, 6500K	500	34.1	36.3	38.5	-12.5		33.2	39.5

Table 6: Maximum Ratings

Parameter	Maximum Rating
LED Junction Temperature (Tj)	125°C
Storage Temperature	-40°C to +105°C
Operating Case Temperature1 (Tc)	105°C
Soldering Temperature2	350°C or lower for a maximum of 6 seconds
Maximum Total Drive Current4	700mA
	Channel 1 2700K, 1800K	Channel 2 5000K/6500K 3000K/4000K
Maximum Drive Current Per Channel3,4	700mA	700mA
Maximum Peak Pulsed Drive Current5	960mA	720mA
Maximum Total Power	26.6W
