Description

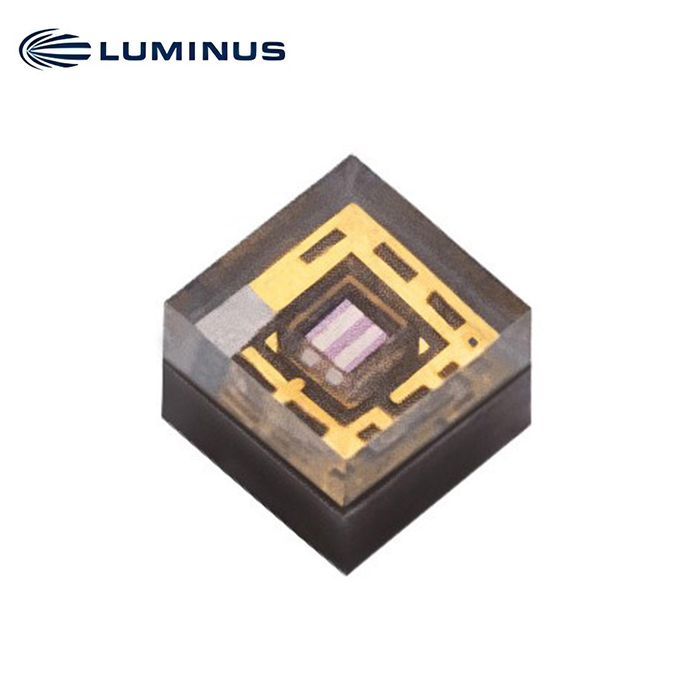

XBT-1313-UV Surface Mount UVC LED
Features
• Latest generation XBT-1313 LED with improved packaging technology enables higher than 10 mW.
• Emission wavelength between 270 nm and 280 nm
• Ultra-compact form factor: 1.3 mm x 1.3 mm
• Wide viewing angle of 150 deg
• High reliability package with ESD protection
• Standard SMD Process
• RoHS and REACH compliant
Applications
• Air Purification
• Water Purification
• Surface Disinfection
• Medical Device Sterilization
• Appliance Sterilization
• Food & Beverage Preparation
• Horticulture
XBT-1313-UV Binning Structure
XBT-1313 LEDs are tested at a drive current of 40 mA, 40 ms single pulse and placed into one of the following radiometric flux (FF) and wavelength (WWW) and forward voltage bins.
Radiometric Flux Bins
| Flux Bin (FF) | Minimum Flux (mW) | Maximum Flux (mW) |
| AF | 2 | 4 |
| AG | 4 | 6 |
| AH | 6 | 8 |
| AJ | 8 | 10 |
| BA | 10 | 12 |
Wavelength Bins
| Wavelength Bin (WWW) | Minimum Wavelength (nm) | Maximum Wavelength (nm) |
| 270 | 270 | 275 |
| 275 | 275 | 280 |
Forward Voltage Bins
| Voltage Bin | Minimum Forward Voltage (V) | Maximum Forward Voltage (V) |
| V2 | 4.5 | 5.0 |
| V3 | 5.0 | 5.5 |
| V4 | 5.5 | 6.0 |
| V5 | 6.0 | 6.5 |
| V6 | 6.5 | 7.0 |
| V7 | 7.0 | 7.5 |
Ordering Part Numbers
The table below lists ordering part numbers available for XBT-1313-UV LEDs. The part number includes a bin kit, a group of flux and
wavelength bins described in page 2, that are shippable for a given ordering part number . Individual flux , wavelength or voltage bins are not orderable . Flux bin listed is minimum bin shipped – higher bins may be included at Luminus’discretion.
| Wavelength Range | Wavelength Bins | Radiometric Flux | Ordering Part Number | |
| Bin Kit Flux Code | Min. Flux | |||
| 270-280 | 270, 275 | AG | 4 | XBT-1313-UV-A150-AG270-00 |
| AH | 6 | XBT-1313-UV-A150-AH270-00 | ||
Optical and Electrical Characteristics
| Parameter | Symbol | Typical | Unit |
| Test Current | If | 40 | mA |
| Minimum Forward Voltage | Vf-min | 4.5 | V |
| Typical Forward Voltage | Vf-typ | 6.5 | V |
| Maximum Forward Voltage | Vf-max | 7.5 | V |
| FWHM | Δλ | 10 | nm |
| Viewing Angle | 2θ1/2 | 150 | ° |
| Thermal Resistance (junction-solder point) | Rth | 20 | °C/W |
Absolute Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Forward Current | If-max | 100 | mA |
| Junction Temperature | Tj | 85 | ° C |
