Description

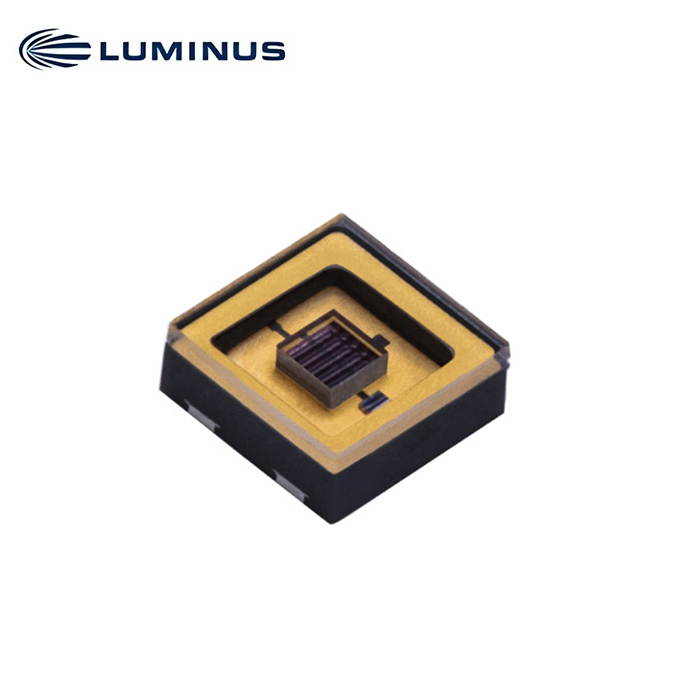

XBT-3535-UV Surface Mount UVC LED
Features
• UVC LED with emission wavelength between 270 nm and 285 nm
• High Optical Power: Up to 80 mW of UVC power at maximum rated current
• Compact form factor: 3.5 mm x 3.5 mm package with optically transparent window
• Viewing angle of 130 degrees
• Standard SMT process
• RoHS and REACH compliant
Applications
• Water/ Air/ Surface Disinfection
• Healthcare
• Food & Pharmaceutical Processing
• Analytical Instruments
• Horticulture
Radiometric Flux Bins
The LEDs can also be driven at higher drive currents, to achieve the correlated flux values listed in the table.
| Flux Bin (FF) | Minimum Flux
(mW) 350 mA, 250 C |
Maximum Flux
(mW) 350 mA, 250 C |
Correlated Minimum Flux
(mW) at 250 C |
||
| 500 mA | 650 mA | 800 mA | |||
| CC | 30 | 35 | 42 | 55 | 68 |
| CD | 35 | 40 | 49 | 64 | 79 |
| CE | 40 | 45 | 56 | 74 | 90 |
| CF | 45 | 50 | 63 | 83 | 101 |
| CG | 50 | 55 | 70 | 92 | 113 |
Wavelength Bins
| Wavelength Bin (WWW) | Minimum Wavelength (nm) | Maximum Wavelength (nm) |
| 270 | 270 | 275 |
| 275 | 275 | 280 |
| 280 | 280 | 285 |
Forward Voltage Bins
| Voltage Bin | Minimum Forward Voltage (V) | Maximum Forward Voltage (V) |
| V3 | 5.0 | 5.5 |
| V4 | 5.5 | 6.0 |
| V5 | 6.0 | 6.5 |
| V6 | 6.5 | 7.0 |
| V7 | 7.0 | 7.5 |
Ordering Part Numbers
The table below lists ordering part numbers available for XBT-3535-UV LEDs. The part number includes a bin kit, a group of flux and wavelength bins described in page 2, that are shippable for a given ordering part number . Individual flux or wavelength bins are not orderable . Flux bin listed is minimum bin shipped – higher bins may be included at Luminus’discretion.
| Wavelength Range | Wavelength Bins | Radiometric Flux | Ordering Part Number | |
| Bin Kit Flux Code | Min. Flux (mW) | |||
| 270-280 | 270, 275 | CC | 30 | XBT-3535-UV-A130-CC270-00 |
| 275-280 | 275 | CC | 30 | XBT-3535-UV-A130-CC275-01 |
| 275-285 | 275, 280 | CC | 30 | XBT-3535-UV-A130-CC275-00 |
| 270-280 | 270, 275 | CD | 35 | XBT-3535-UV-A130-CD270-00 |
| 275-280 | 275 | CD | 35 | XBT-3535-UV-A130-CD275-01 |
| 275-285 | 275, 280 | CD | 35 | XBT-3535-UV-A130-CD275-00 |
Optical and Electrical Characteristics1,3
| Parameter | Symbol | Value | Unit |
| Minimum Forward Voltage | Vf-min | 5.0 | V |
| Typical Forward Voltage | Vf-typ | 6.5 | V |
| Maximum Forward Voltage | Vf-max | 7.5 | V |
| FWHM | Δλ | 10 | nm |
| Viewing Angle | 2θ1/2 | 130 | ° |
| Thermal Resistance (junction-solder point) | Rth | 5.0 | °C/W |
Absolute Maximum Ratings 2,3
| Parameter | Symbol | Value | Unit |
| Forward Current | If-max | 800 | mA |
| Junction Temperature | Tj-max | 100 | ° C |
