Description

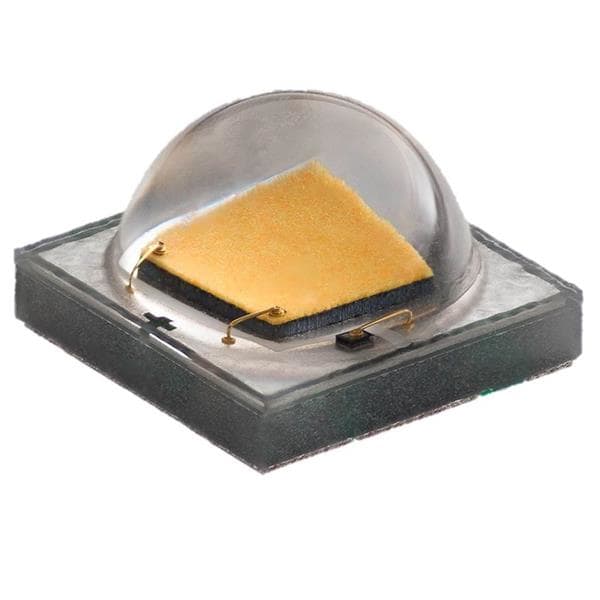

The XLamp XP-G2 from Cree delivers high performance and lower system cost to XP-based designs
Built on the SC3 Technology Platform from Cree, the XLamp XP-G2 LED delivers up to 20% more lumens per watt and 150% more lumens per dollar than the original XP-G, lowering system cost up to 57%. The XP-G2 is optically compatible with the original XP-G, providing drop-in-ready performance enhancements to shorten the LED fixture design cycle and improve time to market. Combining high light output, reliability and efficacy, XP-G2 is optimized for directional, high-lumen applications, from indoor and outdoor to portable and lamp retrofits.
| Size | 3.45 x 3.45 mm |
|---|---|
| Product Options | High Efficacy |
| Maximum Drive Current | Standard: 1.5 A High Efficacy: 2.0 A |
| Max Power (W) | Standard: 5 W High Efficacy: 5.8 W |
| Max Light Output (lm) | Standard: 586 lm High Efficacy: 735 lm |
| Maximum Efficacy at Binning Conditions (lm/W) | Standard: 176 lm/W High Efficacy: 180 lm/W |
| Typical Forward Voltage | Standard: 2.8 V @ 0.35 A High Efficacy: 2.7 V @ 0.35 A |
| Maximum Reverse Voltage | 5 V |
| Viewing Angle | Standard: 120° High Efficacy: 125° |
| Maximum Junction Temperature | 150 °C |
| Binning | 85°C ANSI |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| Reflow Solderable | Yes – JEDEC J-STD-020C-compatible |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
| UL-Recognized | Yes – Level 4 Enclosure Consideration |
