The latest QFN-cast 5050 LED version adds to its impressive 5050 line-up of high efficacy performance combined with DLC Premium Lifetime. This OSCONIQ S 5050 leadframe package brings its robustness and stability to another level, with Superior Corrosion protection that further enhances its suitability for outdoor professional lighting.

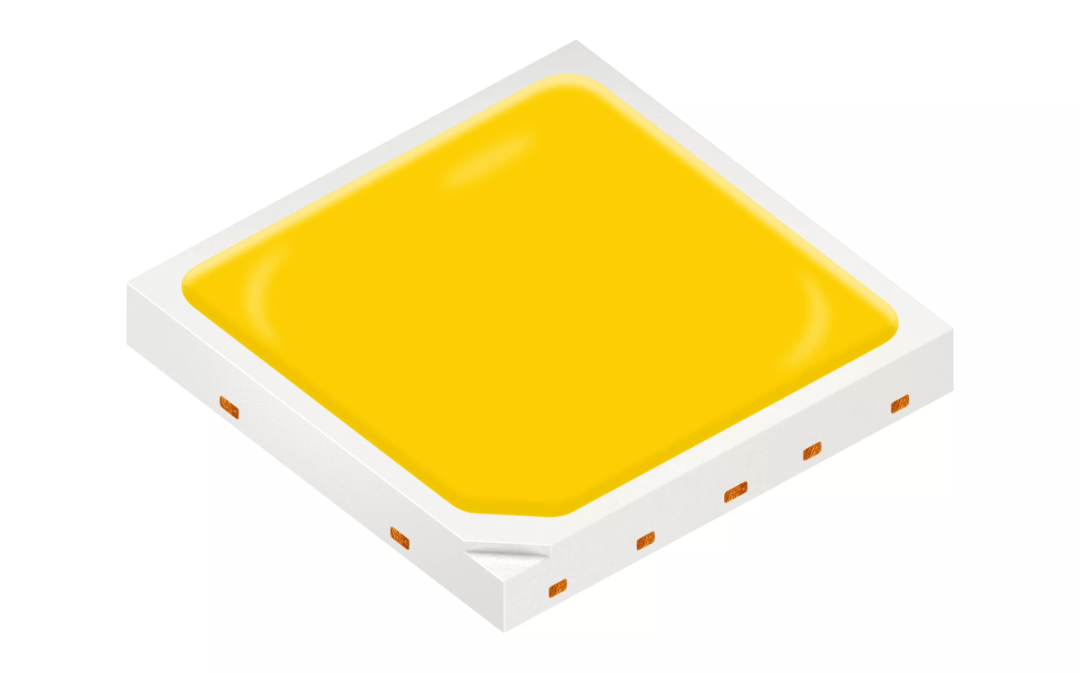

The OSRAM OSCONIQ™ S 5050, GW Q9LR34.PM, as an iteration of the 5050 series QFN package, features high energy efficiency, long lifespan, strong robustness, and excellent corrosion resistance, significantly improving its anti-aging capabilities for outdoor scenarios and providing a long-lasting and reliable light source solution for professional lighting.
Product specifications are as follows:
- Emission Color: White;
- CRI: 70;
- Power (High): 0.99 W;
- Dimensions (Typical): 5.0 x 5.0 x 0.7 mm³;
- Operating Temperature: -40 °C – 105 °C;
- Applications: Indoor lighting, outdoor and industrial lighting;
Luminosity:
- ΦV Typical: 240 lm;
- IV Typical: 79.4 cd;
- ΦE Typical: 1500 mW;
- IE Typical: 496 mW/sr;
- Beam Angle (∢ Typical): 120 °.
| 产品类别 | 描述 | 订购代码 |
|---|---|---|
| GW Q9LR34.PM-L9M8-XX510-1 | ΦV = 170.0 … 260.0 lm, 2200 K (IF = 45 mA) | Q65113A4744 |
| GW Q9LR34.PM-M2N1-XX58-1 | ΦV = 190.0 … 290.0 lm, 2700 K (IF = 45 mA) | Q65113A4743 |
| GW Q9LR34.PM-M3N2-XX51-1 | ΦV = 200.0 … 300.0 lm, 6500 K (IF = 45 mA) | Q65113A4742 |
| GW Q9LR34.PM-M3N2-XX57-1 | ΦV = 200.0 … 300.0 lm, 3000 K (IF = 45 mA) | Q65113A4741 |
| GW Q9LR34.PM-M4N3-XX52-1 | ΦV = 210.0 … 310.0 lm, 5700 K (IF = 45 mA) | Q65113A4740 |
| GW Q9LR34.PM-M4N3-XX53-1 | ΦV = 210.0 … 310.0 lm, 5000 K (IF = 45 mA) | Q65113A4739 |
| GW Q9LR34.PM-M4N3-XX55-1 | ΦV = 210.0 … 310.0 lm, 4000 K (IF = 45 mA) | Q65113A4738 |
| GW Q9LR34.PM-M4N3-XX56-1 | ΦV = 210.0 … 310.0 lm, 3500 K (IF = 45 mA) | Q65113A4737 |
| GW Q9LR34.PM-M5N3-XX53-1 | ΦV = 220.0 … 310.0 lm, 5000 K (IF = 45 mA) | Q65113A4736 |
| GW Q9LR34.PM-M5N3-XX55-1 | ΦV = 220.0 … 310.0 lm, 4000 K (IF = 45 mA) | Q65113A4757 |
