On factory production lines, in data center cabinets, in the power systems of new energy vehicles… the core challenges faced by devices around us that need to handle high currents are often strikingly similar: how to ensure the safe, efficient, and reliable flow of electricity?
The world of power electronics is complex, but don’t worry. As your reliable partner, WAGO is committed to providing complete connectivity solutions from planning to implementation. Leveraging high-quality WAGO PCB Connectors, from safely transmitting high currents and optimizing process efficiency to driving innovative upgrades, we are always with you, keeping you in control.
1. Highlight Focus: WAGO PCB Connectors MCS MIDI HV Connectors, Redefining High-Current Connections
Are you struggling with space, safety, and efficiency in high-current applications?

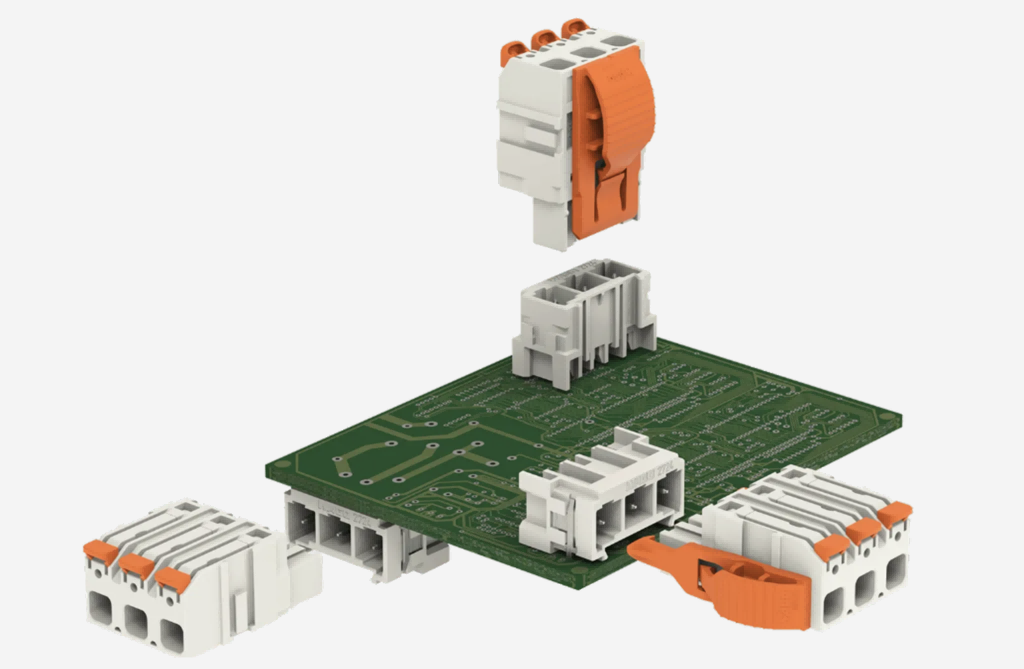

WAGO’s MCS MIDI HV plug-in PCB connector (2724 series), as the core product of the WAGO PCB Connectors family, brings you a disruptive solution, completely transforming high-current applications.
- Peak Performance: WAGO PCB Connectors designed specifically for high currents, ensuring safe and stable power transmission even under harsh operating conditions.
- Compact and Robust: Robust construction and compact size, supporting wires up to 2.5mm², and certified to the stringent UL 600V standard, ensuring maximum safety.
- Simplified Design: This plug-in connector greatly simplifies the installation process, making efficient connectivity readily available.
2. Smart Upgrade: Predict the future with thermal simulation tools, winning from the very beginning of the design process
Heat dissipation is the ultimate challenge for power electronic devices. Improper handling can lead to performance degradation or even malfunctions.
WAGO’s thermal simulation tools are your secret weapon for overcoming this challenge. Combined with the superior performance of WAGO PCB Connectors, they give you greater confidence in your designs.
01
Instant Decision-Making, One Step Ahead
Say goodbye to lengthy and time-consuming laboratory testing. In just seconds, our tools provide accurate results and intelligently recommend the optimal component size based on your current and temperature requirements, significantly accelerating project development.
02
Unlimited Combinations, Flexible and Free
Our tools support simulating arbitrary pole configurations, allowing you to comprehensively analyze the thermal performance of different connection schemes and the combined effects of different connection schemes, finding the optimal solution for your complex designs.
03
Realistic Simulation, Comprehensive Verification
Our tools can simulate various current load scenarios in a virtual environment, accurately testing the performance of connection technologies. This ensures your design can withstand real-world challenges before going into production.
3. Diverse Choices: There’s always a connection method that suits your needs
We understand that no single solution can solve all problems. Therefore, WAGO offers a variety of reliable connection methods, leveraging the diverse range of WAGO PCB Connectors to give you control: Tool-Free Operation (Lever Design): “One flip, one plug, one press”-three steps to complete wiring, intuitive, efficient, and safe. The first choice for those seeking ease of operation and reliability.
Tool/Push-Button Operation: When installation space is extremely limited, WAGO PCB Connectors this compact and economical wiring solution saves you every precious millimeter without sacrificing safety and performance.
4. Continuous Innovation: A diverse product portfolio helps your projects reach new heights.
WAGO’s innovation never stops. Our products are designed with ultimate performance and efficiency as core principles. The entire WAGO PCB Connectors series effectively addresses various challenges in the power electronics field.
For example, the more demanding MCS MAXI 6 series integrates lever-operated, direct-insertion cage spring connection technology, supports conductors up to 10mm², is 600V UL certified, and features a reverse insertion design, ready for your next high-end project.
The MCS MAXI 16 series is plug-and-play: featuring an operating lever, direct-insertion cage-spring connection technology, suitable for conductors with a maximum cross-sectional area of 25 mm², tool-free operation, anti-misinsertion protection, flexible coding and safety locking, support for wire-to-board/wire-to-wire connections, and a 10.16 mm pin pitch, making it the ultimate choice for power electronics.
The 2706 series is a versatile WAGO PCB Connectors wiring solution: suitable for conductors with a maximum cross-sectional area of 6 mm², featuring an operating lever, cage-spring connection technology (CAGE CLAMP®), and a 30° entry angle. Whether or not it has a jumper socket, this PCB terminal block can adapt to your design needs. Ready for the next step?
The 2626 series is designed for automated operation: direct-insertion cage-spring connection technology, supports reflow soldering, suitable for conductors with a cross-sectional area of 6 mm², and a 7.5 mm pin pitch; it uses tape and reel packaging, adapting to smart production lines…
Connection, more than just connection. It’s about efficiency, it’s about safety, and it’s about turning innovative ideas into solid reality. WAGO’s comprehensive PCB product portfolio, with WAGO PCB Connectors at its core, is always focused on ultimate performance and efficient design, aiming to help you overcome every challenge in the field of power electronics and reach new heights together.
As an distributor of WAGO, Gainer LED is committed to bringing the high-quality WAGO PCB Connectors to customers around the world. Whether you are in the US, Europe, the United Kingdom, North America, Canada, Australia, India or other regions, WAGO PCB Connectors are your trusted choice for solving power connection challenges. As the WAGO connectors for power electronics, we, Gainer LED, offer a full range of solutions to meet diverse application needs-from WAGO PCB connectors for high current applications in new energy vehicle power systems, WAGO high voltage PCB connectors for industrial control equipment, to WAGO connectors for PCB mounting in data center cabinets and WAGO PCB terminal blocks for factory production lines. No matter which region you are in or what kind of high-current, high-reliability connection requirements you have, Gainer LED, together with WAGO’s professional team and high-quality products, is always ready to support you, turning every innovative design into a stable and efficient reality. Contact us today to find the perfect WAGO PCB connector solution tailored to your regional and project needs.
