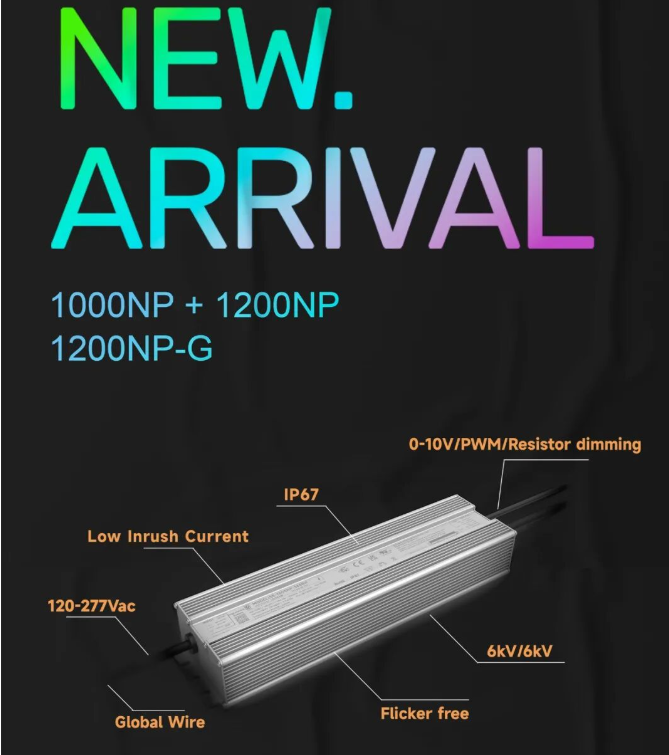

As a benchmark enterprise deeply rooted in the medium-to-high power LED driver field, SOSEN LED Driver has always focused on technological innovation, committed to providing the global lighting market with efficient, stable, and intelligent power solutions. SOSEN Power’s market-recognized non-isolated NP series has undergone a major upgrade, launching two new high-power products: the 1000NP and 1200NP/NP-G. With the core positioning of “Photosynthetic Engine, Precise Empowerment,” these products are deeply adapted to diverse high-end scenarios such as plant lighting, sports lighting, and high-mast lighting, fully demonstrating SOSEN LED Driver’s technological strength and product advantages in the field of high-power non-isolated power supplies.

I. Core Features: Meticulous Craftsmanship for Superior Performance

The newly launched SOSEN LED Driver non-isolated NP series embodies years of R&D expertise, boasting several industry-leading core features to comprehensively meet users’ stringent demands for high-quality power supplies.

1. Three-in-One Dimming System: Intelligent and Customizable Dimming

The product comes standard with a three-in-one dimming system, perfectly compatible with 0-10V, PWM, and time-controlled dimming modes. Users can flexibly switch between these modes according to different lighting scenarios. Combined with the built-in intelligent control module, it enables precise adjustment of light brightness and on-time, providing users with diverse intelligent control options and fully embodying SOSEN LED Driver’s user-centric product design philosophy.

2. Integrated Housing, IP67 Protection

Utilizing an integrated precision die-cast aluminum housing design, the compact and robust structure achieves an ultra-high IP67 protection rating, providing robust dustproof, waterproof, and moisture-proof capabilities. It can easily withstand harsh outdoor working environments such as humidity, dust, and large temperature differences, ensuring long-term stable operation without pressure. This completely solves the power supply protection challenges in outdoor and industrial scenarios, a hallmark of SOSEN LED Driver products’ consistent high quality.

3. Low Inrush Current, Protecting Lamp Lifespan

Equipped with advanced soft-start technology, it effectively suppresses inrush current during startup, preventing instantaneous high current from impacting the LED chip, significantly reducing lamp losses, extending the lifespan of the LED light source and driver power supply, and reducing power grid fluctuation interference, ensuring the stability of the entire lighting system. This highlights SOSEN LED Driver’s extreme pursuit of detail and reliability.

4. Wide Voltage Input, Adaptable to Global Power Grids

NP Standard Version: Utilizes a wide voltage input of 120-277Vac, perfectly adapting to North American 120V, 208V, and 277V mains voltages, as well as common mains voltages in most regions worldwide. It can stably drive both residential and industrial power grids, making it the preferred specification for global compatibility.

NP-G Dedicated Version: Customized 200-277Vac voltage input, optimized for mainstream 220V-277V power grids in Europe, Asia, and other regions. This results in more precise voltage adaptation, further optimized conversion efficiency, and a grounded DC output, enhancing electrical safety and meeting specific safety regulations in some regions, enriching SOSEN’s LED Driver product portfolio.

5. Superior Lightning Protection, Maximum Safety

With ultra-high lightning protection capabilities of 6kV common mode and 6kV differential mode, far exceeding industry standards, it effectively resists sudden electrical disasters such as lightning strikes and power grid surges, protecting the power supply and downstream LED lighting fixtures from damage. It provides an all-weather safety barrier for outdoor and industrial environments susceptible to lightning strikes, a core feature of SOSEN LED Driver’s safety performance.

6. Globally Compatible Cables, Convenient Installation and Adaptation

Equipped with cables conforming to global safety standards, it is compatible with different wiring specifications and interface requirements in various countries. No cable replacement is required during installation; it directly adapts to various lighting fixtures and construction scenarios, simplifying the installation process, improving construction efficiency, and ensuring wiring safety, fully demonstrating the global adaptability of SOSEN LED Driver products.

7. Bipolar Circuit, Flicker-Free and Eye-Friendly

Utilizing an innovative bipolar circuit design, this system completely eliminates the flicker problem common in LED lighting. The output light is pure and stable, with no glare or flicker. Whether for the healthy spectrum needed for plant growth or for long-term lighting scenarios like stadiums and outdoor high-mast lighting, it provides a comfortable and healthy lighting environment while avoiding the adverse effects of flicker on equipment and human health. This demonstrates SOSEN LED Driver’s technological innovation and human-centered design.

II. High Efficiency and Low Heat Dissipation, a New Benchmark for Energy Saving

In terms of energy efficiency, the new SOSEN LED Driver NP series leads the industry with an absolute advantage, achieving a perfect balance between high efficiency and energy saving. Compared to the traditional isolated power supply’s conversion efficiency of only 95%, the SOSEN LED Driver non-isolated NP series (including 1000NP, 1200NP/NP-G) achieves a breakthrough ultra-high conversion efficiency of 97%. Higher conversion efficiency means significantly reduced power loss and less heat generation during operation. This not only reduces cooling costs and extends power supply lifespan but also significantly lowers the long-term energy consumption of lighting systems, saving users substantial electricity bills. This perfectly aligns with global energy conservation and emission reduction trends, fully demonstrating SOSEN LED Driver’s core competitiveness in high-efficiency power supply technology.

III. Multiple Protection Mechanisms for Enhanced Reliability

To ensure the long-term stable operation of lighting systems, the SOSEN LED Driver NP series features a comprehensive, multi-layered safety protection system with built-in intelligent protection functions to handle various unexpected faults.

Short Circuit Protection: When a short circuit fault occurs at the output, the power supply immediately and automatically cuts off the output to prevent the short circuit current from burning out the power supply and lighting fixtures. Operation automatically resumes after the fault is cleared.

Over-Temperature Protection: A built-in high-precision temperature sensor monitors the internal temperature of the power supply in real time. Once the temperature exceeds the safe threshold, the output power is automatically reduced or the power supply is shut down for cooling to prevent high-temperature damage to components.

Under-Voltage Protection: The input voltage status is monitored. When the voltage is lower than the normal operating range, the output is automatically stopped to prevent equipment damage caused by abnormal operation of the power supply under low voltage.

Overload Protection: Real-time monitoring of output load; when the load exceeds the rated power, a protection mechanism is quickly activated to limit the output current and prevent overload damage to the power supply.

IV. Empowering Agricultural Lighting, Deeply Matching Plant Growth Needs

With the rapid development of global facility agriculture, plants have increasingly higher requirements for the professionalism of lighting power supplies. The new SOSEN LED Driver NP series focuses on agricultural lighting scenarios, creating customized solutions. The product is specifically designed for top-mounted supplemental lighting in agriculture, and can be installed in an octopus-like layout, perfectly matching the multi-layered planting structures of plant factories and greenhouses, providing more uniform light coverage and helping plants receive light from all directions. With a power supply width of only 89.5mm, its slim and compact design facilitates installation and deployment between planting racks, saving space and adapting to the structural requirements of various plant lighting fixtures. It also offers a wealth of customized configurations: the RJ25 network port supports remote network control, the dimming knob facilitates manual adjustment on-site, the panel connector adapts to different wiring methods, and the added ground wire at the output further enhances electrical safety in agricultural scenarios, comprehensively meeting the intelligent and professional needs of plant lighting, making it a core product of SOSEN LED Driver’s strategic layout in the agricultural lighting field.

V. Integrated Power Supply Design, More Flexible Custom Programming

The SOSEN LED Driver NP series breaks through the boundaries of traditional power supply functions, featuring a built-in 12V independent auxiliary power source, achieving “integrated power supply, diverse adaptability.” This auxiliary power source can directly power external sensors, controllers, and other intelligent components, eliminating the need for additional auxiliary power supplies, simplifying system architecture, and reducing wiring and equipment costs. It also supports custom programming, allowing users to personalize parameters such as output current, dimming curves, switching time, and light decay compensation through dedicated software, accurately matching the lighting needs of different luminaires and scenarios, achieving “one power supply, multiple adaptability,” significantly improving product flexibility and versatility, highlighting the intelligent and customized advantages of SOSEN LED Driver.

VI. Intelligent Light Control Technology, Precise Empowerment through Cluster IoT

Leveraging powerful intelligent control technology, the SOSEN LED Driver NP series achieves high-precision dimming and cluster IoT, creating a new smart lighting experience. The product supports ultra-high precision dimming of ±5%, accurately adjusting light intensity and spectrum according to different growth stages of plants (germination, seedling, flowering, fruiting), different event scenarios in sports venues, and different lighting needs of outdoor high-mast lights at different times, achieving “on-demand lighting.” With an RJ25 network port, multiple power supplies can be clustered and networked, remotely monitored, adjusted, and managed through a central control system. It supports remote upgrades, fault warnings, data acquisition, and other functions, building an intelligent and networked lighting control system that perfectly aligns with the development trends of smart agriculture, smart sports, and smart cities, representing the concentrated embodiment of SOSEN LED Driver’s intelligent technology.

VII. Diverse Application Areas, Covering Mainstream High-End Scenarios

Plant Lighting: Top lighting for plant factories, greenhouses, vertical agriculture, and multi-layer planting, precisely meeting the spectral and light requirements for plant photosynthesis.

Sports Lighting: High-power lighting for professional football fields, basketball courts, stadiums, and other sports venues, featuring flicker-free operation, high stability, and high-precision dimming to ensure safety during live broadcasts and sports events.

High Mast Lighting: High-power outdoor high-mast lighting for city squares, ports, highways, airports, etc., with IP67 protection, wide voltage input, and strong lightning protection, adapting to complex outdoor environments.

From agricultural production to sporting events and urban public lighting, the SOSEN LED Driver NP series, with its all-around performance, has become the preferred driver solution for high-end high-power lighting scenarios.

IX. Certification

X. Selection Table

Note:
*=BH: Three-in-one dimming (0-10V/PWM/Time control) + auxiliary power source
*=BHN: Three-in-one dimming (0-10V/PWM/Time control) + auxiliary power source, with NTC function
*=BHB: Integrated plant light power supply, with level dimming, RJ25 network interface for network dimming
*=BHB-M: Integrated plant light power supply, with level dimming, RJ25 network interface for network dimming, input M19/output M19 panel connector
*=BH-M”: Input M19/output M19/dimming auxiliary power source M12 panel connector
*The suffix ~-G” indicates DC output with ground wire version
