In indoor lighting projects, a power supply with strong adaptability and stable performance is crucial for ensuring the reliable operation of luminaires and creating a comfortable lighting environment. The EUCHIPS DPE Series of 0-10V & Non-Dimmable Constant Current Power Supplies-distinguished by their versatile design, precise dimming capabilities, and ease of installation-serve as an ideal power solution for a wide range of settings, including hotels, art galleries, commercial offices, and residential interiors. They offer seamless compatibility with virtually all types of indoor LED luminaires.

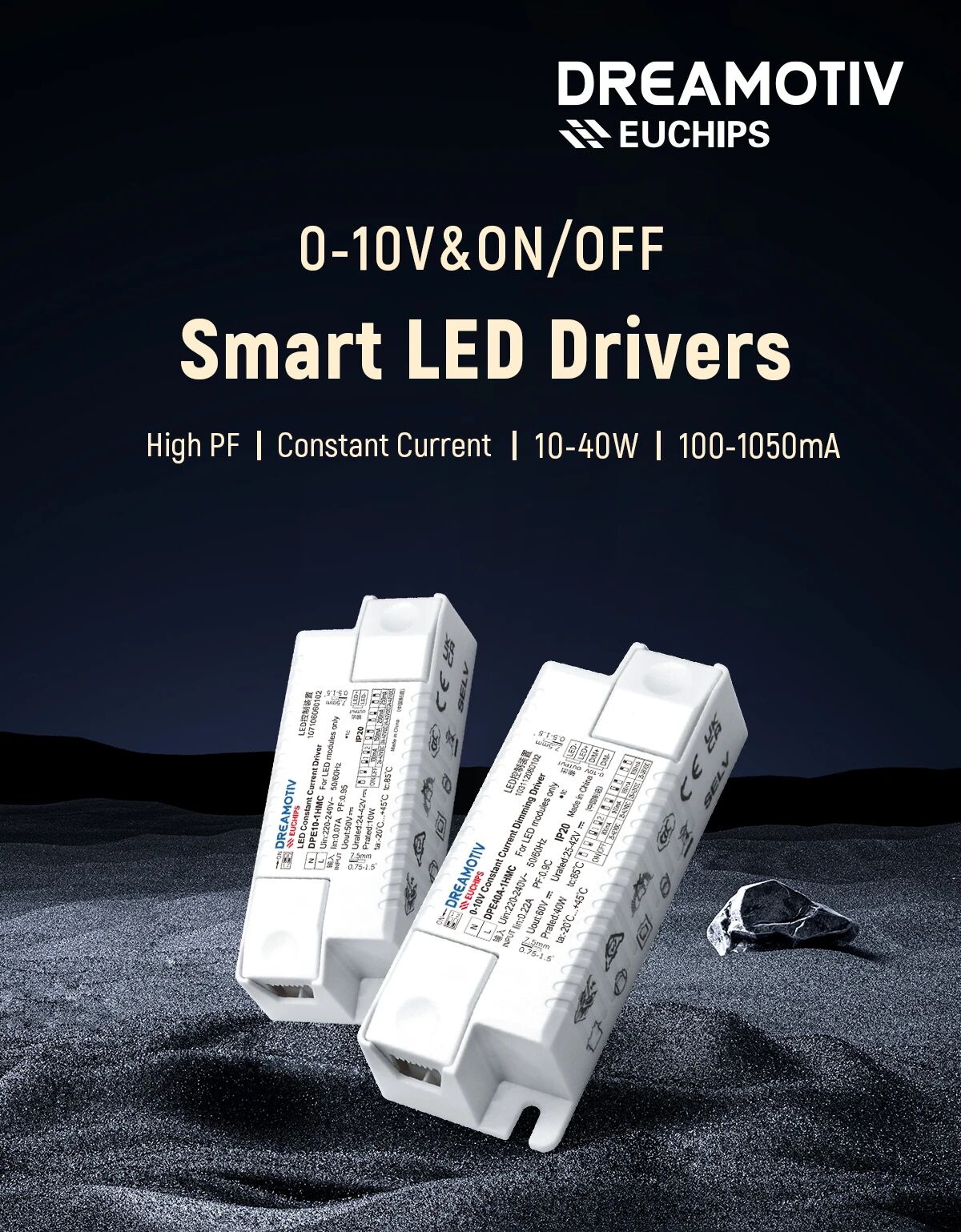

This power supply is a versatile, all-in-one product that supports both 0-10V dimming and standard ON/OFF switching control. Its core specifications are precisely tailored to meet the requirements of mainstream indoor lighting fixtures. With a power output range of 10–40W and an output current range of 0.1–1.05A-combined with a high Power Factor (PF) design-it not only ensures stable power delivery but also effectively reduces energy consumption. Capable of adapting to LED luminaires of varying wattages and types, it eliminates the need for frequent power supply replacements, thereby significantly lowering overall project costs.

product key technologies

01. Flexible Configuration: One “Switch” Solves It All

To address the challenge of matching power supplies to specific luminaires, the DPE Series Constant Current Power Supplies feature a flexible current configuration design. Each unit is equipped with DIP switches offering four selectable current settings. This allows for rapid adjustment of the output current-without the need for complex programming or specialized tools-making it easy to match luminaires of different wattages. This feature significantly boosts efficiency in inventory management and installation, making the series particularly well-suited for large-scale projects involving multiple luminaire specifications.

02. Screw-Free Side Cover Design

Installation convenience is a key highlight of the DPE Series. The power supply features a screw-free side cover design that securely locks into place with a simple press, eliminating the need for additional screws. This streamlines the installation process, reduces construction time, and allows for easy operation even within confined installation spaces, making it adaptable to a wide variety of luminaire installation scenarios.

03. Flicker-Free Performance: Pure, Smooth Lighting

In terms of dimming experience, the DPE Series Constant Current Power Supplies support the standard 0-10V dimming interface. With a dimming depth reaching as low as 1%, they deliver smooth, refined light transitions that remain completely flicker-free throughout the entire dimming range. Whether for the soft accent lighting of an art gallery, the warm ambient lighting of a hotel, or the comfortable task lighting of an office space, the brightness can be precisely controlled to create a healthy, glare-free, and flicker-free lighting environment that safeguards visual comfort.

04. Multiple Protection Mechanisms

In terms of safety performance, the DPE series offers comprehensive protection. It features built-in multiple protection mechanisms-including output overload, output overvoltage, and short-circuit protection-that automatically safeguard both the power supply and the lighting fixtures in the event of an anomaly, thereby preventing equipment damage and extending product lifespan.

05. Internationally Recognized Certifications

The product has obtained numerous internationally recognized certifications-including CCC, CE, UKCA, CB, ENEC, and RCM-affirming that its quality meets global safety standards. It can be used with complete confidence in both export projects and domestic engineering applications.

06. Long-Lifespan Design

A long-lifespan design provides greater assurance for your projects. The DPE series power supplies utilize high-quality components to deliver an ultra-long service life of 50,000 hours. Backed by a 5-year official warranty, they help reduce long-term maintenance costs and eliminate the hassle of frequent repairs and replacements, ensuring peace of mind for all types of lighting projects.

07. Suitable for Indoor LED Lighting Fixtures

EUCHIPS’ 0-10V dimmable and non-dimmable Constant Current Power Supplies are adaptable to a wide range of scenarios, making them a universal choice for indoor lighting applications. Whether powering LED fixtures in hotel guest rooms, art galleries, and museum exhibition halls, or in retail stores, office buildings, and private residences, the DPE series power supplies offer stable compatibility. Balancing both practicality and cost-effectiveness, they stand as the preferred power supply solution for indoor LED lighting projects.

Selection Table
