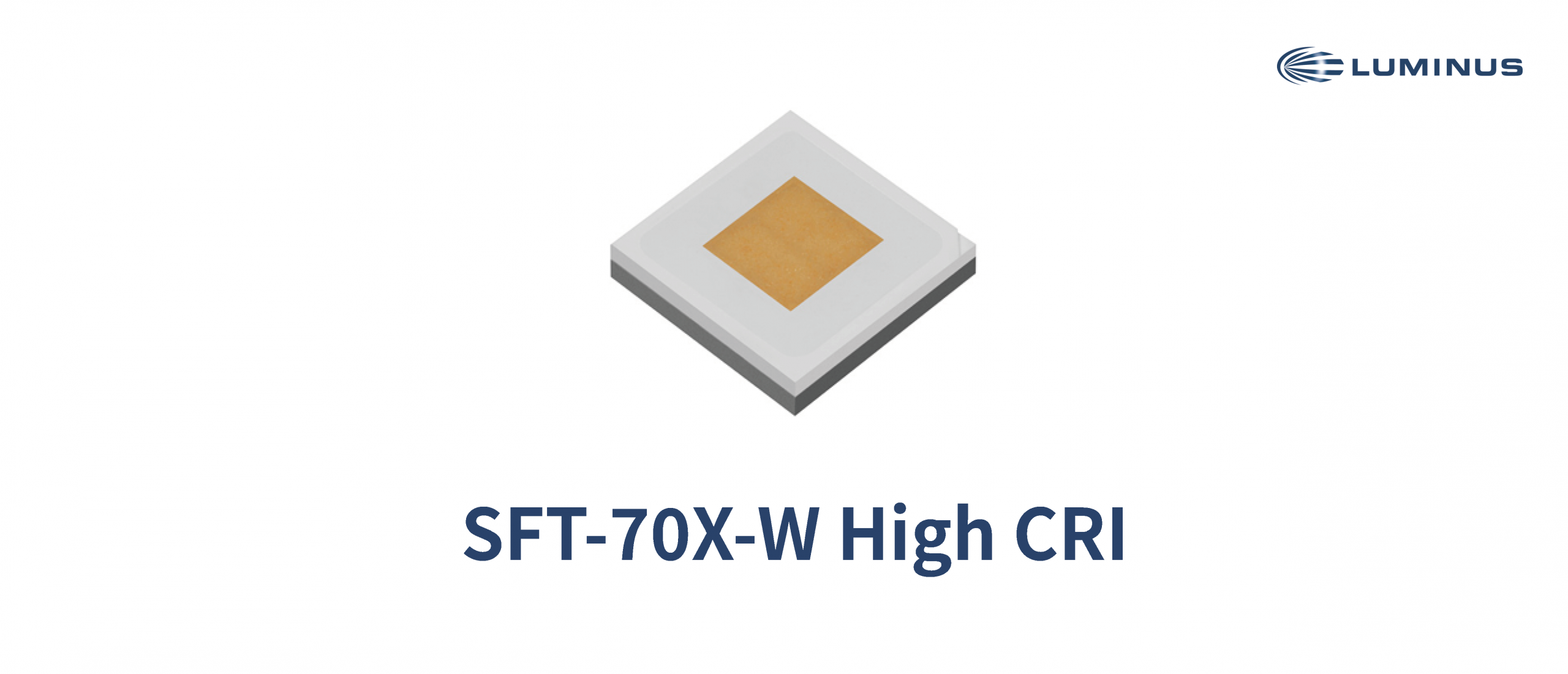

Sunnyvale, CA – Luminus, a leader in high-performance LEDs, has officially launched the SFT-70X High CRI LED. This new generation of 20W-class single-chip high-power LEDs is custom-engineered for small-aperture spotlights and accent lighting applications. It offers lighting designers and luminaire manufacturers a robust, cutting-edge solution that delivers precise, high-contrast spotlighting while fully preserving the minimalist, sleek aesthetic characteristic of high-end architectural lighting-eliminating the need to compromise between performance and visual appeal.

Previously, designers seeking the pristine, single-source light quality typical of COB-based recessed downlights were often forced to make trade-offs or accept performance compromises when selecting high-brightness directional spotlights. The arrival of the SFT-70X High CRI LED completely breaks through this industry limitation.

1. Single-Chip Source: Pristine Beam Profile and Flexible Drive Options

Conventional 12V LEDs typically utilize a four-chip package configuration, where the gaps between individual chips often result in a dark spot at the center of the beam. To eliminate this shadowing, additional light-diffusing optical structures are required, which subsequently leads to a reduction in light output efficiency. The SFT-70X High CRI LED transcends these traditional approaches by integrating a single, large 7mm² high-power chip within a standard package-a unique architectural design currently unrivaled in the market. It produces a uniform, pristine beam profile free of dark spots, thereby maximizing the advantages of the optical design and significantly boosting overall system efficacy.

Featuring an innovative integrated dual-pad design, the LED is compatible with two distinct power supply schemes-12V (Max 2A) and 6V (Max 4A)-offering flexible adaptability for customized applications across a wide range of industries.

2. Compact Footprint, High Luminous Intensity

Within an extremely compact light-emitting surface area, the SFT-70X High CRI LED achieves a luminous flux exceeding 1,900 lumens at a correlated color temperature (CCT) of 3000K. Its high luminous density enables luminaire manufacturers to design fixtures with smaller apertures while simultaneously achieving narrow beam angles and exceptional axial luminous intensity-for instance, when paired with 28mm diameter optics, it delivers outstanding performance with a 10° beam angle and a luminous intensity exceeding 14,600 cd. For designers, this means luminaires can appear almost invisible within the ceiling, yet still deliver the visual impact required for accent lighting in high-end retail, hospitality, museum, and residential settings.

3. Consistent Light Quality Across the Entire Beam

The SFT-70X High CRI LED utilizes Luminus’s phosphor-coated chip technology to ensure consistent color performance across all emission angles. Available in both CRI90 and CRI95 options, the product covers a wide color temperature range-from 2700K warm white to 5700K daylight-delivering rich and accurate colors throughout the entire light spot, from the center to the edge.

The company boasts a comprehensive LED product portfolio, encompassing low-to-mid power and high-power white and colored LED series; high-efficacy, multi-channel tunable-white and tunable-color COB series; as well as specialized packaged devices and modules such as UV, IR, Pico, and laser components. Our products are widely applied across various fields, including commercial lighting, portable lighting, human-centric lighting, outdoor lighting, horticultural lighting, stage lighting, projection displays, medical equipment, UVC disinfection, machine vision, 3D printing, and automotive lighting. For further product inquiries, please contact Gainer LED.

About Gainer LED:

Gainer LED was established in 2012. The company focuses on providing advanced technology solutions for medium and high power general lighting, special lighting and high-end display fields. Its products are widely used in commercial lighting, industrial lighting, smart buildings and professional display screens. Relying on a global marketing network and professional technical service system, Gainer LED continues to provide global customers with high-performance lighting products that meet international standards and fully meet the diverse needs of the market.
