Description

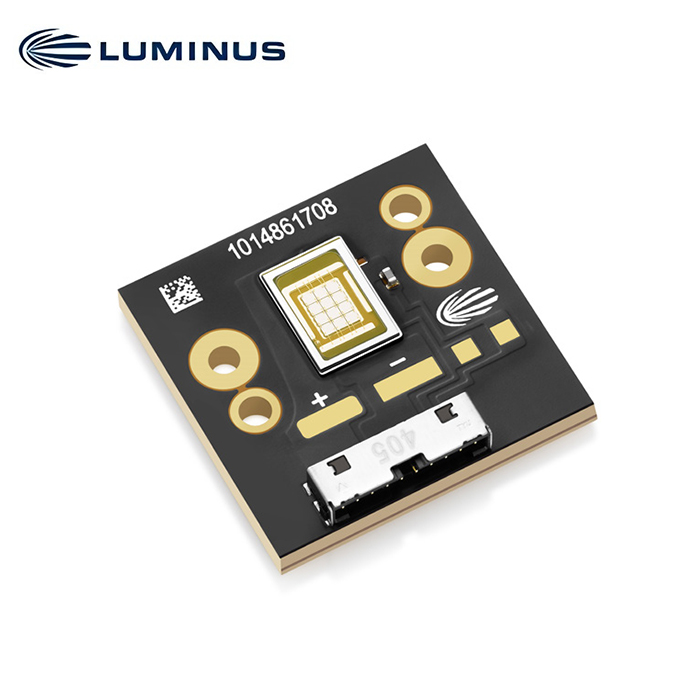

CBM-160X-UV Ultraviolet Chip On Board LED
Features
• Mosaic Array UV LED chipset with surface emitting area of 16 mm2, 4:3 aspect ratio
• Latest UVX technology enables ultra-high power density operation up to 4 A/mm2
• Electrically Isolated, high thermal conductivity copper coreboard package
• Available in wide range of UVA wavelengths: 365 nm – 410 nm
• Low-profile window for efficient coupling into small-etendue systems
• Environmentally friendly: REACH, RoHS and Halogen compliant
• Over 60 Watts of optical power at maximum rated drive conditions
Applications
• 3D printing and Additive Manufacturing
• Machine Vision
• Maskless Lithography
• Curing
• Inks
• Coatings
• Adhesives
• Medical and Scientific Instrumentation
Binning Structure
CBM-160X-UV LEDs are specified for flux and peak wavelength at a drive current of 3 Awith a 20 ms pulse at 25°C and placed into one of the following Power Bins and Wavelength Bins.
Flux Bins
| Color | Flux Bin (FF) | Binning @ 3A, 20ms pulse, Tc= 25°C3 | |
| Minimum Flux (W) | Maximum Flux (W) | ||
| UV | Q | 17.7 | 19.5 |
| R | 19.5 | 21.0 | |
| S | 21.0 | 22.5 | |
| T | 22.5 | 24.0 | |
| U | 24.0 | 25.1 | |
Peak Wavelength Bins
| Color | Wavelength Bin (WWW) | Binning @ 3A, 20ms pulse, Tc= 25°C3 | |
| Minimum Wavelength (nm) | Maximum Wavelength (nm) | ||
| UV | 365 | 365 | 370 |
| 370 | 370 | 375 | |
| 380 | 380 | 385 | |
| 385 | 385 | 390 | |
| 400 | 400 | 405 | |
| 405 | 405 | 410 | |
Ordering Information
| Product | Ordering Part Number | Description |
| CBM-160X-UV | CBM-160X-UV-Y32-FWWW-2# | CBM-160X-UV Mosaic Array chipset consisting of 12 UV chips, a thermistor, and a connector on a copper-core PCB. |
Ordering Part Numbers
| Wavelength Range | Radiometric Flux | Wavelength Bins | Ordering Part Number1,2 | |
| Min. Flux Bin | Min. Flux (W) | |||
| 365-375 | Q | 17.7 | 365, 370 | CBM-160X-UV-Y32-Q365-22 |
| 380-390 | Q | 17.7 | 380, 385 | CBM-160X-UV-Y32-Q380-22 |
| 400-410 | Q | 17.7 | 400, 405 | CBM-160X-UV-Y32-Q400-22 |
Typical Device Performance (Tc = 25°C)
| Parameter | Symbol | Value | Unit | ||
| Peak Wavelength Range | λ | 365-375 | 380-390 | 400-410 | nm |
| Test Current for binning3 | I | 3.0 | 3.0 | 3.0 | A |
| Peak Wavelength Typ. | λp | 365 | 385 | 405 | nm |
| Forward Voltage | VF min | 12.8 | 12.4 | 12.8 | V |
| VF | 14.8 | 13.8 | 14.8 | V | |
| VF max | 17.0 | 16.4 | 16.8 | V | |
| Radiometric Flux4 | Φtyp | 21.6 | 19.2 | 18.0 | W |
| FWHM at 50% of Φ | Δλ1/2 | 15 | 15 | 15 | nm |
bsolute Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Absolute Minimum Current (CW or Pulsed) | Imin | 0.6 | A |
| Absolute Maximum Current (CW)5 for 365-375 nm | Imax | 7.5 | A |
| Absolute Maximum Current (CW)5 for 385-405 nm | Imax | 12 | A |
| Absolute Maximum Surge Current5 for 365-375 nm | Is | 11.25 | A |
| Absolute Maximum Surge Current5 for 385-405 nm | Is | 18 | A |
| Maximum Junction Temperature5 | Tjmax | 125 | °C |
| Storage Temperature Range | Ts | -40 to +100 | °C |
| ESD Sensitivity (HBM) | Vb | 8 | kV |
