Description

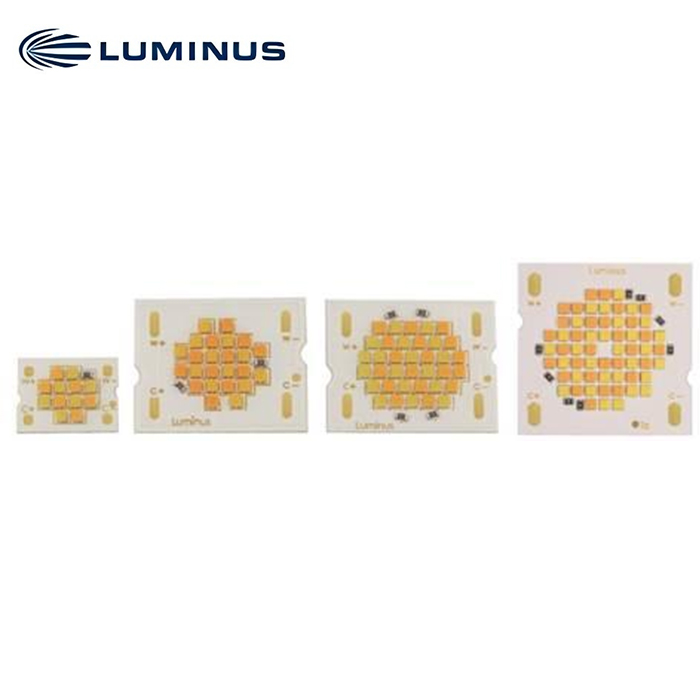

CCT Tunable LED Spot Modules
Features
- Two channel tunable human centric light source
- Enhanced melanopic ratios for circadian health
- MP-1616 XNOVA Cube 90+ CRI LEDs on metal PC board
- 5000K Salud cool channel with high melanopic ratio ~0.95
- 2100K warm channel with melanopic ratio ~0.33
- High lumen density for directional lighting
- Enables system beam angles from 10 to 40 degrees
- Robust design with 9000 hour LM-80 tested MP-1616 series LEDs
- Consistent white light <3 SDCM
- Specified “hot” performance and 100% factory tested at Tj=85°C
Applications
- Human centric lighting
- Circadian lighting in hospitals, offices, or schools
- Public, commercial buildings
- Hospitality / hotel / restaurant lighting
- Residential lighting
- Premium retail lighting
- Ceiling and wall mounted lights
- Multi-function space lighting
Products Families
- CTM-9-5022-90-36-TW01: Typical 7W per channel, 9.5mm LES
- CTM-14-5022-90-36-TW01: Typical 15W per channel, 14.5mm LES
- CTM-18-5022-90-36-TW01: Typical 20W per channel, 17.5mm LES
- CTM-22-5022-90-36-TW01: Typical 32W per channel, 22mm LES
o 5022: CCT range (“5022” = 5000K to 2200K)
o 90: minimum CRI
o “36” = 36V typical voltage
o TW01 = standard configuration
Technical Data
Electrical data @ Tj=85°C
| Part number | Nominal
forward current per channel |
Nominal input
power per channel |
Nominal
voltage per channel |
Maximum voltage
per channel |
Maximum forward current
per channel* |
Maximum input
power per channel* |
| CTM-9-5022-90-36-TW01 | 200mA | 7W | 37V | 39V | 220mA | 9W |
| CTM-14-5022-90-36-TW01 | 400mA | 15W | 37V | 39V | 440mA | 18W |
| CTM-18-5022-90-36-TW01 | 550mA | 20W | 37V | 39V | 660mA | 27W |
| CTM-22-5022-90-36-TW01 | 875mA | 32W | 37V | 39V | 1100mA | 45W |
Photometric Data @ Tj=85°C and Nominal Forward Current:
| Part number | CRI
(min) |
CCT of cool white | Minimum flux
(lumens) |
Nominal flux
(lumens) |
CCT of
warm white |
Minimum flux
(lumens) |
Nominal flux
(lumens) |
|
| CTM-9-5022-90-36-TW01 | 90 | 5000K | 600 | 675 | 2200K | 540 | 590 | |
| CTM-14-5022-90-36-TW01 | 90 | 5000K | 1200 | 1350 | 2200K | 1080 | 1180 | |
| CTM-18-5022-90-36-TW01 | 90 | 5000K | 1715 | 1930 | 2200K | 1540 | 1685 | |
| CTM-22-5022-90-36-TW01 | 90 | 5000K | 2720 | 3060 | 2200K | 2450 | 2675 |
Chromaticity Bins and Ellipse Definitions @ Tj=85°C:
| Center Point | Angle | 3-step Bin | ||||
| Channel
LED CCT |
Actual
Nominal CCT |
CIEx | CIEy | Θ(°) | a | b |
| 2200K | 2125K | 0.5132 | 0.4130 | 45.50 | 0.00976 | 0.00480 |
| 5000K | 4700K | 0.3523 | 0.3595 | 59.37 | 0.00822 | 0.00354 |
Absolute Maximum Ratings & Optical/Electrical Characteristics:
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Operating case temperature | Tc | 105 | °C | ||
| Junction temperature | Tj | 125 | °C | ||
| Viewing angle | 2(Θ1/2) | 130 | degrees | ||
| Reverse voltage | Vr | 5 | volts | ||
| Ambient operating temperature | Topr | -40 | +85 | °C | |
| Storage temperature | Tsto | -40 | +85 | °C | |
| Electrostatic Discharge | ESD | 4000V | HBM |
Mechanical Dimensions & Thermal Resistance:
| Part Number | Light Emitting
Surface (LES) Diameter |
Board Size | Typical
Thermal Resistance (Rthj-c) |
PCB Thickness |
| CTM-9-5022-90-36-TW01 | 9.5mm | 12x15mm | 1.8 K/W | 1mm |
| CTM-14-5022-90-36-TW01 | 14.5mm | 20x24mm | 0.67 K/W | 1mm |
| CTM-18-5022-90-36-TW01 | 17.5mm | 20x24mm | 0.5 K/W | 1mm |
| CTM-22-5022-90-36-TW01 | 22mm | 28x28mm | 0.4 K/W | 1mm |
