Description

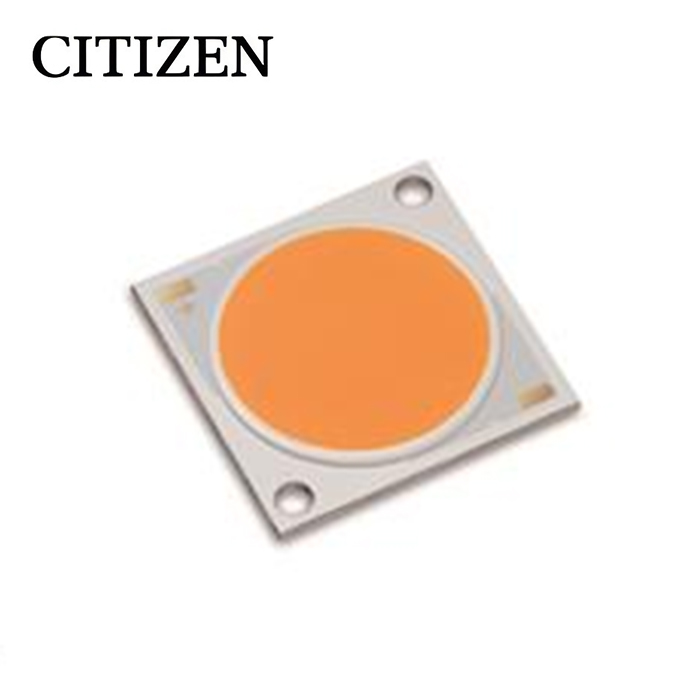

CITILED COB Horticulture series CLU04H-85/200-PW -01
Our long-term advanced knowledge on COB LED packaging technology generated high quality and reliable COB LEDs for the horticulture applications.
The high thermal dissipation technology which has been built for the general lighting applications is adopted to this Horticulture COB LED series. As much as 200W from one COB LED gives the high power lighting solution for Horticulture applications. In addition, the spectrum tuning technology provides the optimized spectrum for effective photosynthesis in plants.
The Plant White type prioritizes the human walkability under the lighting.
The Horticulture COB LED Series has longer life service than the conventional lighting which has been used for horticulture applications so far.
Features
・Mechanical Dimensions : 28.0×28.0×1.4 (mm)
・Package Structure : Aluminum Base Chip on Board
・Reference Assembly : M3 screw, Connector
・Color Type : PW(Plant White)
・Thermal Resistance : 0.26C/W
・Maximum drive current : 3240mA
・RoHS compliant
・Optimized die arrangement for optics
・Wide range of luminous flux with high efficacy
・UL recognized component (E358566)
2-1. Electro Optical Characteristics
| Product code | Color Type | Forward
Current ( mA ) |
Forward Voltage
(V) |
Luminous flux
( lm ) |
(PPF)
( μmol/sec ) |
(Active-PPF) ( μmol/sec ) | Thermal
Resistance Rj-c ( C/W ) |
|||||
| Min. | Typ. | Max. | Min. | Typ. | Min. | Typ. | Min. | Typ. | ||||
| CLU04H-85/200-PW-01 | Plant White | 1620 | 47.8 | 52.0 | 56.2 | 6,300 | 7,159 | (121.7) | (143.1) | (82.0) | (96.5) | 0.26 |
2-2. Absolute Maximum Ratings
| Parameter | Symbol | Rating |
| Input Power (W) | Pi | 201.4 |
| Forward Current (mA) | If | 3240 |
| Reverse Current (mA) | Ir | 1 |
| Operating Temperature (C) | Top | -40 ~ +100 |
| Storage Temperature (C) | Tst | -40 ~ +100 |
| Case Temperature (C) | Tc | 105 |
| Junction Temperature (C) | Tj | 140 |
