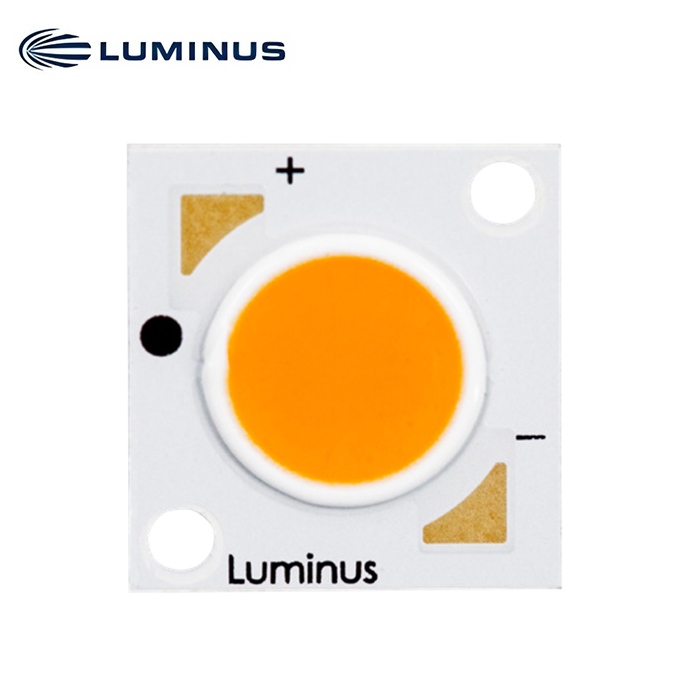

CXM-6 COB Arrays White LED

Description

CXM-6 COB Arrays White LED

Luminus Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications. The selection covers a wide lumen range from less than 400lm to over 10,000lm, all major color temperatures and can deliver color rendering greater than 97 at 2700K and 3000K and R9 equal to 95.

Features
• High lumen output and efficacy typical
• Over 520 lm, 120 LPW @ 3000K, 25ºC
• Over 570 lm, 131 LPW @ 5000K, 25ºC
• Complete CCT range 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 80 or 90 CRI min. up to 95 min. in warm white
• 3 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACh compliant

Applications
• Spotlights/Track Lights
• Downlights
• Replacement lamps
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty

Color Temperature, CRI and R9 Values

Color Temperatures	XX Value	CRI	R9
2700K, 3000K, 3500K, 4000K, 5000K, 6500K	80	>80	>0
2700K, 3000K, 3500K, 4000K, 5000K	90	>90	>50
2700K, 3000K	95	>95	>85

CXM-6, 36V Part Numbers (Typical)

The following tables describe products with typical flux and minimum flux measured at 120mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºCjunction temperature.

	Output Flux (lm)		Reference	Color Rendering Index	Ordering Part Number
CCT	Typ. (85ºC)	Min. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	3-step MacAdam Ellipse
2700K	440	420	490	80	CXM-6-27-80-36-AA00-F2-3
	340	325	380	90	CXM-6-27-90-36-AA00-F2-3
	325	310	360	95	CXM-6-27-95-36-AA00-F2-3
3000K	460	430	505	80	CXM-6-30-80-36-AA00-F2-3
	380	355	420	90	CXM-6-30-90-36-AA00-F2-3
	370	350	410	95	CXM-6-30-95-36-AA00-F2-3
3500K	485	460	540	80	CXM-6-35-80-36-AA00-F2-3
	420	400	470	90	CXM-6-35-90-36-AA00-F2-3
	410	390	450	95	CXM-6-35-95-36-AA00-F2-3
4000K	485	455	535	80	CXM-6-40-80-36-AA00-F2-3
	430	410	480	90	CXM-6-40-90-36-AA00-F2-3
	425	395	465	95	CXM-6-40-95-36-AA00-F2-3

	Output Flux (lm)		Reference	Color Rendering Index	Part Number
CCT	Typ. (85ºC)	Min.. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	5-step MacAdam Ellipse	3-step MacAdam Ellipse
5000K	515	485	570	80	CXM-6-50-80-36-AA00-F2-5	CXM-6-50-80-36-AA00-F2-3
6500K	515	485	570	80	CXM-6-65-80-36-AA00-F2-5	CXM-6-65-80-36-AA00-F2-3

CXM-6, 18V Flux Bin Part Numbers

The following tables describe products with typical flux and minimum flux measured at 240mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºCjunction temperature.

	Output Flux (lm)		Reference	Color Rendering Index	Ordering Part Number
CCT	Max. (85ºC)	Min.. (85ºC)	Max. (calculated) (25ºC)	CRI (min.)	3-step MacAdam Ellipse
2700K	440	420	490	80	CXM-6-27-80-18-AA00-F2-3
	340	325	380	90	CXM-6-27-90-18-AA00-F2-3
	325	310	360	95	CXM-6-27-95-18-AA00-F2-3
3000K	460	430	505	80	CXM-6-30-80-18-AA00-F2-3
	380	355	420	90	CXM-6-30-90-18-AA00-F2-3
	370	350	410	95	CXM-6-30-95-18-AA00-F2-3
3500K	485	460	540	80	CXM-6-35-80-18-AA00-F2-3
3500K	420	400	470	90	CXM-6-35-90-18-AA00-F2-3
4000K	495	470	550	80	CXM-6-40-80-18-AA00-F2-3
4000K	430	410	480	90	CXM-6-40-90-18-AA00-F2-3

	Output Flux (lm)		Reference	Color Rendering Index	Part Number
CCT	Max. (85ºC)	Min.. (85ºC)	Max. (calculated) (25ºC)	CRI (min.)	5-step MacAdam Ellipse
5000K	515	485	570	80	CXM-6-50-80-18-AA00-F2-5
6500K	515	485	570	80	CXM-6-65-80-18-AA00-F2-5

CXM-6, 9V Flux Bin Part Numbers

The following tables describe products with typical flux and minimum flux measured at 480mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºCjunction temperature.

	Output Flux (lm)		Reference	Color Rendering Index	Ordering Part Number
CCT	Max. (85ºC)	Min.. (85ºC)	Max. (calculated) (25ºC)	CRI (min.)	3-step MacAdam Ellipse
2700K	440	420	490	80	CXM-6-27-80-9-AA00-F2-3
	340	325	380	90	CXM-6-27-90-9-AA00-F2-3
	325	310	360	95	CXM-6-27-95-9-AA00-F2-3
3000K	460	430	505	80	CXM-6-30-80-9-AA00-F2-3
	380	355	420	90	CXM-6-30-90-9-AA00-F2-3
	370	350	410	95	CXM-6-30-95-9-AA00-F2-3
3500K	485	460	540	80	CXM-6-35-80-9-AA00-F2-3
3500K	420	400	470	90	CXM-6-35-90-9-AA00-F2-3
4000K	495	470	550	80	CXM-6-40-80-9-AA00-F2-3
4000K	430	410	480	90	CXM-6-40-90-9-AA00-F2-3

	Output Flux (lm)		Reference	Color Rendering Index	Part Number
CCT	Max. (85ºC)	Min.. (85ºC)	Max. (calculated) (25ºC)	CRI (min.)	5-step MacAdam Ellipse
5000K	515	485	570	80	CXM-6-50-80-9-AA00-F2-5
6500K	515	485	570	80	CXM-6-65-80-9-AA00-F2-5

CXM-6 Operating Characteristics1

Electrical Characteristics

Parameter – 36V	Symbol	Minimum	Typical	Maximum	Unit
Forward Current2	If		120	240	mA
Forward Voltage3	Vf	33.5	35	37.5	V

Parameter – 18V	Symbol	Minimum	Typical	Maximum	Unit
Forward Current2	If		240	480	mA
Forward Voltage3	Vf	16.5	17.5	19	V

Parameter – 9V	Symbol	Minimum	Typical	Maximum	Unit
Forward Current2	If		480	960	mA
Forward Voltage3	Vf	8.4	8.8	9.4	V

Optical and Electrical Characteristics

Parameter	Symbol	Minimum	Typical	Maximum	Unit
Power			4.3	9	W
Operating Case Temperature4	T c			105	ºC
Light Emitting Surface Diameter	LES		6.3		mm
Thermal Resistance (junction-to-case)	Θjc		2.33		ºC/W
Junction Temperature	Tj			140	ºC
Viewing Angle			120		Degree
