CXM-7 COB Arrays White LED

Description

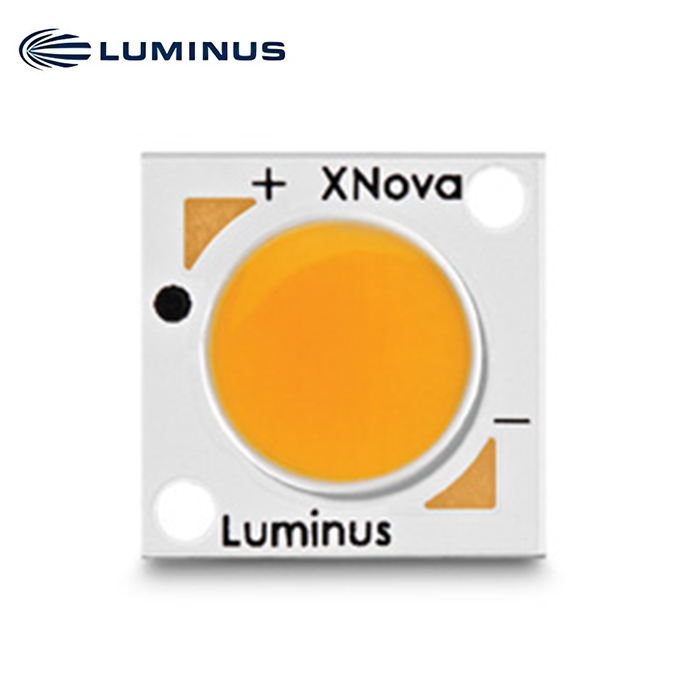

CXM-7 COB Arrays White LED

Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications. The selection covers a wide lumen range from less than 400lm to over 10,000lm, all major color temperatures and can deliver color rendering greater than 97 at 2700K and 3000K and R9 equal to 95. These breakthroughs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality.

Features
• High lumen output and efficacy typical
• Over 720 lm, 125 LPW @ 3000K, 25ºC
• Over 780 lm, 137 LPW @ 5000K, 25ºC
• Complete CCT range 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 80 or 90 CRI min. up to 95 min. in warm white
• 3 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACh compliant

Applications
• Spotlights/Track Lights
• Downlights
• Replacment lamps
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Parking Lot and Area Lighting

Color Temperature, CRI and R9 Values

Color Temperatures	XX Value	CRI	R9
4000K, 5000K, 6500K	70	>70	–
2700K, 3000K, 3500K, 4000K, 5000K, 6500K	80	>80	>0
2700K, 3000K, 3500K, 4000K, 5000K	90	>90	>50
2700K, 3000K	95	>95	>85

CXM-7, 36V Part Numbers (Typical)

The following tables describe products with typical flux and minimum flux measured at 160mA and specified at T = 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºCjunction temperature.

	Output Flux (lm)		Reference	Color Rendering Index	Ordering Part Number
CCT	Typ. (85ºC)	Min. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	3-step MacAdam Ellipse
2700K	620	590	680	80	CXM-7-27-80-36-AA00-F2-3
	480	455	530	90	CXM-7-27-90-36-AA00-F2-3
	450	425	500	95	CXM-7-27-95-36-AA00-F2-3
3000K	650	615	720	80	CXM-7-30-80-36-AA00-F2-3
	550	520	610	90	CXM-7-30-90-36-AA00-F2-3
	520	495	570	95	CXM-7-30-95-36-AA00-F2-3
3500K	680	645	750	80	CXM-7-35-80-36-AA00-F2-3
3500K	580	550	640	90	CXM-7-35-90-36-AA00-F2-3
4000K	700	665	770	80	CXM-7-40-80-36-AA00-F2-3
4000K	600	570	660	90	CXM-7-40-90-36-AA00-F2-3

	Output Flux (lm)		Reference	Color Rendering Index	Part Number
CCT	Typ. (85ºC)	Min. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	5-step MacAdam Ellipse	3-step MacAdam Ellipse
5000K	710	675	780	80	CXM-7-50-80-36-AA00-F2-5	CXM-7-50-80-36-AA00-F2-3
	605	575	665	90	CXM-7-50-90-36-AA00-F2-5	CXM-7-50-90-36-AA00-F2-3
6500K	710	675	780	80	CXM-7-65-80-36-AA00-F2-5	CXM-7-65-80-36-AA00-F2-3

CXM-7, 18V Part Numbers (Typical)

The following tables describe products with typical flux and minimum flux measured at 320mA and specified at T = 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºCjunction temperature.

	Output Flux (lm)		Reference	Color Rendering Index	Ordering Part Number
CCT	Typ. (85ºC)	Min. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	3-step MacAdam Ellipse
2700K	620	590	680	80	CXM-7-27-80-18-AA00-F2-3
	480	455	530	90	CXM-7-27-90-18-AA00-F2-3
	450	425	500	95	CXM-7-27-95-18-AA00-F2-3
3000K	650	615	720	80	CXM-7-30-80-18-AA00-F2-3
	550	520	610	90	CXM-7-30-90-18-AA00-F2-3
	520	495	570	95	CXM-7-30-95-18-AA00-F2-3
3500K	680	645	750	80	CXM-7-35-80-18-AA00-F2-3
3500K	580	550	640	90	CXM-7-35-90-18-AA00-F2-3
4000K	700	665	770	80	CXM-7-40-80-18-AA00-F2-3
4000K	600	570	660	90	CXM-7-40-90-18-AA00-F2-3

	Output Flux (lm)		Reference	Color Rendering Index	Part Number
CCT	Typ. (85ºC)	Min. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	5-step MacAdam Ellipse	3-step MacAdam Ellipse
5000K	710	675	780	80	CXM-7-50-80-18-AA00-F2-5	CXM-7-50-80-18-AA00-F2-3
	605	575	665	90	CXM-7-50-90-18-AA00-F2-5	CXM-7-50-90-18-AA00-F2-3
6500K	710	675	780	80	CXM-7-65-80-18-AA00-F2-5	CXM-7-65-80-18-AA00-F2-3

CXM-7, 9V Part Numbers (Typical)

The following tables describe products with typical flux and minimum flux measured at 640mA and specified at T = 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºCjunction temperature.

	Output Flux (lm)		Reference	Color Rendering Index	Ordering Part Number
CCT	Typ. (85ºC)	Min. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	3-step MacAdam Ellipse
2700K	620	590	680	80	CXM-7-27-80-9-AA00-F2-3
	480	455	530	90	CXM-7-27-90-9-AA00-F2-3
	450	425	500	95	CXM-7-27-95-9-AA00-F2-3
3000K	650	615	720	80	CXM-7-30-80-9-AA00-F2-3
	550	520	610	90	CXM-7-30-90-9-AA00-F2-3
	520	495	570	95	CXM-7-30-95-9-AA00-F2-3
3500K	680	645	750	80	CXM-7-35-80-9-AA00-F2-3
3500K	580	550	640	90	CXM-7-35-90-9-AA00-F2-3
4000K	700	665	770	80	CXM-7-40-80-9-AA00-F2-3
4000K	600	570	660	90	CXM-7-40-90-9-AA00-F2-3

	Output Flux (lm)		Reference	Color Rendering Index	Part Number
CCT	Typ. (85ºC)	Min. (85ºC)	Typ. (calculated) (25ºC)	CRI (min.)	5-step MacAdam Ellipse	3-step MacAdam Ellipse
5000K	710	675	780	80	CXM-7-50-80-9-AA00-F2-5	CXM-7-50-80-9-AA00-F2-3
6500K	710	675	780	80	CXM-7-65-80-9-AA00-F2-5	CXM-7-65-80-9-AA00-F2-3

CXM-7 Operating Characteristics1

Electrical Characteristics

36V Parameter	Symbol	Minimum	Typical	Maximum	Unit
Forward Current2	If		160	320	mA
Forward Voltage3	Vf	33.5	35	37.5	V

18V Parameter	Symbol	Minimum	Typical	Maximum	Unit
Forward Current2	If		320	640	mA
Forward Voltage3	Vf	16.7	17.5	18.8	V

9V Parameter	Symbol	Minimum	Typical	Maximum	Unit
Forward Current2	If		640	1280	mA
Forward Voltage3	Vf	8.3	8.8	9.4	V

Optical and Electrical Characteristics

Parameter	Symbol	Minimum	Typical	Maximum	Unit
Power			5.8	12	W
Operating Case Temperature4	T c			105	ºC
Light Emitting Surface Diameter	LES		7.5		mm
Thermal Resistance (junction-to-case)	Θjc		1.9		ºC/W
Junction Temperature	Tj			140	ºC
Viewing Angle			120		Degree
