E Series E8 CA LED Array

Description

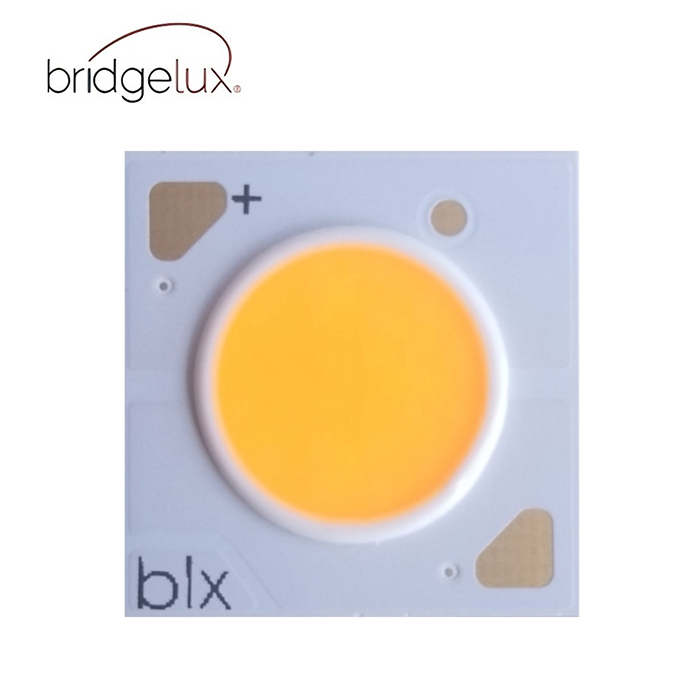

Bridgelux® E Series E8 CA LED Array

The Bridgelux E Series LED array products deliver high quality light in a compact and cost-effective solid-state lighting package. These chip-on-board (COB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility not previously possible. The E Series E8 CA is designed to support a wide range of luminaires and replacement lamps for both indoor and outdoor general lighting applications with highly competitive cost and good performance.

E Series E8 CA is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility and energy efficiencies.

Typical applications include replacement lamps, task, accent, spot, track, wide area, security, wall pack and down lights.

Features
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 2, 3 and 4 SDCM options
• Higher energy efficiency than incandescent, halogen and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant

Benefits
• Easy for secondary optics design
• Clean white light without pixilation
• Significantly reduced thermal resistance
• Easy for LED driver selection
• Easy to use with daylight and motion detectors to enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly

Product Family	Product	Doc Number	Typ. Flux (lm)	If (mA)	Vf (V)	Efficacy (lm/W)	Substrate Size (mm)	CRI	CCT (K)
BXKC E	E8B	DS336	1077	200	35.5	152	8.9	80, 90, 95	2700-6500
BXKC E	E8D	DS336	1077	400	17.8	152	8.9	80, 90, 95	2700-6500
BXKC E	E8C	DS336	1794	350	36	142	8.9	80, 90, 95	2700-6500

Table 1: Selection Guide, Measurement Data (Tc=25°C)

Part Number	Nominal CCT1 (K)	Typical CRI	Nominal Drive Current (mA)	Typical Pulsed Flux2,3,4 Tc = 25ºC (lm)	Minimum Pulsed Flux2,4,5 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXKC-27E1501-B-13	2700	82	200	1020	887	35.5	7.1	144
BXKC-27G1501-B-13	2700	92	200	840	731	35.5	7.1	118
BXKC-27H1501-B-13	2700	96	200	817	711	35.5	7.1	115
BXKC-30E1501-B-13	3000	82	200	1077	937	35.5	7.1	152
BXKC-30G1501-B-13	3000	92	200	881	766	35.5	7.1	124
BXKC-30H1501-B-13	3000	96	200	830	722	35.5	7.1	117
BXKC-35E1501-B-13	3500	82	200	1099	956	35.5	7.1	155
BXKC-35G1501-B-13	3500	92	200	904	786	35.5	7.1	127
BXKC-35H1501-B-13	3500	96	200	875	761	35.5	7.1	123
BXKC-40E1501-B-13	4000	82	200	1109	965	35.5	7.1	156
BXKC-40G1501-B-13	4000	92	200	935	813	35.5	7.1	132
BXKC-40H1501-B-13	4000	96	200	905	787	35.5	7.1	127
BXKC-50E1501-B-14	5000	81.5	200	1143	994	35.5	7.1	161
BXKC-50G1501-B-14	5000	91	200	958	833	35.5	7.1	135
BXKC-56E1501-B-14	5600	81.5	200	1143	994	35.5	7.1	161
BXKC-65E1501-B-14	6500	81.5	200	1143	994	35.5	7.1	161
BXKC-27E1501-D-13	2700	82	400	1020	887	17.8	7.1	144
BXKC-27G1501-D-13	2700	92	400	840	731	17.8	7.1	118
BXKC-27H1501-D-13	2700	96	400	817	711	17.8	7.1	115
BXKC-30E1501-D-13	3000	82	400	1077	937	17.8	7.1	152
BXKC-30G1501-D-13	3000	92	400	881	766	17.8	7.1	124
BXKC-30H1501-D-13	3000	96	400	830	722	17.8	7.1	117
BXKC-35E1501-D-13	3500	82	400	1099	956	17.8	7.1	155
BXKC-35G1501-D-13	3500	92	400	904	786	17.8	7.1	127
BXKC-35H1501-D-13	3500	96	400	875	761	17.8	7.1	123
BXKC-40E1501-D-13	4000	82	400	1109	965	17.8	7.1	156
BXKC-40G1501-D-13	4000	92	400	935	813	17.8	7.1	132
BXKC-40H1501-D-13	4000	96	400	905	787	17.8	7.1	127
BXKC-50E1501-D-14	5000	81.5	400	1143	994	17.8	7.1	161
BXKC-50G1501-D-14	5000	91	400	958	833	17.8	7.1	135
BXKC-56E1501-D-14	5600	81.5	400	1143	994	17.8	7.1	161
BXKC-65E1501-D-14	6500	81.5	400	1143	994	17.8	7.1	161
BXKC-27E2000-C-13	2700	82	350	1704	1483	36	12.6	135
BXKC-27G2000-C-13	2700	92	350	1449	1260	36	12.6	115
BXKC-27H2000-C-13	2700	96	350	1358	1181	36	12.6	108
BXKC-30E2000-C-13	3000	82	350	1794	1561	36	12.6	142

Part Number	Nominal CCT1 (K)	Typical CRI	Nominal Drive Current (mA)	Typical Pulsed Flux2,3,4 Tc = 25ºC (lm)	Minimum Pulsed Flux2,4,5 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXKC-30G2000-C-13	3000	92	350	1525	1327	36	12.6	121
BXKC-30H2000-C-13	3000	96	350	1380	1201	36	12.6	110
BXKC-35E2000-C-13	3500	82	350	1857	1616	36	12.6	147
BXKC-35G2000-C-13	3500	92	350	1578	1373	36	12.6	125
BXKC-35H2000-C-13	3500	96	350	1455	1266	36	12.6	115
BXKC-40E2000-C-13	4000	82	350	1916	1667	36	12.6	152
BXKC-40G2000-C-13	4000	92	350	1629	1417	36	12.6	129
BXKC-40H2000-C-13	4000	96	350	1505	1309	36	12.6	119
BXKC-50E2000-C-14	5000	81.5	350	1929	1678	36	12.6	153
BXKC-50G2000-C-14	5000	91	350	1639	1426	36	12.6	130
BXKC-56E2000-C-14	5600	81.5	350	1929	1678	36	12.6	153
BXKC-65E2000-C-14	6500	81.5	350	1929	1678	36	12.6	153

Table 2: Selection Guide, Measurement Data (Tc=85°C)

Part Number	Nominal CCT1 (K)	Minumum CRI	Typical CRI	Nominal Drive Current (mA)	Typical DC Flux2,3 Tc = 85ºC (lm)	Minimum DC Flux4 Tc = 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXKC-27E1501-B-13	2700	80	82	200	919	799	34.9	7	132
BXKC-27G1501-B-13	2700	90	92	200	757	658	34.9	7	109
BXKC-27H1501-B-13	2700	95	96	200	736	640	34.9	7	106
BXKC-30E1501-B-13	3000	80	82	200	970	844	34.9	7	139
BXKC-30G1501-B-13	3000	90	92	200	794	690	34.9	7	114
BXKC-30H1501-B-13	3000	95	96	200	748	650	34.9	7	107
BXKC-35E1501-B-13	3500	80	82	200	990	861	34.9	7	142
BXKC-35G1501-B-13	3500	90	92	200	814	708	34.9	7	117
BXKC-35H1501-B-13	3500	95	96	200	788	686	34.9	7	113
BXKC-40E1501-B-13	4000	80	82	200	999	869	34.9	7	143
BXKC-40G1501-B-13	4000	90	92	200	842	733	34.9	7	121
BXKC-40H1501-B-13	4000	95	96	200	815	709	34.9	7	117
BXKC-50E1501-B-14	5000	80	81.5	200	1030	896	34.9	7	148
BXKC-50G1501-B-14	5000	90	91	200	863	751	34.9	7	124
BXKC-56E1501-B-14	5600	80	81.5	200	1030	896	34.9	7	148
BXKC-65E1501-B-14	6500	80	81.5	200	1030	896	34.9	7	148
BXKC-27E1501-D-13	2700	80	82	400	919	799	17.4	7	132
BXKC-27G1501-D-13	2700	90	92	400	757	658	17.4	7	109
BXKC-27H1501-D-13	2700	95	96	400	735	640	17.4	7	105
BXKC-30E1501-D-13	3000	80	82	400	970	844	17.4	7	139
BXKC-30G1501-D-13	3000	90	92	400	794	690	17.4	7	114
BXKC-30H1501-D-13	3000	95	96	400	747	650	17.4	7	107
BXKC-35E1501-D-13	3500	80	82	400	990	861	17.4	7	142
BXKC-35G1501-D-13	3500	90	92	400	814	708	17.4	7	117
BXKC-35H1501-D-13	3500	95	96	400	788	685	17.4	7	113
BXKC-40E1501-D-13	4000	80	82	400	999	869	17.4	7	143
BXKC-40G1501-D-13	4000	90	92	400	842	733	17.4	7	121
BXKC-40H1501-D-13	4000	95	96	400	815	709	17.4	7	116
BXKC-50E1501-D-14	5000	80	81.5	400	1030	896	17.4	7	148
BXKC-50G1501-D-14	5000	90	91	400	863	751	17.4	7	124
BXKC-56E1501-D-14	5600	80	81.5	400	1030	896	17.4	7	148
BXKC-65E1501-D-14	6500	80	81.5	400	1030	896	17.4	7	148
BXKC-27E2000-C-13	2700	80	82	350	1534	1335	35.5	12.4	123
BXKC-27G2000-C-13	2700	90	92	350	1304	1134	35.5	12.4	105
BXKC-27H2000-C-13	2700	95	96	350	1222	1063	35.5	12.4	99
BXKC-30E2000-C-13	3000	80	82	350	1615	1405	35.5	12.4	130

Part Number	Nominal CCT1 (K)	Minumum CRI	Typical CRI	Nominal Drive Current (mA)	Typical DC Flux2,3 Tc = 85ºC (lm)	Minimum DC Flux4 Tc = 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXKC-30G2000-C-13	3000	90	92	350	1373	1194	35.5	12.4	110
BXKC-30H2000-C-13	3000	95	96	350	1242	1081	35.5	12.4	100
BXKC-35E2000-C-13	3500	80	82	350	1671	1454	35.5	12.4	135
BXKC-35G2000-C-13	3500	90	92	350	1421	1236	35.5	12.4	114
BXKC-35H2000-C-13	3500	95	96	350	1310	1139	35.5	12.4	106
BXKC-40E2000-C-13	4000	80	82	350	1725	1500	35.5	12.4	139
BXKC-40G2000-C-13	4000	90	92	350	1466	1275	35.5	12.4	118
BXKC-40H2000-C-13	4000	95	96	350	1355	1178	35.5	12.4	109
BXKC-50E2000-C-14	5000	80	81.5	350	1736	1510	35.5	12.4	140
BXKC-50G2000-C-14	5000	90	91	350	1475	1284	35.5	12.4	119
BXKC-56E2000-C-14	5600	80	81.5	350	1736	1510	35.5	12.4	140
BXKC-65E2000-C-14	6500	80	81.5	350	1736	1510	35.5	12.4	140

Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXKC-27E1501-B-13	2700	80	380	37.9	1554	14.4	108	F	1116581
BXKC-27E1501-D-13	2700	80	750	19.0	1539	14.2	108	F	1116587
BXKC-27E2000-C-13	2700	80	510	37.9	2153	19.3	111	F	1116593
BXKC-27G1501-B-13	2700	90	260	35.9	948	9.3	102	F	1116637
BXKC-27G1501-D-13	2700	90	520	18.0	948	9.4	101	F	1116643
BXKC-27G2000-C-13	2700	90	350	35.3	1304	12.3	106	F	1116649
BXKC-27H1501-B-13	2700	95	250	35.7	892	8.9	100	F	1116675
BXKC-30E1501-B-13	3000	80	420	38.6	1769	16.2	109	F	1116709
BXKC-30E1501-D-13	3000	80	830	19.3	1753	16.0	109	F	1116715
BXKC-30E2000-C-13	3000	80	570	39.1	2498	22.3	112	F	1116721
BXKC-30G1501-B-13	3000	90	280	36.2	1056	10.1	104	F	1116765
BXKC-30G1501-D-13	3000	90	570	18.2	1071	10.4	103	F	1116771
BXKC-30G2000-C-13	3000	90	390	35.9	1515	14.0	108	F	1116777
BXKC-30H1501-B-13	3000	95	250	35.7	906	8.9	102	F	1116803
BXKC-35E1501-B-13	3500	80	430	38.8	1837	16.7	110	F	1116837
BXKC-35E1501-D-13	3500	80	860	19.4	1837	16.7	110	F	1116843
BXKC-35E2000-C-13	3500	80	610	39.9	2742	24.3	113	F	1116849
BXKC-35G1501-B-13	3500	90	300	36.6	1146	11.0	104	F	1116893

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXKC-35G1501-D-13	3500	90	600	18.3	1146	11.0	104	F	1116899
BXKC-35G2000-C-13	3500	90	430	36.5	1713	15.7	109	F	1116905
BXKC-35H1501-B-13	3500	95	280	36.2	1049	10.1	103	F	1116931
BXKC-40E1501-B-13	4000	80	440	39.0	1885	17.1	110	F	1116965
BXKC-40E1501-D-13	4000	80	880	19.5	1885	17.2	110	F	1116971
BXKC-40E2000-C-13	4000	80	640	40.6	2947	26.0	113	F	1116977
BXKC-40G1501-B-13	4000	90	320	36.9	1247	11.8	106	F	1117021
BXKC-40G1501-D-13	4000	90	640	18.5	1247	11.8	105	F	1117027
BXKC-40G2000-C-13	4000	90	460	37.0	1878	17.0	110	F	1117033
BXKC-40H1501-B-13	4000	95	300	36.6	1147	11.0	105	F	1117059
BXKC-50E1501-B-14	5000	80	460	39.3	2006	18.1	111	F	1117075
BXKC-50E1501-D-14	5000	80	920	19.7	2006	18.1	111	F	1117077
BXKC-50G1501-B-14	5000	90	340	37.3	1340	12.7	106	F	1117096
BXKC-50G1501-D-14	5000	90	670	18.6	1325	12.5	106	F	1117098
BXKC-56E1501-B-14	5600	80	460	39.3	2006	18.1	111	F	1118884
BXKC-56E1501-D-14	5600	80	920	19.7	2006	18.1	111	F	1118886
BXKC-65E1501-B-14	6500	80	460	39.3	2006	18.1	111	F	1117118
BXKC-65E1501-D-14	6500	80	920	19.7	2006	18.1	111	F	1117120
BXKC-50E2000-C-14	5000	80	650	40.8	3007	26.5	113	F	1117079
BXKC-50G2000-C-14	5000	90	470	37.2	1926	17.5	110	F	1117100
BXKC-56E2000-C-14	5600	80	650	40.8	3007	26.5	113	F	1118888
BXKC-65E2000-C-14	6500	80	650	40.8	3007	26.5	113	F	1117122
