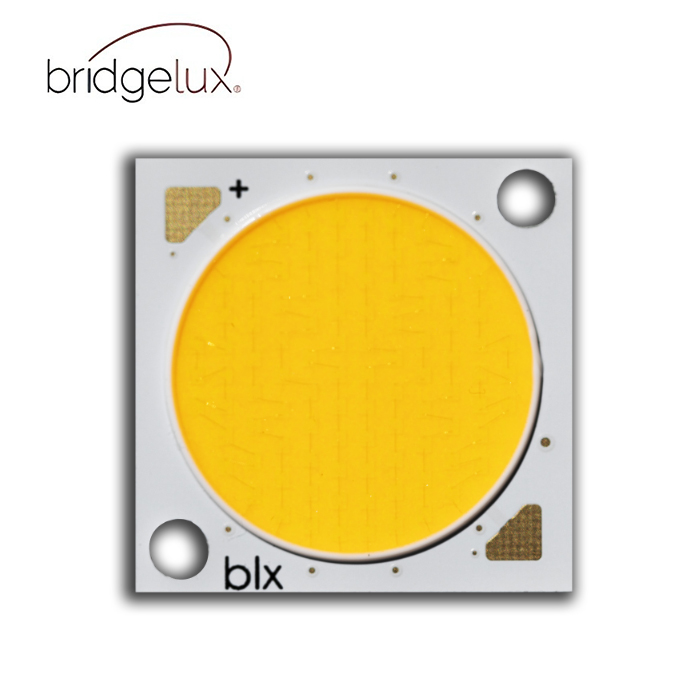

Bridgelux-V Series™ Gen 8 V18 Array

Categories: ,

Description

Bridgelux® Gen 8 V18 Array Series

The V Series™ LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package. These chip on board (CoB) arrays can be efficiently driven up to three times the nominal drive current, enabling design flexibility not previously possible. These high flux density light sources are designed to support a wide range of high quality, low cost directional luminaires and replacement lamps for both interior and exterior commercial and residential applications.

The V18 LED Array is available in a variety of electrical, CCT, and CRI combinations providing substantial design flexibility and energy efficiency advantages. Lighting system designs incorporating these LED arrays deliver increased system level efficacy and a longer service life. Typical applications include replacement lamps and task, accent, spot, track, wide area, security, wall packs and down lights.

Features
• Efficacy of 180 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• 5-Year warranty

Benefits
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applications
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Easy to use with daylight and motion sensors to increase energy savings
• Design with confidence



Product Family Product Part Number Doc Number Gen LES (mm) CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRE V V18B BXRE-xxx4000-B-8x DS415 8 18 2200-6500 70, 80, 90 1, 2, 3, 4 4280 700 33.9 180 24.0×24.0



Product Family Product Part Number Doc Number Gen LES (mm) CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRE V V18C BXRE-xxx4000-C-8x DS415 8 18 2200-6500 70, 80, 90 1, 2, 3, 4 6400 1050 33.9 180 24.0×24.0



product-870-633



Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number Nominal

CCT1

(K)

 CRI2 Nominal

Drive

Current3

(mA)

 Typical

Pulsed

Flux4,5,6

 Minimum

Pulsed Flux6,7

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 25ºC

(lm)
T c = 25ºC

(lm)
BXRE-22E4000-B-8X 2200 80 700 3383 3045 33.9 23.7 143
BXRE-22E4000-C-8X 2200 80 1050 5059 4553 33.9 35.6 142
BXRE-22G4000-B-8X 2200 90 700 2746 2472 33.9 23.7 116
BXRE-22G4000-C-8X 2200 90 1050 4106 3696 33.9 35.6 115
BXRE-27E4000-B-8x 2700 80 700 4028 3625 33.9 23.7 170
BXRE-27E4000-C-8x 2700 80 1050 6024 5421 33.9 35.6 169
BXRE-27G4000-B-8x 2700 90 700 3323 2991 33.9 23.7 140
BXRE-27G4000-C-8x 2700 90 1050 4969 4472 33.9 35.6 140
BXRE-27G40H0-B-8x 2700 90 700 3467 3120 33.9 23.7 146
BXRE-27G40H0-C-8x 2700 90 1050 5184 4666 33.9 35.6 146
BXRE-27H4000-B-8x 2700 97 700 2946 2651 33.9 23.7 124
BXRE-27H4000-C-8x 2700 97 1050 4405 3964 33.9 35.6 124
BXRE-30C4001-B-8x 3000 70 700 4481 4033 33.9 23.7 189
BXRE-30C4001-C-8x 3000 70 1050 6701 6031 33.9 35.6 188
BXRE-30E4000-B-8x 3000 80 700 4280 3852 33.9 23.7 180
BXRE-30E4000-C-8x 3000 80 1050 6400 5760 33.9 35.6 180
BXRE-30G4000-B-8x 3000 90 700 3474 3127 33.9 23.7 146
BXRE-30G4000-C-8x 3000 90 1050 5195 4676 33.9 35.6 146
BXRE-30G40H0-B-8x 3000 90 700 3638 3274 33.9 23.7 153
BXRE-30G40H0-C-8x 3000 90 1050 5440 4896 33.9 35.6 153
BXRE-30H4000-B-8x 3000 97 700 3147 2832 33.9 23.7 133
BXRE-30H4000-C-8x 3000 97 1050 4706 4235 33.9 35.6 132
BXRE-35E4000-B-8x 3500 80 700 4381 3943 33.9 23.7 185
BXRE-35E4000-C-8x 3500 80 1050 6551 5896 33.9 35.6 184
BXRE-35G4000-B-8x 3500 90 700 3600 3240 33.9 23.7 152
BXRE-35G4000-C-8x 3500 90 1050 5384 4845 33.9 35.6 151
BXRE-40C4001-B-8x 4000 70 700 4607 4147 33.9 23.7 194
BXRE-40C4001-C-8x 4000 70 1050 6889 6200 33.9 35.6 194
BXRE-40E4000-B-8x 4000 80 700 4406 3965 33.9 23.7 186
BXRE-40E4000-C-8x 4000 80 1050 6588 5929 33.9 35.6 185
BXRE-40G4000-B-8x 4000 90 700 3676 3308 33.9 23.7 155
BXRE-40G4000-C-8x 4000 90 1050 5496 4947 33.9 35.6 154



Part Number Nominal

CCT1

(K)

 CRI2 Nominal

Drive

Current3

(mA)

 Typical

Pulsed Flux4,5,6

 Minimum

Pulsed Flux6,7

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 25ºC

(lm)

 T c = 25ºC

(lm)
BXRE-50C4001-B-8x 5000 70 700 4632 4169 33.9 23.7 195
BXRE-50C4001-C-8x 5000 70 1050 6927 6234 33.9 35.6 195
BXRE-50E4001-B-8x 5000 80 700 4456 4011 33.9 23.7 188
BXRE-50E4001-C-8x 5000 80 1050 6664 5997 33.9 35.6 187
BXRE-50G4001-B-8x 5000 90 700 3852 3467 33.9 23.7 162
BXRE-50G4001-C-8x 5000 90 1050 5472 4925 33.9 35.6 162
BXRE-57C4001-B-8x 5700 70 700 4507 4056 33.9 23.7 190
BXRE-57C4001-C-8x 5700 70 1050 6739 6065 33.9 35.6 189
BXRE-57E4001-B-8x 5700 80 700 4280 3852 33.9 23.7 180
BXRE-57E4001-C-8x 5700 80 1050 6400 5760 33.9 35.6 180
BXRE-65C4001-B-8x 6500 70 700 4507 4056 33.9 23.7 190
BXRE-65C4001-C-8x 6500 70 1050 6739 6065 33.9 35.6 189
BXRE-65E4001-B-8x 6500 80 700 4330 3897 33.9 23.7 182
BXRE-65E4001-C-8x 6500 80 1050 6475 5828 33.9 35.6 182



Part Number Nominal

CCT1 (K)

 CRI2 Nominal

Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typ(iV(c)a)l Vf Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85ºC

(lm)

 T c = 85ºC

(lm)
BXRE-22E4000-B-8X 2200 80 700 3045 2741 33.1 23.2 131
BXRE-22E4000-C-8X 2200 80 1050 4553 4098 33.1 34.8 131
BXRE-22G4000-B-8X 2200 90 700 2472 2224 33.1 23.2 107
BXRE-22G4000-C-8X 2200 90 1050 3696 3326 33.1 34.8 106
BXRE-27E4000-B-8x 2700 80 700 3625 3263 33.1 23.2 156
BXRE-27E4000-C-8x 2700 80 1050 5421 4879 33.1 34.8 156
BXRE-27G4000-B-8x 2700 90 700 2991 2692 33.1 23.2 129
BXRE-27G4000-C-8x 2700 90 1050 4472 4025 33.1 34.8 129
BXRE-27G40H0-B-8x 2700 90 700 3120 2808 33.1 23.2 135
BXRE-27G40H0-C-8x 2700 90 1050 4666 4199 33.1 34.8 134
BXRE-27H4000-B-8x 2700 97 700 2651 2386 33.1 23.2 114
BXRE-27H4000-C-8x 2700 97 1050 3964 3568 33.1 34.8 114
BXRE-30C4001-B-8x 3000 70 700 4033 3630 33.1 23.2 174
BXRE-30C4001-C-8x 3000 70 1050 6031 5428 33.1 34.8 173
BXRE-30E4000-B-8x 3000 80 700 3852 3467 33.1 23.2 166
BXRE-30E4000-C-8x 3000 80 1050 5760 5184 33.1 34.8 166
BXRE-30G4000-B-8x 3000 90 700 3127 2814 33.1 23.2 135
BXRE-30G4000-C-8x 3000 90 1050 4676 4208 33.1 34.8 134
BXRE-30G40H0-B-8x 3000 90 700 3274 2947 33.1 23.2 141
BXRE-30G40H0-C-8x 3000 90 1050 4896 4406 33.1 34.8 141
BXRE-30H4000-B-8x 3000 97 700 2832 2549 33.1 23.2 122
BXRE-30H4000-C-8x 3000 97 1050 4235 3812 33.1 34.8 122
BXRE-35E4000-B-8x 3500 80 700 3943 3548 33.1 23.2 170
BXRE-35E4000-C-8x 3500 80 1050 5896 5306 33.1 34.8 170
BXRE-35G4000-B-8x 3500 90 700 3240 2916 33.1 23.2 140
BXRE-35G4000-C-8x 3500 90 1050 4845 4361 33.1 34.8 139
BXRE-40C4001-B-8x 4000 70 700 4147 3732 33.1 23.2 179
BXRE-40C4001-C-8x 4000 70 1050 6200 5580 33.1 34.8 178
BXRE-40E4000-B-8x 4000 80 700 3965 3569 33.1 23.2 171
BXRE-40E4000-C-8x 4000 80 1050 5929 5336 33.1 34.8 171
BXRE-40G4000-B-8x 4000 90 700 3308 2977 33.1 23.2 143
BXRE-40G4000-C-8x 4000 90 1050 4947 4452 33.1 34.8 142



Part Number Nominal

CCT1 (K)

 CRI2 Nominal

Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typ(iV(c)a)l Vf Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85ºC

(lm)

 T c = 85ºC

(lm)
BXRE-50C4001-B-8x 5000 70 700 4169 3752 33.1 23.2 180
BXRE-50C4001-C-8x 5000 70 1050 6234 5611 33.1 34.8 179
BXRE-50E4001-B-8x 5000 80 700 4011 3610 33.1 23.2 173
BXRE-50E4001-C-8x 5000 80 1050 5997 5397 33.1 34.8 172
BXRE-50G4001-B-8x 5000 90 700 3467 3120 33.1 23.2 150
BXRE-50G4001-C-8x 5000 90 1050 4925 4433 33.1 34.8 149
BXRE-57C4001-B-8x 5700 70 700 4056 3650 33.1 23.2 175
BXRE-57C4001-C-8x 5700 70 1050 6065 5458 33.1 34.8 174
BXRE-57E4001-B-8x 5700 80 700 3852 3467 33.1 23.2 166
BXRE-57E4001-C-8x 5700 80 1050 5760 5184 33.1 34.8 166
BXRE-65C4001-B-8x 6500 70 700 4056 3650 33.1 23.2 175
BXRE-65C4001-C-8x 6500 70 1050 6065 5458 33.1 34.8 174
BXRE-65E4001-B-8x 6500 80 700 3897 3508 33.1 23.2 168
BXRE-65E4001-C-8x 6500 80 1050 5828 5245 33.1 34.8 168



Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Power

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRE-27E4000-B-8x 2700 80 2000 36.8 9450 73.5 128 E 869140
BXRE-27E4000-C-8x 2700 80 3000 36.8 14131 110.3 128 E 869145
BXRE-27G4000-B-8x 2700 90 1750 36.1 6984 63.2 111 F 869281
BXRE-27G4000-C-8x 2700 90 2530 35.9 10124 90.9 111 F 869286
BXRE-27G40H0-B-8x 2700 90 1970 36.7 8023 72.3 111 F 869292
BXRE-27G40H0-C-8x 2700 90 2880 36.6 11753 105.3 112 F 869296
BXRE-27H4000-B-8x 2700 95 1260 34.7 4645 43.8 106 F 869371
BXRE-27H4000-C-8x 2700 95 1760 34.5 6510 60.7 107 F 869373
BXRE-30C4001-B-8x 3000 70 2000 36.8 10514 73.5 143 E 869465
BXRE-30C4001-C-8x 3000 70 3000 36.8 15721 110.3 142 E 869471
BXRE-30E4000-B-8x 3000 80 2000 36.8 10041 73.5 137 E 869571
BXRE-30E4000-C-8x 3000 80 3000 36.8 15014 110.3 136 E 869576
BXRE-30G4000-B-8x 3000 90 1980 36.7 8073 72.7 111 F 869724
BXRE-30G4000-C-8x 3000 90 2890 36.6 11811 105.7 112 F 869729
BXRE-30G40H0-B-8x 3000 90 2000 36.8 8535 73.5 116 F 869741
BXRE-30G40H0-C-8x 3000 90 3000 36.8 12762 110.3 116 F 869745
BXRE-30H4000-B-8x 3000 95 1610 35.7 6162 57.5 107 F 869823
BXRE-30H4000-C-8x 3000 95 2320 35.5 8901 82.4 108 F 869827



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRE-35E4000-B-8x 3500 80 2000 36.8 10277 73.5 140 E 869942
BXRE-35E4000-C-8x 3500 80 3000 36.8 15367 110.3 139 E 869947
BXRE-35G4000-B-8x 3500 90 2000 36.8 8446 73.5 115 F 870036
BXRE-35G4000-C-8x 3500 90 3000 36.8 12629 110.3 114 F 870041
BXRE-40C4001-B-8x 4000 70 2000 36.8 10809 73.5 147 D 870146
BXRE-40C4001-C-8x 4000 70 3000 36.8 16162 110.3 146 D 870152
BXRE-40E4000-B-8x 4000 80 2000 36.8 10336 73.5 141 E 870251
BXRE-40E4000-C-8x 4000 80 3000 36.8 15456 110.3 140 E 870256
BXRE-40G4000-B-8x 4000 90 2000 36.8 8623 73.5 117 F 870358
BXRE-40G4000-C-8x 4000 90 3000 36.8 12894 110.3 117 F 870363
BXRE-50C4001-B-8x 5000 70 2000 36.8 10868 73.5 148 D 870467
BXRE-50C4001-C-8x 5000 70 3000 36.8 16250 110.3 147 D 870471
BXRE-50E4001-B-8x 5000 80 2000 36.8 10454 73.5 142 E 870542
BXRE-50E4001-C-8x 5000 80 3000 36.8 15632 110.3 142 E 870546
BXRE-50G4001-B-8x 5000 90 2000 36.8 9037 73.5 123 E 870612
BXRE-50G4001-C-8x 5000 90 3000 36.8 13513 110.3 122 E 870616
BXRE-57C4001-B-8x 5700 70 2000 36.8 10573 73.5 144 E 870723
BXRE-57C4001-C-8x 5700 70 3000 36.8 15809 110.3 143 E 870727
BXRE-57E4001-B-8x 5700 80 2000 36.8 10041 73.5 137 E 870777
BXRE-57E4001-C-8x 5700 80 3000 36.8 15014 110.3 136 E 870781
BXRE-65C4001-B-8x 6500 70 2000 36.8 10573 73.5 144 E 870851
BXRE-65C4001-C-8x 6500 70 3000 36.8 15809 110.3 143 E 870855
BXRE-65E4001-B-8x 6500 80 2000 36.8 10159 73.5 138 E 870906
BXRE-65E4001-C-8x 6500 80 3000 36.8 15191 110.3 138 E 870910
