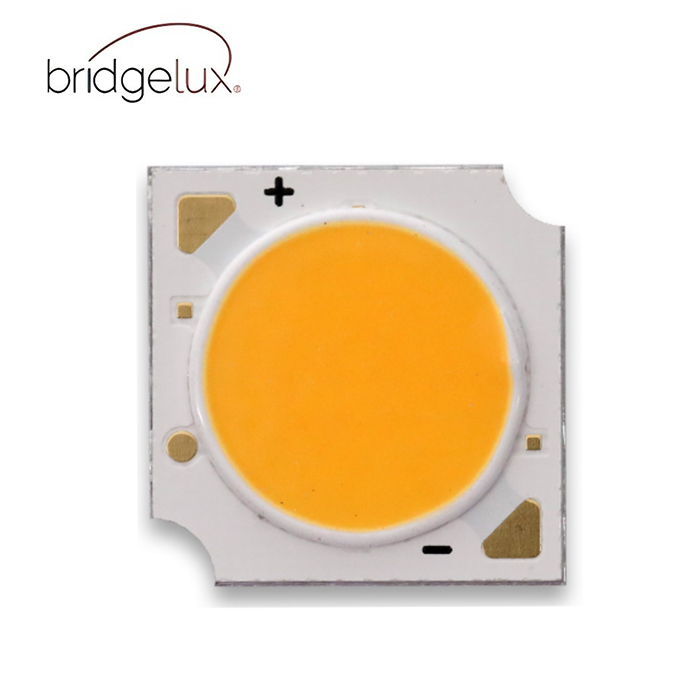

Bridgelux® E10 LED Array

The E Series LED array products deliver high quality of light in a compact and cost-effective solid-state lighting package. These chip-on-board (COB) arrays are available in multiple performance and electical configuration options, simplifying the design-in process. These high flux density light sources are designed to support a wide range of highly competitive directional luminaires and replacement lamps for commercial and residential applications.

Lighting system designs incorporating these LED arrays deliver increased system level efficacy. Typical applications in- clude, but are not limited to, replacement lamps, task, accent, spot, track, downlight, wide area, security, and wall pack.

Features
• Wide range of performance from 580 to 4950 lm with CCT options from 2700K – 6500K
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning structure with 3 and 5 SDCM options
• Higher energy efficiency than incandescent, halogen and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant

Benefits
• Supports many general lighting applications
• Enables tight beam control when used with secondary optics
• Clean white light without pixilation
• Low thermal resistance
• Uniform, consistent white light
• Lower operating costs
• Aligns with industry standard drivers to reduce system costs
• Easy to use with daylight and motion detectors to enable increased energy savings
• Environmentally friendly

product-1022-744

Product Family Product Doc Number Gen Typ. Flux (lm) If (mA) Vf (V) Efficacy (lm/W) Substrate Size (mm) CRI CCT (K)
BXKE E E10A DS442 750 160 38.5 122 10 70, 80, 90 2700-6500
BXKE E E10B DS442 1490 320 38 123 10 70, 80, 90 2700-6500
BXKE E E10C DS442 2178 480 37.3 122 10 70, 80, 90 2700-6500
BXKE E E10D DS442 3130 720 38.7 112 10 70, 80, 90 2700-6500



Table 1: Selection Guide, Pulsed Measurement Data (Tc = 25°C)

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical Power

(W)

 Typical

Efficacy

(lm/W)
BXKE-27E0800-A-1x 2700 80 160 716 623 38.5 6.2 116
BXKE-27E1500-B-1x 2700 80 320 1420 1235 38.0 12.2 117
BXKE-27E2000-C-1x 2700 80 480 2083 1811 37.3 17.9 116
BXKE-27E30H0-D-1x 2700 80 720 3005 2612 38.7 27.9 108
BXKE-27G0800-A-1x 2700 90 160 580 504 38.5 6.2 94
BXKE-27G1500-B-1x 2700 90 320 1150 1000 38.0 12.2 95
BXKE-27G2000-C-1x 2700 90 480 1689 1469 37.3 17.9 94
BXKE-27G30H0-D-1x 2700 90 720 2499 2173 38.7 27.9 90
BXKE-30E0800-A-1x 3000 80 160 750 652 38.5 6.2 122
BXKE-30E1500-B-1x 3000 80 320 1490 1296 38.0 12.2 123
BXKE-30E2000-C-1x 3000 80 480 2178 1894 37.3 17.9 122
BXKE-30E30H0-D-1x 3000 80 720 3130 2722 38.7 27.9 112
BXKE-30G0800-A-1x 3000 90 160 603 524 38.5 6.2 98
BXKE-30G1500-B-1x 3000 90 320 1200 1043 38.0 12.2 99
BXKE-30G2000-C-1x 3000 90 480 1753 1524 37.3 17.9 98
BXKE-30G30H0-D-1x 3000 90 720 2598 2259 38.7 27.9 93
BXKE-35E0800-A-1x 3500 80 160 775 674 38.5 6.2 126
BXKE-35E1500-B-1x 3500 80 320 1540 1339 38.0 12.2 127
BXKE-35E2000-C-1x 3500 80 480 2254 1960 37.3 17.9 126
BXKE-35E30H0-D-1x 3500 80 720 3224 2803 38.7 27.9 116
BXKE-35G0800-A-1x 3500 90 160 670 570 38.5 6.2 108
BXKE-35G1500-B-1x 3500 90 320 1240 1054 38.0 12.2 102
BXKE-35G2000-C-1x 3500 90 480 1814 1542 37.3 17.9 101
BXKE-35G30H0-D-1x 3500 90 720 2676 2328 38.7 27.9 96
BXKE-40E0800-A-1x 4000 80 160 780 678 38.5 6.2 127
BXKE-40E1500-B-1x 4000 80 320 1545 1343 38.0 12.2 127
BXKE-40E2000-C-1x 4000 80 480 2261 1966 37.3 17.9 126
BXKE-40E30H0-D-1x 4000 80 720 3254 2830 38.7 27.9 117



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical Power

(W)

 Typical

Efficacy

(lm/W)
BXKE-40G0800-A-1x 4000 90 160 674 573 38.5 6.2 109
BXKE-40G1500-B-1x 4000 90 320 1389 1181 38.0 12.2 114
BXKE-40G2000-C-1x 4000 90 480 1950 1657 37.3 17.9 108
BXKE-40G30H0-D-1x 4000 90 720 2701 2349 38.7 27.9 97
BXKE-50E0800-A-1x 5000 80 160 783 681 38.5 6.2 127
BXKE-50E1500-B-1x 5000 80 320 1555 1352 38.0 12.2 128
BXKE-50E2000-C-1x 5000 80 480 2273 1977 37.3 17.9 127
BXKE-50E30H0-D-1x 5000 80 720 3354 2916 38.7 27.9 120
BXKE-50G0800-A-1x 5000 90 160 659 560 38.5 6.2 106
BXKE-50G1500-B-1x 5000 90 320 1360 1156 38.0 12.2 112
BXKE-50G2000-C-1x 5000 90 480 1995 1696 37.3 17.9 112
BXKE-50G30H0-D-1x 5000 90 720 2860 2431 38.7 27.9 103
BXKE-56E0800-A-1x 5600 80 160 790 687 38.5 6.2 128
BXKE-56E1500-B-1x 5600 80 320 1570 1365 38.0 12.2 129
BXKE-56E2000-C-1x 5600 80 480 2299 1999 37.3 17.9 128
BXKE-56E30H0-D-1x 5600 80 720 3474 3021 38.7 27.9 125
BXKE-65E0800-A-1x 6500 80 160 800 696 38.5 6.2 130
BXKE-65E1500-B-1x 6500 80 320 1595 1387 38.0 12.2 131
BXKE-65E2000-C-1x 6500 80 480 2337 2032 37.3 17.9 131
BXKE-65E30H0-D-1x 6500 80 720 3528 3067 38.7 27.9 126



Table 2: Selection Guide, Pulsed Measurement Data (Tc = 85°C) 4,5

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical Power

(W)

 Typical

Efficacy

(lm/W)
BXKE-27E0800-A-1x 2700 80 160 630 548 37.6 6.0 105
BXKE-27E1500-B-1x 2700 80 320 1231 1070 37.3 11.9 103
BXKE-27E2000-C-1x 2700 80 480 1802 1567 36.4 17.5 103
BXKE-27E30H0-D-1x 2700 80 720 2644 2299 37.3 26.9 98
BXKE-27G0800-A-1x 2700 90 160 510 444 37.6 6.0 85
BXKE-27G1500-B-1x 2700 90 320 997 867 37.3 11.9 84
BXKE-27G2000-C-1x 2700 90 480 1461 1271 36.4 17.5 84
BXKE-27G30H0-D-1x 2700 90 720 2199 1912 37.3 26.9 82
BXKE-30E0800-A-1x 3000 80 160 660 574 37.6 6.0 110
BXKE-30E1500-B-1x 3000 80 320 1291 1123 37.3 11.9 108
BXKE-30E2000-C-1x 3000 80 480 1884 1638 36.4 17.5 108
BXKE-30E30H0-D-1x 3000 80 720 2754 2395 37.3 26.9 102
BXKE-30G0800-A-1x 3000 90 160 531 461 37.6 6.0 88
BXKE-30G1500-B-1x 3000 90 320 1040 904 37.3 11.9 87
BXKE-30G2000-C-1x 3000 90 480 1516 1318 36.4 17.5 87
BXKE-30G30H0-D-1x 3000 90 720 2286 1988 37.3 26.9 85
BXKE-35E0800-A-1x 3500 80 160 682 593 37.6 6.0 113
BXKE-35E1500-B-1x 3500 80 320 1335 1161 37.3 11.9 112
BXKE-35E2000-C-1x 3500 80 480 1950 1695 36.4 17.5 112
BXKE-35E30H0-D-1x 3500 80 720 2837 2467 37.3 26.9 105
BXKE-35G0800-A-1x 3500 90 160 589 500 37.6 6.0 98
BXKE-35G1500-B-1x 3500 90 320 1075 914 37.3 11.9 90
BXKE-35G2000-C-1x 3500 90 480 1569 1334 36.4 17.5 90
BXKE-35G30H0-D-1x 3500 90 720 2355 2048 37.3 26.9 87
BXKE-40E0800-A-1x 4000 80 160 686 597 37.6 6.0 114
BXKE-40E1500-B-1x 4000 80 320 1339 1164 37.3 11.9 112
BXKE-40E2000-C-1x 4000 80 480 1955 1701 36.4 17.5 112
BXKE-40E30H0-D-1x 4000 80 720 2865 2490 37.3 26.9 106



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Plused

Flux4,5

Tc = 85ºC

(lm)

 Minimum

Pulsed Flux6

Tc = 85ºC

(lm)

 Typical Vf

(V)

 Typical Power

(W)

 Typical

Efficacy

(lm/W)
BXKE-40G0800-A-1x 4000 90 160 592 503 37.6 6.0 99
BXKE-40G1500-B-1x 4000 90 320 1220 1037 37.3 11.9 103
BXKE-40G2000-C-1x 4000 90 480 1716 1458 36.4 17.5 98
BXKE-40G30H0-D-1x 4000 90 720 2378 2069 37.3 26.9 88
BXKE-50E0800-A-1x 5000 80 160 689 599 37.6 6.0 115
BXKE-50E1500-B-1x 5000 80 320 1348 1172 37.3 11.9 113
BXKE-50E2000-C-1x 5000 80 480 1966 1710 36.4 17.5 113
BXKE-50E30H0-D-1x 5000 80 720 2951 2566 37.3 26.9 110
BXKE-50G0800-A-1x 5000 90 160 579 492 37.6 6.0 97
BXKE-50G1500-B-1x 5000 90 320 1200 1020 37.3 11.9 101
BXKE-50G2000-C-1x 5000 90 480 1753 1490 36.4 17.5 100
BXKE-50G30H0-D-1x 5000 90 720 2513 2136 37.3 26.9 93
BXKE-56E0800-A-1x 5600 80 160 695 605 37.6 6.0 116
BXKE-56E1500-B-1x 5600 80 320 1361 1183 37.3 11.9 114
BXKE-56E2000-C-1x 5600 80 480 1988 1729 36.4 17.5 114
BXKE-56E30H0-D-1x 5600 80 720 3057 2658 37.3 26.9 114
BXKE-65E0800-A-1x 6500 80 160 704 612 37.6 6.0 117
BXKE-65E1500-B-1x 6500 80 320 1382 1202 37.3 11.9 116
BXKE-65E2000-C-1x 6500 80 480 2021 1758 36.4 17.5 116
BXKE-65E30H0-D-1x 6500 80 720 3105 2700 37.3 26.9 115



Table 3: Product Performance at Commonly Used Drive Currents

Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tc = 25.C

(V)

 Typical Power

Tc = 25.C

(W)

 Typical

Flux2

Tc = 25.C

(lm)

 Typical

Pulsed Flux3

Tc = 85.C

(lm)

 Typical

Efficacy

Tc = 25.C

(lm/W)
BXKE-27E0800-A-1x 80 80 35.4 2.8 389 343 138
120 37.1 4.4 561 494 126
160 38.5 6.2 716 630 116
200 40.1 8.0 864 760 108
240 41.4 9.9 994 875 100
BXKE-27E1500-B-1x 80 160 35.4 5.7 778 684 137
240 37.1 8.9 1117 983 126
320 38.0 12.2 1420 1231 116
400 39.5 15.8 1692 1489 107
480 40.3 19.3 1930 1699 100
BXKE-27E2000-C-1x 80 240 35.2 8.3 1146 1008 138
360 36.5 12.7 1645 1448 130
480 37.3 17.9 2083 1802 116
600 38.7 22.9 2479 2181 108
720 39.8 28.7 2833 2493 99
BXKE-27E30H0-D-1x 80 480 36.3 17.4 2128 1873 122
600 37.6 22.5 2589 2278 115
720 38.7 27.9 3005 2644 108
840 39.9 33.5 3426 3015 102
960 41.0 39.3 3804 3348 97
BXKE-27G0800-A-1x 90 80 35.4 2.8 315 278 111
120 37.1 4.4 455 400 102
160 38.5 6.2 580 510 94
200 40.1 8.0 700 616 87
240 41.4 9.9 805 709 81
BXKE-27G1500-B-1x 90 160 35.4 5.7 630 554 111
240 37.1 8.9 905 796 102
320 38.0 12.2 1150 997 95
400 39.5 15.8 1370 1206 87
480 40.3 19.3 1563 1376 81
BXKE-27G2000-C-1x 90 240 35.2 8.3 929 818 112
360 36.5 12.7 1334 1174 105
480 37.3 17.9 1689 1461 94
600 38.7 22.9 2010 1769 88
720 39.8 28.7 2297 2022 80



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tc = 25.C

(V)

 Typical Power

Tc = 25.C

(W)

 Typical

Flux2

Tc = 25.C

(lm)

 Typical

Pulsed Flux3

Tc = 85.C

(lm)

 Typical

Efficacy

Tc = 25.C

(lm/W)
BXKE-27G30H0-D-1x 90 480 36.3 17.4 1769 1557 102
600 37.6 22.5 2147 1889 95
720 38.7 27.9 2499 2199 90
840 39.9 33.5 2826 2487 84
960 41.0 39.3 3129 2753 80
BXKE-30E0800-A-1x 80 80 35.4 2.8 408 359 144
120 37.1 4.4 588 517 132
160 38.5 6.2 750 660 122
200 40.1 8.0 905 796 113
240 41.4 9.9 1041 916 105
BXKE-30E1500-B-1x 80 160 35.4 5.7 816 718 144
240 37.1 8.9 1172 1032 132
320 38.0 12.2 1490 1291 123
400 39.5 15.8 1775 1562 112
480 40.3 19.3 2025 1782 105
BXKE-30E2000-C-1x 80 240 35.2 8.3 1198 1054 145
360 36.5 12.7 1721 1514 136
480 37.3 17.9 2178 1884 122
600 38.7 22.9 2592 2281 113
720 39.8 28.7 2962 2607 103
BXKE-30E30H0-D-1x 80 480 36.3 17.4 2204 1939 127
600 37.6 22.5 2676 2355 119
720 38.7 27.9 3130 2754 112
840 39.9 33.5 3530 3107 105
960 41.0 39.3 3911 3442 100
BXKE-30G0800-A-1x 90 80 35.4 2.8 328 289 116
120 37.1 4.4 473 416 106
160 38.5 6.2 603 531 98
200 40.1 8.0 727 640 91
240 41.4 9.9 837 737 84
BXKE-30G1500-B-1x 90 160 35.4 5.7 657 578 116
240 37.1 8.9 944 831 106
320 38.0 12.2 1200 1040 99
400 39.5 15.8 1430 1258 90
480 40.3 19.3 1631 1435 84
BXKE-30G2000-C-1x 90 240 35.2 8.3 964 848 116
360 36.5 12.7 1385 1218 109
480 37.3 17.9 1753 1516 98
600 38.7 22.9 2086 1835 91
720 39.8 28.7 2384 2098 83
BXKE-30G30H0-D-1x 90 480 36.3 17.4 1833 1613 105
600 37.6 22.5 2226 1958 99
720 38.7 27.9 2598 2286 93
840 39.9 33.5 2939 2586 88
960 41.0 39.3 3257 2867 83



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tc = 25.C

(V)

 Typical Power

Tc = 25.C

(W)

 Typical

Flux2

Tc = 25.C

(lm)

 Typical

Pulsed Flux3

Tc = 85.C

(lm)

 Typical

Efficacy

Tc = 25.C

(lm/W)
BXKE-35E0800-A-1x 80 80 35.4 2.8 421 371 149
120 37.1 4.4 607 534 137
160 38.5 6.2 775 682 126
200 40.1 8.0 935 823 117
240 41.4 9.9 1076 947 108
BXKE-35E1500-B-1x 80 160 35.4 5.7 844 742 149
240 37.1 8.9 1212 1066 136
320 38.0 12.2 1540 1335 127
400 39.5 15.8 1835 1614 116
480 40.3 19.3 2093 1842 108
BXKE-35E2000-C-1x 80 240 35.2 8.3 1240 1091 150
360 36.5 12.7 1772 1557 140
480 37.3 17.9 2254 1950 126
600 38.7 22.9 2683 2361 117
720 39.8 28.7 3066 2698 107
BXKE-35E30H0-D-1x 80 480 36.3 17.4 2277 2004 131
600 37.6 22.5 2769 2436 123
720 38.7 27.9 3224 2837 116
840 39.9 33.5 3659 3219 109
960 41.0 39.3 4058 3570 103
BXKE-35G0800-A-1x 90 80 35.4 2.8 364 299 130
120 37.1 4.4 525 430 119
160 38.5 6.2 670 549 108
200 40.1 8.0 808 662 101
240 41.4 9.9 930 762 94
BXKE-35G1500-B-1x 90 160 35.4 5.7 680 597 119
240 37.1 8.9 976 858 110
320 38.0 12.2 1240 1075 102
400 39.5 15.8 1478 1300 94
480 40.3 19.3 1686 1483 87
BXKE-35G2000-C-1x 90 240 35.2 8.3 998 878 120
360 36.5 12.7 1426 1253 112
480 37.3 17.9 1814 1569 101
600 38.7 22.9 2159 1899 94
720 39.8 28.7 2468 2171 86
BXKE-35G30H0-D-1x 90 480 36.3 17.4 1894 1667 109
600 37.6 22.5 2303 2025 102
720 38.7 27.9 2676 2355 96
840 39.9 33.5 3046 2679 91
960 41.0 39.3 3379 2974 86
BXKE-40E0800-A-1x 80 80 35.4 2.8 424 373 150
120 37.1 4.4 611 538 137
160 38.5 6.2 780 686 127
200 40.1 8.0 941 828 117
240 41.4 9.9 1083 953 109



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tc = 25.C

(V)

 Typical Power

Tc = 25.C

(W)

 Typical

Flux2

Tc = 25.C

(lm)

 Typical

Pulsed Flux3

Tc = 85.C

(lm)

 Typical

Efficacy

Tc = 25.C

(lm/W)
BXKE-40E1500-B-1x 80 160 35.4 5.7 846 745 150
240 37.1 8.9 1216 1070 137
320 38.0 12.2 1545 1339 127
400 39.5 15.8 1841 1620 116
480 40.3 19.3 2100 1848 109
BXKE-40E2000-C-1x 80 240 35.2 8.3 1243 1094 150
360 36.5 12.7 1786 1572 141
480 37.3 17.9 2261 1955 126
600 38.7 22.9 2690 2367 117
720 39.8 28.7 3074 2705 107
BXKE-40E30H0-D-1x 80 480 36.3 17.4 2302 2026 132
600 37.6 22.5 2798 2462 124
720 38.7 27.9 3254 2865 117
840 39.9 33.5 3701 3256 110
960 41.0 39.3 4106 3613 104
BXKE-40G0800-A-1x 90 80 35.4 2.8 368 323 131
120 37.1 4.4 529 465 120
160 38.5 6.2 674 592 109
200 40.1 8.0 810 712 101
240 41.4 9.9 938 824 95
BXKE-40G1500-B-1x 90 160 35.4 5.7 759 667 133
240 37.1 8.9 1090 958 122
320 38.0 12.2 1389 1220 114
400 39.5 15.8 1671 1468 106
480 40.3 19.3 1933 1698 100
BXKE-40G2000-C-1x 90 240 35.2 8.3 1072 960 129
360 36.5 12.7 1541 1379 121
480 37.3 17.9 1950 1716 108
600 38.7 22.9 2321 2078 101
720 39.8 28.7 2653 2375 92
BXKE-40G30H0-D-1x 90 480 36.3 17.4 1915 1685 110
600 37.6 22.5 2327 2047 103
720 38.7 27.9 2701 2378 97
840 39.9 33.5 3081 2710 92
960 41.0 39.3 3419 3009 87
BXKE-50E0800-A-1x 80 80 35.4 2.8 426 375 150
120 37.1 4.4 614 540 138
160 38.5 6.2 783 689 127
200 40.1 8.0 944 831 118
240 41.4 9.9 1087 957 110
BXKE-50E1500-B-1x 80 160 35.4 5.7 852 750 150
240 37.1 8.9 1224 1077 138
320 38.0 12.2 1555 1348 128
400 39.5 15.8 1852 1630 117
480 40.3 19.3 2114 1860 109



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tc = 25.C

(V)

 Typical Power

Tc = 25.C

(W)

 Typical

Flux2

Tc = 25.C

(lm)

 Typical

Pulsed Flux3

Tc = 85.C

(lm)

 Typical

Efficacy

Tc = 25.C

(lm/W)
BXKE-50E2000-C-1x 80 240 35.2 8.3 1250 1100 151
360 36.5 12.7 1796 1580 142
480 37.3 17.9 2273 1966 127
600 38.7 22.9 2705 2381 118
720 39.8 28.7 3092 2721 108
BXKE-50E30H0-D-1x 80 480 36.3 17.4 2357 2075 135
600 37.6 22.5 2861 2517 127
720 38.7 27.9 3354 2951 120
840 39.9 33.5 3768 3316 112
960 41.0 39.3 4172 3671 106
BXKE-50G0800-A-1x 90 80 35.4 2.8 360 317 129
120 37.1 4.4 517 455 118
160 38.5 6.2 659 579 106
200 40.1 8.0 793 697 99
240 41.4 9.9 917 806 93
BXKE-50G1500-B-1x 90 160 35.4 5.7 743 653 131
240 37.1 8.9 1067 937 120
320 38.0 12.2 1360 1194 112
400 39.5 15.8 1635 1437 104
480 40.3 19.3 1892 1662 98
BXKE-50G2000-C-1x 90 240 35.2 8.3 1096 958 132
360 36.5 12.7 1566 1376 123
480 37.3 17.9 1995 1753 112
600 38.7 22.9 2400 2109 105
720 39.8 28.7 2777 2439 97
BXKE-50G30H0-D-1x 90 480 36.3 17.4 2037 1790 117
600 37.6 22.5 2461 2162 109
720 38.7 27.9 2860 2513 103
840 39.9 33.5 3254 2859 97
960 41.0 39.3 3613 3174 92
BXKE-56E0800-A-1x 80 80 35.4 2.8 430 378 152
120 37.1 4.4 619 545 139
160 38.5 6.2 790 695 128
200 40.1 8.0 953 838 119
240 41.4 9.9 1097 965 111
BXKE-56E1500-B-1x 80 160 35.4 5.7 860 757 152
240 37.1 8.9 1235 1087 139
320 38.0 12.2 1570 1361 129
400 39.5 15.8 1870 1646 118
480 40.3 19.3 2134 1878 110
BXKE-56E2000-C-1x 80 240 35.2 8.3 1264 1113 153
360 36.5 12.7 1816 1598 143
480 37.3 17.9 2299 1988 128
600 38.7 22.9 2735 2407 119
720 39.8 28.7 3126 2751 109



Part Number CRI Drive

Current1

(mA)

 Typical Vf

Tc = 25.C

(V)

 Typical Power

Tc = 25.C

(W)

 Typical

Flux2

product-1-1T = 25.C

(lm)

 Typical

Pulsed Flux3

Tc = 85.C

(lm)

 Typical

Efficacy

product-1-1T = 25.C

(lm/W)
BXKE-56E30H0-D-1x 80 480 36.3 17.4 2451 2157 141
600 37.6 22.5 2978 2621 132
720 38.7 27.9 3474 3057 125
840 39.9 33.5 3932 3461 117
960 41.0 39.3 4359 3836 111
BXKE-65E0800-A-1x 80 80 35.4 2.8 435 383 154
120 37.1 4.4 627 552 141
160 38.5 6.2 800 704 130
200 40.1 8.0 965 849 120
240 41.4 9.9 1111 978 112
BXKE-65E1500-B-1x 80 160 35.4 5.7 874 769 154
240 37.1 8.9 1255 1104 141
320 38.0 12.2 1595 1382 131
400 39.5 15.8 1900 1672 120
480 40.3 19.3 2168 1908 112
BXKE-65E2000-C-1x 80 240 35.2 8.3 1285 1131 155
360 36.5 12.7 1846 1625 146
480 37.3 17.9 2337 2021 131
600 38.7 22.9 2781 2447 121
720 39.8 28.7 3178 2797 111
BXKE-65E30H0-D-1x 80 480 36.3 17.4 2493 2194 143
600 37.6 22.5 3031 2667 135
720 38.7 27.9 3528 3105 126
840 39.9 33.5 4006 3525 120
960 41.0 39.3 4444 3910 113

Related products
