Description

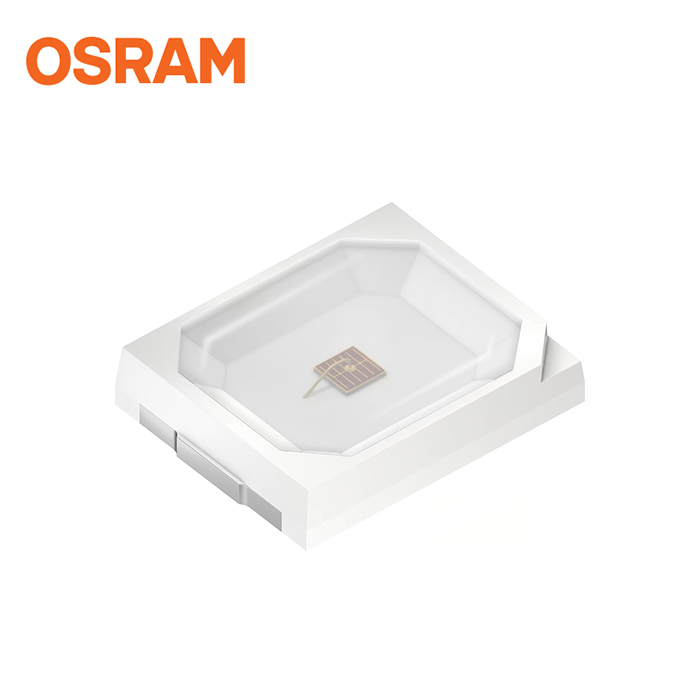

DURIS® E 2835 GA JTLPS1.23 The DURIS® E 2835 color family provide excellent color rendering and supreme efficacy in cost effective industry standard LED. DURIS® E 2835 never fails to impress with its performance on system level.

Applications

– Entertainment

– Indoor Lighting

Features

– Package: white SMT package, colorless clear silicone resin

– Typ. Radiation: 120° (Lambertian emitter)

– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

– Luminous Flux: typ. 34 lm

– Luminous efficacy: typ. 99 lm/W

Product Attribute Attribute Value
Manufacturer: ams OSRAM
Product Category: Single Color LEDs
RoHS:
Product: Amber LEDs
Mounting Style: SMD/SMT
Package / Case: 2835
Wavelength/Color Temperature: 615 nm
Illumination Color: Amber
Luminous Flux/Radiant Flux: 34.5 lm
If – Forward Current: 150 mA
Vf – Forward Voltage: 2.3 V
Power Rating: 350 mW
Lens Color: Colorless
Lens Shape: Rectangular with Sidecut
Lens Transparency: Clear
Series: GA JTLPS1.23
Packaging: Reel
Packaging: Cut Tape
Brand: ams OSRAM
Height: 0.7 mm
Length: 3.5 mm
Luminous Intensity: 11.1 cd
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 40 C
Moisture Sensitive: Yes
Product Type: Single Color LEDs
10000
Subcategory: LEDs
Tradename: DURIS
Type: Single Color LEDs
Viewing Angle: 120 deg
Width: 2.8 mm
Part # Aliases: GA JTLPS1.23-H2H7-23-1-150-R33 Q65113A5636
