Gen 8 Vero® SE 13 Array

Description

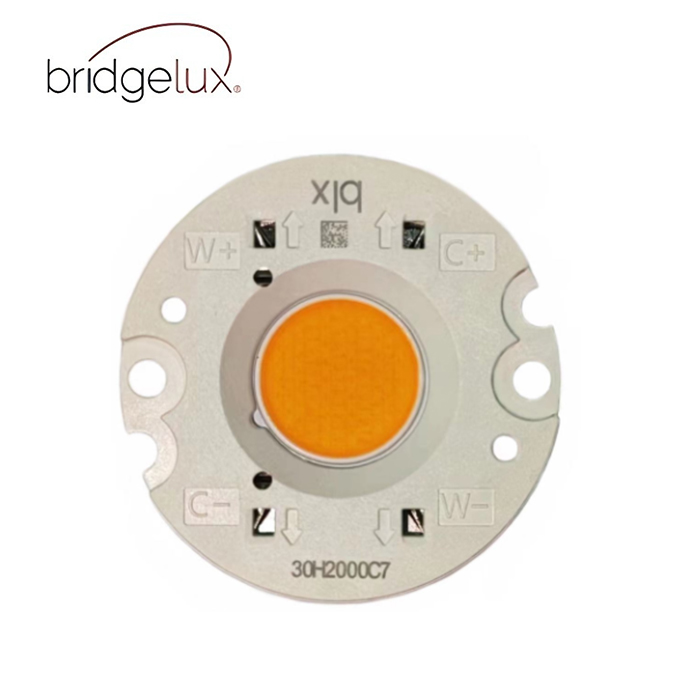

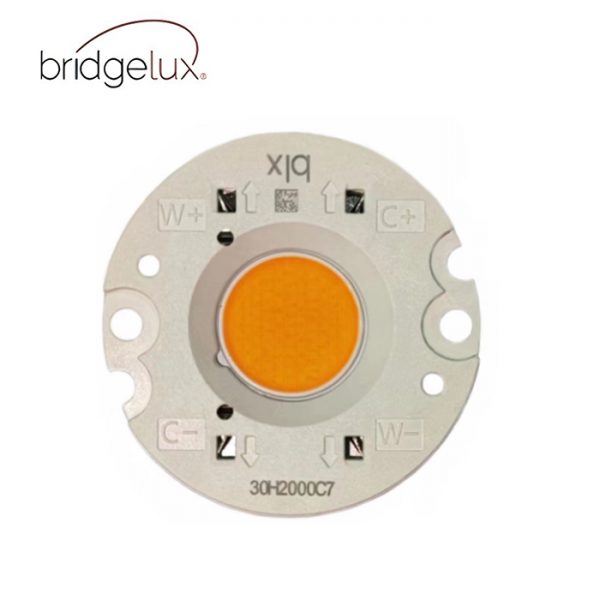

Bridgelux® Gen 8 Vero® SE 13 Array

The Vero® SE Series is a revolutionary light source system that integrates Bridgelux’s eighth generation COB technology with poke-in connectivity, enabling solder-free installation. Vero SE LED light sources streamline assembly processes, lower manufacturing costs, simplify the luminaire design process, improve light quality, and increase design flexibility.

Vero SE is available in four different light emitting surface (LES) configurations that operate reliably over a broad current range. With Vero SE, secondary connector and holder components are not required, allowing for rapid integration of arrays into fixtures, and an efficient field replaceable solution. Vero SE arrays deliver increased lumen density for improved beam control and precision lighting, with 2 and 3 SDCM color control standards for clean and consistent uniform lighting.

Features
• Poke-in electrical connectivity
• Top side part number markings
• Efficacy of 175 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes (backside marking)
• 10-Year warranty

Benefits
• Low cost, solderless, connector free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applica- tions
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Design with confidence

Product Family	Product	Part Number	Data Sheet	Doc Number	LES(mm)	CCT (K)	CRI Options	Typ. Flux(lm)	Current (mA)	Voltage (V)	Efficacy (lm/W)	Substrate Size (mm)	Gen
BXRC	Vero SE 13B	BXRC-xxx2000-B-8x-SE	Download Data Sheet	DS431	13.3	2200-6500	70, 80, 90,97	2048	350	33.4	175	⌀36.1	8
BXRC	Vero SE 13C	BXRC-xxx2000-C-8x-SE	Download Data Sheet	DS431	13.3	2200-6500	70, 80, 90,97	2930	500	33.4	175	⌀36.1	8
BXRC	Vero SE 13D	BXRC-xxx2000-D-8x-SE	Download Data Sheet	DS431	13.3	2200-6500	70, 80, 90,97	2156	400	30.9	175	⌀36.1	8

Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-22E2000-B-8X-SE	2200	80	350	1615	1454	33.4	11.7	138
BXRC-22E2000-C-8X-SE	2200	80	500	2307	2077	33.4	16.7	138
BXRC-22G2000-B-8X-SE	2200	90	350	1311	1180	33.4	11.7	112
BXRC-22G2000-C-8X-SE	2200	90	500	1873	1685	33.4	16.7	112
BXRC-27E2000-B-8x-SE	2700	80	350	1924	1732	33.4	11.7	165
BXRC-27E2000-C-8x-SE	2700	80	500	2749	2474	33.4	16.7	165
BXRC-27E2000-D-8x-SE	2700	80	400	2026	1824	30.9	12.4	164
BXRC-27G2000-B-8x-SE	2700	90	350	1587	1429	33.4	11.7	136
BXRC-27G2000-C-8x-SE	2700	90	500	2268	2041	33.4	16.7	136
BXRC-27G2000-D-8x-SE	2700	90	400	1672	1505	30.9	12.4	135
BXRC-27G20H0-B-8x-SE	2700	90	350	1656	1490	33.4	11.7	142
BXRC-27G20H0-C-8x-SE	2700	90	500	2366	2129	33.4	16.7	142
BXRC-27G20H0-D-8x-SE	2700	90	400	1744	1570	30.9	12.4	141
BXRC-27H2000-B-8x-SE	2700	97	350	1407	1266	33.4	11.7	120
BXRC-27H2000-C-8x-SE	2700	97	500	2010	1809	33.4	16.7	120
BXRC-27H2000-D-8x-SE	2700	97	400	1482	1334	30.9	12.4	120
BXRC-30C2001-B-8x-SE	3000	70	350	2140	1926	33.4	11.7	183
BXRC-30C2001-C-8x-SE	3000	70	500	3058	2752	33.4	16.7	183
BXRC-30C2001-D-8x-SE	3000	70	400	2254	2029	30.9	12.4	182
BXRC-30E2000-B-8x-SE	3000	80	350	2044	1840	33.4	11.7	175
BXRC-30E2000-C-8x-SE	3000	80	500	2920	2628	33.4	16.7	175
BXRC-30E2000-D-8x-SE	3000	80	400	2153	1938	30.9	12.4	174
BXRC-30G2000-B-8x-SE	3000	90	350	1659	1494	33.4	11.7	142
BXRC-30G2000-C-8x-SE	3000	90	500	2371	2134	33.4	16.7	142
BXRC-30G2000-D-8x-SE	3000	90	400	1748	1573	30.9	12.4	141
BXRC-30G20H0-B-8x-SE	3000	90	350	1738	1564	33.4	11.7	149
BXRC-30G20H0-C-8x-SE	3000	90	500	2482	2234	33.4	16.7	149
BXRC-30G20H0-D-8x-SE	3000	90	400	1830	1647	30.9	12.4	148
BXRC-30H2000-B-8x-SE	3000	97	350	1503	1353	33.4	11.7	129
BXRC-30H2000-C-8x-SE	3000	97	500	2147	1933	33.4	16.7	129
BXRC-30H2000-D-8x-SE	3000	97	400	1583	1425	30.9	12.4	128
BXRC-35E2000-B-8x-SE	3500	80	350	2092	1883	33.4	11.7	179
BXRC-35E2000-C-8x-SE	3500	80	500	2989	2690	33.4	16.7	179
BXRC-35E2000-D-8x-SE	3500	80	400	2204	1983	30.9	12.4	178
BXRC-35G2000-B-8x-SE	3500	90	350	1720	1548	33.4	11.7	147
BXRC-35G2000-C-8x-SE	3500	90	500	2457	2211	33.4	16.7	147
BXRC-35G2000-D-8x-SE	3500	90	400	1811	1630	30.9	12.4	147

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-40C2001-B-8x-SE	4000	70	350	2201	1981	33.4	11.7	188
BXRC-40C2001-C-8x-SE	4000	70	500	3144	2829	33.4	16.7	188
BXRC-40C2001-D-8x-SE	4000	70	400	2318	2086	30.9	12.4	188
BXRC-40E2000-B-8x-SE	4000	80	350	2104	1894	33.4	11.7	180
BXRC-40E2000-C-8x-SE	4000	80	500	3006	2706	33.4	16.7	180
BXRC-40E2000-D-8x-SE	4000	80	400	2216	1995	30.9	12.4	179
BXRC-40G2000-B-8x-SE	4000	90	350	1756	1580	33.4	11.7	150
BXRC-40G2000-C-8x-SE	4000	90	500	2508	2257	33.4	16.7	150
BXRC-40G2000-D-8x-SE	4000	90	400	1849	1664	30.9	12.4	150
BXRC-50C2001-B-8x-SE	5000	70	350	2213	1991	33.4	11.7	189
BXRC-50C2001-C-8x-SE	5000	70	500	3161	2845	33.4	16.7	189
BXRC-50C2001-D-8x-SE	5000	70	400	2330	2097	30.9	12.4	189
BXRC-50E2001-B-8x-SE	5000	80	350	2128	1916	33.4	11.7	182
BXRC-50E2001-C-8x-SE	5000	80	500	3041	2737	33.4	16.7	182
BXRC-50E2001-D-8x-SE	5000	80	400	2242	2018	30.9	12.4	181
BXRC-50G2001-B-8x-SE	5000	90	350	1840	1656	33.4	11.7	157
BXRC-50G2001-C-8x-SE	5000	90	500	2628	2366	33.4	16.7	157
BXRC-50G2001-D-8x-SE	5000	90	400	1938	1744	30.9	12.4	157
BXRC-57C2001-B-8x-SE	5700	70	350	2153	1937	33.4	11.7	184
BXRC-57C2001-C-8x-SE	5700	70	500	3075	2768	33.4	16.7	184
BXRC-57C2001-D-8x-SE	5700	70	400	2267	2040	30.9	12.4	183
BXRC-57E2001-B-8x-SE	5700	80	350	2044	1840	33.4	11.7	175
BXRC-57E2001-C-8x-SE	5700	80	500	2920	2628	33.4	16.7	175
BXRC-57E2001-D-8x-SE	5700	80	400	2153	1938	30.9	12.4	174
BXRC-65C2001-B-8x-SE	6500	70	350	2153	1937	33.4	11.7	184
BXRC-65C2001-C-8x-SE	6500	70	500	3075	2768	33.4	16.7	184
BXRC-65C2001-D-8x-SE	6500	70	400	2267	2040	30.9	12.4	183
BXRC-65E2001-B-8x-SE	6500	80	350	2068	1861	33.4	11.7	177
BXRC-65E2001-C-8x-SE	6500	80	500	2955	2659	33.4	16.7	177
BXRC-65E2001-D-8x-SE	6500	80	400	2178	1961	30.9	12.4	176

Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-22E2000-B-8X-SE	2200	80	350	1453		1308		32.7	11.4	127
BXRC-22E2000-C-8X-SE	2200	80	500	2076		1868		32.7	16.3	127
BXRC-22G2000-B-8X-SE	2200	90	350	1179		1062		32.7	11.4	103
BXRC-22G2000-C-8X-SE	2200	90	500	1685		1516		32.7	16.3	103
BXRC-27E2000-B-8x-SE	2700	80	350	1732		1558		32.7	11.4	151
BXRC-27E2000-C-8x-SE	2700	80	500	2474		2226		32.7	16.3	151
BXRC-27E2000-D-8x-SE	2700	80	400	1824		1641		30.2	12.1	151
BXRC-27G2000-B-8x-SE	2700	90	350	1429		1286		32.7	11.4	125
BXRC-27G2000-C-8x-SE	2700	90	500	2041		1837		32.7	16.3	125
BXRC-27G2000-D-8x-SE	2700	90	400	1505		1354		30.2	12.1	124
BXRC-27G20H0-B-8x-SE	2700	90	350	1490		1341		32.7	11.4	130
BXRC-27G20H0-C-8x-SE	2700	90	500	2129		1916		32.7	16.3	130
BXRC-27G20H0-D-8x-SE	2700	90	400	1570		1413		30.2	12.1	130
BXRC-27H2000-B-8x-SE	2700	97	350	1266		1140		32.7	11.4	111
BXRC-27H2000-C-8x-SE	2700	97	500	1809		1628		32.7	16.3	111
BXRC-27H2000-D-8x-SE	2700	97	400	1334		1200		30.2	12.1	110
BXRC-30C2001-B-8x-SE	3000	70	350	1926		1734		32.7	11.4	168
BXRC-30C2001-C-8x-SE	3000	70	500	2752		2477		32.7	16.3	168
BXRC-30C2001-D-8x-SE	3000	70	400	2029		1826		30.2	12.1	168
BXRC-30E2000-B-8x-SE	3000	80	350	1840		1656		32.7	11.4	161
BXRC-30E2000-C-8x-SE	3000	80	500	2628		2366		32.7	16.3	161
BXRC-30E2000-D-8x-SE	3000	80	400	1938		1744		30.2	12.1	160
BXRC-30G2000-B-8x-SE	3000	90	350	1494		1344		32.7	11.4	131
BXRC-30G2000-C-8x-SE	3000	90	500	2134		1920		32.7	16.3	131
BXRC-30G2000-D-8x-SE	3000	90	400	1573		1416		30.2	12.1	130
BXRC-30G20H0-B-8x-SE	3000	90	350	1564		1407		32.7	11.4	137
BXRC-30G20H0-C-8x-SE	3000	90	500	2234		2011		32.7	16.3	137
BXRC-30G20H0-D-8x-SE	3000	90	400	1647		1482		30.2	12.1	136
BXRC-30H2000-B-8x-SE	3000	97	350	1353		1218		32.7	11.4	118
BXRC-30H2000-C-8x-SE	3000	97	500	1933		1739		32.7	16.3	118
BXRC-30H2000-D-8x-SE	3000	97	400	1425		1282		30.2	12.1	118
BXRC-35E2000-B-8x-SE	3500	80	350	1883		1695		32.7	11.4	165
BXRC-35E2000-C-8x-SE	3500	80	500	2690		2421		32.7	16.3	165
BXRC-35E2000-D-8x-SE	3500	80	400	1983		1785		30.2	12.1	164
BXRC-35G2000-B-8x-SE	3500	90	350	1548		1393		32.7	11.4	135
BXRC-35G2000-C-8x-SE	3500	90	500	2211		1990		32.7	16.3	135

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-35G2000-D-8x-SE	3500	90	400	1630		1467		30.2	12.1	135
BXRC-40G2000-B-8x-SE	4000	90	350	1580		1422		32.7	11.4	138
BXRC-40G2000-C-8x-SE	4000	90	500	2257		2032		32.7	16.3	138
BXRC-40G2000-D-8x-SE	4000	90	400	1664		1498		30.2	12.1	138
BXRC-40C2001-B-8x-SE	4000	70	350	1981		1782		32.7	11.4	173
BXRC-40C2001-C-8x-SE	4000	70	500	2829		2546		32.7	16.3	173
BXRC-40C2001-D-8x-SE	4000	70	400	2086		1877		30.2	12.1	173
BXRC-40E2000-B-8x-SE	4000	80	350	1894		1705		32.7	11.4	166
BXRC-40E2000-C-8x-SE	4000	80	500	2706		2435		32.7	16.3	166
BXRC-40E2000-D-8x-SE	4000	80	400	1995		1795		30.2	12.1	165
BXRC-40G2000-B-8x-SE	4000	90	350	1580		1422		32.7	11.4	138
BXRC-40G2000-C-8x-SE	4000	90	500	2257		2032		32.7	16.3	138
BXRC-40G2000-D-8x-SE	4000	90	400	1664		1498		30.2	12.1	138
BXRC-50C2001-B-8x-SE	5000	70	350	1991		1792		32.7	11.4	174
BXRC-50C2001-C-8x-SE	5000	70	500	2845		2560		32.7	16.3	174
BXRC-50C2001-D-8x-SE	5000	70	400	2097		1888		30.2	12.1	173
BXRC-50E2001-B-8x-SE	5000	80	350	1916		1724		32.7	11.4	167
BXRC-50E2001-C-8x-SE	5000	80	500	2737		2463		32.7	16.3	167
BXRC-50E2001-D-8x-SE	5000	80	400	2018		1816		30.2	12.1	167
BXRC-50G2001-B-8x-SE	5000	90	350	1656		1490		32.7	11.4	145
BXRC-50G2001-C-8x-SE	5000	90	500	2366		2129		32.7	16.3	145
BXRC-50G2001-D-8x-SE	5000	90	400	1744		1570		30.2	12.1	144
BXRC-57C2001-B-8x-SE	5700	70	350	1937		1744		32.7	11.4	169
BXRC-57C2001-C-8x-SE	5700	70	500	2768		2491		32.7	16.3	169
BXRC-57C2001-D-8x-SE	5700	70	400	2040		1836		30.2	12.1	169
BXRC-57E2001-B-8x-SE	5700	80	350	1840		1656		32.7	11.4	161
BXRC-57E2001-C-8x-SE	5700	80	500	2628		2366		32.7	16.3	161
BXRC-57E2001-D-8x-SE	5700	80	400	1938		1744		30.2	12.1	160
BXRC-65C2001-B-8x-SE	6500	70	350	1937		1744		32.7	11.4	169
BXRC-65C2001-C-8x-SE	6500	70	500	2768		2491		32.7	16.3	169
BXRC-65C2001-D-8x-SE	6500	70	400	2040		1836		30.2	12.1	169
BXRC-65E2001-B-8x-SE	6500	80	350	1861		1675		32.7	11.4	163
BXRC-65E2001-C-8x-SE	6500	80	500	2659		2393		32.7	16.3	163
BXRC-65E2001-D-8x-SE	6500	80	400	1961		1764		30.2	12.1	162

Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-27E2000-B-83-SE	2700	80	1250	38.3	4867	47.9	102	E	872493
BXRC-27E2000-C-83-SE	2700	80	1750	36.8	6829	64.4	106	E	872498
BXRC-27E2000-D-83-SE	2700	80	1250	33.4	4549	41.8	109	E	872503
BXRC-27G2000-B-83-SE	2700	90	1250	38.3	4015	47.9	84	F	872579
BXRC-27G2000-C-83-SE	2700	90	1750	36.8	5634	64.4	88	F	872584
BXRC-27G2000-D-83-SE	2700	90	1250	33.4	3753	41.8	90	F	872589
BXRC-27G20H0-B-83-SE	2700	90	1250	38.3	4189	47.9	87	F	872593
BXRC-27G20H0-C-83-SE	2700	90	1750	36.8	5877	64.4	91	F	872597
BXRC-27G20H0-D-83-SE	2700	90	1250	33.4	3915	41.8	94	F	872601
BXRC-27H2000-B-83-SE	2700	95	1070	37.5	3130	40.1	78	G	872652
BXRC-27H2000-C-83-SE	2700	95	1650	36.5	4757	60.2	79	F	872656
BXRC-27H2000-D-83-SE	2700	95	1250	33.4	3327	41.8	80	F	872660
BXRC-30C2001-B-83-SE	3000	70	1250	38.3	5415	47.9	113	E	872731
BXRC-30C2001-C-83-SE	3000	70	1750	36.8	7598	64.4	118	E	872737
BXRC-30C2001-D-83-SE	3000	70	1250	33.4	5061	41.8	121	E	872743
BXRC-30E2000-B-83-SE	3000	80	1250	38.3	5171	47.9	108	E	872799
BXRC-30E2000-C-83-SE	3000	80	1750	36.8	7256	64.4	113	E	872804
BXRC-30E2000-D-83-SE	3000	80	1250	33.4	4834	41.8	116	E	872809
BXRC-30G2000-B-83-SE	3000	90	1250	38.3	4198	47.9	88	F	872889

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-30G2000-C-83-SE	3000	90	1750	36.8	5890	64.4	92	F	872894
BXRC-30G2000-D-83-SE	3000	90	1250	33.4	3924	41.8	94	F	872899
BXRC-30G20H0-B-83-SE	3000	90	1250	38.3	4396	47.9	92	F	872910
BXRC-30G20H0-C-83-SE	3000	90	1750	36.8	6168	64.4	96	F	872914
BXRC-30G20H0-D-83-SE	3000	90	1250	33.4	4109	41.8	98	F	872918
BXRC-30H2000-B-83-SE	3000	95	1250	38.3	3802	47.9	79	F	872975
BXRC-30H2000-C-83-SE	3000	95	1750	36.8	5335	64.4	83	F	872979
BXRC-30H2000-D-83-SE	3000	95	1250	33.4	3554	41.8	85	F	872983
BXRC-35E2000-B-83-SE	3500	80	1250	38.3	5293	47.9	110	E	873046
BXRC-35E2000-C-83-SE	3500	80	1750	36.8	7427	64.4	115	E	873051
BXRC-35E2000-D-83-SE	3500	80	1250	33.4	4947	41.8	118	E	873056
BXRC-35G2000-B-83-SE	3500	90	1250	38.3	4350	47.9	91	F	873108
BXRC-35G2000-C-83-SE	3500	90	1750	36.8	6104	64.4	95	F	873113
BXRC-35G2000-D-83-SE	3500	90	1250	33.4	4066	41.8	97	F	873118
BXRC-40C2001-B-83-SE	4000	70	1250	38.3	5567	47.9	116	E	873194
BXRC-40C2001-C-83-SE	4000	70	1750	36.8	7811	64.4	121	E	873200
BXRC-40C2001-D-83-SE	4000	70	1250	33.4	5203	41.8	124	D	873206
BXRC-40E2000-B-83-SE	4000	80	1250	38.3	5323	47.9	111	E	873262
BXRC-40E2000-C-83-SE	4000	80	1750	36.8	7470	64.4	116	E	873267
BXRC-40E2000-D-83-SE	4000	80	1250	33.4	4976	41.8	119	E	873272
BXRC-40G2000-B-83-SE	4000	90	1250	38.3	4441	47.9	93	F	873324
BXRC-40G2000-C-83-SE	4000	90	1750	36.8	6232	64.4	97	F	873329
BXRC-40G2000-D-83-SE	4000	90	1250	33.4	4151	41.8	99	F	873334
BXRC-50C2001-B-83-SE	5000	70	1250	38.3	5597	47.9	117	E	873398
BXRC-50C2001-C-83-SE	5000	70	1750	36.8	7854	64.4	122	E	873402
BXRC-50C2001-D-83-SE	5000	70	1250	33.4	5232	41.8	125	D	873406
BXRC-50E2001-B-83-SE	5000	80	1250	38.3	5384	47.9	112	E	873446
BXRC-50E2001-C-83-SE	5000	80	1750	36.8	7555	64.4	117	E	873450
BXRC-50E2001-D-83-SE	5000	80	1250	33.4	5033	41.8	120	E	873454
BXRC-50G2001-B-83-SE	5000	90	1250	38.3	4654	47.9	97	F	873494
BXRC-50G2001-C-83-SE	5000	90	1750	36.8	6530	64.4	101	E	873498
BXRC-50G2001-D-83-SE	5000	90	1250	33.4	4350	41.8	104	E	873502
BXRC-57C2001-B-83-SE	5700	70	1250	38.3	5445	47.9	114	E	873580

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-57C2001-C-83-SE	5700	70	1750	36.8	7640	64.4	119	E	873584
BXRC-57C2001-D-83-SE	5700	70	1250	33.4	5089	41.8	122	E	873588
BXRC-57E2001-B-83-SE	5700	80	1250	38.3	5171	47.9	108	E	873628
BXRC-57E2001-C-83-SE	5700	80	1750	36.8	7256	64.4	113	E	873632
BXRC-57E2001-D-83-SE	5700	80	1250	33.4	4834	41.8	116	E	873636
BXRC-65C2001-B-83-SE	6500	70	1250	38.3	5445	47.9	114	E	873676
BXRC-65C2001-C-83-SE	6500	70	1750	36.8	7640	64.4	119	E	873680
BXRC-65C2001-D-83-SE	6500	70	1250	33.4	5089	41.8	122	E	873684
BXRC-65E2001-B-83-SE	6500	80	1250	38.3	5232	47.9	109	E	873724
BXRC-65E2001-C-83-SE	6500	80	1750	36.8	7341	64.4	114	E	873728
BXRC-65E2001-D-83-SE	6500	80	1250	33.4	4890	41.8	117	E	873732
