Gen 8 Vero® SE 18 Array

Description

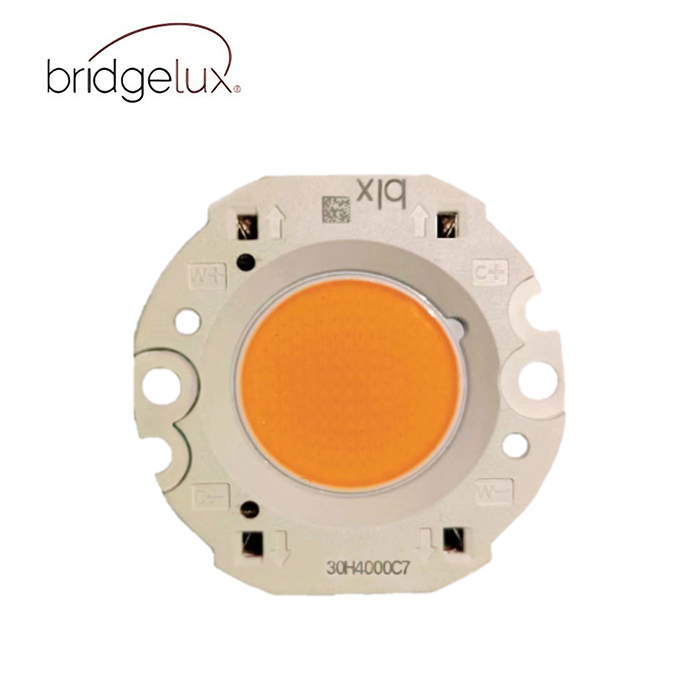

Bridgelux® Gen 8 Vero® SE 18 Array

The Vero® SE Series is a revolutionary light source system that integrates Bridgelux’s eighth generation COB technology with poke-in connectivity, enabling solder-free installation. Vero SE LED light sources streamline assembly processes, lower manufacturing costs, simplify the luminaire design process, improve light quality, and increase design flexibility.

Vero SE is available in four different light emitting surface (LES) configurations that operate reliably over a broad current range. With Vero SE, secondary connector and holder components are not required, allowing for rapid integration of arrays into fixtures, and an efficient field replaceable solution. Vero SE arrays deliver increased lumen density for improved beam control and precision lighting, with 2 and 3 SDCM color control standards for clean and consistent uniform lighting.

Features
• Poke-in electrical connectivity
• Top side part number markings
• Efficacy of 177 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes (backside marking)
• 10-Year warranty

Benefits
• Low cost, solderless, connector free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applica-tions
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Design with confidence

Product Family	Product	Part Number	Doc Number	LES(mm)	CCT (K)	CRI Options	Typ. Flux(lm)	Current (mA)	Voltage (V)	Efficacy (lm/W)	Substrate Size (mm)	Gen
BXRC	Vero SE 18B	BXRC-xxx400x-B-8x-SE	DS432	18.5	2700-6500	70, 80, 90,97	4224	700	33.9	178	⌀36.1	8
BXRC	Vero SE 18C	BXRC-xxx400x-C-8x-SE	DS432	18.5	2700-6500	70, 80, 90,97	6317	1050	33.9	178	⌀36.1	8
BXRC	Vero SE 18D	BXRC-xxx400x-D-8x-SE	DS432	18.5	2700-6500	70, 80, 90,97	4254	850	28.2	178	⌀36.1	8

Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-27E4000-B-8x-SE	2700	80	700	3976	3578	33.9	23.7	168
BXRC-27E4000-C-8x-SE	2700	80	1050	5945	5351	33.9	35.6	167
BXRC-27E4000-D-8x-SE	2700	80	850	4002	3602	28.2	24.0	167
BXRC-27G4000-B-8x-SE	2700	90	700	3280	2952	33.9	23.7	138
BXRC-27G4000-C-8x-SE	2700	90	1050	4905	4414	33.9	35.6	138
BXRC-27G4000-D-8x-SE	2700	90	850	3302	2971	28.2	24.0	138
BXRC-27G40H0-B-8x-SE	2700	90	700	3422	3080	33.9	23.7	144
BXRC-27G40H0-C-8x-SE	2700	90	1050	5117	4605	33.9	35.6	144
BXRC-27G40H0-D-8x-SE	2700	90	850	3444	3100	28.2	24.0	144
BXRC-27H4000-B-8x-SE	2700	97	700	2907	2617	33.9	23.7	123
BXRC-27H4000-C-8x-SE	2700	97	1050	4347	3913	33.9	35.6	122
BXRC-27H4000-D-8x-SE	2700	97	850	2926	2634	28.2	24.0	122
BXRC-30C4001-B-8x-SE	3000	70	700	4423	3981	33.9	23.7	186
BXRC-30C4001-C-8x-SE	3000	70	1050	6614	5953	33.9	35.6	186
BXRC-30C4001-D-8x-SE	3000	70	850	4452	4007	28.2	24.0	186
BXRC-30E4000-B-8x-SE	3000	80	700	4224	3802	33.9	23.7	178
BXRC-30E4000-C-8x-SE	3000	80	1050	6317	5685	33.9	35.6	177
BXRC-30E4000-D-8x-SE	3000	80	850	4252	3827	28.2	24.0	177
BXRC-30G4000-B-8x-SE	3000	90	700	3429	3086	33.9	23.7	145
BXRC-30G4000-C-8x-SE	3000	90	1050	5128	4615	33.9	35.6	144
BXRC-30G4000-D-8x-SE	3000	90	850	3452	3106	28.2	24.0	144
BXRC-30G40H0-B-8x-SE	3000	90	700	3591	3232	33.9	23.7	151
BXRC-30G40H0-C-8x-SE	3000	90	1050	5369	4832	33.9	35.6	151
BXRC-30G40H0-D-8x-SE	3000	90	850	3614	3253	28.2	24.0	151
BXRC-30H4000-B-8x-SE	3000	97	700	3106	2796	33.9	23.7	131
BXRC-30H4000-C-8x-SE	3000	97	1050	4645	4180	33.9	35.6	130
BXRC-30H4000-D-8x-SE	3000	97	850	3126	2814	28.2	24.0	130
BXRC-35E4000-B-8x-SE	3500	80	700	4324	3891	33.9	23.7	182
BXRC-35E4000-C-8x-SE	3500	80	1050	6465	5819	33.9	35.6	182
BXRC-35E4000-D-8x-SE	3500	80	850	4352	3917	28.2	24.0	182
BXRC-35G4000-B-8x-SE	3500	90	700	3553	3198	33.9	23.7	150
BXRC-35G4000-C-8x-SE	3500	90	1050	5314	4782	33.9	35.6	149
BXRC-35G4000-D-8x-SE	3500	90	850	3577	3219	28.2	24.0	149
BXRC-40C4001-B-8x-SE	4000	70	700	4547	4093	33.9	23.7	192
BXRC-40C4001-C-8x-SE	4000	70	1050	6800	6120	33.9	35.6	191
BXRC-40C4001-D-8x-SE	4000	70	850	4577	4119	28.2	24.0	191

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-40E4000-B-8x-SE	4000	80	700	4349	3914	33.9	23.7	183
BXRC-40E4000-C-8x-SE	4000	80	1050	6503	5852	33.9	35.6	183
BXRC-40E4000-D-8x-SE	4000	80	850	4377	3939	28.2	24.0	183
BXRC-40G4000-B-8x-SE	4000	90	700	3628	3265	33.9	23.7	153
BXRC-40G4000-C-8x-SE	4000	90	1050	5425	4883	33.9	35.6	152
BXRC-40G4000-D-8x-SE	4000	90	850	3652	3287	28.2	24.0	152
BXRC-40H4000-B-8x-SE	4000	97	700	3241	2917	33.9	23.7	137
BXRC-50C4001-B-8x-SE	5000	70	700	4572	4115	33.9	23.7	193
BXRC-50C4001-C-8x-SE	5000	70	1050	6837	6153	33.9	35.6	192
BXRC-50C4001-D-8x-SE	5000	70	850	4602	4142	28.2	24.0	192
BXRC-50E4001-B-8x-SE	5000	80	700	4398	3958	33.9	23.7	185
BXRC-50E4001-C-8x-SE	5000	80	1050	6577	5919	33.9	35.6	185
BXRC-50E4001-D-8x-SE	5000	80	850	4427	3984	28.2	24.0	185
BXRC-50G4001-B-8x-SE	5000	90	700	3802	3422	33.9	23.7	160
BXRC-50G4001-C-8x-SE	5000	90	1050	5685	5117	33.9	35.6	160
BXRC-50G4001-D-8x-SE	5000	90	850	3827	3444	28.2	24.0	160
BXRC-57C4001-B-8x-SE	5700	70	700	4448	4003	33.9	23.7	187
BXRC-57C4001-C-8x-SE	5700	70	1050	6651	5986	33.9	35.6	187
BXRC-57C4001-D-8x-SE	5700	70	850	4477	4029	28.2	24.0	187
BXRC-57E4001-B-8x-SE	5700	80	700	4224	3802	33.9	23.7	178
BXRC-57E4001-C-8x-SE	5700	80	1050	6317	5685	33.9	35.6	177
BXRC-57E4001-D-8x-SE	5700	80	850	4252	3827	28.2	24.0	177
BXRC-65C4001-B-8x-SE	6500	70	700	4448	4003	33.9	23.7	187
BXRC-65C4001-C-8x-SE	6500	70	1050	6651	5986	33.9	35.6	187
BXRC-65C4001-D-8x-SE	6500	70	850	4477	4029	28.2	24.0	187
BXRC-65E4001-B-8x-SE	6500	80	700	4274	3847	33.9	23.7	180
BXRC-65E4001-C-8x-SE	6500	80	1050	6391	5752	33.9	35.6	180
BXRC-65E4001-D-8x-SE	6500	80	850	4302	3872	28.2	24.0	179

Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-27E4000-B-8x-SE	2700	80	700	3578		3220		33.1	23.2	154
BXRC-27E4000-C-8x-SE	2700	80	1050	5351		4816		33.1	34.8	154
BXRC-27E4000-D-8x-SE	2700	80	850	3602		3242		27.7	23.5	153
BXRC-27G4000-B-8x-SE	2700	90	700	2952		2657		33.1	23.2	127
BXRC-27G4000-C-8x-SE	2700	90	1050	4414		3973		33.1	34.8	127
BXRC-27G4000-D-8x-SE	2700	90	850	2971		2674		27.7	23.5	126
BXRC-27G40H0-B-8x-SE	2700	90	700	3080		2772		33.1	23.2	133
BXRC-27G40H0-C-8x-SE	2700	90	1050	4605		4144		33.1	34.8	132
BXRC-27G40H0-D-8x-SE	2700	90	850	3100		2790		27.7	23.5	132
BXRC-27H4000-B-8x-SE	2700	97	700	2617		2355		33.1	23.2	113
BXRC-27H4000-C-8x-SE	2700	97	1050	3913		3521		33.1	34.8	113
BXRC-27H4000-D-8x-SE	2700	97	850	2634		2370		27.7	23.5	112
BXRC-30C4001-B-8x-SE	3000	70	700	3981		3583		33.1	23.2	172
BXRC-30C4001-C-8x-SE	3000	70	1050	5953		5357		33.1	34.8	171
BXRC-30C4001-D-8x-SE	3000	70	850	4007		3606		27.7	23.5	170
BXRC-30E4000-B-8x-SE	3000	80	700	3802		3422		33.1	23.2	164
BXRC-30E4000-C-8x-SE	3000	80	1050	5685		5117		33.1	34.8	163
BXRC-30E4000-D-8x-SE	3000	80	850	3827		3444		27.7	23.5	163
BXRC-30G4000-B-8x-SE	3000	90	700	3086		2778		33.1	23.2	133
BXRC-30G4000-C-8x-SE	3000	90	1050	4615		4153		33.1	34.8	133
BXRC-30G4000-D-8x-SE	3000	90	850	3106		2796		27.7	23.5	132
BXRC-30G40H0-B-8x-SE	3000	90	700	3232		2908		33.1	23.2	139
BXRC-30G40H0-C-8x-SE	3000	90	1050	4832		4349		33.1	34.8	139
BXRC-30G40H0-D-8x-SE	3000	90	850	3253		2927		27.7	23.5	138
BXRC-30H4000-B-8x-SE	3000	97	700	2796		2516		33.1	23.2	121
BXRC-30H4000-C-8x-SE	3000	97	1050	4180		3762		33.1	34.8	120
BXRC-30H4000-D-8x-SE	3000	97	850	2814		2532		27.7	23.5	120
BXRC-35E4000-B-8x-SE	3500	80	700	3891		3502		33.1	23.2	168
BXRC-35E4000-C-8x-SE	3500	80	1050	5819		5237		33.1	34.8	167
BXRC-35E4000-D-8x-SE	3500	80	850	3917		3525		27.7	23.5	167
BXRC-35G4000-B-8x-SE	3500	90	700	3198		2878		33.1	23.2	138
BXRC-35G4000-C-8x-SE	3500	90	1050	4782		4304		33.1	34.8	138
BXRC-35G4000-D-8x-SE	3500	90	850	3219		2897		27.7	23.5	137
BXRC-40C4001-B-8x-SE	4000	70	700	4093		3683		33.1	23.2	177
BXRC-40C4001-C-8x-SE	4000	70	1050	6120		5508		33.1	34.8	176
BXRC-40C4001-D-8x-SE	4000	70	850	4119		3707		27.7	23.5	175

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-40E4000-B-8x-SE	4000	80	700	3914		3522		33.1	23.2	169
BXRC-40E4000-C-8x-SE	4000	80	1050	5852		5267		33.1	34.8	168
BXRC-40E4000-D-8x-SE	4000	80	850	3939		3545		27.7	23.5	168
BXRC-40G4000-B-8x-SE	4000	90	700	3265		2939		33.1	23.2	141
BXRC-40G4000-C-8x-SE	4000	90	1050	4883		4394		33.1	34.8	140
BXRC-40G4000-D-8x-SE	4000	90	850	3287		2958		27.7	23.5	140
BXRC-40H4000-B-8x-SE	4000	97	700	2917		2625		33.1	23.2	126
BXRC-50C4001-B-8x-SE	5000	70	700	4115		3704		33.1	23.2	177
BXRC-50C4001-C-8x-SE	5000	70	1050	6153		5538		33.1	34.8	177
BXRC-50C4001-D-8x-SE	5000	70	850	4142		3728		27.7	23.5	176
BXRC-50E4001-B-8x-SE	5000	80	700	3958		3563		33.1	23.2	171
BXRC-50E4001-C-8x-SE	5000	80	1050	5919		5327		33.1	34.8	170
BXRC-50E4001-D-8x-SE	5000	80	850	3984		3586		27.7	23.5	169
BXRC-50G4001-B-8x-SE	5000	90	700	3422		3080		33.1	23.2	148
BXRC-50G4001-C-8x-SE	5000	90	1050	5117		4605		33.1	34.8	147
BXRC-50G4001-D-8x-SE	5000	90	850	3444		3100		27.7	23.5	146
BXRC-57C4001-B-8x-SE	5700	70	700	4003		3603		33.1	23.2	173
BXRC-57C4001-C-8x-SE	5700	70	1050	5986		5387		33.1	34.8	172
BXRC-57C4001-D-8x-SE	5700	70	850	4029		3626		27.7	23.5	171
BXRC-57E4001-B-8x-SE	5700	80	700	3802		3422		33.1	23.2	164
BXRC-57E4001-C-8x-SE	5700	80	1050	5685		5117		33.1	34.8	163
BXRC-57E4001-D-8x-SE	5700	80	850	3827		3444		27.7	23.5	163
BXRC-65C4001-B-8x-SE	6500	70	700	4003		3603		33.1	23.2	173
BXRC-65C4001-C-8x-SE	6500	70	1050	5986		5387		33.1	34.8	172
BXRC-65C4001-D-8x-SE	6500	70	850	4029		3626		27.7	23.5	171
BXRC-65E4001-B-8x-SE	6500	80	700	3847		3462		33.1	23.2	166
BXRC-65E4001-C-8x-SE	6500	80	1050	5752		5177		33.1	34.8	165
BXRC-65E4001-D-8x-SE	6500	80	850	3872		3485		27.7	23.5	165

Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-27E4000-B-83-SE	2700	80	2000	36.8	8033	73.5	109	E	872508
BXRC-27E4000-C-83-SE	2700	80	3000	36.8	12011	110.3	109	E	872513
BXRC-27E4000-D-83-SE	2700	80	2500	30.7	8297	76.7	108	E	872518
BXRC-27G4000-B-83-SE	2700	90	2000	36.8	6627	73.5	90	F	872606
BXRC-27G4000-C-83-SE	2700	90	3000	36.8	9909	110.3	90	F	872611
BXRC-27G4000-D-83-SE	2700	90	2500	30.7	6845	76.7	89	F	872616
BXRC-27G40H0-B-83-SE	2700	90	2000	36.8	6913	73.5	94	F	872620
BXRC-27G40H0-C-83-SE	2700	90	3000	36.8	10337	110.3	94	F	872624
BXRC-27G40H0-D-83-SE	2700	90	2500	30.7	7141	76.7	93	F	872628
BXRC-27H4000-B-83-SE	2700	95	2000	36.8	5874	73.5	80	F	872664
BXRC-27H4000-C-83-SE	2700	95	2940	36.7	8629	107.8	80	F	872668
BXRC-27H4000-D-83-SE	2700	95	2450	30.6	5961	75.0	80	F	872672
BXRC-30C4001-B-83-SE	3000	70	2000	36.8	8937	73.5	122	E	872749
BXRC-30C4001-C-83-SE	3000	70	3000	36.8	13362	110.3	121	E	872755
BXRC-30C4001-D-83-SE	3000	70	2500	30.7	9231	76.7	120	E	872761
BXRC-30E4000-B-83-SE	3000	80	2000	36.8	8535	73.5	116	E	872814
BXRC-30E4000-C-83-SE	3000	80	3000	36.8	12762	110.3	116	E	872819
BXRC-30E4000-D-83-SE	3000	80	2500	30.7	8816	76.7	115	E	872824

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-30G4000-B-83-SE	3000	90	2000	36.8	6928	73.5	94	F	872923
BXRC-30G4000-C-83-SE	3000	90	3000	36.8	10360	110.3	94	F	872928
BXRC-30G4000-D-83-SE	3000	90	2500	30.7	7157	76.7	93	F	872933
BXRC-30G40H0-B-83-SE	3000	90	2000	36.8	7255	73.5	99	F	872943
BXRC-30G40H0-C-83-SE	3000	90	3000	36.8	10848	110.3	98	F	872947
BXRC-30G40H0-D-83-SE	3000	90	2500	30.7	7494	76.7	98	F	872951
BXRC-30H4000-B-83-SE	3000	95	2000	36.8	6276	73.5	85	F	872987
BXRC-30H4000-C-83-SE	3000	95	3000	36.8	9384	110.3	85	F	872991
BXRC-30H4000-D-83-SE	3000	95	2500	30.7	6482	76.7	84	F	872995
BXRC-35E4000-B-83-SE	3500	80	2000	36.8	8736	73.5	119	E	873061
BXRC-35E4000-C-83-SE	3500	80	3000	36.8	13062	110.3	118	E	873066
BXRC-35E4000-D-83-SE	3500	80	2500	30.7	9023	76.7	118	E	873071
BXRC-35G4000-B-83-SE	3500	90	2000	36.8	7179	73.5	98	F	873123
BXRC-35G4000-C-83-SE	3500	90	3000	36.8	10735	110.3	97	F	873128
BXRC-35G4000-D-83-SE	3500	90	2500	30.7	7416	76.7	97	F	873133
BXRC-40C4001-B-83-SE	4000	70	2000	36.8	9188	73.5	125	D	873212
BXRC-40C4001-C-83-SE	4000	70	3000	36.8	13738	110.3	125	D	873218
BXRC-40C4001-D-83-SE	4000	70	2500	30.7	9490	76.7	124	E	873224
BXRC-40E4000-B-83-SE	4000	80	2000	36.8	8786	73.5	119	E	873277
BXRC-40E4000-C-83-SE	4000	80	3000	36.8	13137	110.3	119	E	873282
BXRC-40E4000-D-83-SE	4000	80	2500	30.7	9075	76.7	118	E	873287
BXRC-40G4000-B-83-SE	4000	90	2000	36.8	7330	73.5	100	F	873339
BXRC-40G4000-C-83-SE	4000	90	3000	36.8	10960	110.3	99	F	873344
BXRC-40G4000-D-83-SE	4000	90	2500	30.7	7571	76.7	99	F	873349
BXRC-50C4001-B-83-SE	5000	70	2000	36.8	9238	73.5	126	D	873410
BXRC-50C4001-C-83-SE	5000	70	3000	36.8	13813	110.3	125	D	873414
BXRC-50C4001-D-83-SE	5000	70	2500	30.7	9542	76.7	124	D	873418
BXRC-50E4001-B-83-SE	5000	80	2000	36.8	8886	73.5	121	E	873458
BXRC-50E4001-C-83-SE	5000	80	3000	36.8	13287	110.3	120	E	873462
BXRC-50E4001-D-83-SE	5000	80	2500	30.7	9179	76.7	120	E	873466
BXRC-50G4001-B-83-SE	5000	90	2000	36.8	7681	73.5	104	E	873506
BXRC-50G4001-C-83-SE	5000	90	3000	36.8	11486	110.3	104	E	873510
BXRC-50G4001-D-83-SE	5000	90	2500	30.7	7934	76.7	103	E	873514

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-57C4001-B-83-SE	5700	70	2000	36.8	8987	73.5	122	E	873592
BXRC-57C4001-C-83-SE	5700	70	3000	36.8	13438	110.3	122	E	873596
BXRC-57C4001-D-83-SE	5700	70	2500	30.7	9283	76.7	121	E	873600
BXRC-57E4001-B-83-SE	5700	80	2000	36.8	8535	73.5	116	E	873640
BXRC-57E4001-C-83-SE	5700	80	3000	36.8	12762	110.3	116	E	873644
BXRC-57E4001-D-83-SE	5700	80	2500	30.7	8816	76.7	115	E	873648
BXRC-65C4001-B-83-SE	6500	70	2000	36.8	8987	73.5	122	E	873688
BXRC-65C4001-C-83-SE	6500	70	3000	36.8	13438	110.3	122	E	873692
BXRC-65C4001-D-83-SE	6500	70	2500	30.7	9283	76.7	121	E	873696
BXRC-65E4001-B-83-SE	6500	80	2000	36.8	8635	73.5	117	E	873736
BXRC-65E4001-C-83-SE	6500	80	3000	36.8	12912	110.3	117	E	873740
BXRC-65E4001-D-83-SE	6500	80	2500	30.7	8920	76.7	116	E	873744
